Lexus GX460 2017 Owner's Manual

GX 460 _O M_ OM6 0F 6 8U _(U )
3794-6. Driving tips
4
Driving
■Tire chain installation
Observe the following precautions when installing and removing chains:
●Install and remove tire chains in a safe location.
●Install tire chains on the rear tires. Do not install tire chains on the front tires.
●Install tire chains on rear tires as tightly as possible. Retighten chains after driving 1 /4 -
1 /2 mile (0.5 - 1.0 km).
●Install tire chains following the instructions provided with the tire chains.
CAUTION
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of ve hicle control and cause death or serious injury.
●Use tires of the specified size.
●Maintain the recommended level of air pressure.
●Do not drive in excess of 75 mph (120 km/h), regardless of the type of snow tires
being used.
●Use snow tires on all, not just some wheels.
●Do not use LDA (Lane Departure Alert) system. (if equipped)
■Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely, and may
cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being used, or 30
mph (50 km/h), whichever is lower.
●Avoid driving on bumpy road surfaces or over potholes.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations
that cause sudden engine braking.
●Slow down sufficiently before entering a cu rve to ensure that vehicle control is main-
tained.
●Do not use LDA (Lane Departure Alert) system. (if equipped)
NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow tires from Lexus dealers or legitimate tire
retailers.
This is because the removal and attachment of snow tires affects the operation of the
tire pressure warning valves and transmitters.
■Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly when tire
chains are fitted.
GX460_OM_OM60F68U_(U).book Page 379 Wednesday, June 8, 2016 6:37 PM

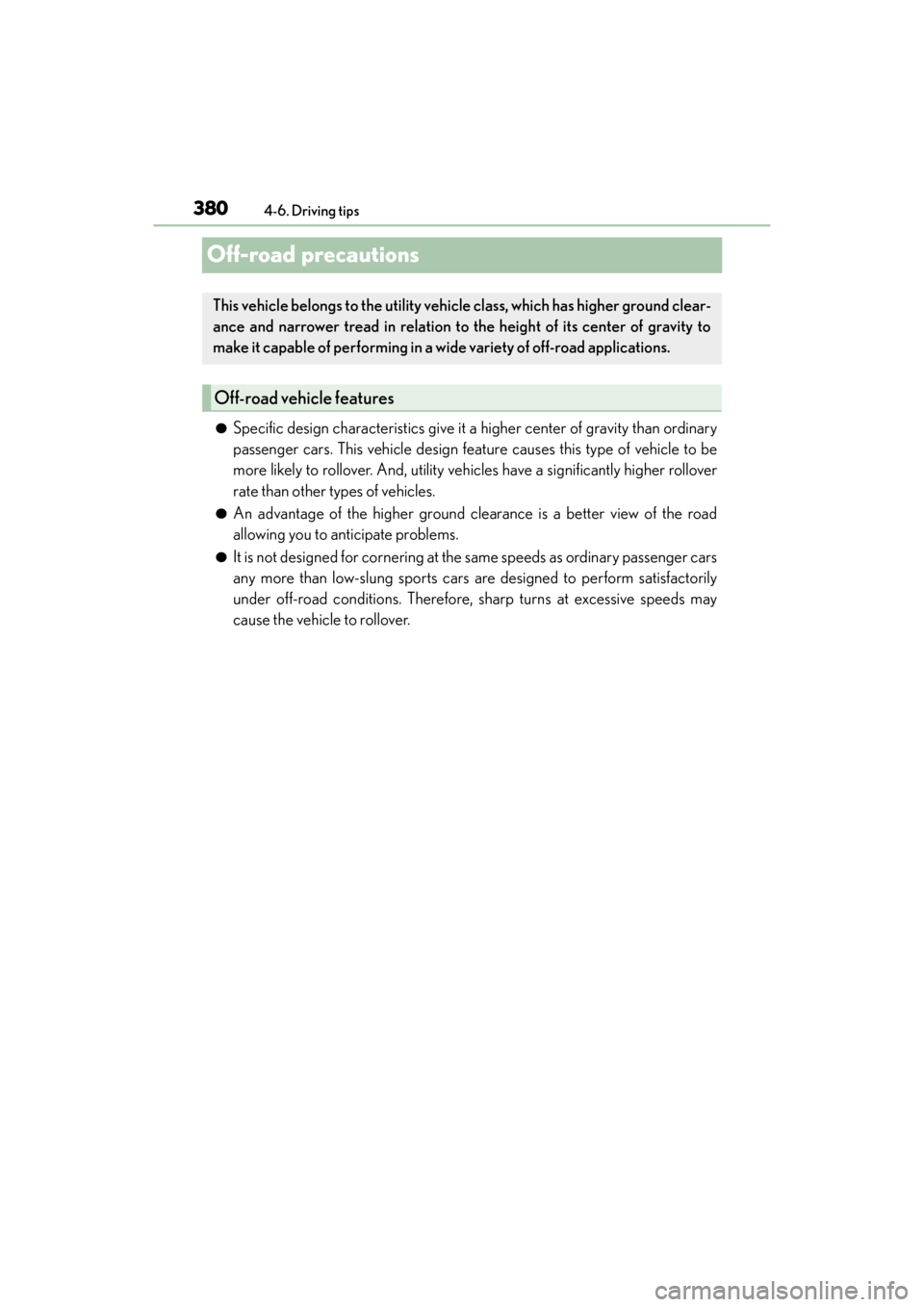

380
GX 460 _O M_ OM6 0F 6 8U _(U )4-6. Driving tips
Off-road precautions
●Specific design characteristics give it a higher center of gravity than ordinary
passenger cars. This vehicle design feature causes this type of vehicle to be
more likely to rollover. And, utility vehicles have a significantly higher rollover
rate than other types of vehicles.
●An advantage of the higher ground clearance is a better view of the road
allowing you to anticipate problems.
●It is not designed for corn
ering at the same speeds as ordinary passenger cars
any more than low-slung sports cars are designed to perform satisfactorily
under off-road conditions. Therefore, sharp turns at excessive speeds may
cause the vehicle to rollover.
This vehicle belongs to the utility vehicle class, which has higher ground clear-
ance and narrower tread in relation to the height of its center of gravity to
make it capable of performing in a wide variety of off-road applications.
Off-road vehicle features
GX460_OM_OM60F68U_(U).book Page 380 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
3814-6. Driving tips
4
Driving

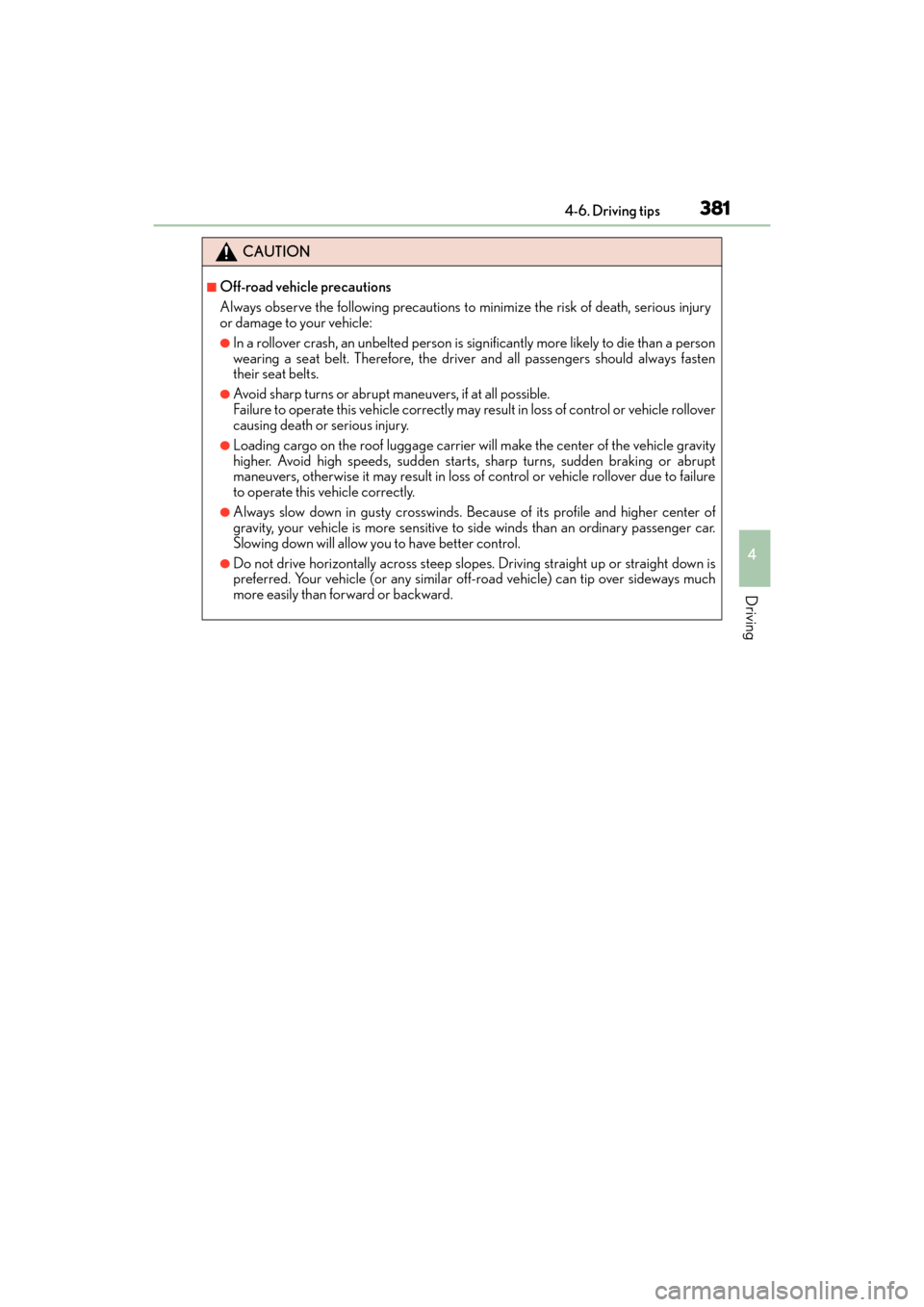

CAUTION
■Off-road vehicle precautions
Always observe the following precautions to minimize the risk of death, serious injury
or damage to your vehicle:
●In a rollover crash, an unbelted person is significantly more likely to die than a person
wearing a seat belt. Therefore, the driver and all passengers should always fasten
their seat belts.
●Avoid sharp turns or abrupt maneuvers, if at all possible.
Failure to operate this vehicle correctly may result in loss of control or vehicle rollover
causing death or serious injury.
●Loading cargo on the roof luggage carrier w ill make the center of the vehicle gravity
higher. Avoid high speeds, sudden starts, sharp turns, sudden braking or abrupt
maneuvers, otherwise it may result in loss of control or vehicle rollover due to failure
to operate this vehicle correctly.
●Always slow down in gusty crosswinds. Because of its profile and higher center of
gravity, your vehicle is more sensitive to side winds than an ordinary passenger car.
Slowing down will allow you to have better control.
●Do not drive horizontally across steep slopes. Driving straight up or straight down is
preferred. Your vehicle (or any similar off-road vehicle) can tip over sideways much
more easily than forward or backward.
GX460_OM_OM60F68U_(U).book Page 381 Wednesday, June 8, 2016 6:37 PM

382
GX 460 _O M_ OM6 0F 6 8U _(U )4-6. Driving tips
When driving your vehicle off-road, please observe the following precautions to
ensure your driving enjoyment and to he
lp prevent the closure of areas to off-
road vehicles:
●Drive your vehicle only in areas where off-road vehicles are permitted to
travel.
●Respect private property. Get owner’s permission before entering private
property.
●Do not enter areas that are closed. Honor gates, barriers and signs that
restrict travel.
●Stay on established roads. When conditions are wet, driving techniques
should be changed or travel delayed to prevent damage to roads.
■Additional information for off-road driving
XFor owners in U.S. mainland, Hawaii and Puerto Rico:
To obtain additional information pertaining to driving your vehicle off-road, consult the
following organizations:
●State and Local Parks and Recreation Departments
●State Motor Vehicle Bureau
●Recreational Vehicle Clubs
●U.S. Forest Service and Bureau of Land Management
Off-road driving
GX460_OM_OM60F68U_(U).book Page 382 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
3834-6. Driving tips
4
Driving
CAUTION
■Off-road driving precautions
Always observe the following precautions to minimize the risk of death, serious injury
or damage to your vehicle:
●Drive carefully when off the road. Do not take unnecessary risks by driving in danger-
ous places.
●Do not grip the steering wheel spokes when driving off-road. A bad bump could jerk
the wheel and injure your hands. Keep both hands and especially your thumbs on the
outside of the rim.
●Always check your brakes for effectiveness immediately after driving in sand, mud,
water or snow.
●After driving through tall grass, mud, rock, sand, rivers, etc., check that there is no
grass, bush, paper, rags, stone, sand, etc. adhering or trapped on the underbody.
Clear off any such matter from the underbody. If the vehicle is used with these materi-
als trapped or adhering to the underbody, a breakdown or fire could occur.
●When driving off-road or in rugged terrain , do not drive at excessive speeds, jump,
make sharp turns, strike objects, etc. This may cause loss of control or vehicle rollover
causing death or serious injury. You are also risking expensive damage to your vehi-
cle’s suspension and chassis.
GX460_OM_OM60F68U_(U).book Page 383 Wednesday, June 8, 2016 6:37 PM

384
GX 460 _O M_ OM6 0F 6 8U _(U )4-6. Driving tips
NOTICE
■To prevent the water damage
Take all necessary safety measures to ensure that water damage to the engine or other
components does not occur.
●Water entering the engine air intake will cause severe engine damage.
●Water entering the automatic transmission
will cause deterioration in shift quality,
locking up of your transmission accompanied by vibration, and ultimately damage.
●Water can wash the grease from wheel bearings, causing rusting and premature fail-
ure, and may also enter the differentials, transmission and transfer case, reducing the
gear oil’s lubricating qualities.
■When you drive through water
If driving through water, such as when crossing shallow streams, first check the depth of
the water and the bottom of the riverbed for firmness. Drive slowly and avoid deep
water.
■Inspection after off-road driving
●Sand and mud that has accumulated in brake drums and around brake discs may
affect braking efficiency and may damage brake system components.
●Always perform a maintenance inspection afte r each day of off-road driving that has
taken you through rough terrain, sand, mud, or water. For scheduled maintenance
information, refer to the “Warranty and Services Guide”, “Owner’s Manual Supple-
ment” or “Scheduled Maintenance”.
GX460_OM_OM60F68U_(U).book Page 384 Wednesday, June 8, 2016 6:37 PM

385
GX 460 _O M_ OM6 0F 6 8U _(U )
5Interior features
5-1. Using the air conditioning system and defogger
Front automatic air conditioning system .............. 386
Rear air conditioning system ..........................................396
Heated steering wheel/seat heaters/seat ventilators.........399
5-2. Using the interior lights Interior lights list..........................402• Personal/interior lights main switch .............................403
• Personal/interior lights...... 404 5-3. Using the storage features
List of storage features ............405• Glove box ...............................406
• Console box...........................406
• Coin holder ........................... 408
• Cup holders/bottle holders/ door pockets......................... 408
• Auxiliary boxes ...................... 410
Luggage compartment features..........................................412
5-4. Using the other interior features
Other interior features ............. 419 • Cool box ................................... 419
• Sun visors ..................................421
• Vanity mirror ............................421
• Conversation mirror........... 422
• Clock ........................................ 422
• Power outlets ......................... 423
• Armrest .....................................427
• Coat hooks ............................. 428
• Assist grips.............................. 428
• Compass ................................. 429
Garage door opener................ 433
LEXUS Enform Safety Connect ...................................... 439
GX460_OM_OM60F68U_(U).book Page 385 Wednesday, June 8, 2016 6:37 PM

386
GX 460 _O M_ OM6 0F 6 8U _(U )5-1. Using the air conditioning system and defogger
Front automatic air conditioning system
◆Control panel
◆Control screen
Air outlets and fan speed are automatically adjusted according to the temper-
ature setting.
Press the “CLIMATE” button to display the air conditioning control screen.
XWithout a navigation systemXWith a navigation system
GX460_OM_OM60F68U_(U).book Page 386 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
3875-1. Using the air conditioning system and defogger
5
Interior features
■Adjusting the temperature setting
Press to increase the temperature and to decrease the tempera-
ture.
■Adjusting the fan speed setting
Press to increase the fan speed and to decrease the fan speed.
Press the “OFF” button to turn the fan off.
■Changing the air flow mode
Select an air outlet switch.
■Option control screen
Touch on the climate screen to display the option control screen. The
functions can be switched on and off.
Select to set cooling and dehu-
midification function on/off
Adjust the temperature for driver
and passenger seats separately
(“DUAL” mode)/driver, passen-
ger and rear seats separately (“3-
ZO NE ” m o d e) ( →P. 3 8 8 )
Prevent ice from building up on
the windshield and wiper blades
(if equipped) ( →P. 3 9 1 )
Remove pollen from the air ( →P. 3 9 1 )
1
2
3
4
GX460_OM_OM60F68U_(U).book Page 387 Wednesday, June 8, 2016 6:37 PM

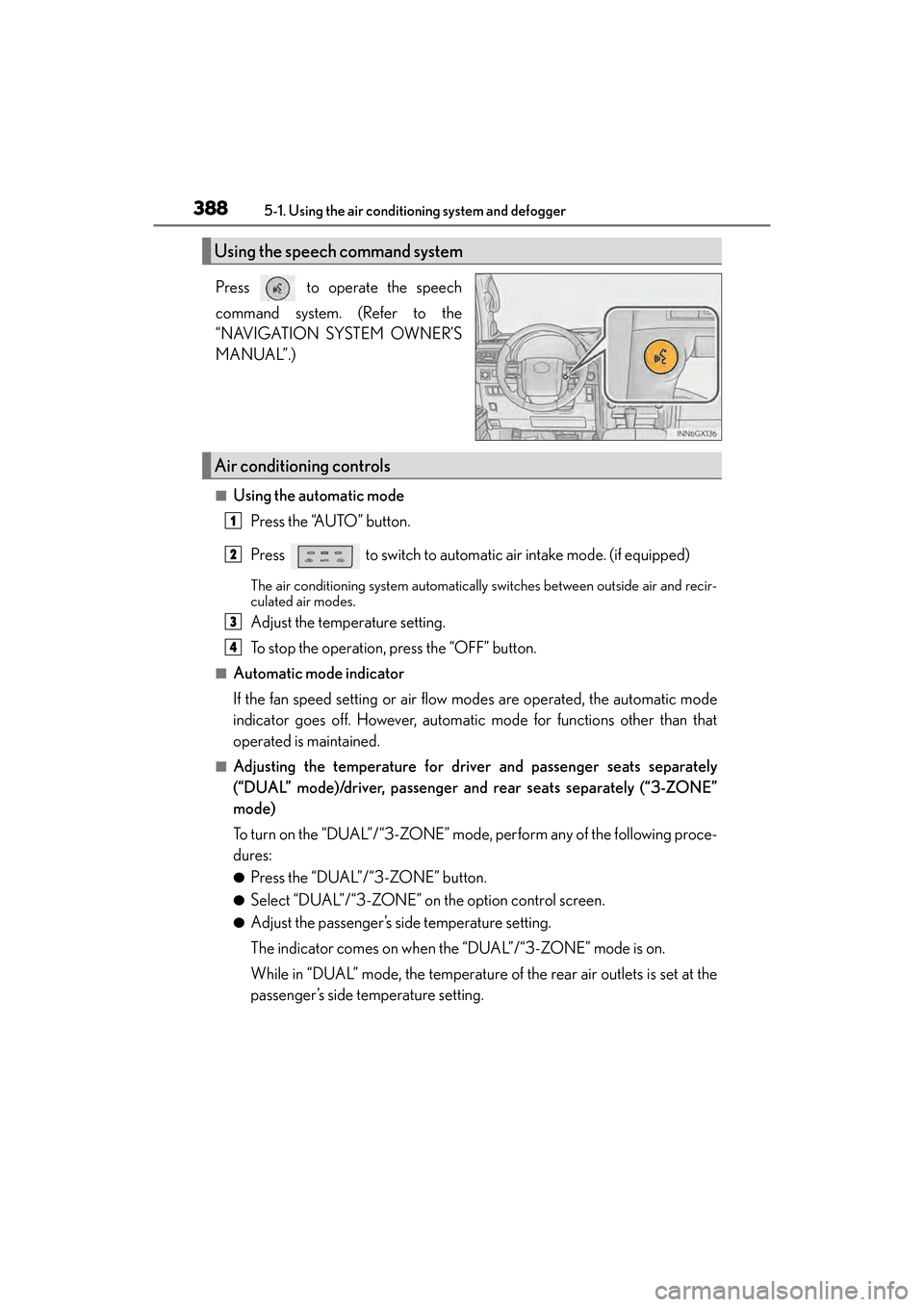

3885-1. Using the air conditioning system and defogger
GX 460 _O M_ OM6 0F 6 8U _(U )
Press to operate the speech
command system. (Refer to the
“NAVIGATION SYSTEM OWNER’S
MANUAL”.)
■Using the automatic mode Press the “AUTO” button.
Press to switch to automatic air intake mode. (if equipped)
The air conditioning system automatically switches between outside air and recir-
culated air modes.
Adjust the temperature setting.
To stop the operation, press the “OFF” button.
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the automatic mode
indicator goes off. However, automatic mode for functions other than that
operated is maintained.
■Adjusting the temperature for driv er and passenger seats separately
(“DUAL” mode)/driver, pa ssenger and rear seats separately (“3-ZONE”
mode)
To turn on the “DUAL”/“3-ZONE” mode , perform any of the following proce-
dures:
●Press the “DUAL”/“3-ZONE” button.
●Select “DUAL”/“3-ZONE” on the option control screen.
●Adjust the passenger’s side temperature setting.
The indicator comes on when the “DUAL”/“3-ZONE” mode is on.
While in “DUAL” mode, the temperature of the rear air outlets is set at the
passenger’s side temperature setting.
Using the speech command system
Air conditioning controls
1
2
3
4
GX460_OM_OM60F68U_(U).book Page 388 Wednesday, June 8, 2016 6:37 PM
