Lexus GX460 2017 Owner's Guide

291-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security
Make sure that you can see backward clearly by adjusting the inside and outside
rear view mirrors properly. ( →P. 145, 147)
Adjusting the mirrors
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the effec-
tiveness of the seat belt and head restraint.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and stop
the seat from locking in place. This may lead to an accident and the adjustment mech-
anism may also be damaged.
●Always observe the legal speed limit when driving on public roads.
●When driving over long distances, take regular breaks before you start to feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to continue driving
and take a break immediately.
GX460_OM_OM60F68U_(U).book Page 29 Wednesday, June 8, 2016 6:37 PM

301-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )

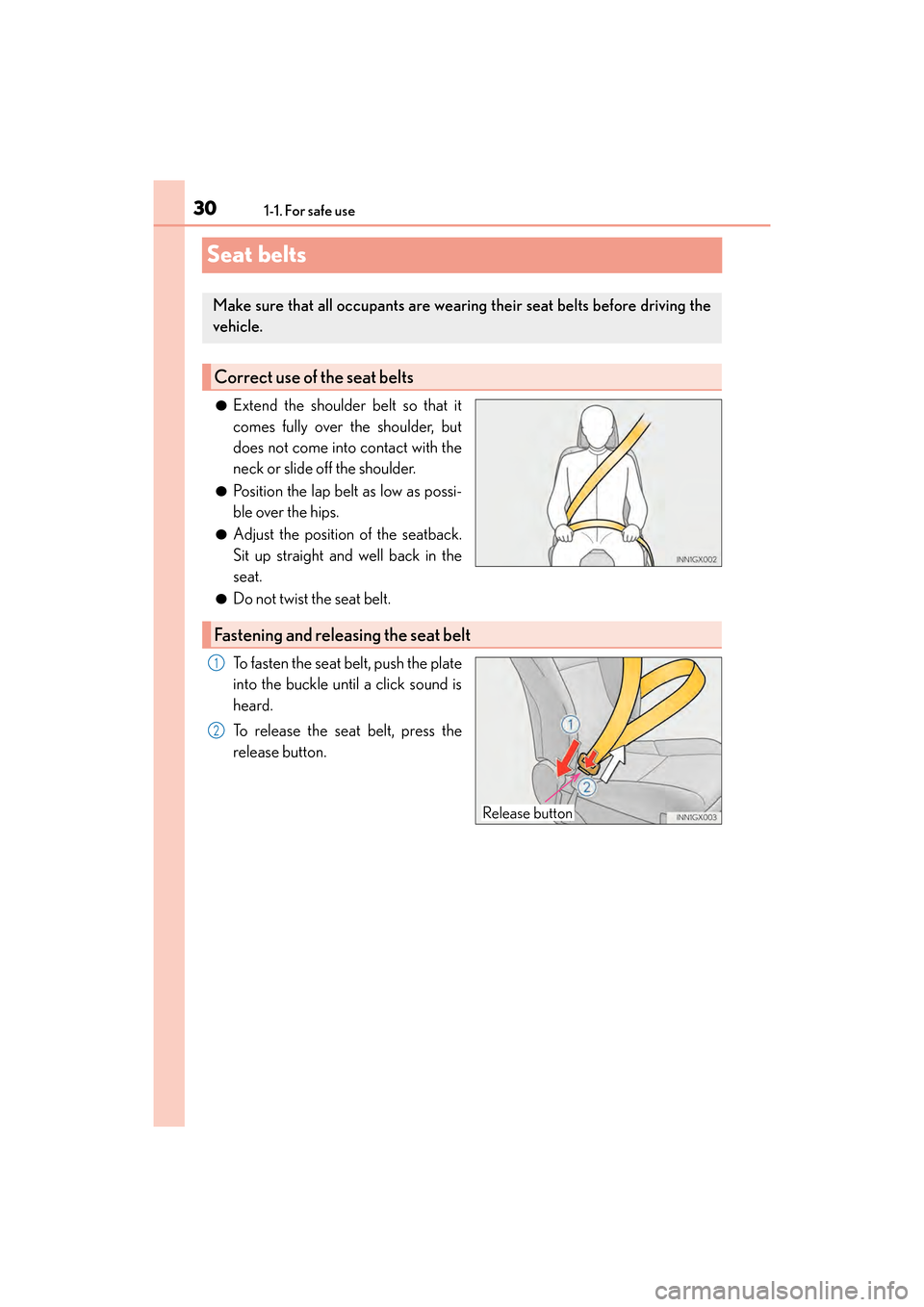

Seat belts
●Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder.
●Position the lap belt as low as possi-
ble over the hips.
●Adjust the position of the seatback.
Sit up straight and well back in the
seat.
●Do not twist the seat belt.
To fasten the seat belt, push the plate
into the buckle until a click sound is
heard.
To release the seat belt, press the
release button.
Make sure that all occupants are wearing their seat belts before driving the
vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt
Release button
1
2
GX460_OM_OM60F68U_(U).book Page 30 Wednesday, June 8, 2016 6:37 PM

311-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security
Push the seat belt shoulder anchor
down while pressing the release but-
ton.
Push the seat belt shoulder anchor
up.
Move the height adjuster up and down
as needed until you hear a click.
The pretensioners help the seat belts to
quickly restrain the occupants by
retracting the seat belts when the vehi-
cle is subjected to certain types of
severe frontal or side collision or a vehi-
cle rollover.
The pretensioners do not activate in the
event of a minor frontal or side impact,
or a rear impact.
If the system determines that a collision is unavoidable, the front seat belts will
retract before the collision. ( →P. 368)
Adjusting the seat belt shoulder anchor height (front and outer second
seats for 7-passenger models, front and second seats for 6-passenger
models)
1
2
Seat belt pretensioners (front and outer second seats for 7-passenger
models, front and second seats for 6-passenger models)
Pre-collision seat belts (front seats of vehicles with pre-collision system)
GX460_OM_OM60F68U_(U).book Page 31 Wednesday, June 8, 2016 6:37 PM

321-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )

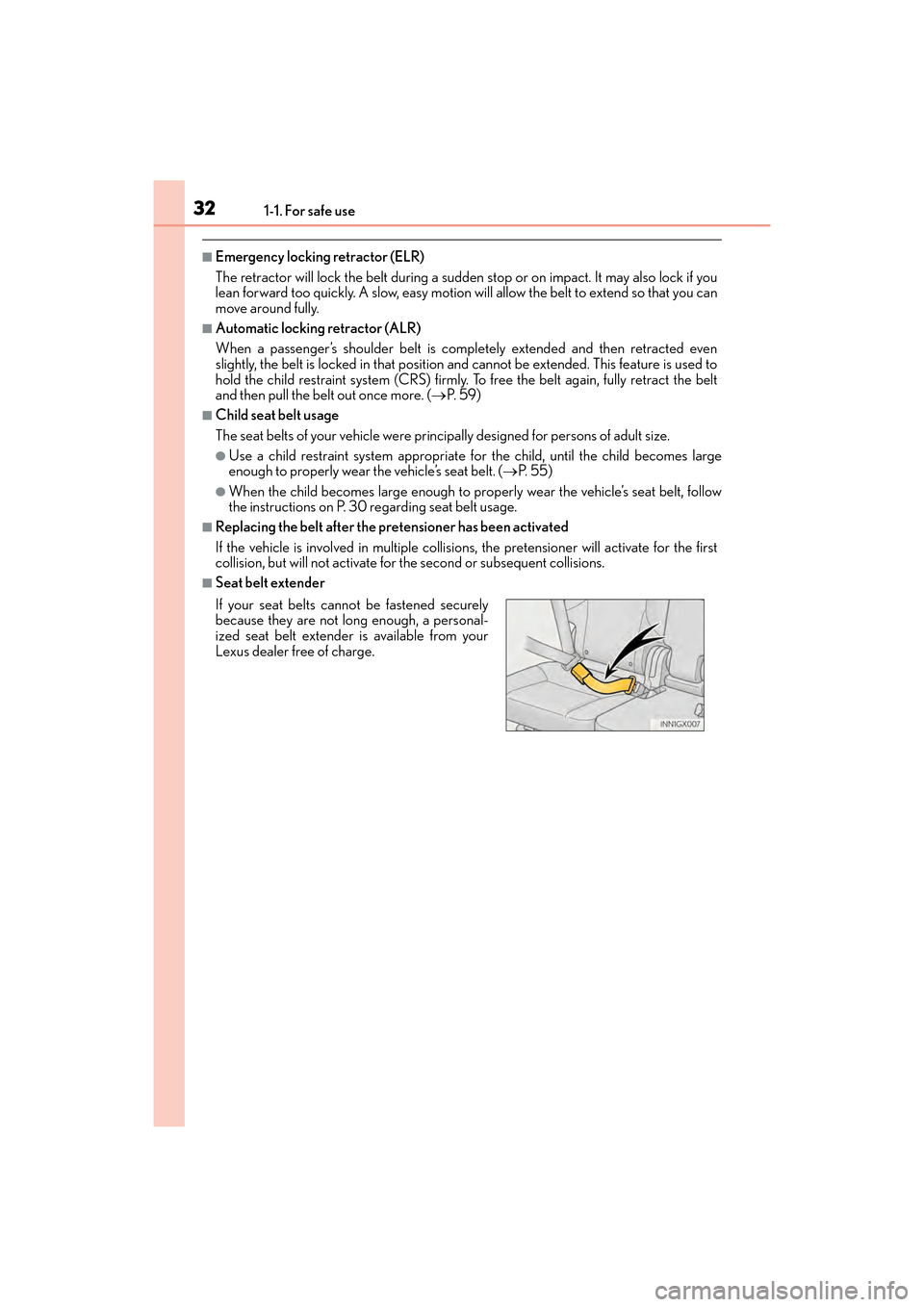

■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if you
lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can
move around fully.
■Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is used to
hold the child restraint system (CRS) firmly. To free the belt again, fully retract the belt
and then pull the belt out once more. ( →P. 5 9 )
■Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
●Use a child restraint system appropriate fo r the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. ( →P. 5 5 )
●When the child becomes large enough to prop erly wear the vehicle’s seat belt, follow
the instructions on P. 30 regarding seat belt usage.
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisio ns, the pretensioner will activate for the first
collision, but will not activate for the second or subsequent collisions.
■Seat belt extender
If your seat belts canno t be fastened securely
because they are not long enough, a personal-
ized seat belt extender is available from your
Lexus dealer free of charge.
GX460_OM_OM60F68U_(U).book Page 32 Wednesday, June 8, 2016 6:37 PM

331-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security

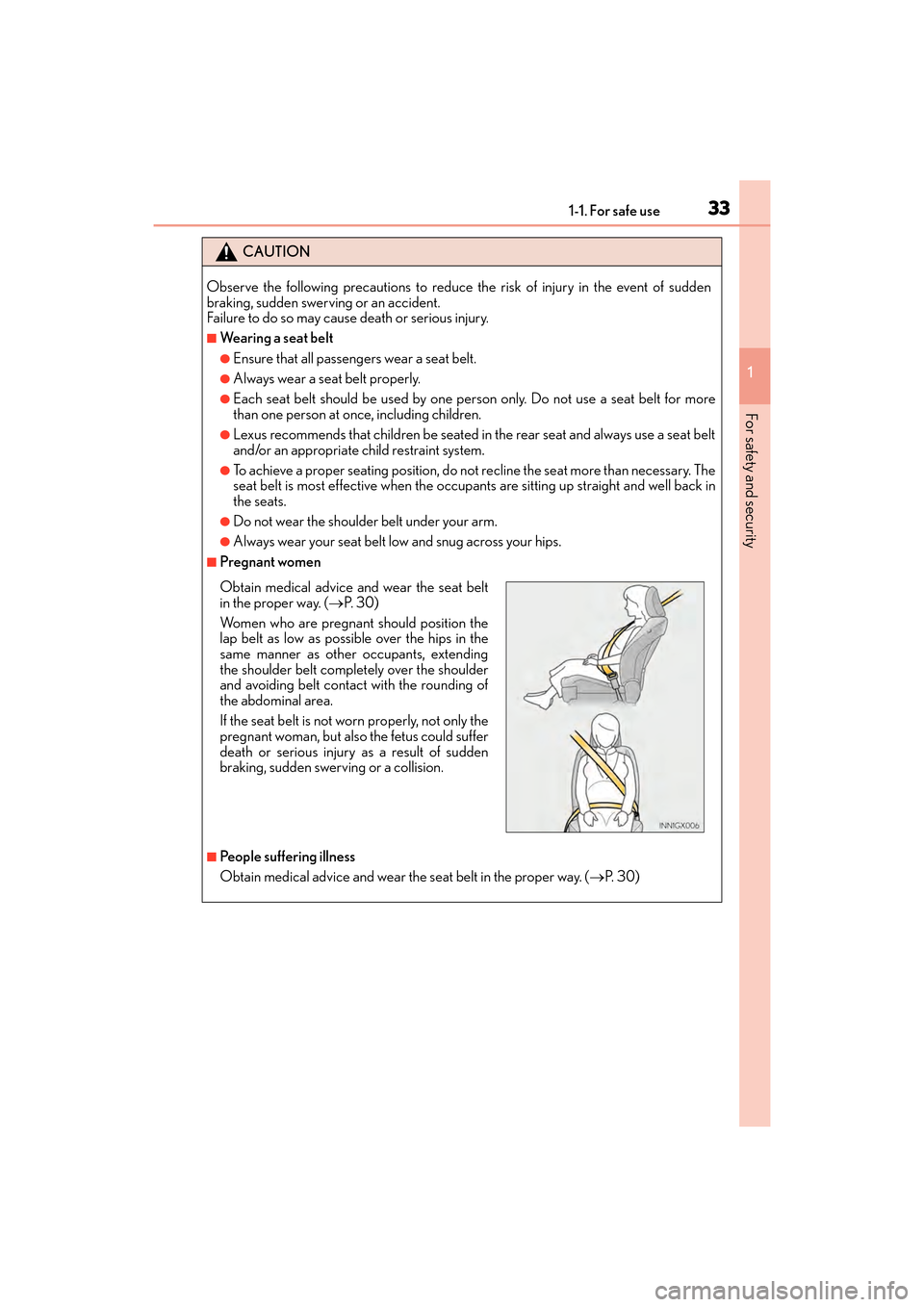

CAUTION
Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at once, including children.
●Lexus recommends that children be seated in the rear seat and always use a seat belt
and/or an appropriate child restraint system.
●To achieve a proper seating position, do not recline the seat more than necessary. The
seat belt is most effective when the occupa nts are sitting up straight and well back in
the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Pregnant women
■People suffering illness
Obtain medical advice and wear the seat belt in the proper way. ( →P. 3 0 )
Obtain medical advice and wear the seat belt
in the proper way. ( →P. 3 0 )
Women who are pregnant should position the
lap belt as low as possible over the hips in the
same manner as other occupants, extending
the shoulder belt completely over the shoulder
and avoiding belt contact with the rounding of
the abdominal area.
If the seat belt is not worn properly, not only the
pregnant woman, but also the fetus could suffer
death or serious injury as a result of sudden
braking, sudden swerving or a collision.
GX460_OM_OM60F68U_(U).book Page 33 Wednesday, June 8, 2016 6:37 PM

341-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
CAUTION
■When the children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted around
a child’s neck, it may lead to choking or othe r serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut the
belt.
■Seat belt pretensioners
●Do not place anything, such as a cushion, on the front passenger’s seat. Doing so will
disperse the passenger’s weight, which prevents the sensor from detecting the pas-
senger’s weight properly. As a result, the seat belt pretensioner for the front passen-
ger’s seat may not activate in the event of a collision.
●If the pretensioner has activated, the SRS warning light will come on. In that case, the
seat belt cannot be used again and must be replaced at your Lexus dealer.
■Adjustable shoulder anchor
Always make sure the shoulder belt is posi tioned across the center of your shoulder.
The belt should be kept away from your neck, but not falling off your shoulder. Failure to
do so could reduce the amount of protection in an accident and cause death or serious
injuries in the event of a sudden stop, sudden swerve or accident. ( →P. 3 1 )
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed in
the door.
●Inspect the seat belt system periodically. Check for cu ts, fraying, and loose parts. Do
not use a damaged seat belt until it is re placed. Damaged seat belt cannot protect an
occupant from death or serious injury.
●Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus dealer.
●Replace the seat assembly, including the belts, if your vehicle has been involved in a
serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate handling
may lead to incorrect operation.
GX460_OM_OM60F68U_(U).book Page 34 Wednesday, June 8, 2016 6:37 PM

351-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security

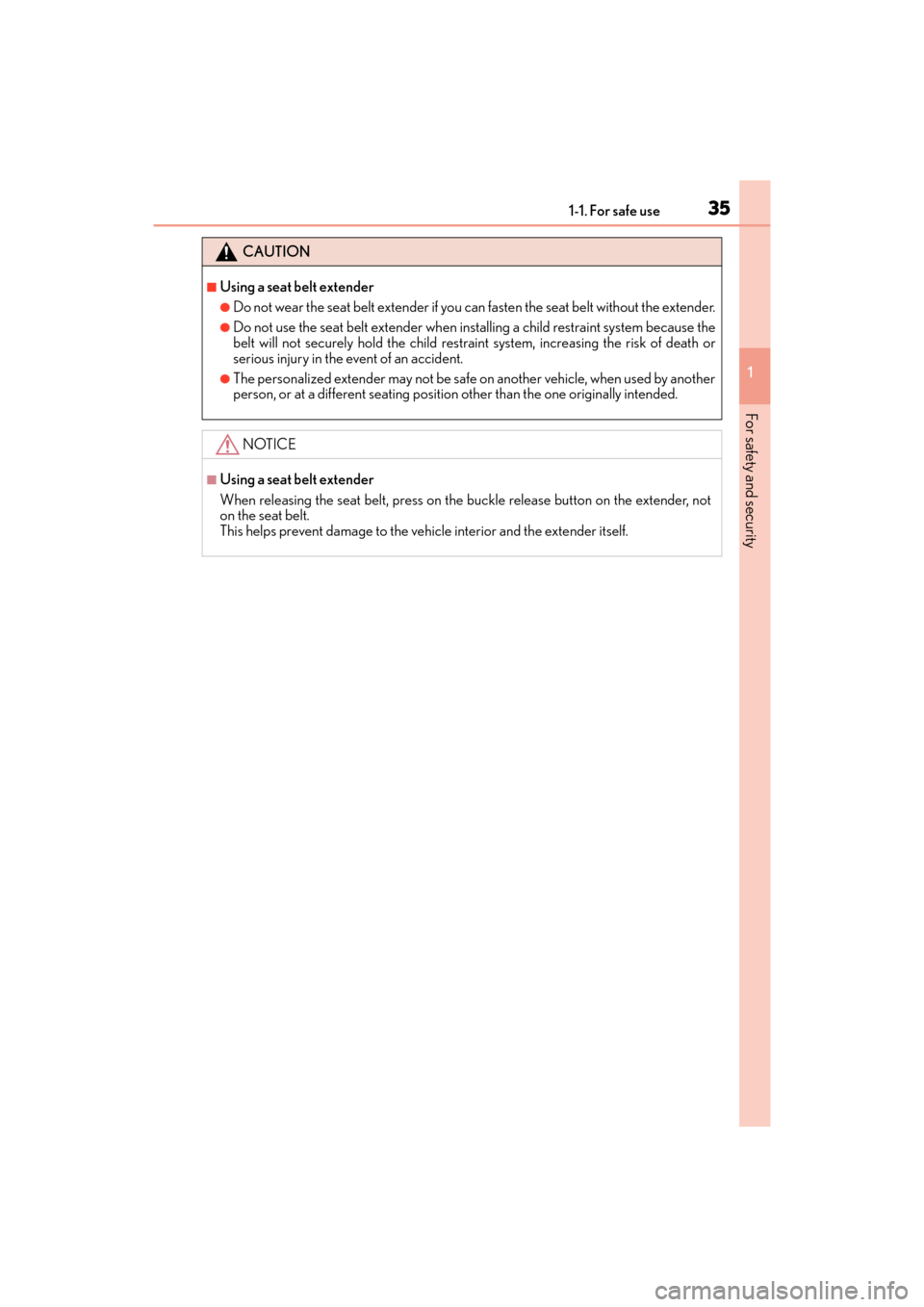

CAUTION
■Using a seat belt extender
●Do not wear the seat belt extender if you can fasten the seat belt without the extender.
●Do not use the seat belt extender when inst alling a child restraint system because the
belt will not securely hold the child restraint system, increasing the risk of death or
serious injury in the event of an accident.
●The personalized extender may not be safe on another vehicle, when used by another
person, or at a different seating position other than the one originally intended.
NOTICE
■Using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender, not
on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.
GX460_OM_OM60F68U_(U).book Page 35 Wednesday, June 8, 2016 6:37 PM

361-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )

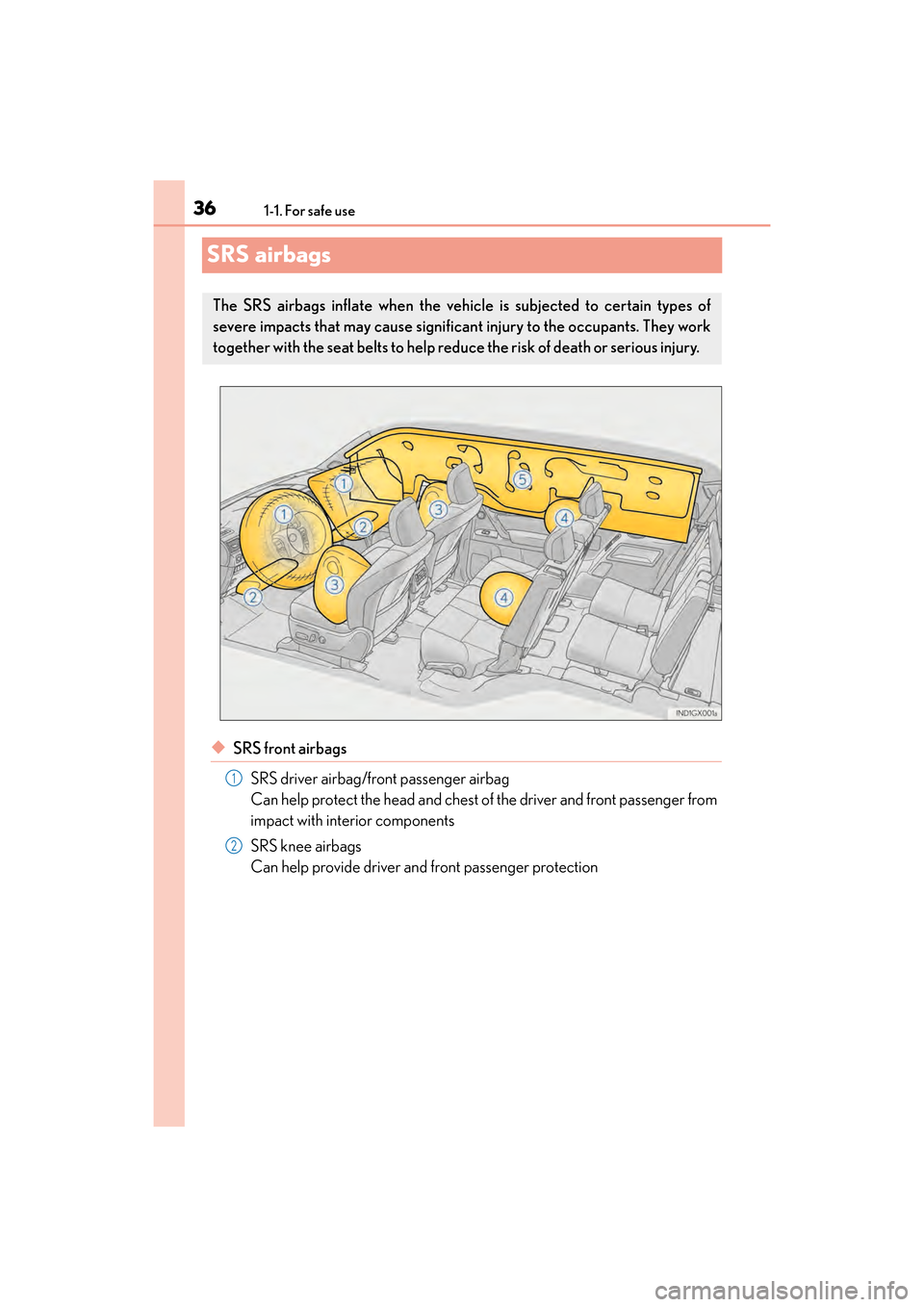

SRS airbags
◆SRS front airbagsSRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from
impact with interior components
SRS knee airbags
Can help provide driver and front passenger protection
The SRS airbags inflate when the vehicle is subjected to certain types of
severe impacts that may cause significan t injury to the occupants. They work
together with the seat belts to help reduce the risk of death or serious injury.
1
2
GX460_OM_OM60F68U_(U).book Page 36 Wednesday, June 8, 2016 6:37 PM

371-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security
◆SRS side and curtain shield airbags SRS front side airbags
Can help protect the torso of the front seat occupants
SRS rear side airbags
Can help protect the torso of occupants in the outer second seats (7-pas-
senger models) or second seats (6-passenger models)
SRS curtain shield airbags
●Can help protect primarily the head of occupants in the outer seats
●Can prevent the occupants from being thrown from the vehicle in the
event of vehicle rollover
3
4
5
GX460_OM_OM60F68U_(U).book Page 37 Wednesday, June 8, 2016 6:37 PM

381-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
Airbag system components
Knee airbags
Curtain shield airbags
Front passenger airbag
Side impact sensors (front door)
“A I R B A G O N ” a n d
“AIR BAG OFF” indicator lights
Front side airbags
SRS warning light
Side impact sensors (rear)
Rear side airbags (outer second
seats [7-passenger models] or sec-
ond seats [6-passenger models])Driver airbag
Driver’s seat belt buckle switch
Safing sensor (rear)
Front passenger’s seat belt buckle
switch
Airbag sensor assembly
Front impact sensors
Seat belt pretensioners and force
limiters
Front passenger occupant classifi-
cation system (ECU and sensors)1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
