491-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security
■Adult*1
■Child*4 or child restraint system with infant*5
Condition and operation in the fron t passenger occupant classification
system
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ” indicator lights“A I R B A G O N ”
SRS warning lightOff
Seat belt reminder lightOff*2 or flashing*3
Devices
Front passenger airbag
Activated
Side airbag
on the front passenger seat
Curtain shield airbag
in the front passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ”
indicator lights“A I R B A G O F F ”*6
SRS warning lightOff
Seat belt reminder lightOff*2 or
flashing*3
Devices
Front passenger airbagDeactivated
Side airbag
on the front passenger seat
ActivatedCurtain shield airbag
in the front passenger side
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensionerActivated
GX460_OM_OM60F68U_(U).book Page 49 Wednesday, June 8, 2016 6:37 PM

501-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
■Unoccupied
■There is a malfunction in the system
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ” indicator lightsNot illuminated
SRS warning light
Off
Seat belt reminder light
Devices
Front passenger airbagDeactivated
Side airbag
on the front passenger seat
ActivatedCurtain shield airbag
in the front passenger side
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensioner
Activated*7
or
d
eactivated*8
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ”
indicator lights“A I R B A G O F F ”
SRS warning light
On
Seat belt reminder light
Devices
Front passenger airbagDeactivated
Side airbag
on the front passenger seat
ActivatedCurtain shield airbag
in the front passenger side
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensionerActivated
GX460_OM_OM60F68U_(U).book Page 50 Wednesday, June 8, 2016 6:37 PM

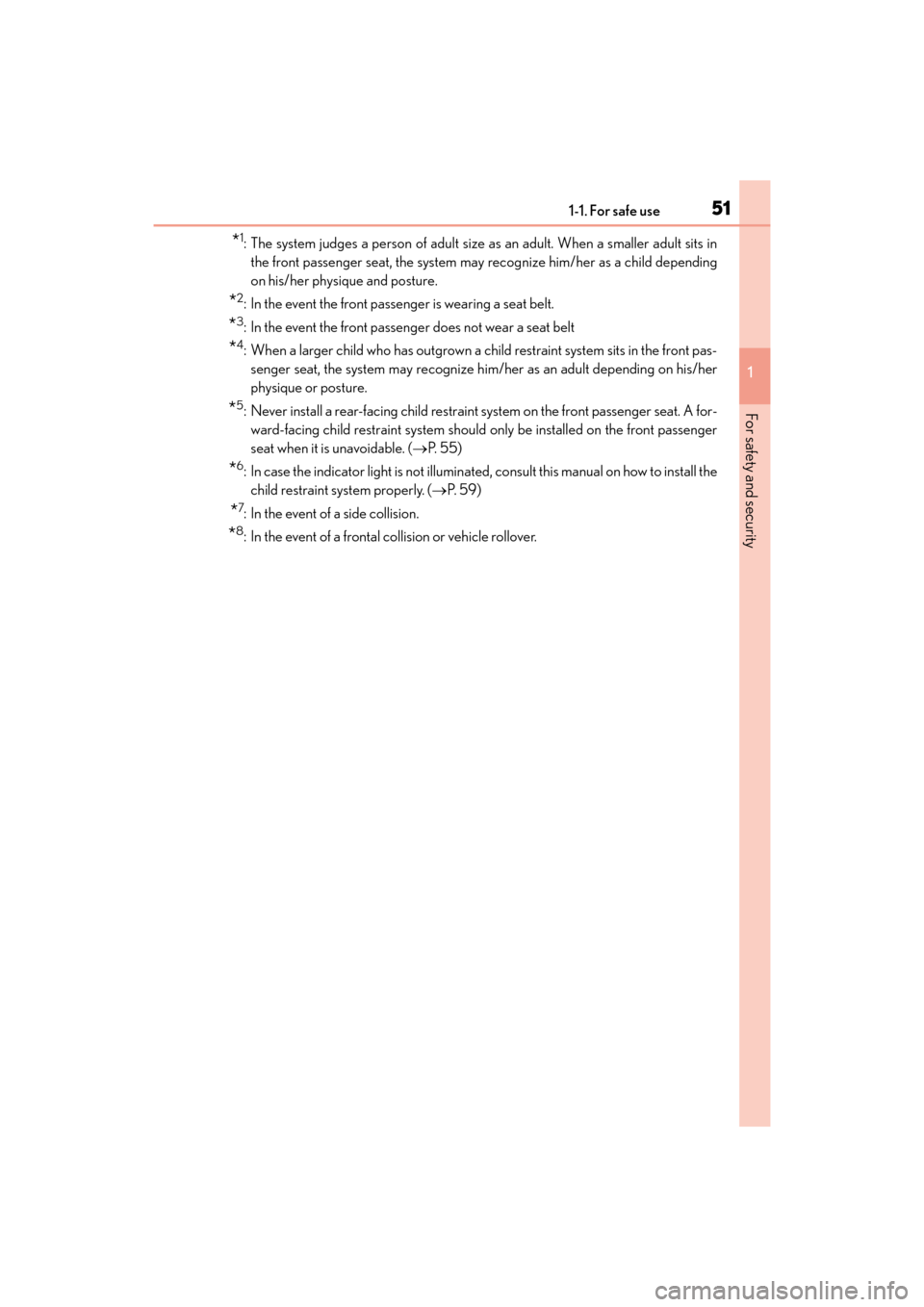

511-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security
*1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may recognize him/her as a child depending
on his/her physique and posture.
*2: In the event the front passenger is wearing a seat belt.
*3: In the event the front passenger does not wear a seat belt
*4: When a larger child who has outgrown a child restraint system sits in the front pas-senger seat, the system may recognize him/her as an adult depending on his/her
physique or posture.
*5: Never install a rear-facing child restraint system on the front passenger seat. A for-
ward-facing child restraint system should only be installed on the front passenger
seat when it is unavoidable. ( →P. 5 5 )
*6: In case the indicator light is not illuminated, consult this manual on how to install the
child restraint system properly. ( →P. 5 9 )
*7: In the event of a side collision.
*8: In the event of a frontal collision or vehicle rollover.
GX460_OM_OM60F68U_(U).book Page 51 Wednesday, June 8, 2016 6:37 PM

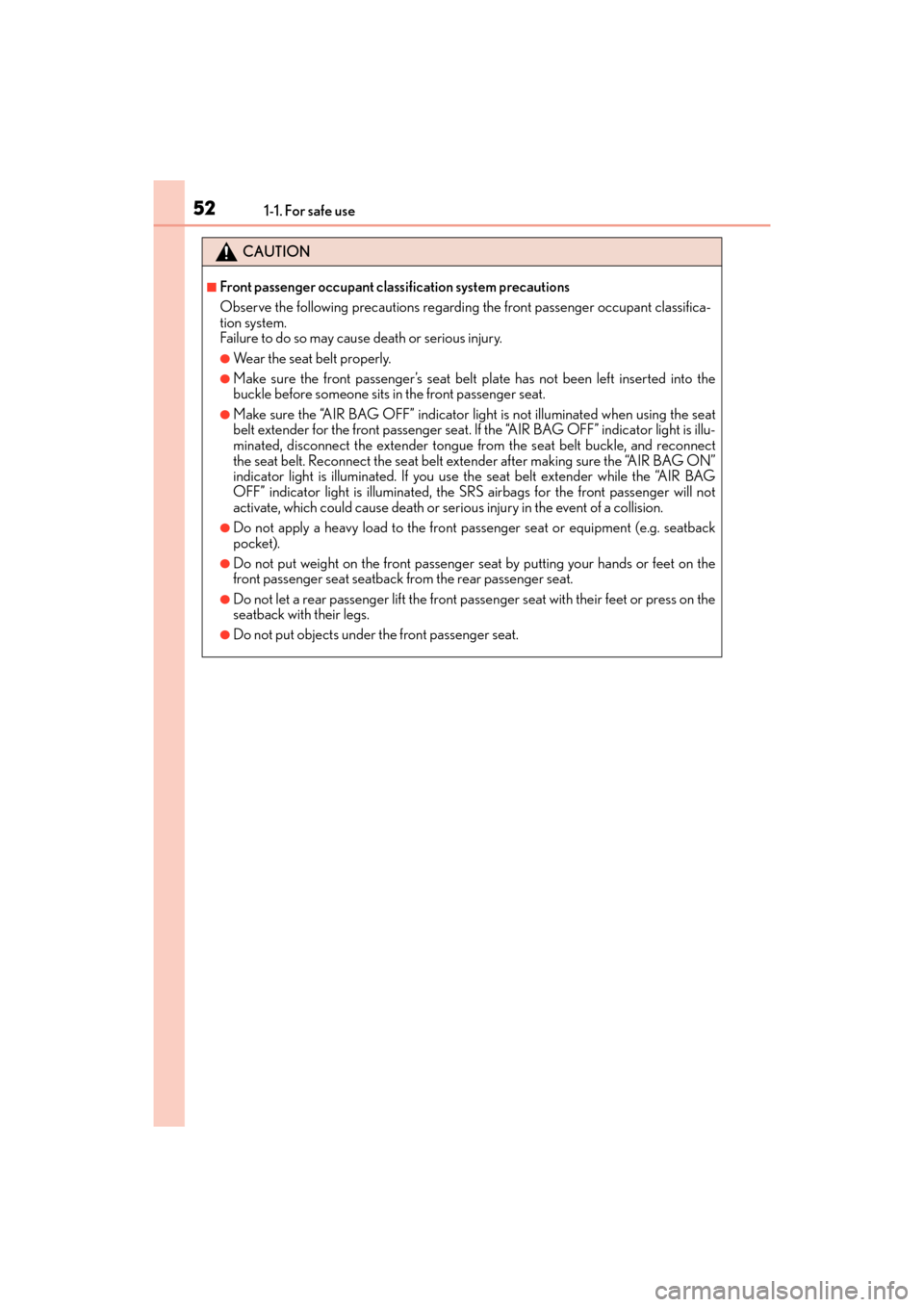

521-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
CAUTION
■Front passenger occupant classification system precautions
Observe the following precautions regarding the front passenger occupant classifica-
tion system.
Failure to do so may cause death or serious injury.
●Wear the seat belt properly.
●Make sure the front passenger’s seat belt plate has not been left inserted into the
buckle before someone sits in the front passenger seat.
●Make sure the “AIR BAG OFF” indicator li ght is not illuminated when using the seat
belt extender for the front passenger seat. If the “AIR BAG OFF” indicator light is illu-
minated, disconnect the extender tongue from the seat belt buckle, and reconnect
the seat belt. Reconnect the seat belt extender after making sure the “AIR BAG ON”
indicator light is illuminated. If you use th e seat belt extender while the “AIR BAG
OFF” indicator light is illuminated, the SRS airbags for the front passenger will not
activate, which could cause death or seri ous injury in the event of a collision.
●Do not apply a heavy load to the front passenger seat or equipment (e.g. seatback
pocket).
●Do not put weight on the front passenger seat by putting your hands or feet on the
front passenger seat seatback from the rear passenger seat.
●Do not let a rear passenger lift the front passenger seat with their feet or press on the
seatback with their legs.
●Do not put objects under the front passenger seat.
GX460_OM_OM60F68U_(U).book Page 52 Wednesday, June 8, 2016 6:37 PM

531-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security
CAUTION
■Front passenger occupant classification system precautions
●Do not recline the front passenger seatback so far that it touches the rear seat. This
may cause the “AIR BAG OFF” indicator light to be illuminated, which indicates that
the SRS airbags for the front passenger will not activate in the event of a severe acci-
dent. If the seatback touches the rear seat, return the seatback to a position where it
does not touch the rear seat. Keep the front passenger seatback as upright as possi-
ble when the vehicle is moving. Reclining the seatback excessively may lessen the
effectiveness of the seat belt system.
●If an adult sits in the front passenger seat , the “AIR BAG ON” indicator light is illumi-
nated. If the “AIR BAG OFF” indicator is illuminated, ask the passenger to sit up
straight, well back in the seat, feet on the floor, and with the seat belt worn correctly. If
the “AIR BAG OFF” indicator still remains illuminated, either ask the passenger to
move to the rear seat, or if that is not possible, move the front passenger seat fully
rearward.
●When it is unavoidable to in stall a forward-facing child restraint system on the front
passenger seat, install the ch ild restraint system on the front passenger seat in the
proper order. ( →P. 5 9 )
●Do not modify or remove the front seats.
●Do not kick the front passenger seat or subject it to severe impact. Otherwise, the
SRS warning light may come on to indicat e a malfunction of the front passenger
occupant classification system. In this case, contact your Lexus dealer immediately.
●Child restraint systems installed on the rear seat should not contact the front seat-
backs.
●Do not use a seat accessory, such as a cushion and seat cover, that covers the seat
cushion surface.
●Do not modify or replace the upholstery of the front seat.
GX460_OM_OM60F68U_(U).book Page 53 Wednesday, June 8, 2016 6:37 PM

541-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
Safety information for children
●It is recommended that children sit in the rear seats to avoid accidental con-
tact with the shift lever, wiper switch etc.
●Use the rear door child-protector lock or the window lock switch to avoid
children opening the door while driving or operating the power window acci-
dentally.
●Do not let small children operate equipment which may catch or pinch body
parts, such as the power window, hood, back door, seats etc.
Observe the following precautions when children are in the vehicle.
Use a child restraint system appropriate for the child, until the child becomes
large enough to properly wear the vehicle’s seat belt.
CAUTION
Never leave children unattended in the vehicle, and never allow children to have or use
the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is also a
danger that children may injure themselves by playing with the windows, the moon roof
(if equipped) or other features of the vehicle. In addition, heat build-up or extremely
cold temperatures inside the vehicle can be fatal to children.
GX460_OM_OM60F68U_(U).book Page 54 Wednesday, June 8, 2016 6:37 PM

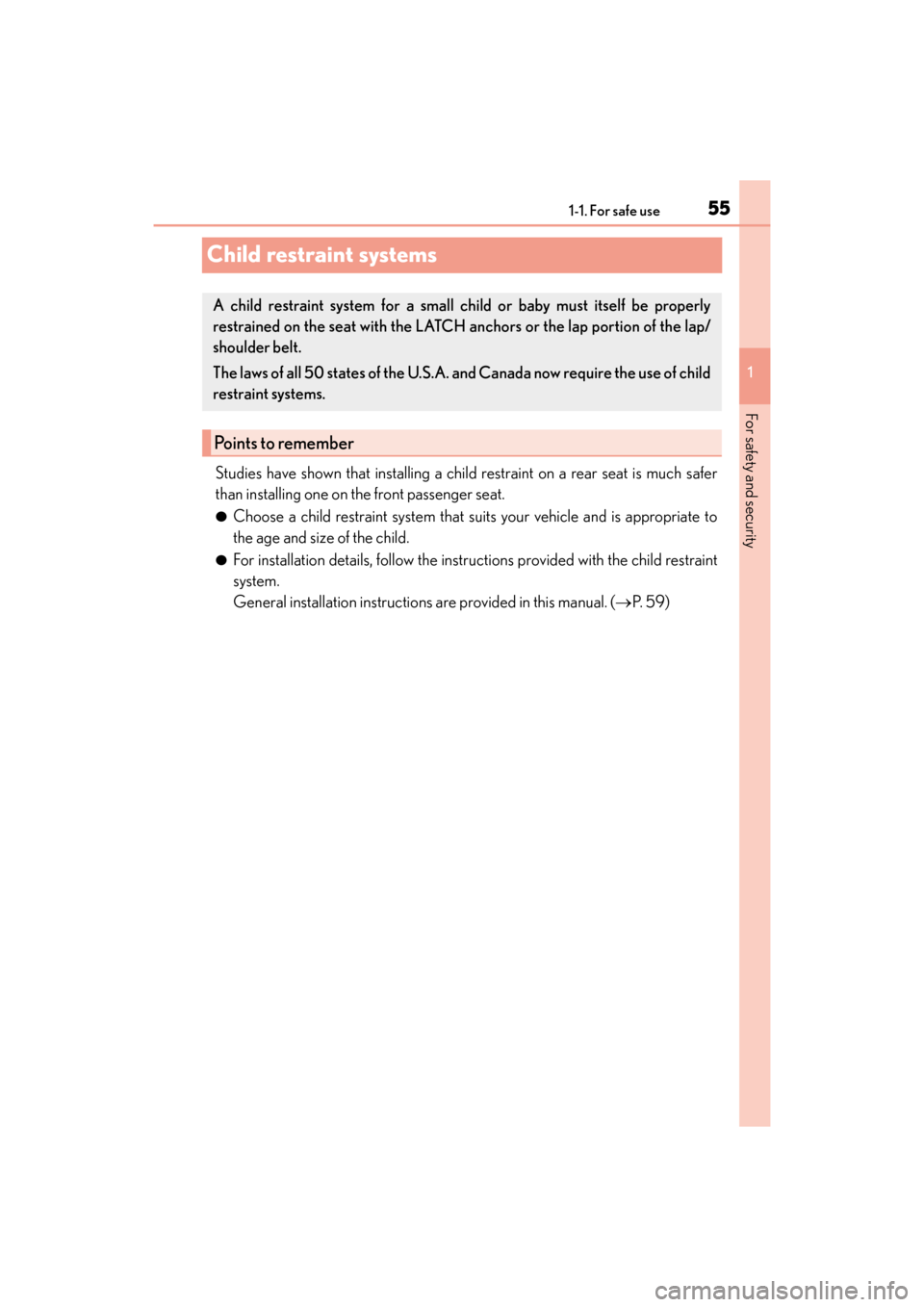

551-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security
Child restraint systems
Studies have shown that installing a child restraint on a rear seat is much safer
than installing one on the front passenger seat.
●Choose a child restraint system that suits your vehicle and is appropriate to
the age and size of the child.
●For installation details, follow the instructions provided with the child restraint
system.
General installation instructions are provided in this manual. ( →P. 5 9 )
A child restraint system for a small child or baby must itself be properly
restrained on the seat with the LATCH anchors or the lap portion of the lap/
shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require the use of child
restraint systems.
Points to remember
GX460_OM_OM60F68U_(U).book Page 55 Wednesday, June 8, 2016 6:37 PM

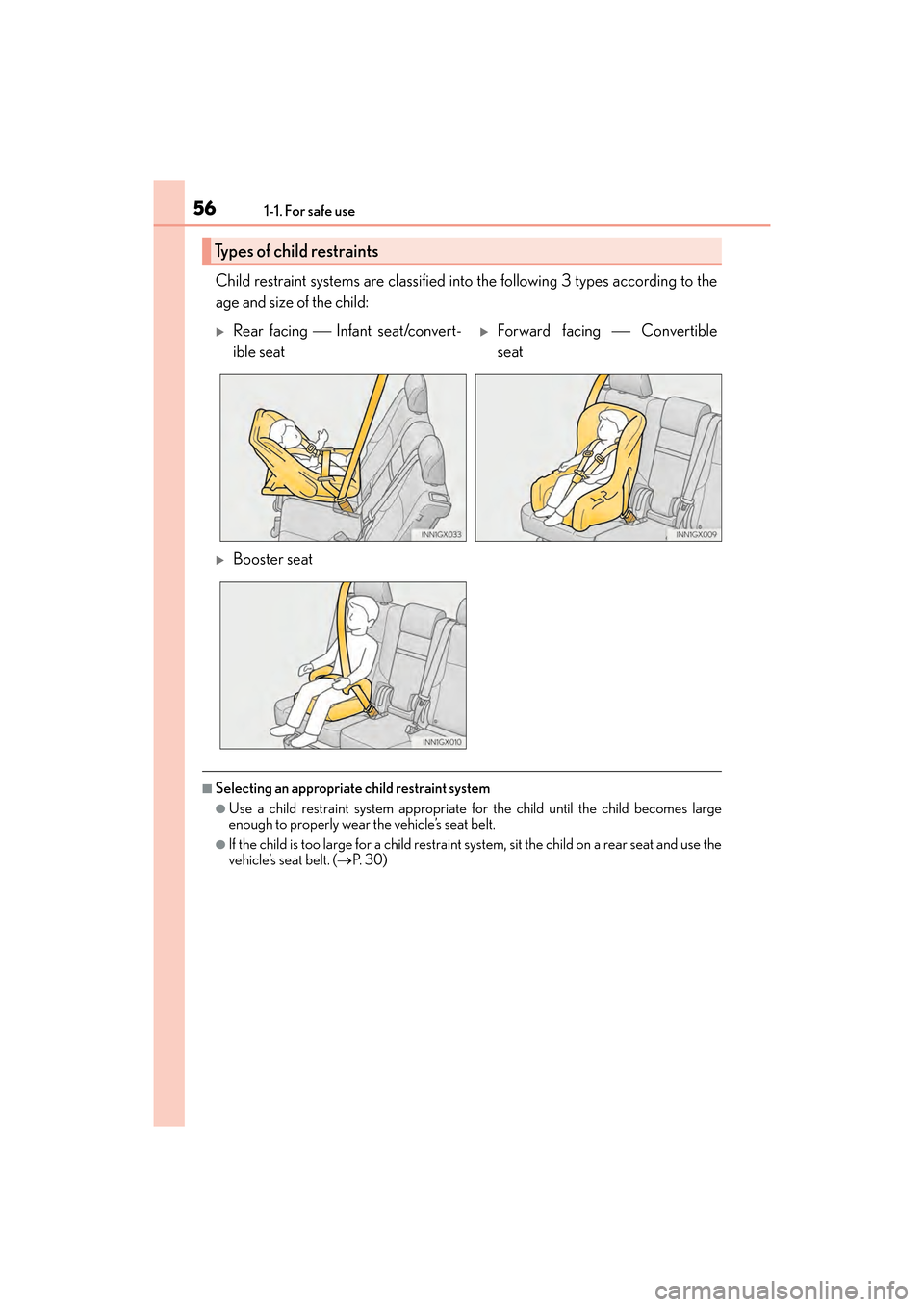

561-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
Child restraint systems are classified into the following 3 types according to the
age and size of the child:
■Selecting an appropriate child restraint system
●Use a child restraint system appropriate for the child until the child becomes large
enough to properly wear the vehicle’s seat belt.
●If the child is too large for a child restraint sy stem, sit the child on a rear seat and use the
vehicle’s seat belt. ( →P. 3 0 )
Types of child restraints
XRear facing  Infant seat/convert-
ible seatXForward facing  Convertible
seat
XBooster seat
GX460_OM_OM60F68U_(U).book Page 56 Wednesday, June 8, 2016 6:37 PM

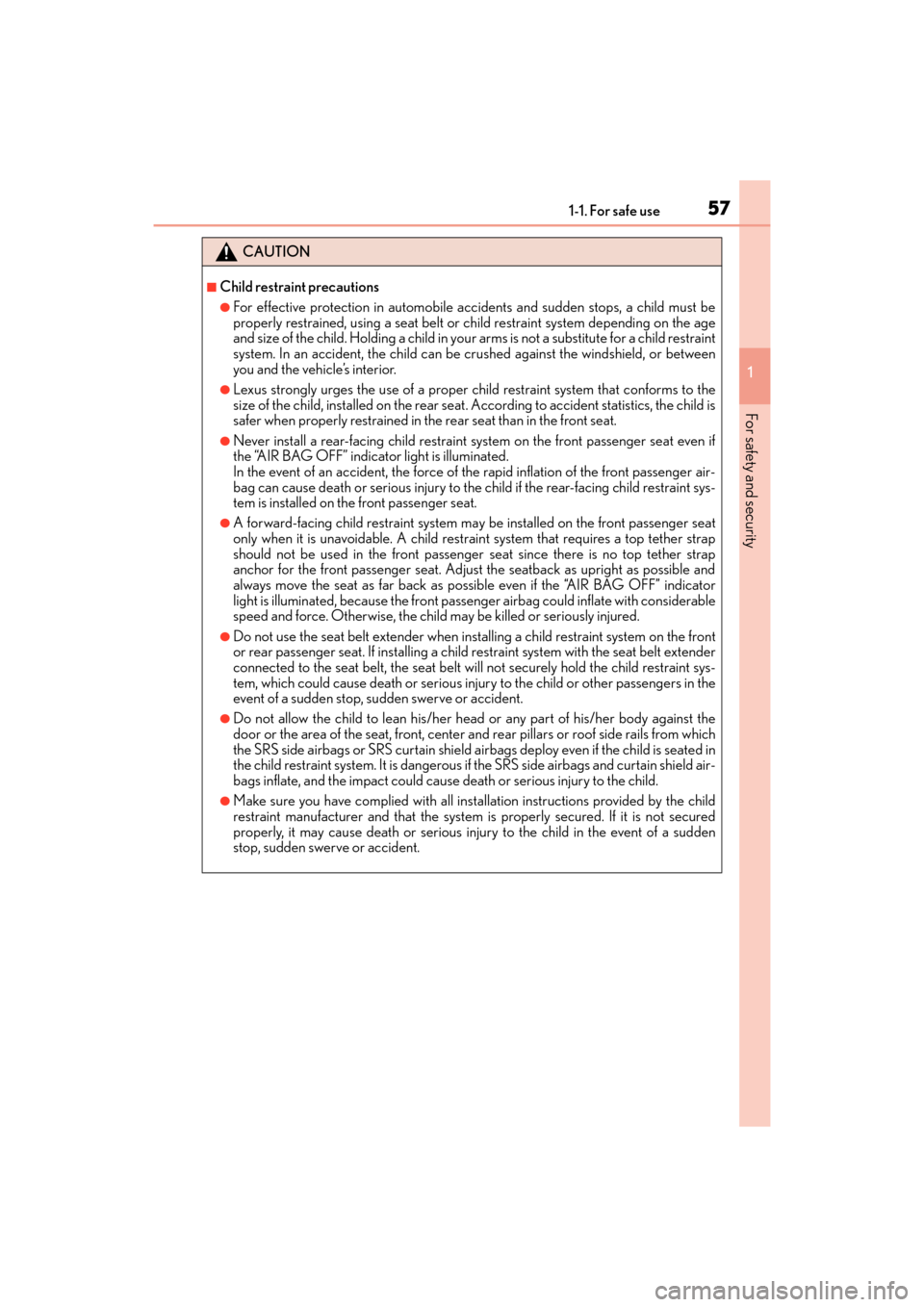

571-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security
CAUTION
■Child restraint precautions
●For effective protection in automobile accidents and sudden stops, a child must be
properly restrained, using a se at belt or child restraint system depending on the age
and size of the child. Holding a child in your arms is not a substitute for a child restraint
system. In an accident, the child can be crushed against the windshield, or between
you and the vehicle’s interior.
●Lexus strongly urges the use of a proper ch ild restraint system that conforms to the
size of the child, installed on the rear seat . According to accident statistics, the child is
safer when properly restrained in the rear seat than in the front seat.
●Never install a rear-facing child restraint system on the front passenger seat even if
the “AIR BAG OFF” indicator light is illuminated.
In the event of an accident, the force of the rapid inflation of the front passenger air-
bag can cause death or serious injury to the child if the rear-facing child restraint sys-
tem is installed on th e front passenger seat.
●A forward-facing child restraint system ma y be installed on the front passenger seat
only when it is unavoidable. A child restra int system that requires a top tether strap
should not be used in the front passenger seat since there is no top tether strap
anchor for the front passenger seat. Adjust the seatback as upright as possible and
always move the seat as far back as possible even if the “AIR BAG OFF” indicator
light is illuminated, because the front passen ger airbag could inflate with considerable
speed and force. Otherwise, the child may be killed or seriously injured.
●Do not use the seat belt extender when inst alling a child restraint system on the front
or rear passenger seat. If installing a child restraint system with the seat belt extender
connected to the seat belt, the seat belt w ill not securely hold the child restraint sys-
tem, which could cause death or serious injury to the child or other passengers in the
event of a sudden stop, sudden swerve or accident.
●Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front, center an d rear pillars or roof side rails from which
the SRS side airbags or SRS curtain shield ai rbags deploy even if the child is seated in
the child restraint system. It is dangerous if the SRS side airbags and curtain shield air-
bags inflate, and the impact could cause death or serious injury to the child.
●Make sure you have complied with all insta llation instructions provided by the child
restraint manufacturer and that the system is properly secured. If it is not secured
properly, it may cause death or serious injury to the child in the event of a sudden
stop, sudden swerve or accident.
GX460_OM_OM60F68U_(U).book Page 57 Wednesday, June 8, 2016 6:37 PM

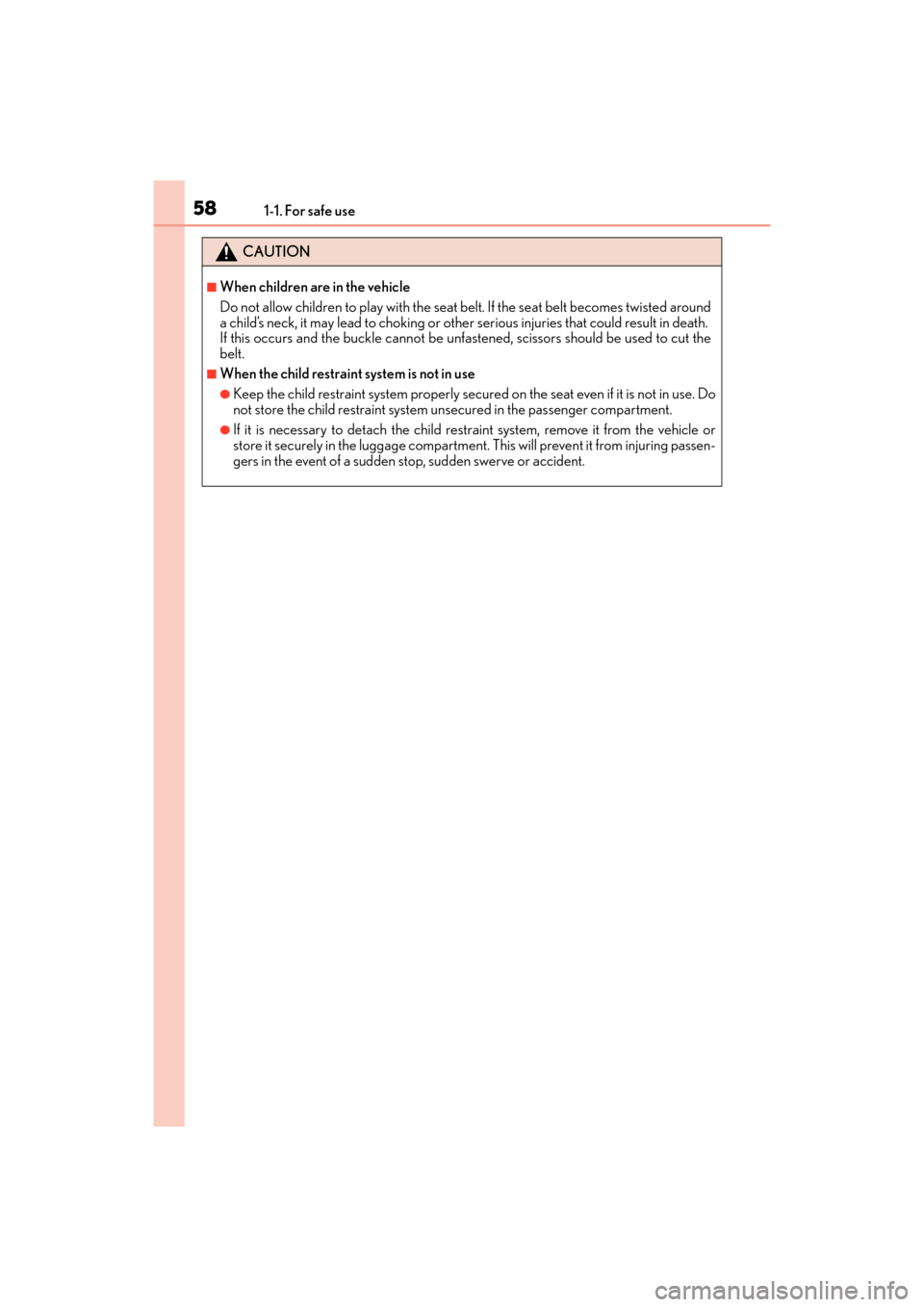

581-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
CAUTION
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted around
a child’s neck, it may lead to choking or othe r serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut the
belt.
■When the child restraint system is not in use
●Keep the child restraint system properly secure d on the seat even if it is not in use. Do
not store the child restraint system un secured in the passenger compartment.
●If it is necessary to detach the child restraint system, remove it from the vehicle or
store it securely in the luggage compartment. This will prevent it from injuring passen-
gers in the event of a sudden stop, sudden swerve or accident.
GX460_OM_OM60F68U_(U).book Page 58 Wednesday, June 8, 2016 6:37 PM
