GX 460 _O M_ OM6 0F 6 8U _(U )
2554-5. Using the driving support systems
4
Driving

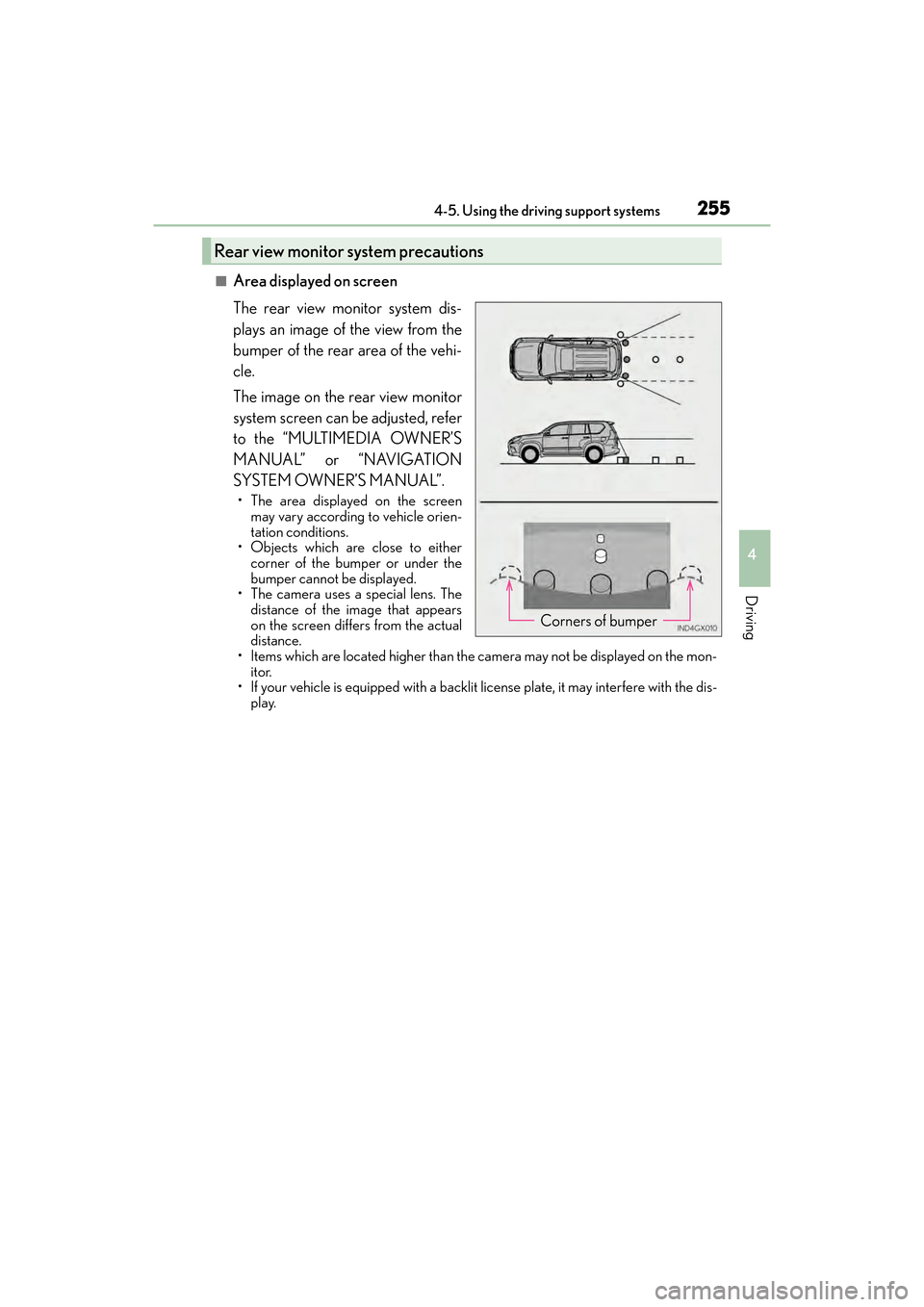

■Area displayed on screen
The rear view monitor system dis-
plays an image of the view from the
bumper of the rear area of the vehi-
cle.
The image on the rear view monitor
system screen can be adjusted, refer
to the “MULTIMEDIA OWNER’S
MANUAL” or “NAVIGATION
SYSTEM OWNER’S MANUAL”.
• The area displayed on the screenmay vary according to vehicle orien-
tation conditions.
• Objects which are close to either corner of the bumper or under the
bumper cannot be displayed.
• The camera uses a special lens. The distance of the image that appears
on the screen differs from the actual
distance.
• Items which are located higher than the camera may not be displayed on the mon-
itor.
• If your vehicle is equipped with a backlit license plate, it may interfere with the dis- play.
Rear view monitor system precautions
Corners of bumper
GX460_OM_OM60F68U_(U).book Page 255 Wednesday, June 8, 2016 6:37 PM

258
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
●When any part of the vehicle sags
When any part of the vehicle sags
due to the number of passengers
or the distribution of the load,
there is a margin of error between
the fixation guide lines on the
screen and the actual distance/
course on the road.
■When approaching three-dimensional objects
The distance guide lines are displayed according to flat surfaced objects (such
as the road). It is not possible to de
termine the position of three-dimensional
objects (such as vehicles) using the distance guide lines. When approaching a
three-dimensional object that extends outward (such as the flatbed of a truck),
be careful of the following.
●Vehicle width extension guide lines
Visually check the surroundings
and the area behind the vehicle.
In the case shown in the illustra-
tion, the truck appears to be out-
side of the vehicle width
extension guide lines and the
vehicle does not look as if it hits
the truck. However, the rear body
of the truck may actually cross
over the vehicle width extension
guide lines. In reality if you back
up as guided by the vehicle width
extension guide lines, the vehicle
may hit the truck.
A margin of error
GX460_OM_OM60F68U_(U).book Page 258 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
2614-5. Using the driving support systems
4
Driving
CAUTION
■When using the rear view monitor system
The rear view monitor system is a supplemental device intended to assist the driver
when backing up. When backing up, be sure to check visually behind and all around
the vehicle before proceeding.
Observe the following precautions to avoid an accident that could result in death or
serious injuries.
●Never depend on the rear view monitor system entirely when backing up. The image
and the position of the guide lines displayed on the screen may differ from the actual
state.
Use caution, just as you would when backing up any vehicle.
●Be sure to back up slowly, depressing the brake pedal to control vehicle speed.
●The instructions given are only guide lines.
When and how much to turn the steering wh eel will vary according to traffic condi-
tions, road surface conditions, vehicle condit ion, etc. when parking. It is necessary to
be fully aware of this before using the rear view monitor system.
●When parking, be sure to check that the parking space will accommodate your vehi-
cle before maneuvering into it.
●Do not use the rear view monitor system in the following cases:
• On icy or slick road surfaces, or in snow
•When using tire chains
• When the back door is not closed completely
• On roads that are not flat or straight, such as curves or slopes.
●In low temperatures, the screen may darken or the image may become faint. The
image could distort when the vehicle is moving, or you may become unable to see the
image on the screen. Be sure to check direct visually and with the mirrors all around
the vehicle before proceeding.
●If the tire sizes are changed, the position of the fixed guide lines displayed on the
screen may change.
●The camera uses a special lens. The distances between objects and pedestrians that
appear in the image displayed on the scre en will differ from the actual distances.
( → P. 2 5 6 )
GX460_OM_OM60F68U_(U).book Page 261 Wednesday, June 8, 2016 6:37 PM

263
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
4
Driving
Lexus parking assist monitor∗
The parking assist monitor assists with
the following 2 backing-up operations:
• Perpendicular parking (parking in a garage, etc.)
• Parallel parking (parking at the side of the road, etc.)
The screen illustrations used in this text ar e intended as examples, and may differ from
the image that is actually displayed on the screen.
The rear view image is displayed when
the shift position is in R and the engine
switch is in IGNITION ON mode.
The parking assist monitor system will
be deactivated when the shift lever is in
any position other than R.
When the shift lever is shifted to the R
position and any mode button (such as
“SETUP”) is pressed, the parking assist
monitor is canceled, and the screen is
switched to the mode of the button that
was pressed.
∗: If equipped
The parking assist monitor assists the driver by displaying an image of the view
behind the vehicle while backing up, for example while parking.
GX460_OM_OM60F68U_(U).book Page 263 Wednesday, June 8, 2016 6:37 PM

264
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
■Screen display
The parking assist monitor screen will be displayed if the shift lever is shifted to
R while the engine switch is in IGNITION ON mode.
The parking assist monitor displays
the last-used parking mode first.
Using the Lexus parking assist monitor
XPerpendicular parkingXParallel parking
Display mode switch screen button
Switches the display mode. ( →P. 2 6 5 )
Intuitive parking assist display
If an obstacle is detected wh ile the intuitive parking assist is on, a display is shown in
the top right corner of the screen.
Parking mode switch screen button
Switches the parking mode (between perpendicular parking and parallel parking
assist screens)
1
2
3
GX460_OM_OM60F68U_(U).book Page 264 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
2654-5. Using the driving support systems
4
Driving

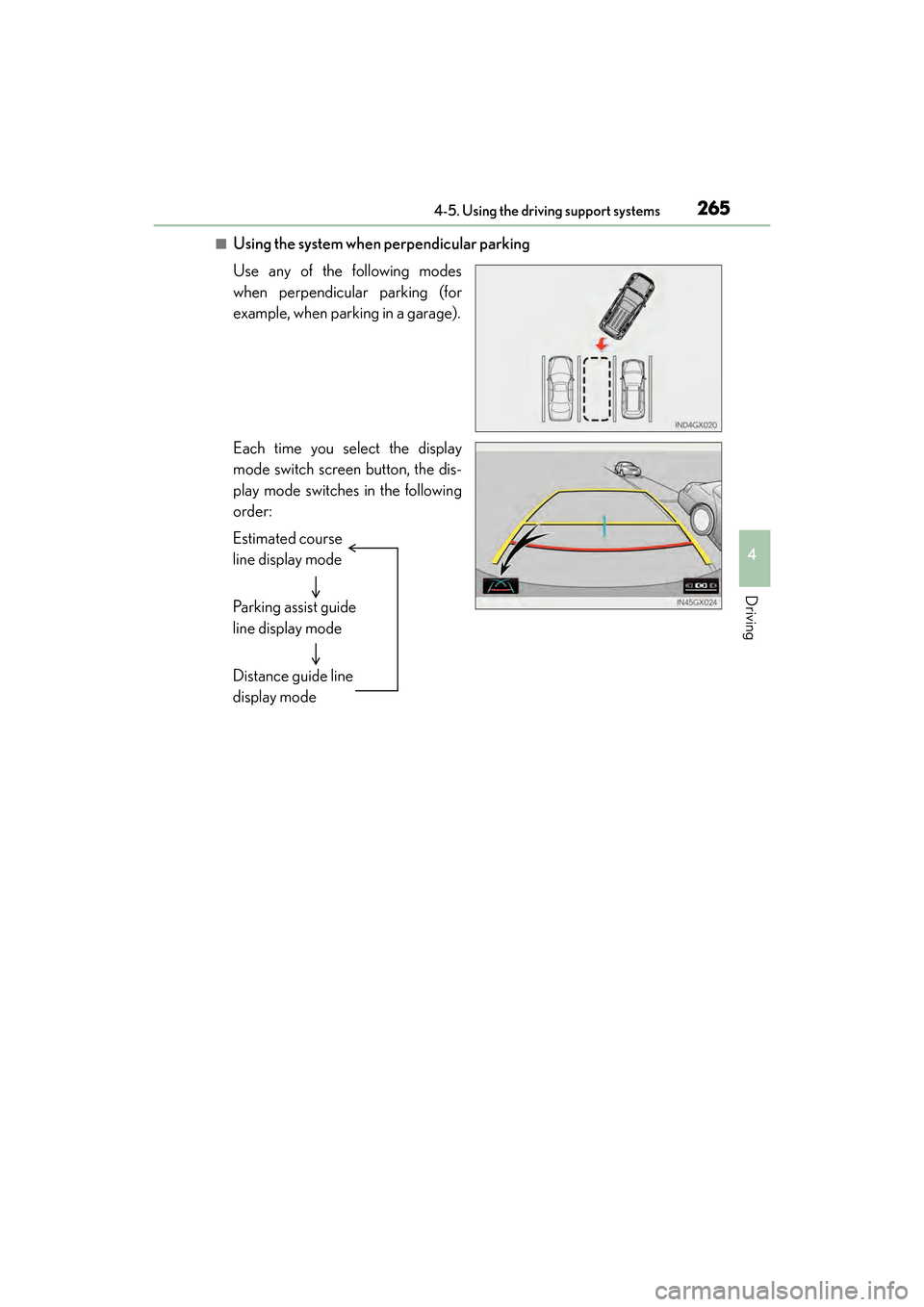

■Using the system when perpendicular parking
Use any of the following modes
when perpendicular parking (for
example, when parking in a garage).
Each time you select the display
mode switch screen button, the dis-
play mode switches in the following
order:
Estimated course
line display mode
Parking assist guide
line display mode
Distance guide line
display mode
GX460_OM_OM60F68U_(U).book Page 265 Wednesday, June 8, 2016 6:37 PM

266
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems

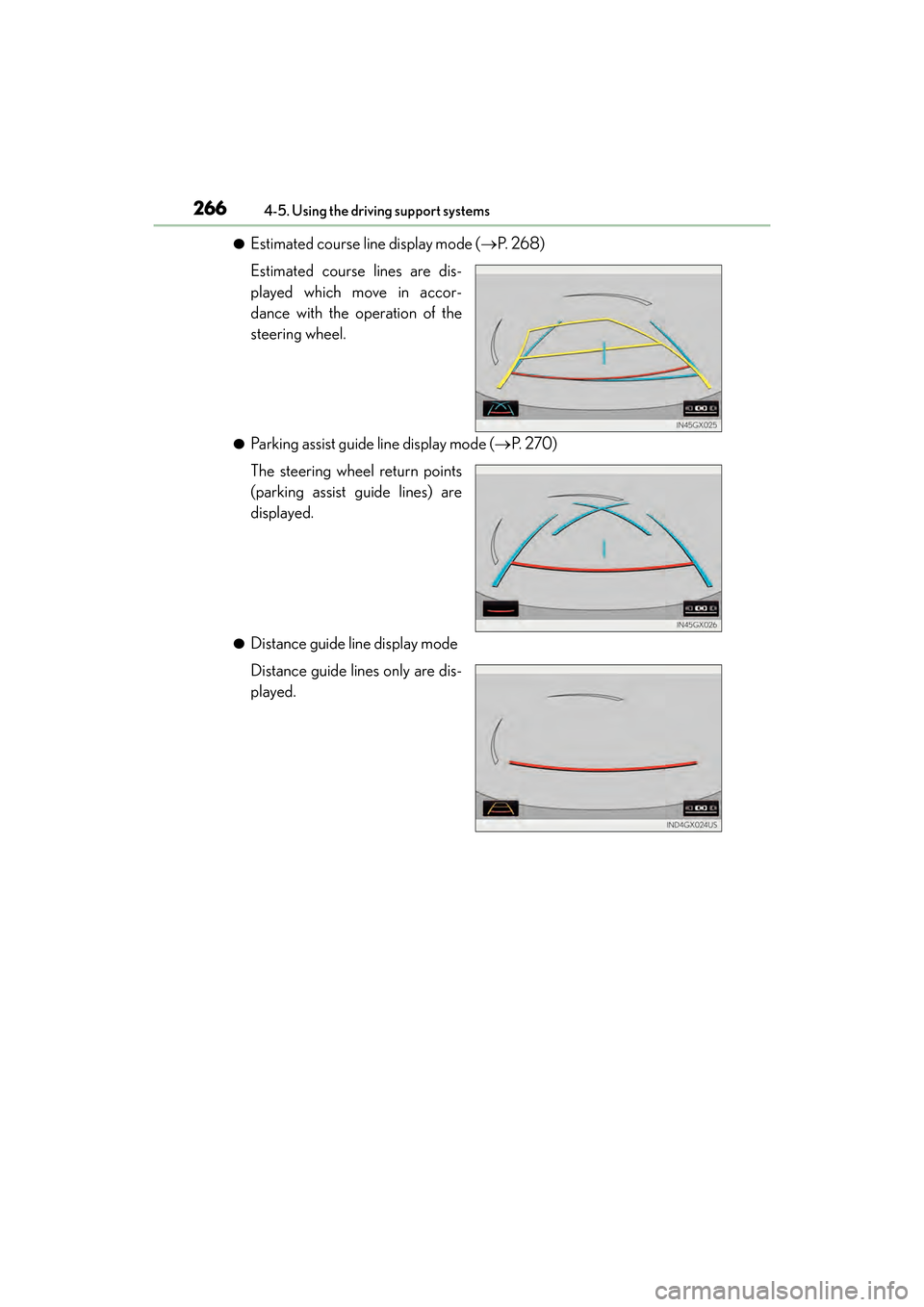

●Estimated course line display mode (
→P. 2 6 8 )
Estimated course lines are dis-
played which move in accor-
dance with the operation of the
steering wheel.
●Parking assist guide line display mode ( →P. 2 7 0 )
The steering wheel return points
(parking assist guide lines) are
displayed.
●Distance guide line display mode
Distance guide lines only are dis-
played.
GX460_OM_OM60F68U_(U).book Page 266 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
2674-5. Using the driving support systems
4
Driving

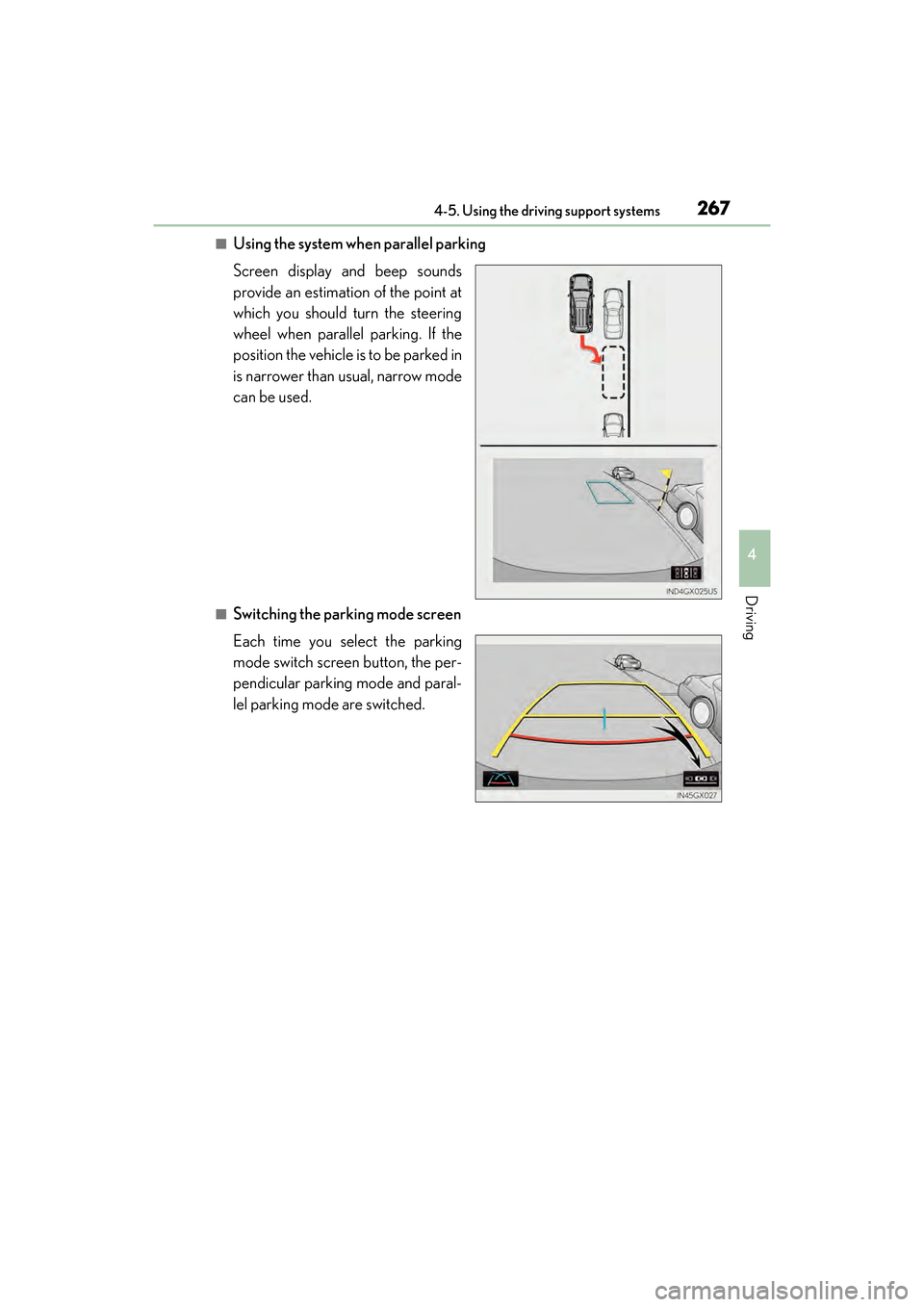

■Using the system when parallel parking
Screen display and beep sounds
provide an estimation of the point at
which you should turn the steering
wheel when parallel parking. If the
position the vehicle is to be parked in
is narrower than usual, narrow mode
can be used.
■Switching the parking mode screen
Each time you select the parking
mode switch screen button, the per-
pendicular parking mode and paral-
lel parking mode are switched.
GX460_OM_OM60F68U_(U).book Page 267 Wednesday, June 8, 2016 6:37 PM

268
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
■Screen description
Vehicle width guide line
The line indicates a guide path when the vehicle is being backed straight up.
The displayed width is wider than the actual vehicle width.
The line aligns with the estimated course lines when the steering wheel is straight.
Estimated course lines
The lines show an estimated course when the steering wheel is turned.
Distance guide lines
The line moves, together with the estimated course lines, in sync with the steering
wheel. The line shows points approximately 1.5 ft. (0.5 m) (red) and approximately
3 ft. (1 m) (yellow) from the center of the edge of the bumper.
Distance guide line
The line shows distance behind the vehicle, a point approximately 1.5 ft. (0.5 m)
(blue) from the edge of the bumper.
Vehicle center guide line
The line indicates the estimated vehicle center on the ground.
Perpendicular parking (estimated course line display mode)
1
2
3
4
5
GX460_OM_OM60F68U_(U).book Page 268 Wednesday, June 8, 2016 6:37 PM

270
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
Once the vehicle width guide lines and the parking space lines are parallel,
straighten the steering wheel and back up slowly until the vehicle has com-
pletely entered the parking space.
Stop the vehicle in an appropriate place, and finish parking.
■Screen description
Vehicle width guide lines
These lines indicate a guide path when the vehicle is being backed straight
up. The displayed width is wider than the actual vehicle width.
Parking assist guide lines
These lines indicate the path of the smallest turn possible behind the vehi-
cle.
These lines also indicate the approximate position of the steering wheel
when parking.
Distance guide line
This line (red) indicates points approximately 1.5 ft. (0.5 m) behind the rear
bumper of your vehicle.
Vehicle center guide line
The line indicates the estimated vehicle center on the ground.
Perpendicular parking (parking assist guide line display mode)
4
5
1
2
3
4
GX460_OM_OM60F68U_(U).book Page 270 Wednesday, June 8, 2016 6:37 PM
