warning Lexus GX460 2017 Repair Manual

5327-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
(If equipped)
Indicates a malfunction in the LDA (Lane Departure
Alert) systemA buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates a malfunction in the steering lock system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the pre-collision system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
system A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates abnormal engine oil pressure
The warning light may come on if the engine oil pres-
sure is too low.
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place and
contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
GX460_OM_OM60F68U_(U).book Page 532 Wednesday, June 8, 2016 6:37 PM

5337-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises
Indicates that the automatic transmission fluid tempera-
ture is too high A buzzer also sounds.
→ Immediately stop the vehicle in a safe place, shift the
shift lever to P and wait until the warning message
and light go off. If the warning message and light go
off, you may start the vehicle again.
If the warning message and light do not go off, con-
tact your Lexus dealer.
Indicates a malfunction in the automatic transmission
system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates that the moon roof is not fully closed (with the
engine switch off, and the driver’s door open) A buzzer also sounds.
→ Close the moon roof.
Indicates that engine oil level is low
A buzzer also sounds.
→ Check the level of engine oil, and add if necessary.
Indicates a malfunction in:
• The LED headlight system;
• The automatic headlight leveling system; or
• The Automatic High Beam system (if equipped)
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates that the washer fluid level is low
→Add washer fluid.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
GX460_OM_OM60F68U_(U).book Page 533 Wednesday, June 8, 2016 6:37 PM

5367-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
■Warning message in radar cruise mode (if equipped)
In the following situations, the warning message may not be displayed even if vehicle-to-
vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the vehicle
ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■The LDA (Lane Departure Alert) lane departure warning function (if equipped)
In the following situations, the warning message will not be displayed even if a lane line is
crossed.
●When the vehicle speed deviates from the operating range of the LDA system func-
tions
●When the lane lines cannot be recognized
■Conditions that the tire pressure warning system may not function properly
→P. 4 8 0
■Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or audio
sound.
GX460_OM_OM60F68U_(U).book Page 536 Wednesday, June 8, 2016 6:37 PM

5417-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises
■Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or audio
sound.
Once
An attempt was made to start the
engine with the shift lever in an
incorrect position.
→ Shift the shift lever to P and start
the engine.
Once
An attempt was made to turn the
engine switch off when the shift
lever was not in P.
→To turn off the engine, first shift
the shift lever to P and then turn
the engine switch off.
Interior
buzzerExteriorbuzzerWa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)
GX460_OM_OM60F68U_(U).book Page 541 Wednesday, June 8, 2016 6:37 PM

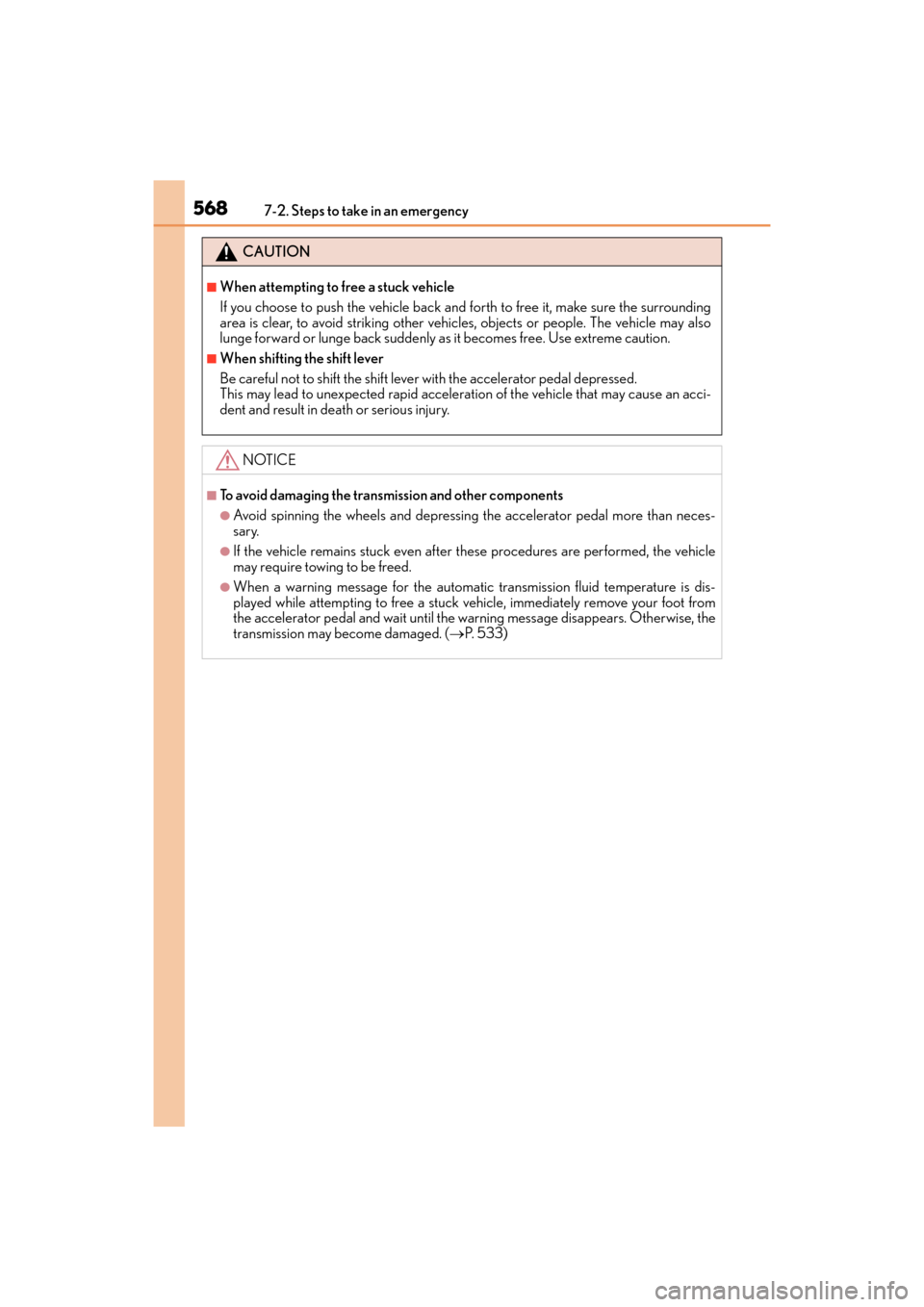

5687-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear, to avoid striking other vehicles, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-
dent and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and depressing the accelerator pedal more than neces-
sary.
●If the vehicle remains stuck even after these procedures are performed, the vehicle
may require towing to be freed.
●When a warning message for the automatic transmission fluid temperature is dis-
played while attempting to free a stuck vehicle, immediately remove your foot from
the accelerator pedal and wait until the wa rning message disappears. Otherwise, the
transmission may become damaged. ( →P. 5 3 3 )
GX460_OM_OM60F68U_(U).book Page 568 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
5878-1. Specifications
8
Vehicle specifications
This information has been prepared in accordance with regulations issued by the
National Highway Traffic Safety Administration of the U.S. Department of Trans-
portation.
It provides the purchasers and/or prospective purchasers of Lexus vehicles with
information on uniform tire quality grading.
Your Lexus dealer will help answer any questions you may have as you read this infor-
mation.
■DOT quality grades
All passenger vehicle tires must conform to Federal Safety Requirements in
addition to these grades. Quality grades can be found where applicable on
the tire sidewall between tread shoulder and maximum section width.
For example: Treadwear 200 Traction AA Temperature A
■Treadwear
The treadwear grade is a comparative rating based on the wear rate of the tire
when tested under controlled conditions on a specified government test
course.
For example, a tire graded 150 would wear one and a half (1 - 1 /2) times as well on
the government course as a tire graded 100.
The relative performance of tires depends upon the actual conditions of their use.
Performance may differ significantly from the norm due to variations in driving
habits, service practices and differences in road characteristics and climate.
■Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C, and they rep-
resent the tire’s ability to stop on wet pavement as measured under controlled
conditions on specified government test surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking (straight
ahead) traction tests and does not include cornering (turning) traction.
Uniform Tire Quality Grading
GX460_OM_OM60F68U_(U).book Page 587 Wednesday, June 8, 2016 6:37 PM

588
GX 460 _O M_ OM6 0F 6 8U _(U )8-1. Specifications
■Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing the tire’s
resistance to the generation of heat and its ability to dissipate heat when
tested under controlled conditions on a specified indoor laboratory test
wheel.
Sustained high temperature can cause the material of the tire to degenerate and
reduce tire life, and excessive temperature can lead to sudden tire failure.
Grade C corresponds to a level of performance which all passenger car tires must
meet under the Federal Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance on the laboratory test
wheel than the minimum required by law.
Warning: The temperature grades of a tire
assume that it is properly inflated and
not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in com-
bination, can cause heat buildup and possible tire failure.
GX460_OM_OM60F68U_(U).book Page 588 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
5978-2. Customization
8
Vehicle specifications
■Smart access system with push-button start and wireless remote control
(
→P. 9 8 , 1 0 5 )
FunctionDefault settingCustomized setting
Operation buzzer volumeLevel 7Off—OOLevel 1 to 6
Operation signal (buzzer)OnOff——O
Operation signal
(emergency flashers)OnOff—OO
Time elapsed before the
automatic door lock
function is activated if a
door is not opened after
being unlocked
60 seconds
Off
—OO30 seconds
120 seconds
Open door warning buzzer
(when locking the vehicle)OnOff——O
123
GX460_OM_OM60F68U_(U).book Page 597 Wednesday, June 8, 2016 6:37 PM

604
GX 460 _O M_ OM6 0F 6 8U _(U )8-2. Customization
■Intuitive parking assist* (→P. 2 4 4 )
*: If equipped
■In the following situations, customize mode will automatically be turned off.
●A warning message appears after the cu
stomize mode screen is displayed.
●The engine switch is turned to OFF.
●The vehicle begins to move while the customize mode screen is displayed.
FunctionDefault settingCustomized
setting
Buzzer volumeLevel 5Level 1 to 5—OO
Display settingAll sensors displayedDisplay off—OO
Detection distance of the
front center sensorFarNear—OO
Detection distance of the
rear center sensorFarNear—OO
123
CAUTION
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures.
GX460_OM_OM60F68U_(U).book Page 604 Wednesday, June 8, 2016 6:37 PM

624What to do if... (Troubleshooting)
GX 460 _O M_ OM6 0F 6 8U _(U )
●It is locked automatically to prevent theft of the vehicle. ( →P. 1 9 1 )
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( →P. 1 5 0 )
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( →P. 1 9 1 )
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(→ P. 522)
●The parking brake indicator is on
Is the parking brake released? ( →P. 2 0 1 )
Depending on the situation, other type s of warning buzzer may also sound.
( → P. 520, 528)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( →P. 74 )
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine. The steering wheel cannot be turned after the engine is stopped
The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activate
d and the horn sounds
GX460_OM_OM60F68U_(U).book Page 624 Wednesday, June 8, 2016 6:37 PM
