reset Lexus GX460 2017 Quick Guide

7
GX460_QG_OM60P00U_(U)
OverviewInstrument Panel
Headlight cleaner switch∗*
Fuel filler door opener P. 96
VSC OFF switch*
Heated steering wheel switch∗*
Odometer/trip meter and trip
meter reset button
*
Instrument cluster light control switch*
Outside rear view mirrorswitches
*
GX460_QG_OM60P00U_(U).book Page 7 Friday, June 3, 2016 2:27 PM

26
GX460_QG_OM60P00U_(U)
■Canceling and resuming the speed control
Pulling the lever toward you cancels
the cruise control.
The speed setting is also canceled
when the brakes are applied.
Pushing the lever up resumes the
cruise control and returns vehicle
speed to the set speed.
Resuming is available when the vehicle
speed is more than approximately
25 mph (40 km/h).1
2
The vehicle-to-vehicle distance control mode maintains the preset cruising speed as long
as no vehicle is detected ahead.
GX460_QG_OM60P00U_(U).book Page 26 Friday, June 3, 2016 2:27 PM

61
GX460_QG_OM60P00U_(U)
■Radio
Tuning to preset stations/channels
Scanning for receivable stations
Using HD Radio
TM Te c h n o l o g y ( f o r
U.S.A., if equipped)
Cache radio operation buttons
Adjusting the frequency
Press: Selects a preset station
Press and hold: Seeks for a station
■Entering station presets
Tune in the desired station.
Select “add new”.
Select “Yes” on the confirmation screen.
Select “OK” after setting the new preset station.
Radio mode has a mix preset function, which can store up to 36 stations (6 stations per
page x 6 pages) from any of the AM, FM or SAT bands.
■ DVD player
■
Playing an audio CD
Playback/pause
Repeat playback
Random playback
Disc eject
Selecting a track
Disc slot
1
2
3
4
5
6
1
2
3
4
1
2
3
4
5
6
GX460_QG_OM60P00U_(U).book Page 61 Friday, June 3, 2016 2:27 PM

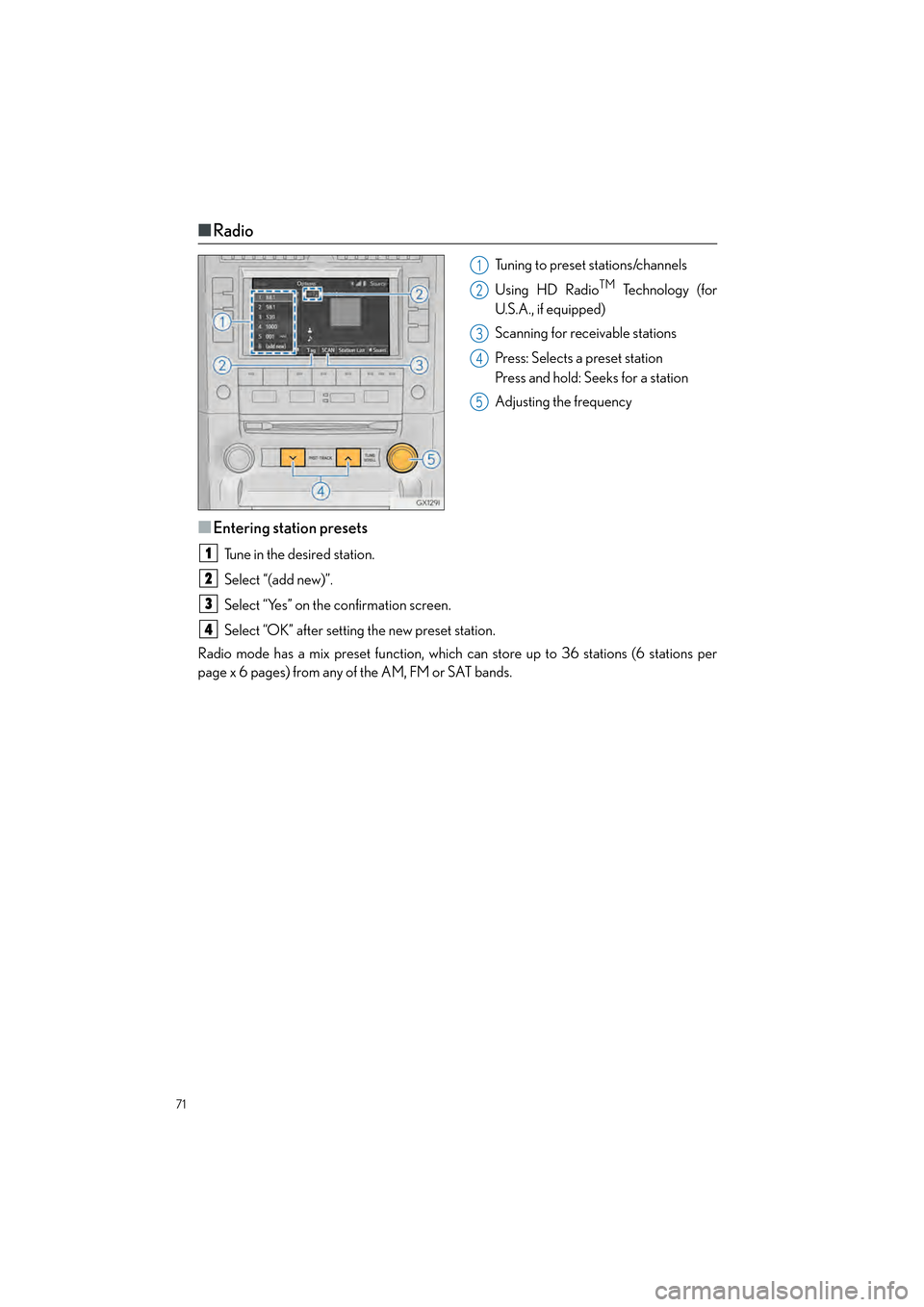

71
GX460_QG_OM60P00U_(U)
■Radio
Tuning to preset stations/channels
Using HD Radio
TM Te c h n o l o g y ( f o r
U.S.A., if equipped)
Scanning for receivable stations
Press: Selects a preset station
Press and hold: Seeks for a station
Adjusting the frequency
■Entering station presets
Tune in the desired station.
Select “(add new)”.
Select “Yes” on the confirmation screen.
Select “OK” after setting the new preset station.
Radio mode has a mix preset function, which can store up to 36 stations (6 stations per
page x 6 pages) from any of the AM, FM or SAT bands.
1
2
3
4
5
1
2
3
4
GX460_QG_OM60P00U_(U).book Page 71 Friday, June 3, 2016 2:27 PM

75
GX460_QG_OM60P00U_(U)
■Basic operation
Turns display off
Selects the display to be operated
L: left side display
R: right side display
Power on or off
Turning on the audio source selection
screen
Selecting an icon
Inputting the selected icon
■AM/FM/SAT
Select radio mode on the source screen to
display the control screen.
Selecting a preset station/channel
Press: Tuning the station/channel
Press and hold: Seeking a station/
channel
Press: Tuning the station/channel
Press and hold: Seeking a station/
channel
1
2
3
4
5
6
1
2
3
GX460_QG_OM60P00U_(U).book Page 75 Friday, June 3, 2016 2:27 PM

84
GX460_QG_OM60P00U_(U)
Phone
Radio (vehicles with navigation system)
CommandAction
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent Calls”Displays the call history screen
“Dial ”Places a call to the said phone number
“Call ”Place a call to the said phone type of the contact from
the phone book
CommandAction
“Tune to AM”Changes the radio to the specified AM frequency
“Tune to FM”Changes the radio to the specified FM frequency
“Play station”Changes the radio to an FM station of the specified
genre
“Tune to FM
HD ”Changes the radio to the specified HD radio station
“Tune to preset ”Changes the radio to the specified preset radio sta-
tion
“Tune to ”Changes the radio to the satellite radio channel with
the specified name
“Tune to channel ”Changes the radio to the specified satellite radio
channel number
“Play satellite station”Changes the radio to a sate llite radio channel of the
specified genre
GX460_QG_OM60P00U_(U).book Page 84 Friday, June 3, 2016 2:27 PM
