display Lexus GX460 2018 Owner's Manual / LEXUS 2018 GX460 MULTIMEDIA SYSTEM OWNER'S MANUAL (OM60Q14U)

7
1
2
3
4
5
6
7
GX460_MM_OM60Q14U_(U)17.06.15 12:38
1. VOICE COMMAND SYSTEM OPERATION............................................... 116
VOICE COMMAND SYSTEM .....................116
CASUAL SPEECH RECOGNIZATION.........................................121
COMMAND LIST............................................... 122
2. MOBILE ASSISTANT OPERATION.............................................. 124
MOBILE ASSISTANT........................................ 124
1. INFORMATION DISPLAY ....................... 128
RECEIVING WEATHER INFORMATION .............................................. 128
RECEIVING TRAFFIC MAP INFORMATION ..............................................130
1. PHONE OPERATION
(HANDS-FREE SYSTEM FOR
CELLULAR PHONES)............................ 132
QUICK REFERENCE ....................................... 132
SOME BASICS..................................................... 133
CALLING ON THE Bluetooth
®
PHONE................................................................. 136
RECEIVING ON THE Bluetooth
®
PHONE................................................................. 142
TALKING ON THE Bluetooth
®
PHONE................................................................. 143
Bluetooth
® PHONE MESSAGE
FUNCTION ........................................................ 146
2. SETUP .............................................................. 152
PHONE/MESSAGE SETTINGS................. 152
3. WHAT TO DO IF... ....................................... 165
TROUBLESHOOTING ................................... 165
1. LEXUS Enform Remote ............................... 174
LEXUS Enform Remote .....................................174
ALPHABETICAL INDEX .............................. 178
4VOICE COMMAND SYSTEM
5INFORMATION
6PHONE
7LEXUS Enform Remote
INDEX

1
1
2
3
4
5
6
9
GX460_MM_OM60Q14U_(U)17.05.09 14:46
7

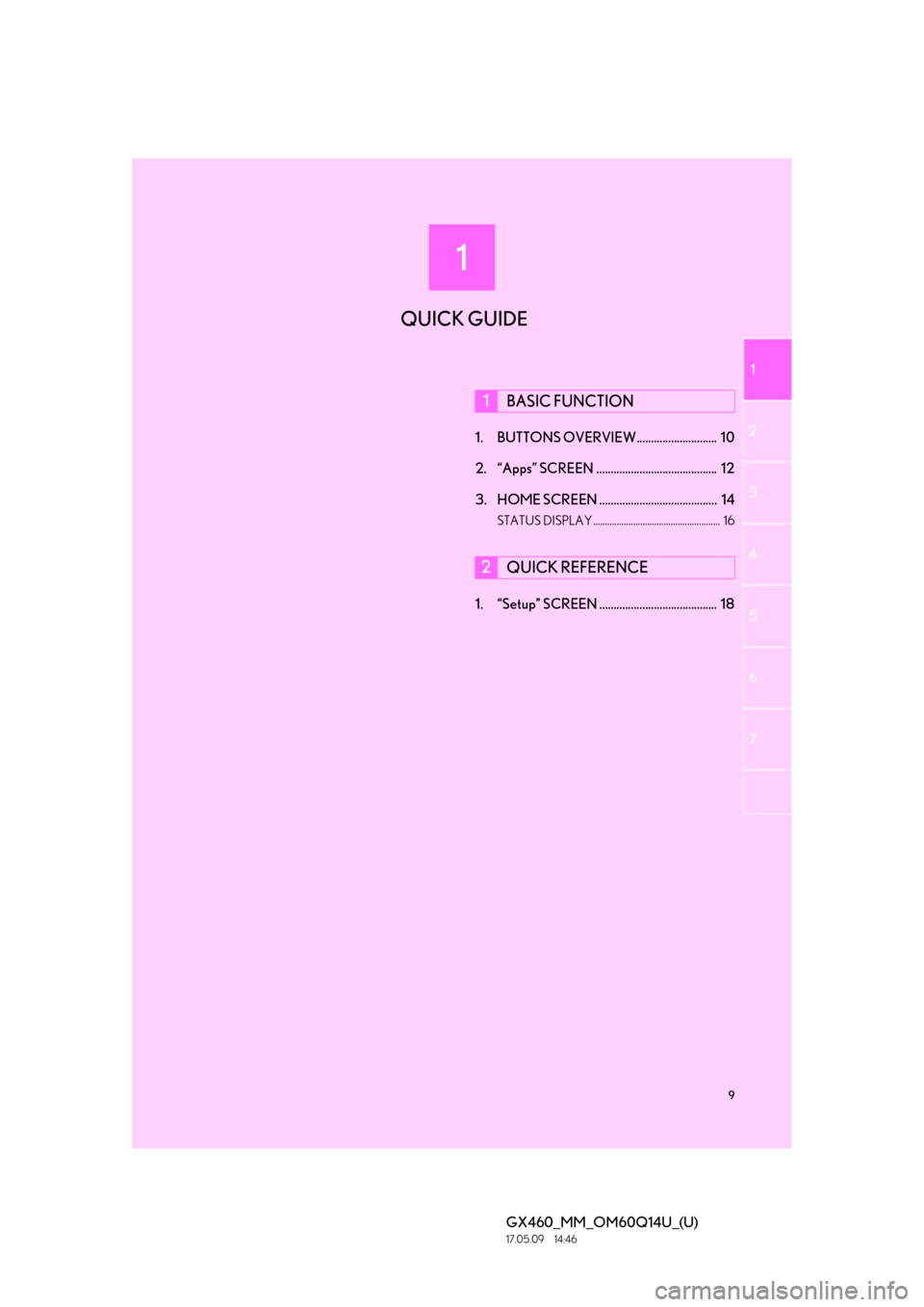

1. BUTTONS OVERVIEW............................ 10
2. “Apps” SCREEN .......................................... 12
3. HOME SCREEN ......................................... 14
STATUS DISPLAY ...................................................... 16
1. “Setup” SCREEN ......................................... 18
1BASIC FUNCTION
2QUICK REFERENCE
QUICK GUIDE

1. BASIC FUNCTION
1
QUICK GUIDE
11
GX460_MM_OM60Q14U_(U)17.06.15 12:38
No.FunctionPage
Press to display the hands-free operation screen.132
Press to display the “Apps” screen.12
Press to display the “Setup” screen.18
Press to display the home screen.14, 26
Press to display the air conditioning control screen.“Owner’s
Manual”
Press to play/pause.76, 79, 83, 89
Press to display the audio/visual screen.52, 54, 55

12
1. BASIC FUNCTION
GX460_MM_OM60Q14U_(U)17.06.15 12:38

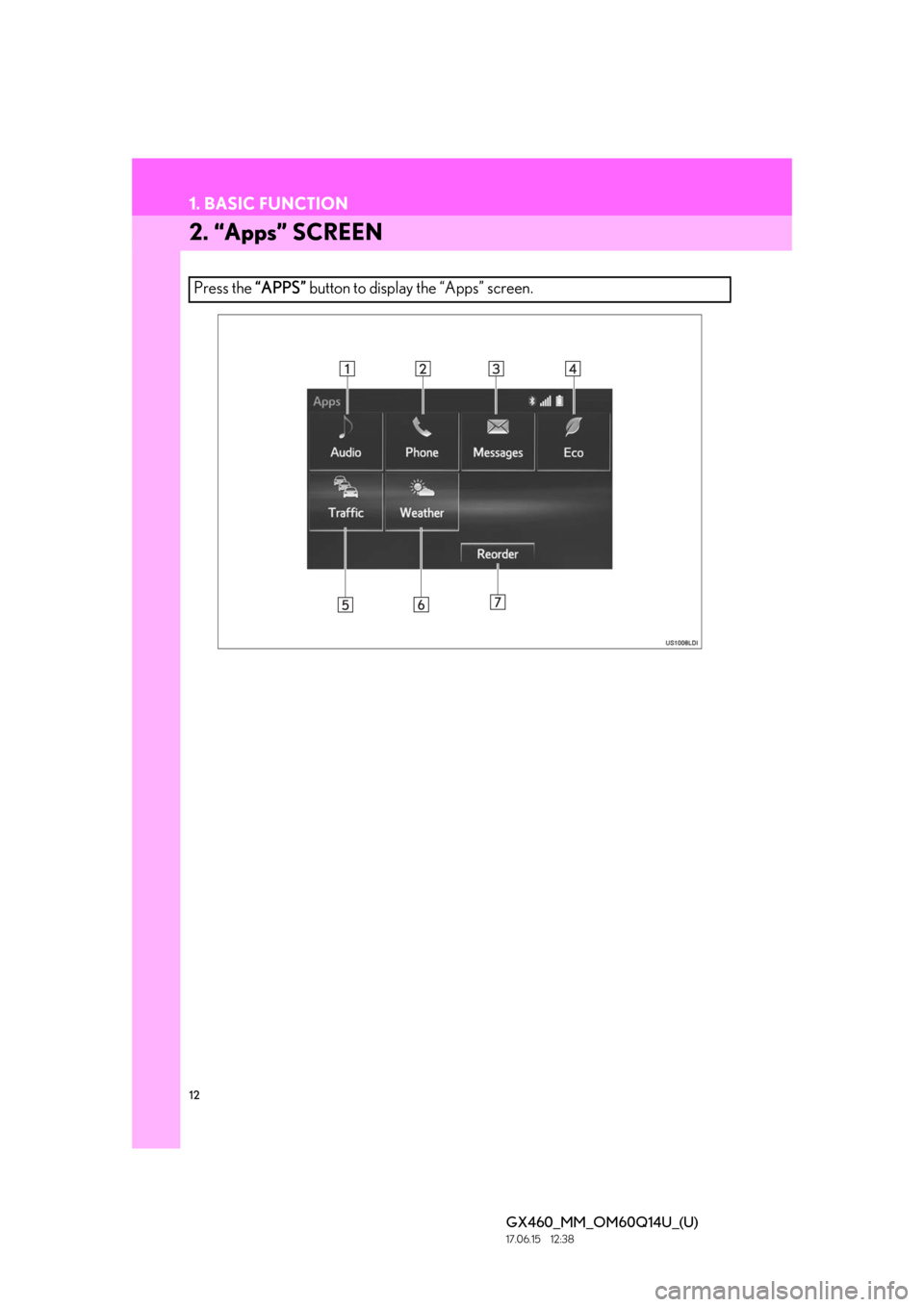

2. “Apps” SCREEN
Press the “APPS” button to display the “Apps” screen.

1. BASIC FUNCTION
1
QUICK GUIDE
13
GX460_MM_OM60Q14U_(U)17.06.15 12:38
No.FunctionPage
Select to display the audio control screen.52
Select to display the hand s-free operation screen.132
Select to display the “Messages” screen.146
Select to display the fuel consumption screen.“Owner’s
Manual”
Select to display traffic information.130
Select to display weather information.128
Select to reorder the menu icons.25

14
1. BASIC FUNCTION
GX460_MM_OM60Q14U_(U)17.06.15 12:38
3. HOME SCREEN
Three-way split screen
Press the “HOME” button to display the home screen.
The home screen can display multiple info rmation screens, such as the audio system
screen, hands-free screen and fuel consum ption screen, simultaneously. When hands-
free mode is selected, it is possible to ma ke call on the home screen if the desired
phone number is registered on the 4 displaye d buttons. In order to register the phone
number, select and hold the desired button and register the desired phone number by
obey displayed messages on the screen. (→ P.141)
When a screen is selected, the selected screen is switched to a full-screen display.
The home screen can be set to either a three-way split screen or a two-way split
screen.
For details about setting the home screen: → P.26

1. BASIC FUNCTION
1
QUICK GUIDE
15
GX460_MM_OM60Q14U_(U)17.06.15 12:38

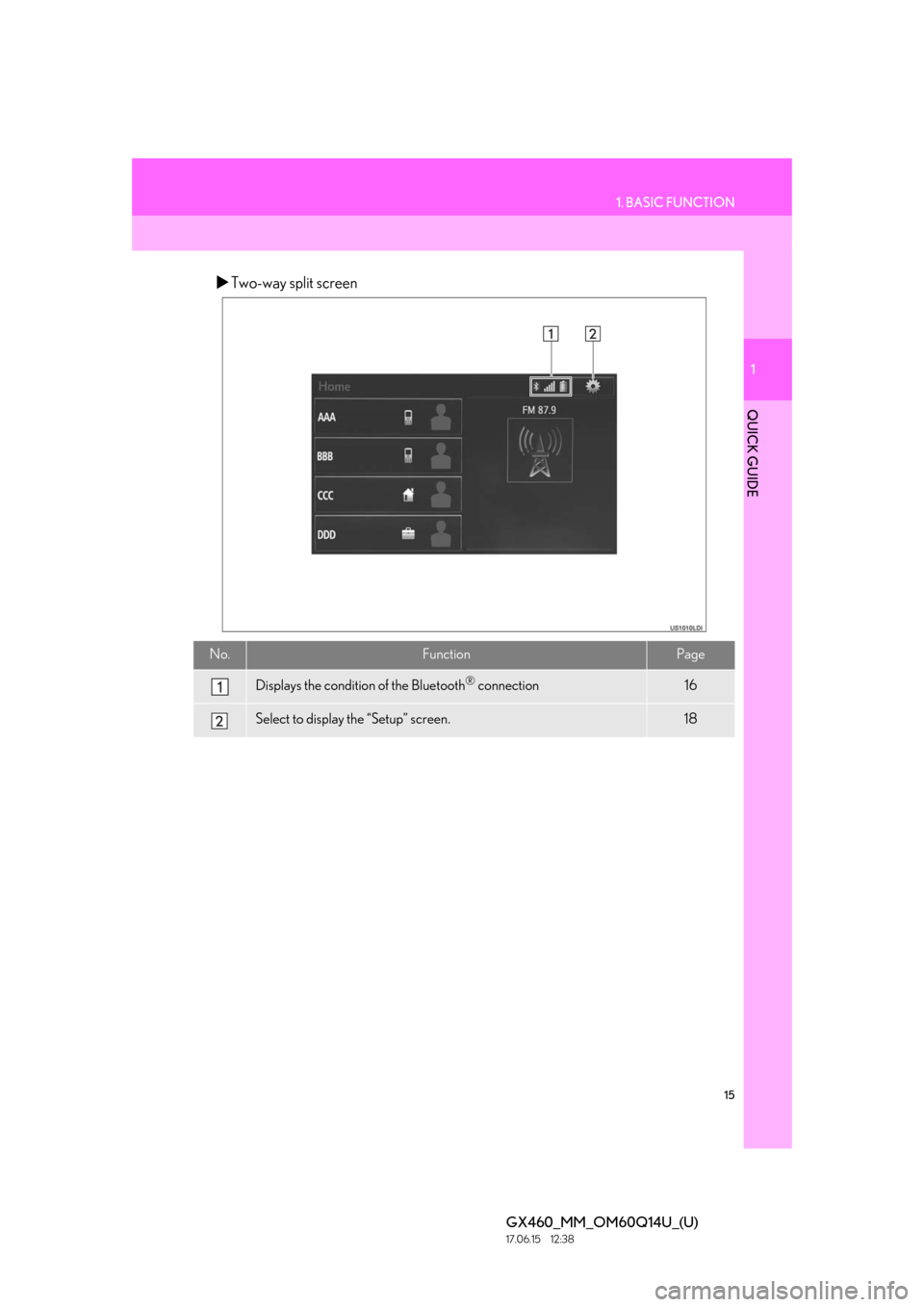

Two-way split screen
No.FunctionPage
Displays the condition of the Bluetooth® connection16
Select to display the “Setup” screen.18

16
1. BASIC FUNCTION
GX460_MM_OM60Q14U_(U)17.06.15 12:38

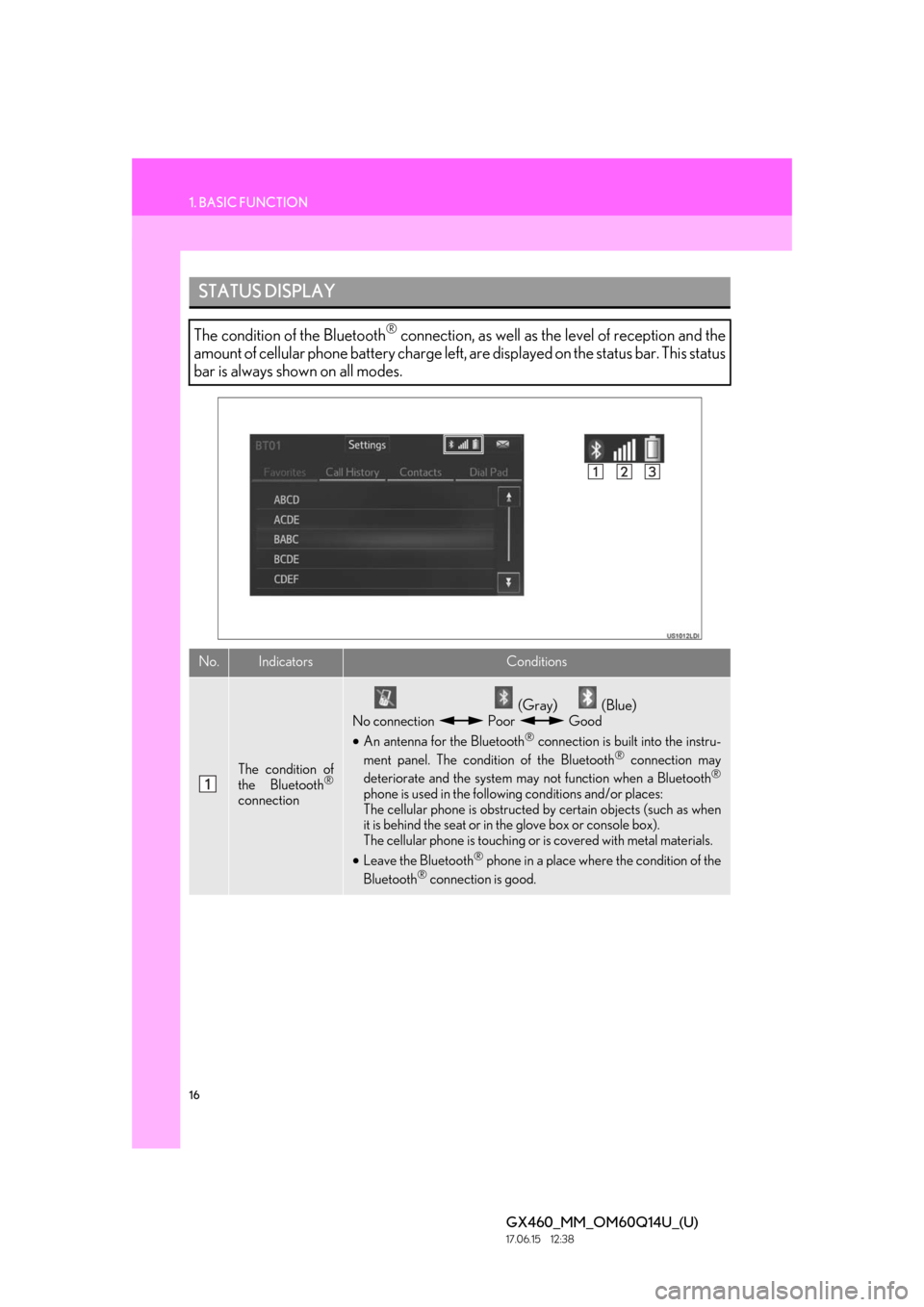

STATUS DISPLAY
The condition of the Bluetooth® connection, as well as the level of reception and the
amount of cellular phone battery charge left, are displayed on the status bar. This status
bar is always shown on all modes.
No.IndicatorsConditions
The condition of
the Bluetooth®
connection
(Gray) (Blue)
No connection Poor Good
• An antenna for the Bluetooth® connection is built into the instru-
ment panel. The condit ion of the Bluetooth® connection may
deteriorate and the sy stem may not function when a Bluetooth®
phone is used in the followi ng conditions and/or places:
The cellular phone is obstructed by certain objects (such as when
it is behind the seat or in the glove box or console box).
The cellular phone is touching or is covered with metal materials.
• Leave the Bluetooth
® phone in a place wher e the condition of the
Bluetooth® connection is good.

1. BASIC FUNCTION
1
QUICK GUIDE
17
GX460_MM_OM60Q14U_(U)17.06.15 12:38
The level of re-
ception
Poor Excellent
• The level of reception does not always correspond with the level
displayed on the cellular phone. The level of reception may not be
displayed depending on the phone you have.
When the cellular phone is out of the service area or in a place
inaccessible by radio waves, “No Service” is displayed.
• “Rm” is displayed when receivin g in a roaming area. While roam-
ing, display “Rm” top-left on the icon.
• The receiving area may not be displayed depending on the type of
phone you have.
The amount of
battery charge
leftEmpty Full
• The amount displayed does not always correspond with the
amount displayed on the Bluetooth
® device.
The amount of battery charge left may not be displayed depending
on the type of the Bluetooth
® device connected.
This system does not have a charging function.
No.IndicatorsConditions

22
GX460_MM_OM60Q14U_(U)17.06.15 12:38
1. BASIC INFORMATION BEFORE OPERATION
1. INITIAL SCREEN
1When the engine switch is in ACCES-
SORY or IGNITION ON mode, the
initial screen will be displayed and the
system will begin operating.
 After a few seconds, the “Caution” screen
will be displayed.
 After about 5 seconds, the “Caution”
screen automatically switches to the home
screen. (Select “Continue” or press the
“HOME” button to display the home
screen.)
1Press and hold the “PWR/VOL” knob
for 3 seconds or more.
 Images shown on the initial screen can be
changed to suit individual preferences.
(→ P.46)
CAUTION
●When the vehicle is stopped with the
engine running, always apply the parking
brake for safety.
RESTARTING THE SYSTEM
When system response is extremely
slow, the system can be restarted.
