brake sensor Lexus GX460 2018 / LEXUS 2018 GX460 (OM60Q09U) User Guide

5307-2. Steps to take in an emergency
GX460_OM_OM60Q09U_(U)

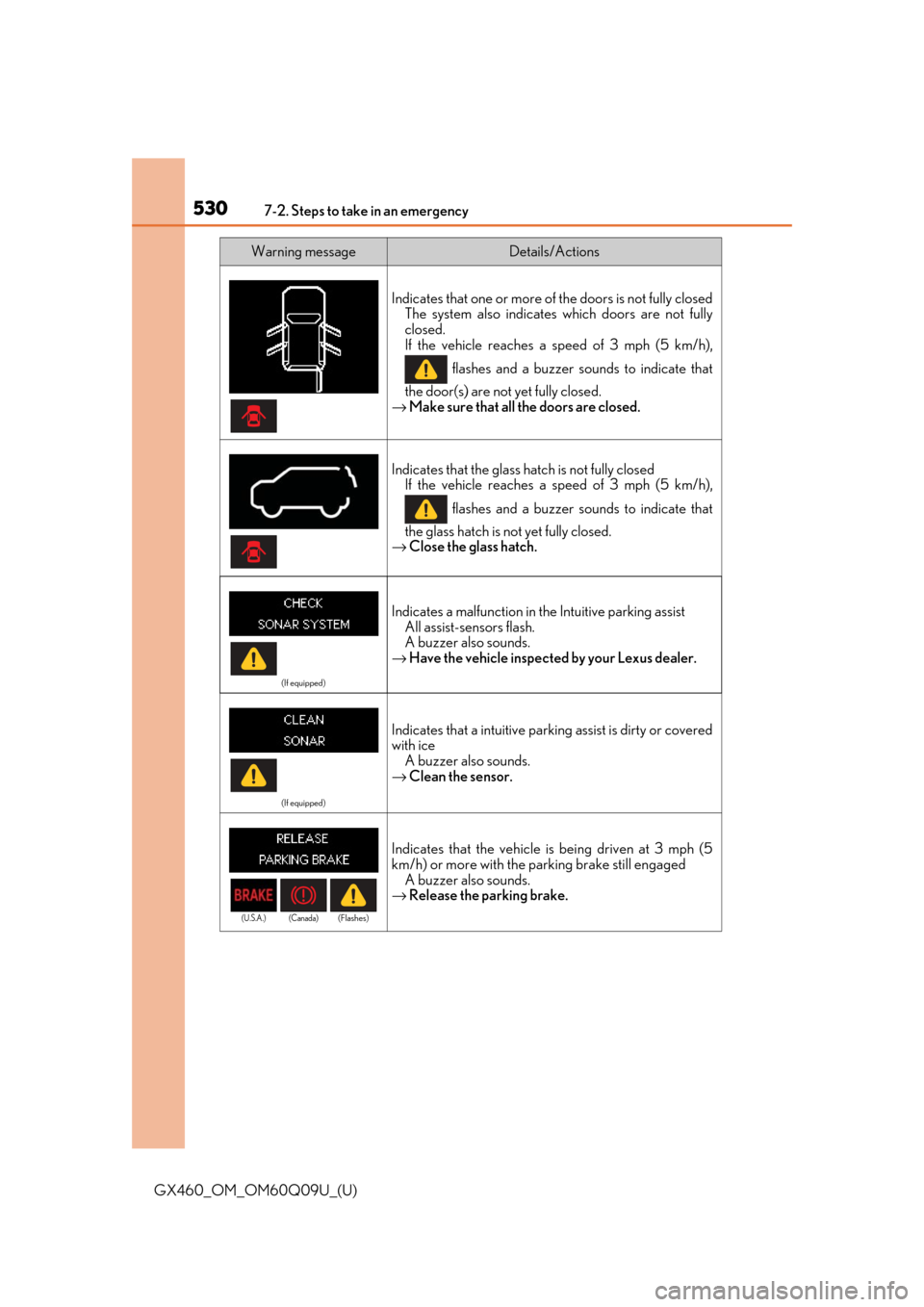

Indicates that one or more of the doors is not fully closedThe system also indicates which doors are not fully
closed.
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate that
the door(s) are not yet fully closed.
→ Make sure that all the doors are closed.
Indicates that the glass hatch is not fully closed
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate that
the glass hatch is not yet fully closed.
→ Close the glass hatch.
(If equipped)
Indicates a malfunction in the Intuitive parking assist
All assist-sensors flash.
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that a intuitive parking assist is dirty or covered
with ice
A buzzer also sounds.
→ Clean the sensor.
Indicates that the vehicle is being driven at 3 mph (5
km/h) or more with the pa rking brake still engaged
A buzzer also sounds.
→ Release the parking brake.
Warning messageDetails/Actions
(U.S.A.) (Canada)(Flashes)

624What to do if... (Troubleshooting)
GX460_OM_OM60Q09U_(U)
●It is locked automatically to prevent theft of the vehicle. ( →P. 191)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( →P. 150)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( →P. 191)
●The seat belt reminder light is flashing
Are the driver and the front passe nger wearing the seat belts?
(→ P. 522)
●The parking brake indicator is on
Is the parking brake released? ( →P. 201)
Depending on the situation, other types of warning buzzer may also sound.
(→ P. 520, 528)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. (→ P. 74)
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine. The steering wheel cannot be turned after the engine is stopped
The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activated and the horn sounds

632Alphabetical index
GX460_OM_OM60Q09U_(U)
Meter ............................................................ 83Indicators................................................... 78
Instrument panel light control .........84
Meters.........................................................83
Multi-information display ..................86
Warning lights ........................................ 78
Micro dust and pollen filter ................391
Mirrors Inside rear view mirror ..................... 145
Outside rear view mirror defoggers ............................................ 391
Outside rear view mirrors ...............147
Vanity mirrors ........................................421
Moon roof................................................. 153 Jam protection function ................... 154
Operation ............................................... 153
MP3 disc
*
Multi-information display ..................... 86 Switching the display........................... 87
Trip information ..................................... 87
Multi-terrain Monitor ...........................313
Multi-terrain Select..............................308
Navigation system
*
Odometer .................................................. 83
Off-road precautions ......................... 380
Oil Engine oil ............................................... 572
Front differential oil ........................... 575
Rear differential oil ............................ 575
Transfer................................................... 576
Opener Back door............................................... 106
Fuel filler door...................................... 223
Hood........................................................ 462
Outside rear view mirrors .................. 147 Adjusting and folding ........................ 147
Blind Spot Monitor ........................... 357
Outside rear view mirror defoggers.............................................391
Outside temperature display ............. 90
Overheating, Engine .......................... 564
Parking assist sensors (intuitive parking assist)...................245
Parking assist monitor .........................264
Parking brake .......................................... 201 Operation................................................201
Parking brake engaged warning buzzer ...............................530
Personal lights ....................................... 402 Switch ......................................................403
Wattage ................................................. 579
N
O
P
