3214-5. Using the driving support systems
4
Driving

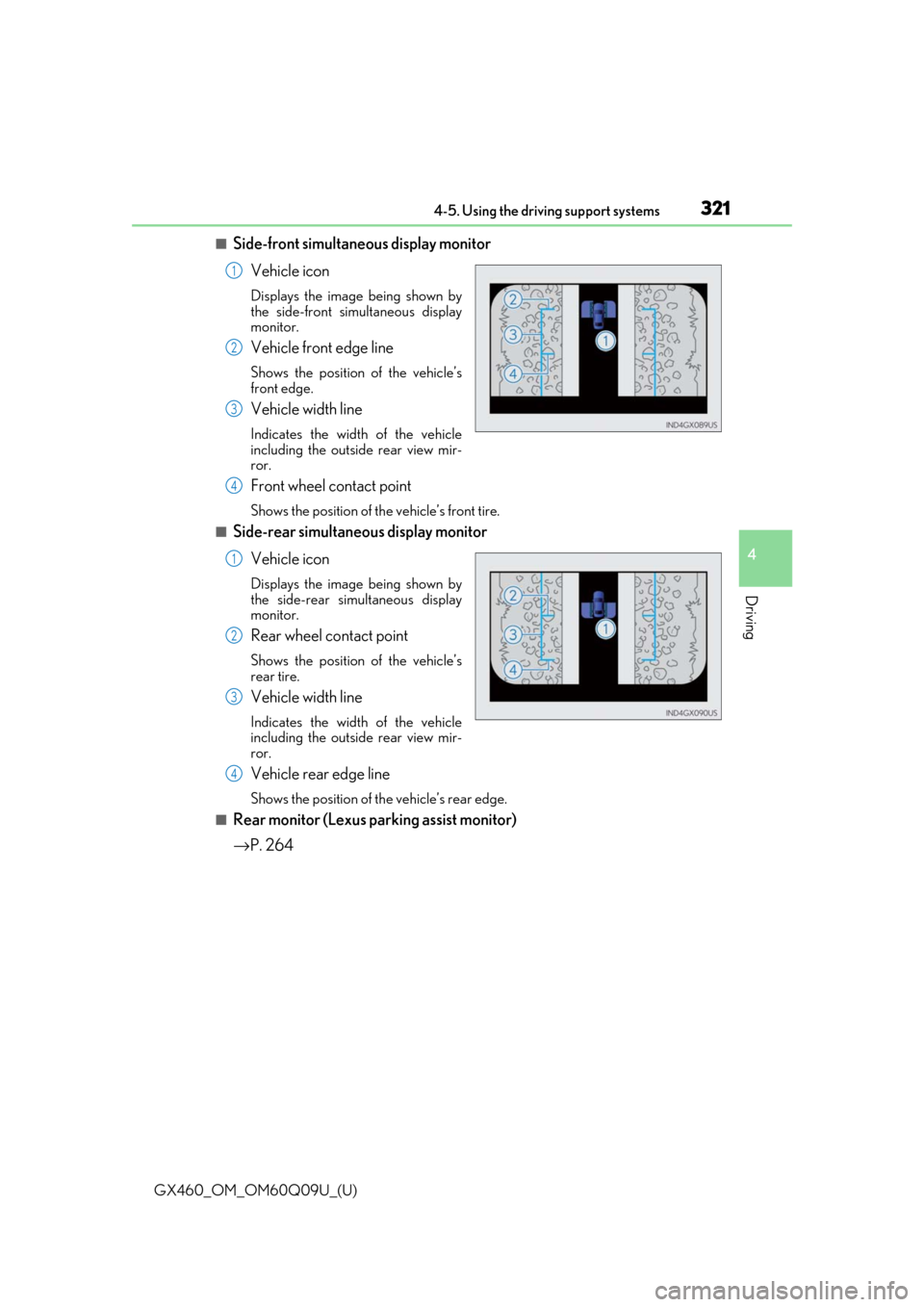

■Side-front simultaneous display monitorVehicle icon
Displays the image being shown by
the side-front simultaneous display
monitor.
Vehicle front edge line
Shows the position of the vehicle’s
front edge.
Vehicle width line
Indicates the width of the vehicle
including the outside rear view mir-
ror.
Front wheel contact point
Shows the position of th e vehicle’s front tire.
■Side-rear simultaneous display monitor
Vehicle icon
Displays the image being shown by
the side-rear simultaneous display
monitor.
Rear wheel contact point
Shows the position of the vehicle’s
rear tire.
Vehicle width line
Indicates the width of the vehicle
including the outside rear view mir-
ror.
Vehicle rear edge line
Shows the position of th e vehicle’s rear edge.
■Rear monitor (Lexus parking assist monitor)
→P. 264
1
2
3
4
1
2
3
4

322
GX460_OM_OM60Q09U_(U)4-5. Using the driving support systems

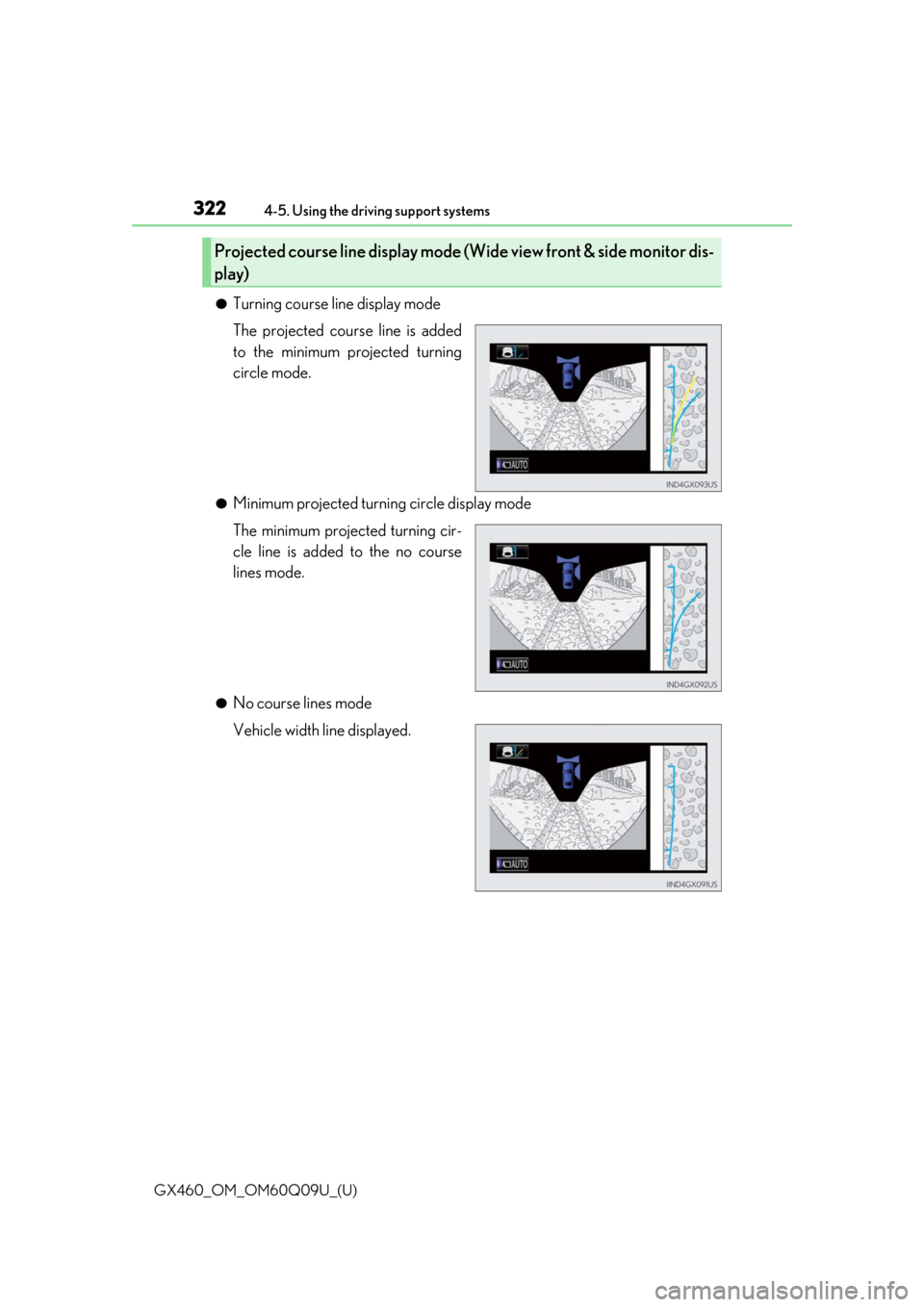

●Turning course line display mode
The projected course line is added
to the minimum projected turning
circle mode.
●Minimum projected turning circle display mode
The minimum projected turning cir-
cle line is added to the no course
lines mode.
●No course lines mode
Vehicle width line displayed.
Projected course line display mode (W
ide view front & side monitor dis-
play)

GX460_OM_OM60Q09U_(U)
3234-5. Using the driving support systems
4
Driving
■Switching projected course line display mode
Select .
The display mode switches in the fol-
lowing order:
■Using the vehicle width line & course line
●Vehicle width line
Turning course line display
mode
Minimum projected turning
circle display mode
No course lines mode
Use the vehicle width line to
check the vehicle’s distance from
objects such as curbstones etc.
As shown in the illustration, be
sure that the vehicle width line
does not overlap the object. If you
also move the vehicle so that the
vehicle width line and the object
are parallel, you can park parallel
to the object.

324
GX460_OM_OM60Q09U_(U)4-5. Using the driving support systems

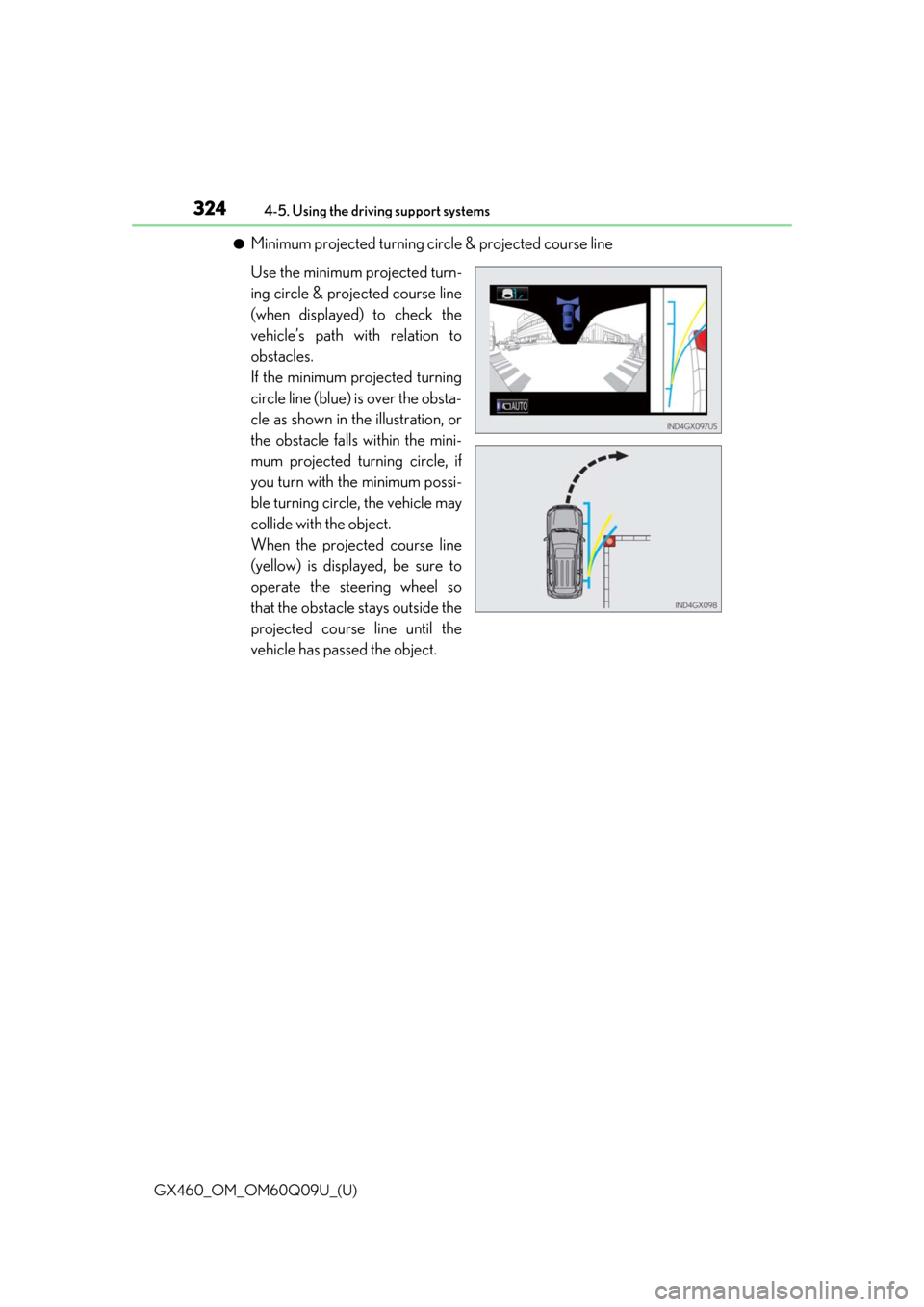

●Minimum projected turning circle & projected course line
Use the minimum projected turn-
ing circle & projected course line
(when displayed) to check the
vehicle’s path with relation to
obstacles.
If the minimum projected turning
circle line (blue) is over the obsta-
cle as shown in the illustration, or
the obstacle falls within the mini-
mum projected turning circle, if
you turn with the minimum possi-
ble turning circle, the vehicle may
collide with the object.
When the projected course line
(yellow) is displayed, be sure to
operate the steering wheel so
that the obstacle stays outside the
projected course line until the
vehicle has passed the object.

GX460_OM_OM60Q09U_(U)
3254-5. Using the driving support systems
4
Driving
■The Multi-terrain Monitor can be operated when
Normal display mode
●The engine switch is in IGNITION ON mode.
●The vehicle speed is less than approximately 7 mph (12 km/h).
Automatic display mode
●When automatic display mode is selected
●When the shift lever is shifted to D, S or N
●When the shift lever is in D, S or N and the vehicle speed is below approximately 6 mph
(10 km/h)
■Automatic system cancellation
In the following situations, the image is canceled automatically.
●When the vehicle speed exceeds approximately 7 mph (12 km/h).
After the vehicle speed exceeds approximately 7 mph (12 km/h), the image will con-
tinue to be displayed for a short time.
If the vehicle speed returns to below 7 mph (12 km/h) before the image extinguishes,
the image will continue to be displayed.
●When “SETUP” or another switch ou tside the screen has been pressed
●When the shift lever is in P or R.
■Insert display
An insert display is displayed when an obstacle is within the detection range of the intui-
tive parking assist. ( →P. 245)
■When folding or extending the door mirrors
The screen will be turned off temporarily while the door mirrors are folding or extending,
and the screen will return to normal after the door mirror operation has been completed.

326
GX460_OM_OM60Q09U_(U)4-5. Using the driving support systems

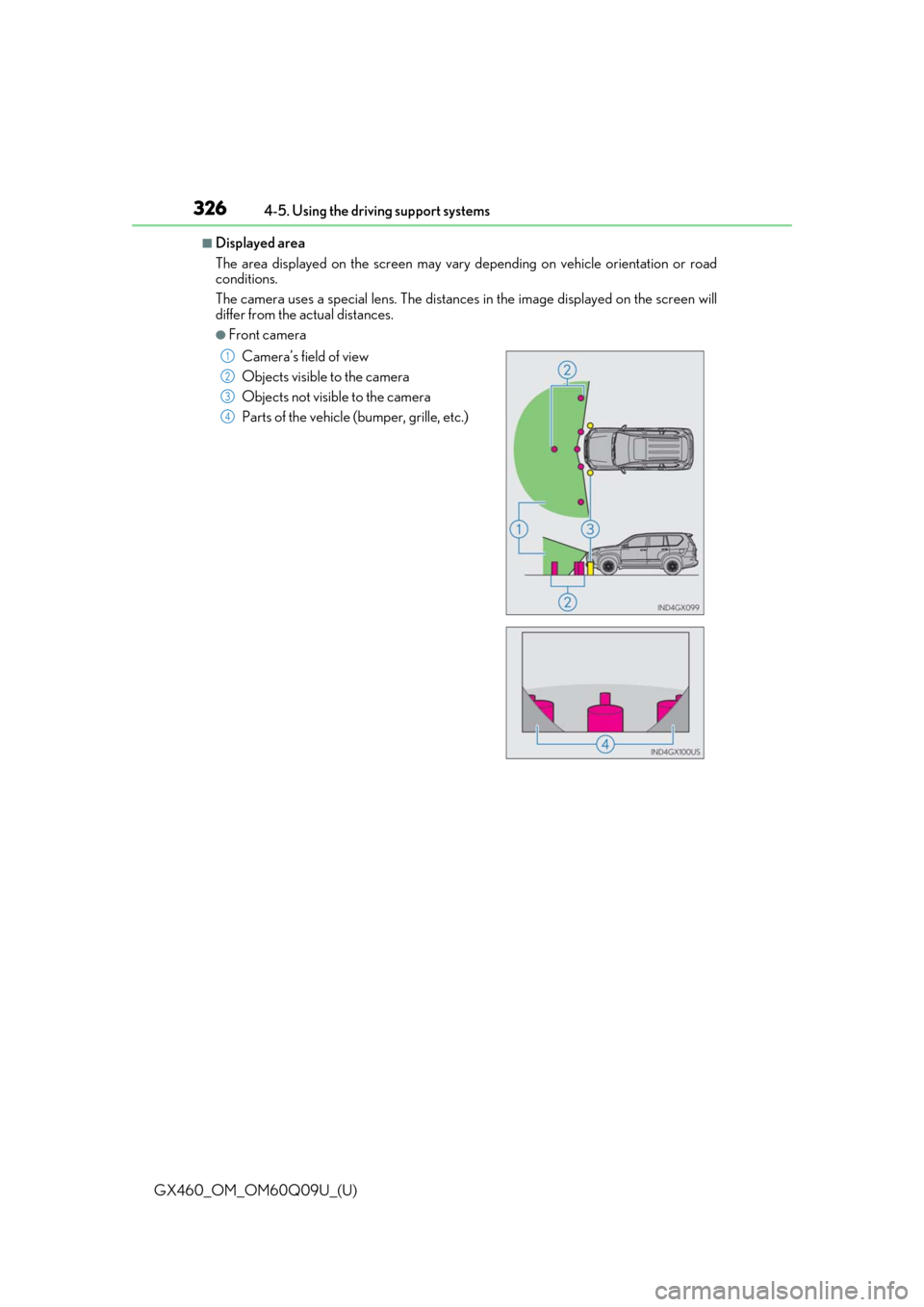

■Displayed area
The area displayed on the screen may vary depending on vehicle orientation or road
conditions.
The camera uses a special lens. The distances in the image displayed on the screen will
differ from the actual distances.
●Front camera
Camera’s field of view
Objects visible to the camera
Objects not visible to the camera
Parts of the vehicle (bumper, grille, etc.)
1
2
3
4

GX460_OM_OM60Q09U_(U)
3274-5. Using the driving support systems
4
Driving

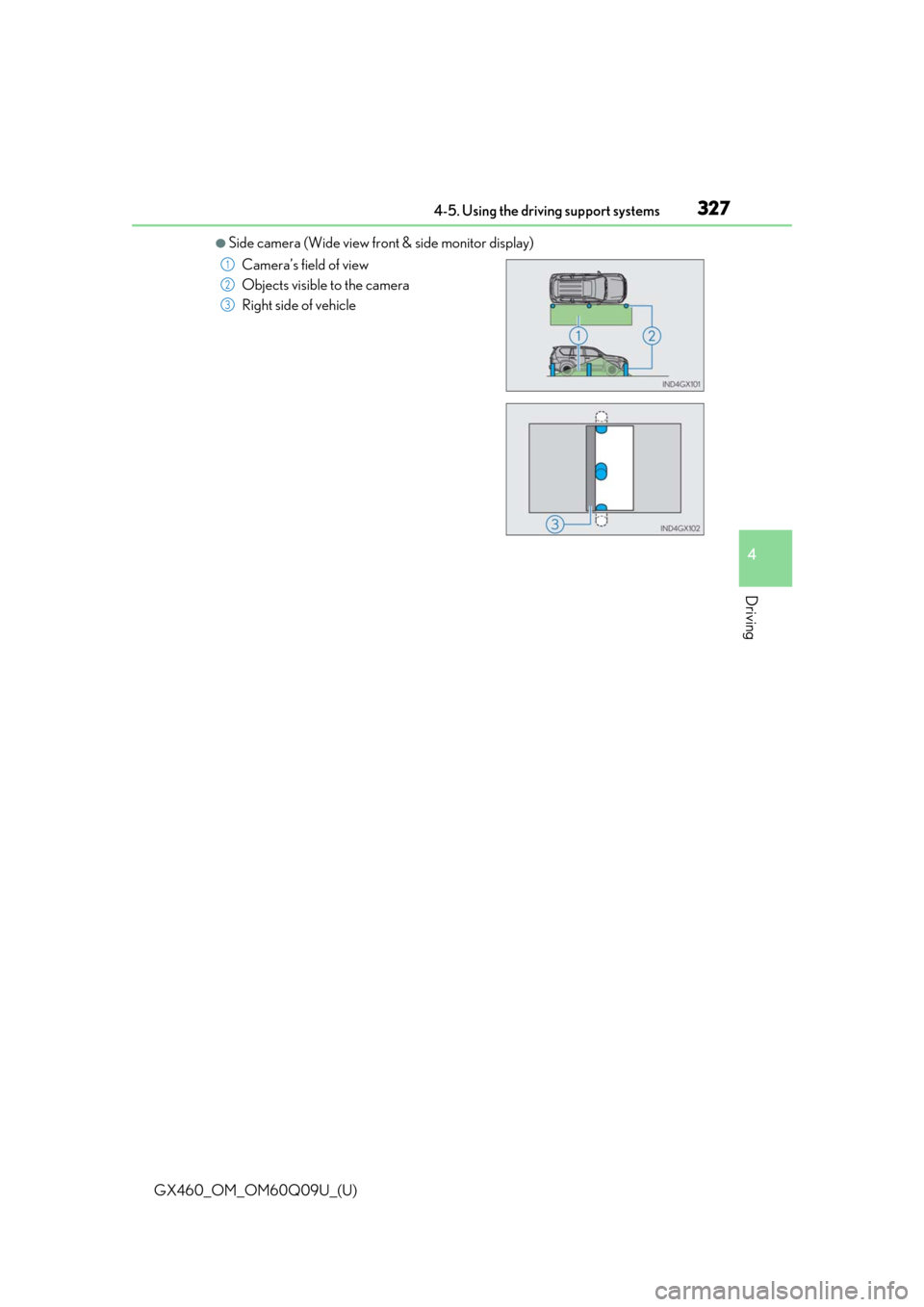

●Side camera (Wide view front & side monitor display)
Camera’s field of view
Objects visible to the camera
Right side of vehicle
1
2
3

328
GX460_OM_OM60Q09U_(U)4-5. Using the driving support systems

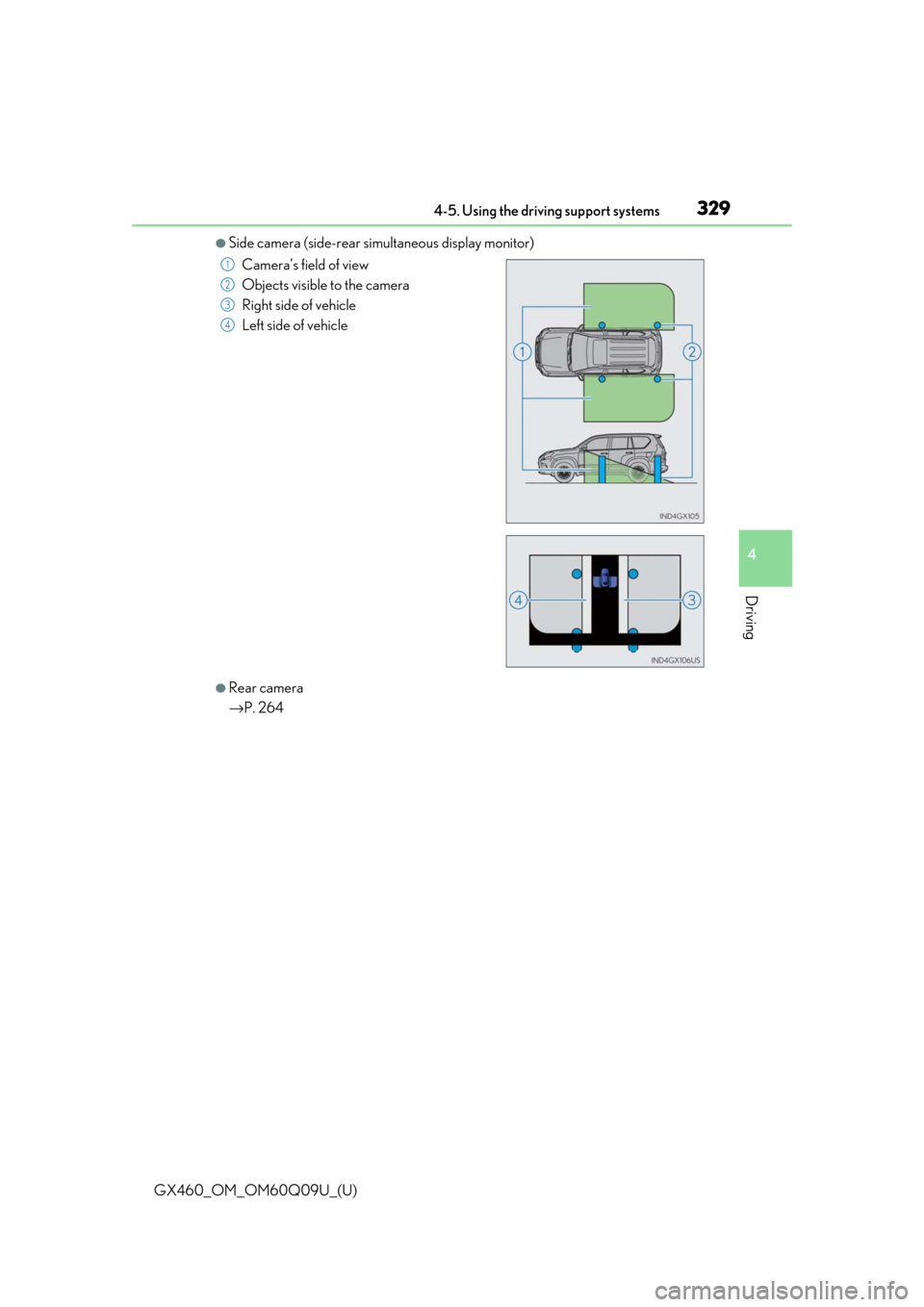

●Side camera (side-front simultaneous display monitor)
Camera’s field of view
Objects visible to the camera
Right side of vehicle
Left side of vehicle
1
2
3
4

GX460_OM_OM60Q09U_(U)
3294-5. Using the driving support systems
4
Driving
●Side camera (side-rear simultaneous display monitor)
●Rear camera
→P. 264
Camera’s field of view
Objects visible to the camera
Right side of vehicle
Left side of vehicle
1
2
3
4

330
GX460_OM_OM60Q09U_(U)4-5. Using the driving support systems
■Multi-terrain Monitor cameras
If dirt or foreign matter (suc
h as water droplets, snow, mud etc.) is adhering to the cam-
era, it cannot transmit a clear im age. In this case, flush it with a large quantity of water and
wipe the camera lens clean with a soft and wet cloth.
■Display settings
→ Refer to the “MULTIMEDIA OWNER’ S MANUAL” or “NAVIGATION SYSTEM
OWNER’S MANUAL”. Side cameras
Front camera
Rear camera
1
2
3
