low beam Lexus GX460 2018 Owner's Manual / LEXUS 2018 GX460 OWNER'S MANUAL (OM60Q09U)

GX460_OM_OM60Q09U_(U)
2074-3. Operating the lights and wipers
4
Driving
■Switching to low beam
Pull the lever to original position.
■Switching to high beam
Turn the light switch to posi-
tion.
Turning the high beam on/off manually

208
GX460_OM_OM60Q09U_(U)4-3. Operating the lights and wipers
When all of the following conditions are
fulfilled, high beam will be automatically
turned on (after approximately 1 second):
●Vehicle speed is above approximately 20 mph (32 km/h).
●The area ahead of the vehicle is dark.
●There are no oncoming or preceding ve hicles with headlights or tail lights
turned on.
If any of the following co nditions are fulfilled, high beam will be automatically
turned off:
●Vehicle speed drops below appr oximately 20 mph (32 km/h).
●The area ahead of the vehicle is not dark.
●Oncoming or preceding vehicles have headlights or tail lights turned on.
■Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Al ways drive safely, taking care to observe
your surroundings and turning high beam on or off manually if necessary.
■Camera sensor detection information
●High beam may not be automatically turned off in the following situations:
• When oncoming vehicles sudd enly appear from a curve.
• When another vehicle cuts across in front of you.
●High beam may be turned off if an oncoming vehicle that is using fog lights without
using the headlights is detected.
●Houselights, streetlights, red traffic signals, and illuminated billboards or signs may
cause the high beam to turn off.
●The following factors may affect the amount of time taken to turn high beam on or off:
• The brightness of headlights, fog lights, and tail lights of oncoming and preceding
vehicles
• Road conditions (wetness, ice, snow etc.)
• The number of passengers and amount of baggage
●High beam may be turned on or of f when unexpected by the driver.
High beam automatic turning on or off conditions

GX460_OM_OM60Q09U_(U)
2094-3. Operating the lights and wipers
4
Driving
●In the situations below, the system may not be able to correctly detect the surrounding
brightness levels, and may flas h or expose nearby pedestrians to the high beam. There-
fore, you should consider turning the high be am on or off manually rather than relying
on the Automatic High Beam system.
• In bad weather (rain, snow, fog, sandstorms etc.)
• The windshield is obscured by fog, mist, ice, dirt etc.
• The windshield is cracked or damaged.
• The inside rear view mirror or ca mera sensor is deformed or dirty.
• The camera sensor temperature is extremely high.
• Surrounding brightness levels are equal to th ose of headlights, tail lights or fog lights.
• Vehicles ahead have headlights that are either switched off, dirty, are changing color,
or are not aimed properly.
• When driving through an area of intermittently changing brightness and darkness
• When frequently and repeated ly driving ascending/descending roads, or roads with
rough, bumpy or uneven surfaces (such as stone-paved roads, gravel tracks etc.)
• When frequently and repeatedly taking curves or driving on a winding road
• There is a highly reflective object ahead of the vehicle, such as a sign or a mirror.
• The back of a vehicle ahead is highly re flective, such as a container on a truck.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or tilting, due to a flat tire, a trailer being towed etc.
• The Automatic High Beam indicator is flashing.
• The high beam and low beam are repeated ly being switched between in an abnor-
mal manner.
• The driver believes that the high beam may be causing problems or distress to other
drivers or pedestrians nearby.
■If the Automatic High Be am indicator flashes...
It may indicate a malfun ction in the system. Contact your Lexus dealer.
■Temporary lowering sensor sensitivity
The sensitivity of the sensor can be temporarily lowered.
To lower the sensitivity, push and hold the “A UTO” button on the inside rear view mirror
for 15 to 20 seconds, and release. The indica tor light on the inside rear view mirror will
flash to indicate that the sensitivity has been lowered.
When the engine switch is turned off, the se nsitivity will be returned to its normal level.
■Customization that can be conf igured at your Lexus dealer
The Automatic High Beam can be turned off.

210
GX460_OM_OM60Q09U_(U)4-3. Operating the lights and wipers
NOTICE
■Camera sensor
●Do not apply window tinting or stickers to
the camera sensor or the area of wind-
shield near the camera sensor.
●Do not place items on the dashboard. There is a possibility that the camera sensor will
mistake items reflected in the windshield for streetlights, the headlights of other vehi-
cles, etc.
●Do not install a parking tag or any other ac cessories near or around the inside rear
view mirror and the camera sensor.
●Do not overload the vehicle.
●Do not modify the vehicle.
●Do not replace windshield wi th a non-genuine windshield.
Contact your Lexus dealer.
Observe the following to ensure that the Auto-
matic High Beam functions correctly.
●Do not touch the camera sensor.
●Do not subject the inside rear view mirror or
the camera sensor to a strong impact.
●Do not disassemble the camera sensor.
●Do not spill liquid onto the inside rear view
mirror or the camera sensor.

212
GX460_OM_OM60Q09U_(U)4-3. Operating the lights and wipers
Type B
Turns the fog light off
Turns the fog light on
■Fog lights can be used when
The headlights are on in low beam.
1
2
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than ne cessary when the engine is not running.

498
GX460_OM_OM60Q09U_(U)6-3. Do-it-yourself maintenance
Light bulbs
Check the wattage and color of the light bulb being replaced. (
→P. 579)
→ P. 464
■Front
You may replace the following bulbs your self. The difficulty level of replace-
ment varies depending on the bulb. If necessary bulb replacement seems diffi-
cult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.
Preparing for light bulb replacement
Removing the engine compartment covers
Bulb locations
Front turn signal light
Headlight high beam1
2

506
GX460_OM_OM60Q09U_(U)6-3. Do-it-yourself maintenance
■Running board lights
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your Lexus
dealer.
●Headlight low beams
●Parking lights/daytime running lights
●Front side marker lights
●Fog lights (if equipped)
●Side turn signal lights
●High mounted stoplight
●Stop/tail lights
●License plate lights
1
2
3

GX460_OM_OM60Q09U_(U)
5076-3. Do-it-yourself maintenance
6
Maintenance and care
■LED lights
The headlight low beams, parking lights/daytime running lights, front side marker lights,
fog lights, side turn signal lig hts, high mounted stoplight, stop/tail lights and license plate
lights consist of a number of LEDs. If any of the LEDs burn out, take your vehicle to your
Lexus dealer to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction. Contact your Lexus dealer for mo re information in the following situations:
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately after turning
off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bu lb with bare hands. When it is unavoid-
able to hold the glass portion, use and hold with a clean dry cloth to avoid getting
moisture and oils on the bulb.
Also, if the bulb is sc ratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may result
in heat damage, fire, or water entering th e headlight unit. This may damage the head-
lights or cause condensation to build up on the lens.
●Do not attempt to repair or disassemble light bulbs, connectors, electric circuits or
component parts.
Doing so may result in death or se rious injury due to electric shock.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat damage.

5337-2. Steps to take in an emergency
GX460_OM_OM60Q09U_(U)
7
When trouble arises

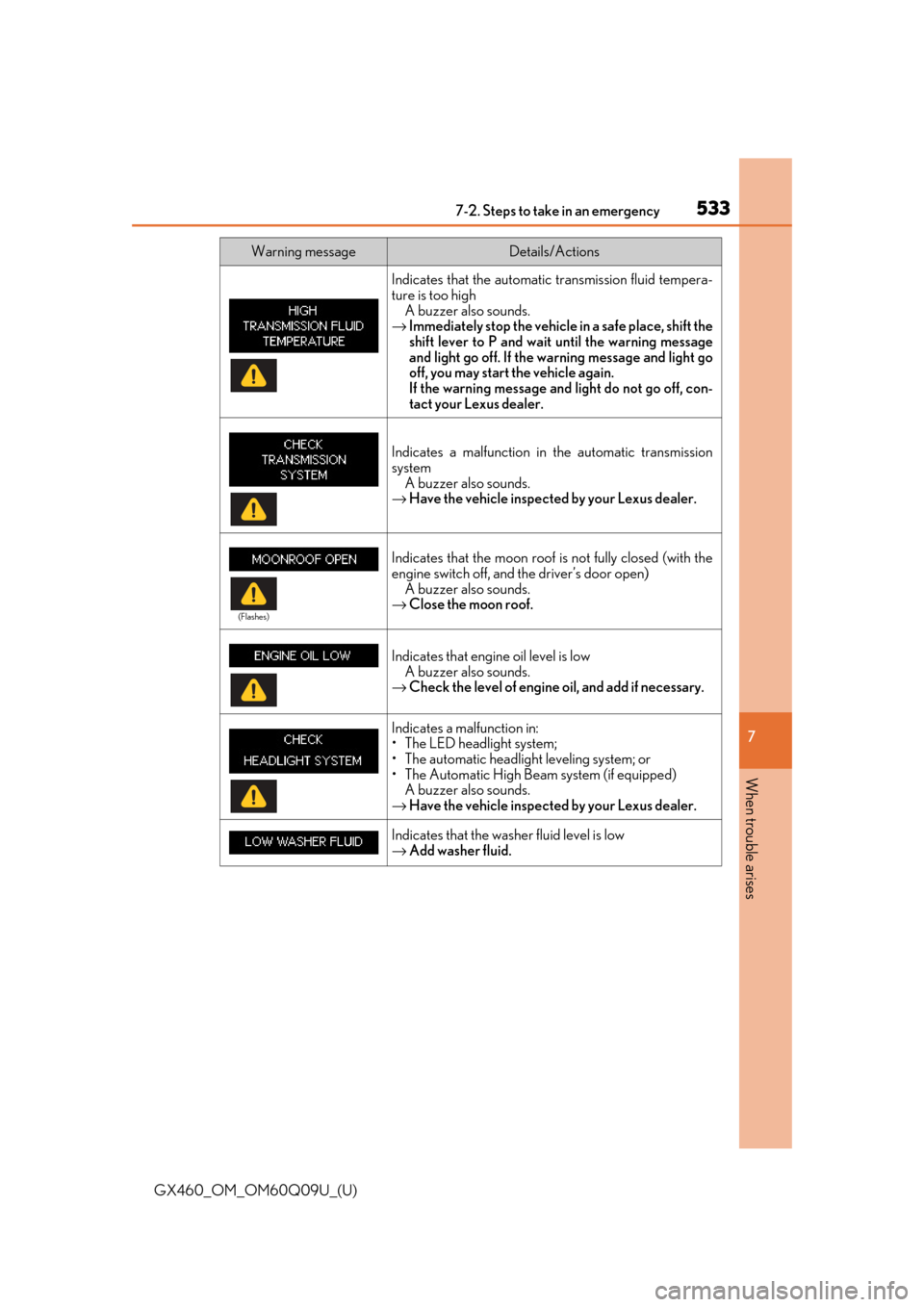

Indicates that the automatic transmission fluid tempera-
ture is too high A buzzer also sounds.
→ Immediately stop the vehicle in a safe place, shift the
shift lever to P and wait until the warning message
and light go off. If the warning message and light go
off, you may start the vehicle again.
If the warning message and light do not go off, con-
tact your Lexus dealer.
Indicates a malfunction in the automatic transmission
system A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates that the moon roof is not fully closed (with the
engine switch off, and the driver’s door open)
A buzzer also sounds.
→ Close the moon roof.
Indicates that engine oil level is low
A buzzer also sounds.
→ Check the level of engine oil, and add if necessary.
Indicates a malfunction in:
• The LED headlight system;
• The automatic headlight leveling system; or
• The Automatic High Beam system (if equipped)
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates that the washer fluid level is low
→Add washer fluid.
Warning messageDetails/Actions
(Flashes)
