4315-4. Using the other interior features
5
Interior features
7-passenger models
Fold down the armrest for use.
6-passenger models
To adjust the armrest angle, raise the
armrest to the highest position and then
lower the armrest to the lowest posi-
tion. Raise the armrest again to the
desired position and the armrest will be
locked at that position.
When the armrest is locked, the armrest
cannot be lowered.
To lower the armrest, raise the armrest
to the highest position again.
Armrest
NOTICE
To prevent damage, do not apply too heavy a load on the armrest.

432
GX460_OM_OM60Q84U_(U)5-4. Using the other interior features
The coat hooks are provided with the
second rear assist grips.
An assist grip (type A) can be used to support your body while sitting on the seat.
An assist grip (type B) can be used when getting in or out of the vehicle and oth-
ers.
Assist grip (type A)
Assist grip (type B)
Coat hooks
CAUTION
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS cur-
tain shield airbags deploy, these items may become projectiles, causing death or seri-
ous injury.
Assist grips
1
2
CAUTION
Do not use the assist grip (type A) when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage, do not hang heavy objects or put a heavy load on the assist grip.

GX460_OM_OM60Q84U_(U)
4335-4. Using the other interior features
5
Interior features
The compass on the inside rear view mirror indicates the direction in which the
vehicle is heading.
■Operation
To turn the compass on or off, push
the switch.
■Displays and directions

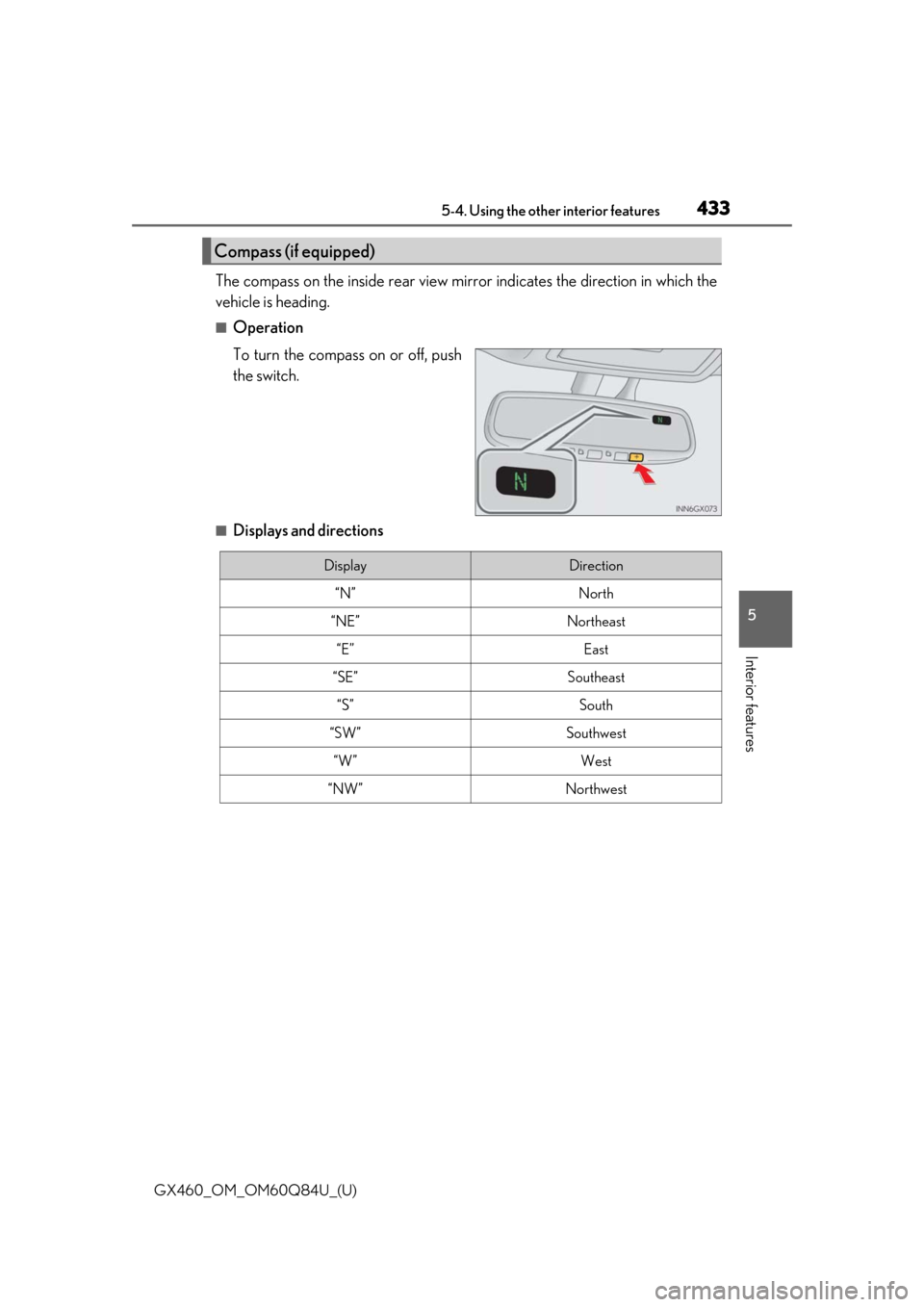

Compass (if equipped)
DisplayDirection
“N”North
“NE”Northeast
“E”East
“SE”Southeast
“S”South
“SW”Southwest
“W”West
“NW”Northwest

434
GX460_OM_OM60Q84U_(U)5-4. Using the other interior features

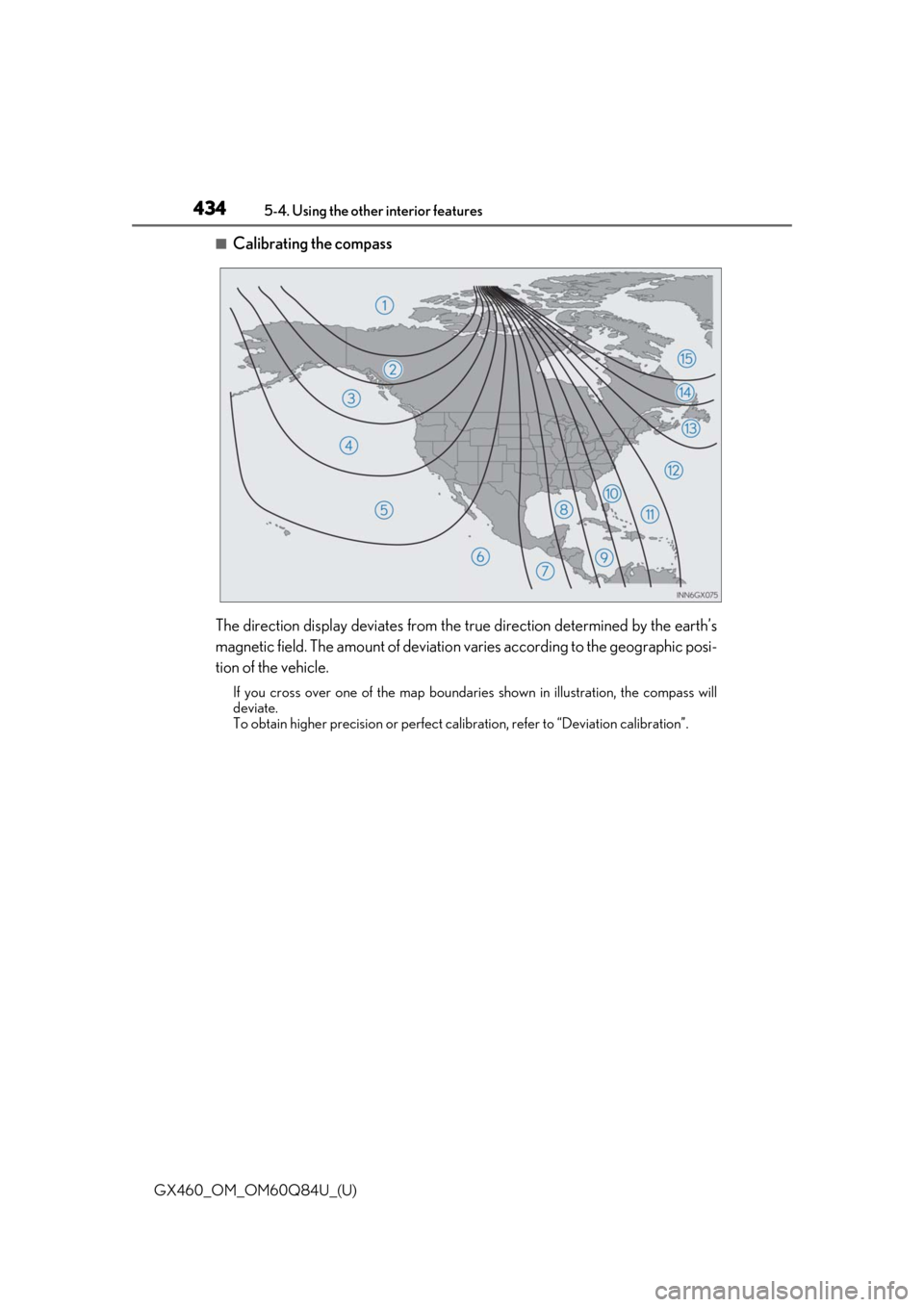

■Calibrating the compass
The direction display deviates from the tr ue direction determined by the earth’s
magnetic field. The amount of deviation varies according to the geographic posi-
tion of the vehicle.
If you cross over one of the map boundari es shown in illustration, the compass will
deviate.
To obtain higher precision or perfect ca libration, refer to “Deviation calibration”.

GX460_OM_OM60Q84U_(U)
4355-4. Using the other interior features
5
Interior features
◆Deviation calibrationStop the vehicle in a place where it is safe to drive in a circle.
Press the switch until a number (1
to 15) appears on the compass
display.
Press the switch and referring to the map above, select the number of the
zone where you are.
If the direction is displayed several se conds after adjustment, the calibration is
complete.
◆Circling calibration
When “C” appears on the display,
drive the vehicle at 5 mph (8 km/h)
or less in a circle until a direction is
displayed.
If there is not enough space to drive
in a circle, drive around the block
until the direction is displayed.
1
2
3

436
GX460_OM_OM60Q84U_(U)5-4. Using the other interior features
■Conditions unfavorable
to correct operation
The compass may not show the correct di rection in the following conditions:
●The vehicle is stopped immediately after turning.
●The vehicle is on an inclined surface.
●The vehicle is in a place where the earth’s magnetic field is subject to interference by
artificial magnetic fields (underground car park/parking lot, under a steel tower,
between buildings, roof car park/parking lot, near an intersection, near a large vehicle,
etc.).
●The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)
●The battery has been disconnected.
●A door is open.
CAUTION
■While driving the vehicle
Do not adjust the display. Adjust the di splay only when the vehicle is stopped.
■When doing the circling calibration
Secure a wide space, and watch out for people and vehicles in the vicinity. Do not vio-
late any local traffic rules while performing circling calibration.
NOTICE
■To avoid the compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause the compass sensor to malfunction.
■To ensure normal operation of the compass
●Do not perform a circling calibration of the compass in a place where the earth’s
magnetic field is subject to interference by artificial magnetic fields.
●During calibration, do not operate electric systems (moon roof, power windows, etc.)
as they may interfere with the calibration.

437
GX460_OM_OM60Q84U_(U)5-4. Using the other interior features
5
Interior features
Garage door opener
The garage door opener (HomeLink® Universal Transceiver) is manufactured
under license from HomeLink®.
The HomeLink
® compatible transceiver in your vehicle has 3 buttons which can
be programmed to operate 3 differen t devices. Refer to the programming
method below appropriate for the device.
Indicator light
Buttons
■Before programming HomeLink®
●During programming, it is possible that garage doors, gates, or other devices
may operate. For this reason, make sure that people and objects are clear of
the garage door or other devices to pr event injury or other potential harm.
●It is recommended that a new battery be placed in the remote control trans-
mitter for more accurate programming.
●Garage door openers manufactured after 1995 may be equipped with rolling
code protection . If this is the case, you will ne ed a stepladder or other sturdy,
safe device to reach the “Learn” or “Smart” button on the garage door opener
motor.
The garage door opener can be programmed to operate garage doors, gates,
entry doors, door locks, home lightin g systems, security systems, and other
devices.
Programming the HomeLink®
1
2

438
GX460_OM_OM60Q84U_(U)5-4. Using the other interior features
■Programming HomeLink®
Point the remote control transmit-
ter for the device 1 to 3 in. (25 to
75 mm) from the HomeLink
®
buttons.
Keep the HomeLink® indicator light
in view while programming.
For U.S.A. owner’s
Press and hold the HomeLink
®
button you want to program and
the remote control transmitter
button simultaneously. When the
HomeLink
® indicator light
changes from a slow to a rapid
flash, you can release both but-
tons.
Programming has completed when the indicator light changes to a rapid flash.
Programming an entry gate (for U.S.A. owners)/Programming a device in the
Canadian market
With one hand, press and hold the HomeLink
® button you want to pro-
gram. With your other hand, press and release the remote control transmit-
ter every 2 seconds and repeat this cycle until the HomeLink
® indicator
light starts to flash rapidly. Then, release the buttons.
1
2
2

GX460_OM_OM60Q84U_(U)
4395-4. Using the other interior features
5
Interior features
Test the HomeLink® operation by
pressing the newly programmed
button and observing the indica-
tor light:
●If the indicator light is solid/
continuous, programming has
been completed and your
device should activate when
the HomeLink
® button is
pressed and released.
●If the indicator light blinks rapidly for 2 seconds and then turns into a
solid/continuous light, proceed with the following instructions for
programming a rolling code system.
Programming a rolling code system
Locate the “Learn” or “Smart”
button on the garage door
opener motor in the garage.
This button can usually be found
where the hanging antenna wire is
attached to the unit. The name and
color of the button may vary by man-
ufacturer. Please refer to the opera-
tor’s manual suppli ed with the garage
door opener motor for details.
Press and release the “Learn” or
“Smart” button.
Perform within 30 seconds
after performing .
3
4
4
5
6
5

440
GX460_OM_OM60Q84U_(U)5-4. Using the other interior features
Press and hold the programmed
HomeLink® button (located
inside the vehicle) for 2 seconds
and release it. Repeat this
sequence (press/hold/release)
up to 3 times to complete pro-
gramming.
If the garage door opener motor
activates when the HomeLink® but-
ton is pressed, the garage door
opener motor recognizes the Home-
Link
® signal.
Repeat the steps above to program anot her device for any of the remaining
HomeLink® buttons.
■Reprogramming a single HomeLink® button
When the following procedure is performed, buttons which already have
devices registered to them can be overwritten: With one hand, press and hold the desired HomeLink
® button.
When the HomeLink
® indicator starts flashing, continue to hold the
HomeLink® button and perform “P rogramming HomeLink®” from (it
takes 20 seconds for the HomeLink® indicator to start flashing).
Press and hold the 2 outside buttons for
10 seconds until the indicator light
flashes.
If you sell your vehicle, be sure to erase
the programs stored in the HomeLink®
memory.
6
Erasing the entire HomeLink® memory (all three programs)
7
1
2
1
