Lexus GX460 2020 / LEXUS 2020 GX460 (OM60R27U) Manual Online

81
GX460_OM_OM60R27U_(U)
Instrument cluster2
2. Instrument clusterWarning and indicators lights ................................................ 82
Gauges and meters .....................88
Multi-information display ............91
Fuel consumption information ...................................98

82
GX460_OM_OM60R27U_(U)2. Instrument cluster
Warning and indicators lights
The units used on the speedometer may di
ffer depending on the target region.
The warning and indicators lights on the instrument cluster and center panel
inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.

GX460_OM_OM60R27U_(U)
832. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
( P. 511)
*1
(flashes or
illuminates)
PCS warning light
(  P. 512)
*1
(Canada)
Brake system warning light
( P. 511)*1Slip indicator light
( P. 512)
*1Charging system warning
light ( P. 511)*1Kinetic dynamic suspension
system warning light
( P. 512)
*2High coolant temperature
warning light ( P. 511)
(flashes)
Low speed four-wheel
drive indicator light
( P. 513)
*2Low engine oil pressure
warning light ( P. 511)
(flashes)
Center differential lock
indicator light ( P. 513)
*1
(U.S.A.)
Malfunction indicator lamp
( P. 511) Open door warning light
(
 P. 513)
*1
(Canada)
Malfunction indicator lamp
( P. 511) Low fuel level warning light
(
 P. 513)
*1SRS warning light
( P. 511) Seat belt reminder light
(
 P. 513)
*1
(U.S.A.)
ABS warning light
( P. 512)*1Tire pressure warning light
( P. 513)
*1
(Canada)
ABS warning light
( P. 512)*2
LDA indicator ( P. 514)

84
GX460_OM_OM60R27U_(U)2. Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a ma lfunction in a system if the lights do not
turn on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: This light is displayed on the multi-information display.
(flashes)
(U.S.A.)
Parking brake indicator
(  P. 512)*2Brake Override System
warning light /Drive-Start
Control warning light
( P. 514)
(flashes)
(Canada)
Parking brake indicator
(  P. 512)

GX460_OM_OM60R27U_(U)
852. Instrument cluster
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s various sys-
tems.

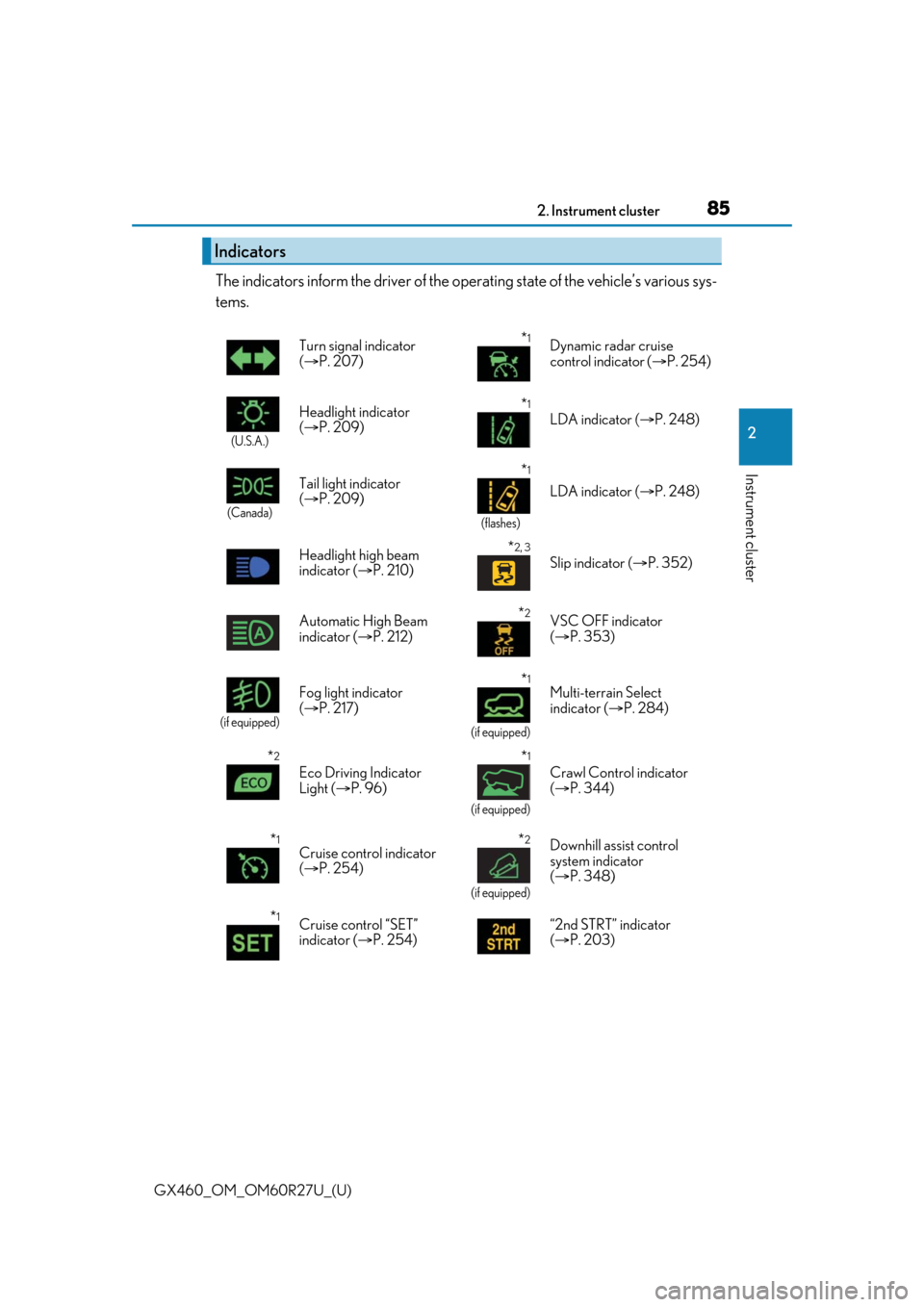

Indicators
Turn signal indicator
(  P. 207)*1Dynamic radar cruise
control indicator ( P. 254)
(U.S.A.)
Headlight indicator
( P. 209)*1
LDA indicator ( P. 248)
(Canada)
Tail light indicator
( P. 209) *1
(flashes)
LDA indicator ( P. 248)
Headlight high beam
indicator ( P. 210)
*2, 3
Slip indicator ( P. 352)
Automatic High Beam
indicator ( P. 212)
*2VSC OFF indicator
( P. 353)
(if equipped)
Fog light indicator
( P. 217)*1
(if equipped)
Multi-terrain Select
indicator ( P. 284)
*2
Eco Driving Indicator
Light ( P. 96)
*1
(if equipped)
Crawl Control indicator
( P. 344)
*1Cruise control indicator
( P. 254)*2
(if equipped)
Downhill assist control
system indicator
( P. 348)
*1Cruise control “SET”
indicator ( P. 254) “2nd STRT” indicator
(
 P. 203)

86
GX460_OM_OM60R27U_(U)2. Instrument cluster
Low speed four-wheel
drive indicator light
( P. 340)
*2TRAC OFF indicator
( P. 353)
Center differential lock
indicator ( P. 341)
*1
(if equipped)
MUD & SAND mode
indicator ( P. 285)
(if equipped)
Intuitive parking assist
indicator ( P. 266)*1
(if equipped)
MOGUL mode indicator
( P. 285)
*2, 4PCS warning light
( P. 238)*1
(if equipped)
ROCK mode indicator
( P. 285)
*1Smart access system with
push-button start indicator
( P. 196)*1
(if equipped)
LOOSE & ROCK mode
indicator ( P. 285)
(if equipped)
BSM indicator (P. 357)
*1
(if equipped)
ROCK & DIRT mode
indicator ( P. 285)
*5, 6
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( P. 357)*1
(if equipped)
MTS AUTO indicator
( P. 285)
*1, 7Low outside temperature
indicator ( P. 88)
*2, 8
(U.S.A.)
“AIR BAG ON/
OFF” indicator
( P. 47)
*2, 8
(Canada)
“AIR BAG ON/
OFF” indicator
( P. 47)

GX460_OM_OM60R27U_(U)
872. Instrument cluster
2
Instrument cluster
*1: This light is displayed on the multi-information display.
*2: These lights turn on when the engine switch is turned to IGNITION ON mode toindicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a ma lfunction in a system if the lights do not
turn on, or turn off. Have the vehicle inspected by your Lexus dealer.
*3: The light flashes to indicate that the system is operating.
*4: The light comes on when the system is turned off.
*5: In order to confirm operation, the BSM outside rear view mirror indicators illumi-
nate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the system is set to on.
• When the system is set to on while the engine switch is in IGNITION ON mode.
If the system is functioning correctly, th e BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
*6: This light illuminates on the outside rear view mirrors.
*7: When the outside temperature is approximately 37°F (3°C) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
*8: This light illuminates on the center panel.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as th e ABS/Multi Terrain ABS and the SRS warning
light not come on when you start the engine, this could mean that these systems are not
available to help protect you in an accide nt, which could result in death or serious
injury. Have the vehicle inspected by your Lexus dealer immediately if this occurs.

88
GX460_OM_OM60R27U_(U)2. Instrument cluster
Gauges and meters
The units used on the speedometer may di
ffer depending on the target region.
Tachometer
Displays the engine speed in revolutions per minute
Engine coolant temperature gauge
Displays the engine coolant temperature
Shift position and shift range
Displays the selected shift posi tion or selected shift range (P. 202)
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C). Low outside temperature indicator comes on when the ambient temperature
is 37°F (3°C) or lower.
Fuel gauge
Displays the quantity of fuel remaining in the tank
Speedometer
Displays the vehicle speed
Multi-information display
Presents the driver with a variety of driving-related data P. 91)
1
2
3
4
5
6
7

GX460_OM_OM60R27U_(U)
892. Instrument cluster
2
Instrument cluster
Odometer, trip meter and maintenance required information display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters A and B can be used to record an d display different distances independently.
Maintenance required information: • Displays the maintenance requ ired information when the engine switch is in IGNI-
TION ON mode.
• It can be reset from of the multi-information display. ( P. 91)
Rear height control air suspension display (if equipped)
Displays the rear height mode selected ( P. 335)
Switches between odometer, trip meter
and maintenance required information
displays. When the trip meter is dis-
played, pressing and holding the button
will reset the trip meter.
The brightness of the instrument cluster lights can be adjusted.
Brighter
Darker
Changing the display
8
9
Instrument cluster light control switch
1
2

90
GX460_OM_OM60R27U_(U)2. Instrument cluster
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument cluster brightness adjustment
The instrument cluster brig
htness levels when the tail lights are on and off can be
adjusted.
■The brightness of the in strument cluster lights
When the tail lights are on, the brightness will change. Ho wever, when the surroundings
are bright (daytime, etc.) turn ing on the tail lights will not change the instrument cluster
brightness.
In addition, the brightness of the instrument cluster lights is automatically adjusted based
on the light sensor detecting ho w bright the surroundings are.
■Customization
The meter display can be customized on the multi-information display. (P. 576)
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the dr iver’s shifting and the new gear number
appearing on the display. This lag could ca use the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or
injury.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. ( P. 546)
