Lexus GX460 2021 / LEXUS 2021 GX460 MULTIMEDIA (OM60T29U) Owner's Guide
Manufacturer: LEXUS, Model Year: 2021, Model line: GX460, Model: Lexus GX460 2021Pages: 186, PDF Size: 4.02 MB
Page 21 of 186
1
2
3
4
5
6
2
21
GX460_MM_OM60T29U_(U)20.03.27 13:49
7
1. INITIAL SCREEN ....................................... 22
2. TOUCH SCREEN GESTURES............. 23
3. TOUCH SCREEN OPERATION......... 24
4. “Apps” SCREEN OPERATION ............ 25
5. HOME SCREEN OP ERATION ........... 26
6. ENTERING LETTERS AND NUMBERS/LIST SCREEN
OPERATION............................................ 27
ENTERING LETTERS AND NUMBERS ........ 27
LIST SCREEN............................................................... 27
7. SCREEN ADJUSTMENT ........................ 29 1. REGISTERING/CONNECTING
Bluetooth
® DEVICE ................................ 31
REGISTERING A Bluetooth® PHONE
FOR THE FIRST TIME ........................................... 31
REGISTERING A Bluetooth
® AUDIO
PLAYER FOR THE FIRST TIME ...................... 32
PROFILES ...................................................................... 34
2. SETTING Bluetooth® DETAILS ............ 36
“Bluetooth* Setup” SCREEN ................................ 36
REGISTERING A Bluetooth® DEVICE .......... 37
DELETING A Bluetooth® DEVICE.................. 38
CONNECTING A Bluetooth® DEVICE ...... 39
EDITING THE Bluetooth® DEVICE
INFORMATION ...................................................... 41
“System Settings” SCREEN .................................... 42
1. GENERAL SETTINGS.............................. 44
GENERAL SETTINGS SCREEN ....................... 44
2. VOICE SETTINGS ..................................... 49
VOICE SETTINGS SCREEN ............................... 49
1BASIC INFORMATION BEFORE
OPERATION2Bluetooth® SETTINGS
3OTHER SETTINGS
*: Bluetooth is a registered tr ademark of Bluetooth SIG, Inc.
BASIC FUNCTION
Page 22 of 186
22
GX460_MM_OM60T29U_(U)20.03.27 13:49
1. BASIC INFORMATION BEFORE OPERATION
1. INITIAL SCREEN
1When the engine switch is in ACCES-
SORY or IGNITION ON mode, the
initial screen will be displayed and the
system will begin operating.
After a few seconds, the “Caution” screen
will be displayed.
After about 5 seconds, the “Caution”
screen automatically switches to the home
screen. (Select “Continue” or press the
“HOME” button to display the home
screen.)
1Press and hold the “PWR/VOL” knob
for 3 seconds or more.
Images shown on the initial screen can be
changed to suit individual preferences.
( P.46)
WARNING
●When the vehicle is stopped with the
engine running, always apply the parking
brake for safety.
RESTARTING THE SYSTEM
When system response is extremely
slow, the system can be restarted.
Page 23 of 186
23
1. BASIC INFORMATION BEFORE OPERATION
GX460_MM_OM60T29U_(U)20.03.27 13:49
2
BASIC FUNCTION

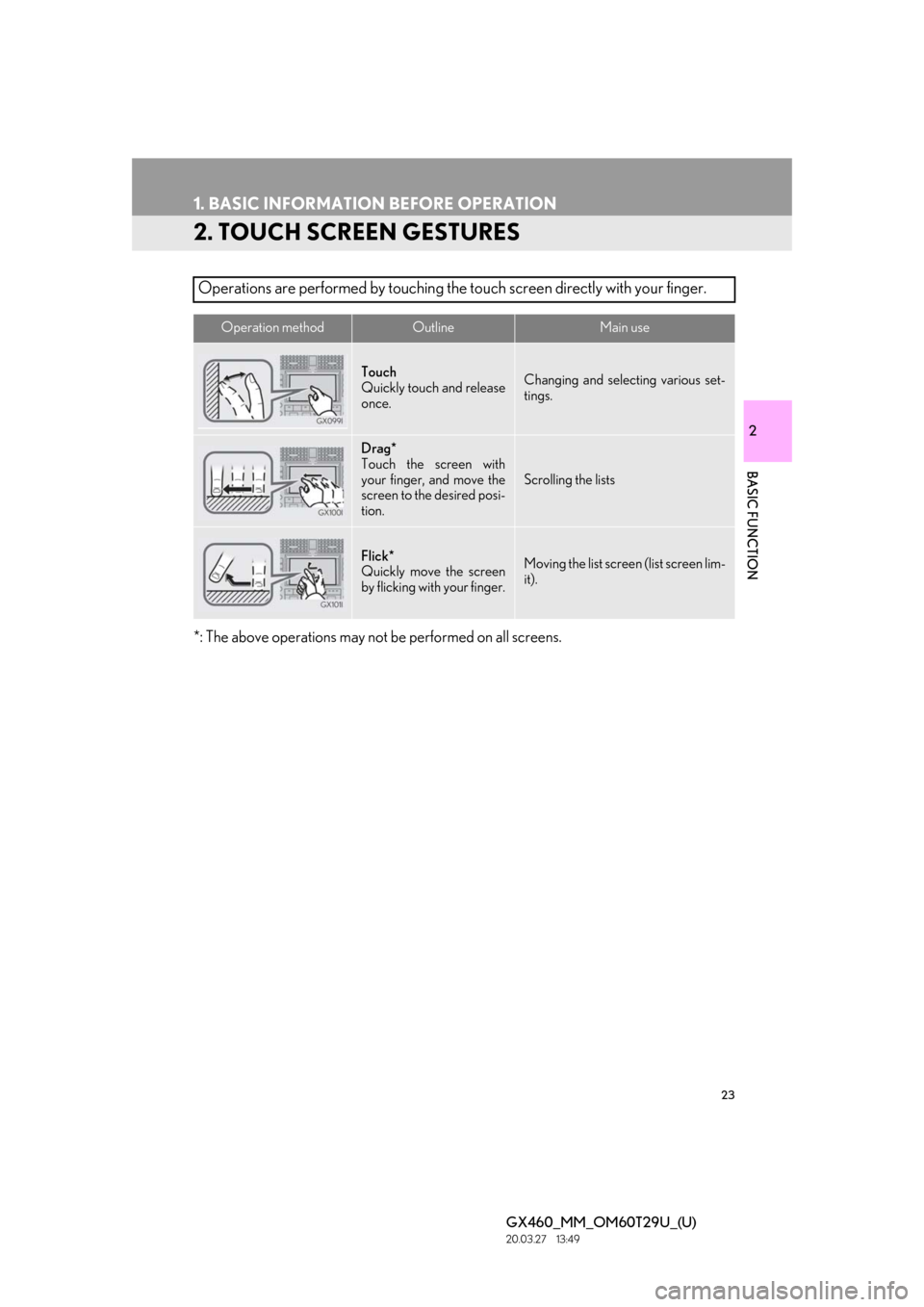

2. TOUCH SCREEN GESTURES
*: The above operations may not be performed on all screens.
Operations are performed by touching the touch screen directly with your finger.
Operation methodOutline Main use
Touch
Quickly touch and release
once.Changing and selecting various set-
tings.
Drag*
Touch the screen with
your finger, and move the
screen to the desired posi-
tion.
Scrolling the lists
Flick*
Quickly move the screen
by flicking with your finger.Moving the list screen (list screen lim-
it).
Page 24 of 186
24
1. BASIC INFORMATION BEFORE OPERATION
GX460_MM_OM60T29U_(U)20.03.27 13:49
3. TOUCH SCREEN OPERATION
This system is operated mainly by the
buttons on the screen. (Referred to as
screen buttons in this manual.)
When a screen button is touched, a beep
sounds. (To set the be ep sound, see page
44.)
NOTICE
●To prevent damaging the screen, lightly
touch the screen buttons with your finger.
●Do not use objects other than your finger
to touch the screen.
●Wipe off fingerprints using a glass clean-
ing cloth. Do not use chemical cleaners to
clean the screen, as they may damage the
touch screen.
INFORMATION
●If the system does not respond to touch-
ing a screen button, move your finger
away from the screen and then touch it
again.
●Dimmed screen buttons cannot be oper-
ated.
●The displayed image may become darker
and moving images ma y be slightly dis-
torted when the screen is cold.
●In extremely cold conditions, the screen
may not be displayed and the data input
by a user may be deleted. Also, the
screen buttons may be harder than usual
to depress.
●When you look at the screen through
polarized material such as polarized sun-
glasses, the screen may be dark and hard
to see. If so, look at the screen from differ-
ent angles, adjust the screen settings on
the “Display Settings” screen or take off
your sunglasses.
●When is displayed on the screen,
select to return to the previous
screen.
Page 25 of 186
25
1. BASIC INFORMATION BEFORE OPERATION
GX460_MM_OM60T29U_(U)20.03.27 13:49
2
BASIC FUNCTION
4. “Apps” SCREEN OPERATION
1Press the “APPS” button.
2Select “Reorder” .
3Select the desired menu icons to be
moved.
4Select or to move the menu
icons, and select “OK”.
REORDERING THE MENU
ICONS
Order of the menu icons can be
changed.
Page 26 of 186
26
1. BASIC INFORMATION BEFORE OPERATION
GX460_MM_OM60T29U_(U)20.03.27 13:49
5. HOME SCREEN OPERATION
1Press the “HOME” button.
2Check that the home screen is dis-
played.
When a desired screen is selected, the
selected screen will be displayed full
screen.
1Select .
2Select “Home Screen” .
Select “Two Panel” or “Three Panel” .
3Select the desired area.
4Select the desired item.
The home screen can display multiple
information screens, such as the audio
system screen and fuel consumption
screen, simultaneously. CUSTOMIZING THE HOME
SCREEN
The display items/area on the home
screen can be changed.
INFORMATION
●When the selected it em is already being
displayed and another area is selected for
that item, the item that it is replacing will
be displayed in the original item’s loca-
tion.
Page 27 of 186
27
1. BASIC INFORMATION BEFORE OPERATION
GX460_MM_OM60T29U_(U)20.03.27 13:49
2
BASIC FUNCTION
6. ENTERING LETTERS AND NUMBERS/LIST SCREEN OPERATION
On certain letter entry screens, letters can
be entered in uppe r or lower case.
: Select to enter in lower case.
: Select to enter in upper case.
When searching for name or entering
data, letters and numbers can be en-
tered via the screen.
ENTERING LETTERS AND
NUMBERS
No.Function
Text field. Entered character(s) will
be displayed.
Select to erase one character. Select
and hold to continue erasing charac-
ters.
Select to enter desired characters.
Select to display the alphabet keys.
Select to display other symbols.
Keyboard layout can be changed.
( P.44)
LIST SCREEN
LIST SCREEN OPERATION
When a list is displayed, use the appro-
priate screen button to scroll through
the list.
IconFunction
Select to skip to the next or previ-
ous page.
Select and hold or to
scroll through the displayed list.
This indicates the displayed
screen’s position.
If appears to the right of an
item name, the complete name is
too long to display.
Select to scroll to the end of
the name.
Select to move to the begin-
ning of the name.
Page 28 of 186
28
1. BASIC INFORMATION BEFORE OPERATION
GX460_MM_OM60T29U_(U)20.03.27 13:49
■SELECTING ALL ITEMS
1Select “Select All” .
“Unselect All” : Unselect all items in the list.
1Select the desired character jump but-
tons.
CHARACTER JUMP BUTTONS
IN LISTS
Some lists contain character screen but-
tons, “ABC” , “DEF” etc., which allow a
direct jump to list entries that begin with
the same letter as the character screen
button.
INFORMATION
●Every time the same character screen
button is selected, the list starting with the
subsequent charac ter is displayed.
Page 29 of 186
29
1. BASIC INFORMATION BEFORE OPERATION
GX460_MM_OM60T29U_(U)20.03.27 13:49
2
BASIC FUNCTION

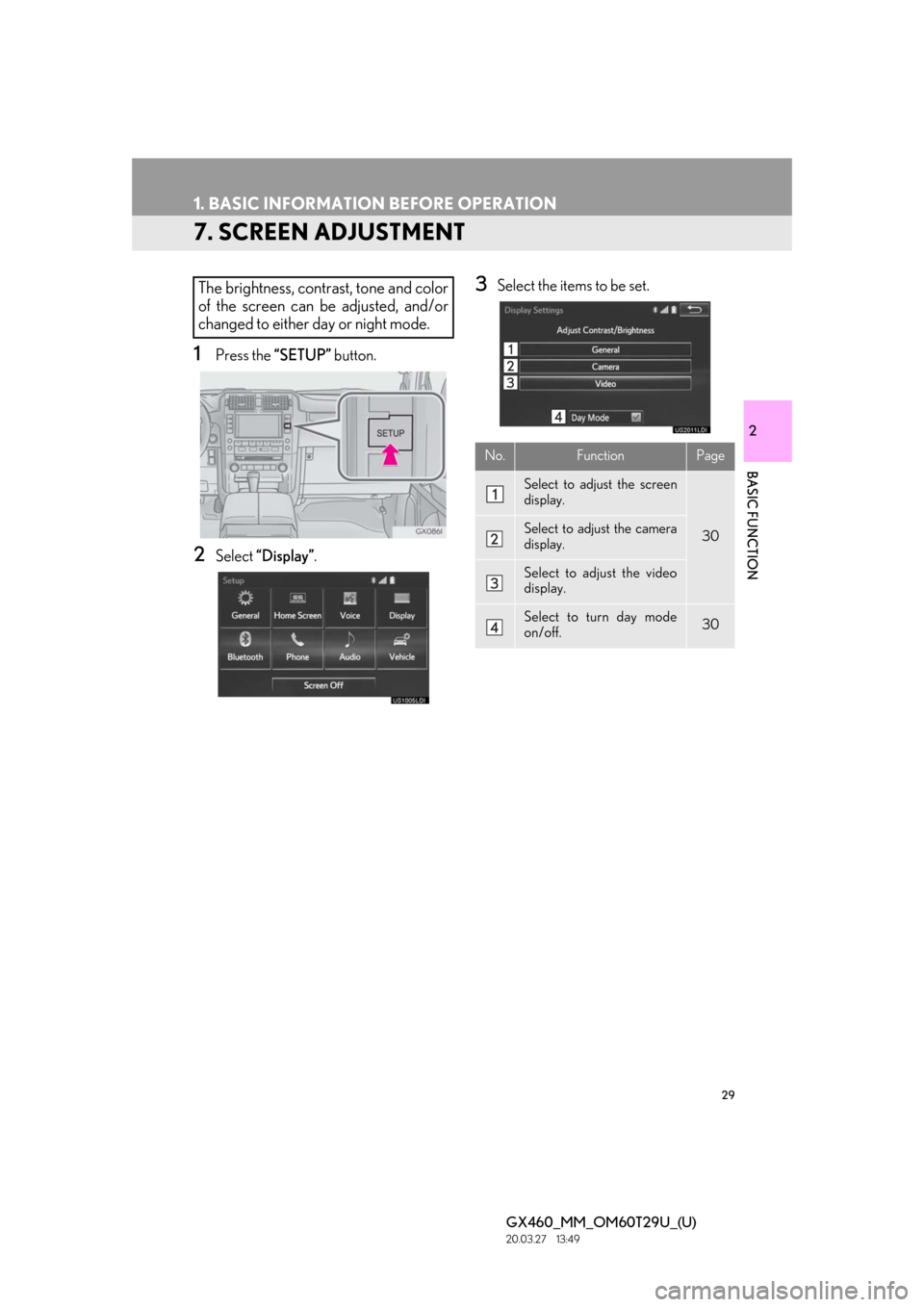

7. SCREEN ADJUSTMENT
1Press the “SETUP” button.
2Select “Display” .
3Select the items to be set.The brightness, contrast, tone and color
of the screen can be adjusted, and/or
changed to either day or night mode.
No.FunctionPage
Select to adju st the screen
display.
30Select to adjust the camera
display.
Select to adjust the video
display.
Select to turn day mode
on/off.30
Page 30 of 186
30
1. BASIC INFORMATION BEFORE OPERATION
GX460_MM_OM60T29U_(U)20.03.27 13:49
1Select “Day Mode” .
1Select “General” , “Camera” or “Vid-
eo”.
2Select the desired item.
“Tone” and “Color” can be adjusted on only
the “Display (Video)” screen.
CHANGING BETWEEN DAY
AND NIGHT MODE
Depending on the position of the head-
light switch, the screen changes to day
or night mode. This feature is available
when the headlight is switched on.
INFORMATION
●If the screen is set to day mode with the
headlight switch turned on, this condition
is memorized even with the engine
turned off.
BRIGHTNESS, CONTRAST,
TONE AND COLOR
ADJUSTMENT
The brightness, contrast, tone and color
of the screen can be adjusted.
Screen buttonFunction
“Brightness” “+”Select to brighten the
screen.
“Brightness” “-”Select to darken the
screen.
“Contrast” “+”Select to strengthen the
contrast of the screen.
“Contrast” “-”Select to weaken the
contrast of the screen.
“Color” “R”Select to strengthen the
red color of the screen.
“Color” “G”
Select to strengthen the
green color of the
screen.
“Tone” “+”Select to strengthen the
tone of the screen.
“Tone” “-”Select to weaken the
tone of the screen.
