Page 50 of 186
50
GX460_MM_OM60T29U_(U)20.03.27 13:49
1. QUICK REFERENCE .............................. 52
2. SOME BASICS ........................................... 54
TURNING THE SYSTEM ON AND OFF ..... 54
SELECTING AN AUDIO SOURCE ............... 55
DISC SLOT ................................................................... 56
USB/AUX PORT ....................................................... 56
SOUND SETTINGS ................................................ 58
AUDIO SCREEN ADJUSTMENT .................... 59
VOICE COMMAND SYSTEM.......................... 59
1. AM/FM RADIO ......................................... 60
OVERVIEW................................................................. 60
PRESETTING A STATION ................................... 62
SELECTING A STATION FROM THE LIST ................................................................................ 62
RADIO BROADCAST DATA SYSTEM ........ 63
TRAFFIC ANNOUNCEMENT (FM RADIO) ............................................................. 64
USING HD Radio™ TECHNOLOGY............ 65
AVAILABLE HD Radio™ TECHNOLOGY .................................................... 65
TROUBLESHOOTING GUIDE ........................ 67
2. XM Satellite Radio ..................................... 68
OVERVIEW................................................................. 68
HOW TO SUBSCRIBE TO AN XM Satellite Radio............................................................ 70
DISPLAYING THE RADIO ID ............................ 72
PRESETTING A CHANNEL................................ 72
SELECTING A CHANNEL FROM THE LIST ..................................................................... 73
IF THE SATELLITE RADIO TUNER MALFUNCTIONS ................................................ 74
1BASIC OPERATION2RADIO OPERATION
3
AUDIO/VISUAL SYSTEM
Page 53 of 186
53
1. BASIC OPERATION
3
AUDIO/VISUAL SYSTEM
GX460_MM_OM60T29U_(U)20.03.27 13:49
FunctionPage
Using the radio60
Playing an audio CD or MP3/WMA/AAC disc76
Playing a USB memory79
Playing an iPod83
Playing a Bluetooth® device89
Using the AUX port95
Playing the VTR97
Using the steering wheel audio switches99
Audio system settings102
INFORMATION
●The display and button positions will differ depending on the type of the system.
Page 56 of 186
56
1. BASIC OPERATION
GX460_MM_OM60T29U_(U)20.03.27 13:49
1Insert a disc into the disc slot.
After insertion, the disc is automatically
loaded.
1Press the “ ” button and remove the
disc.
1Slide the auxiliary box lid.
2Connect a device.
Turn on the power of the device if it is not
turned on.
DISC SLOT
INSERTING A DISC
EJECTING A DISC
NOTICE
●Never try to disassemble or oil any part of
the CD player. Do not insert anything
other than a disc into the slot.
INFORMATION
●The player is intended for use with 4.7 in.
(12 cm) discs only.
●When inserting a disc, gently insert the
disc with the label facing up.
USB/AUX PORT
There are 2 USB ports and an AUX port
in the auxiliary box.
Page 57 of 186
57
1. BASIC OPERATION
3
AUDIO/VISUAL SYSTEM
GX460_MM_OM60T29U_(U)20.03.27 13:49
When using an iPod video, a cable that has
a 4-pole AUX plug and a USB connector is
necessary. Connect the plug and connec-
tor to the AUX and USB ports.
INFORMATION
●Up to two portable players can be con-
nected to the USB port at the same time.
●Even if a USB hub is used to connect
more than two USB devices, only the first
two connected devices will be recog-
nized.
USING A 4-POLE AUX CABLE
To view a video on an iPod video or
VTR, it is necessary to use a 4-pole
AUX cable to connect the portable au-
dio device.
When connecting a portable audio de-
vice to the AUX port, use a 4-pole AUX
cable with a plug that matches the exact
layout shown in the illustration.
Connected device
(portable audio
device, etc.)
Left
audio Right
audioGround Video
INFORMATION
●If a 4-pole AUX cable with a different lay-
out is used, audio and/or video may not
be output properly.
Page 81 of 186
81
3. MEDIA OPERATION
GX460_MM_OM60T29U_(U)20.03.27 13:49
3
AUDIO/VISUAL SYSTEM
WARNING
●Do not operate the player’s controls or connect the USB memory while driving.
NOTICE
●Depending on the size and shape of the USB me mory that is connected to the system, the
lid may not close fully. In this case, do not forc ibly close the lid as this may damage the USB
memory or the terminal, etc.
●Do not leave your portable player in the car. In particular, high temperatures inside the vehi-
cle may damage the portable player.
●Do not push down on or apply unnecessary pressure to the portable player while it is con-
nected as this may damage the po rtable player or its terminal.
●Do not insert foreign objects into the port as this may damage the portable player or its ter-
minal.
INFORMATION
●If tag information exists, the file/folder names will be changed to track/album names.
Page 109 of 186
109
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
GX460_MM_OM60T29U_(U)20.03.27 13:49
3
AUDIO/VISUAL SYSTEM
USB works with iPhone 5, iPhone 4S,
iPhone 4, iPhone 3GS, iPhone 3G, iPhone,
iPod touch (1st through 5th generation),
iPod classic, and iPod nano (1st through 7th
generation).
Bluetooth
® technology works with iPhone
5, iPhone 4S, iPhone 4, iPhone 3GS,
iPhone 3G, iPhone, and iPod touch (2nd
through 5th generation).
The following iPod®, iPod nano®, iPod
classic®, iPod touch® and iPhone® devic-
es can be used with this system.
Made for
•iPhone 5*
•iPhone 4S
•iPhone 4
•iPhone 3GS
•iPhone 3G
•iPhone
• iPod touch (5th generation)*
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
•iPod touch (1st generation)
• iPod classic
• iPod with video
• iPod nano (7th generation)*
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)*
• iPod nano (1st generation)
*: iPod video not supported
■ COMPATIBLE USB DEVICES
■ COMPATIBLE COMPRESSED
FILES
COMPATIBLE MODELS
INFORMATION
●Depending on differences between mod-
els or software versions etc., some mod-
els might be incompatible with this
system.
FILE INFORMATION
USB communication
formatsUSB 2.0 HS
(480 Mbps) and
FS (12 Mbps)
File formatsFAT 16/32
Correspondence classMass storage
class
ItemUSBDISC
Compatible
file formatMP3/WMA/AAC
Folders in the
deviceMaximum
3000Maxi-
mum192
Files in the
deviceMaximum 9999Maxi-
mum255
Files per
folderMaximum 255
Page 113 of 186
113
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
GX460_MM_OM60T29U_(U)20.03.27 13:49
3
AUDIO/VISUAL SYSTEM

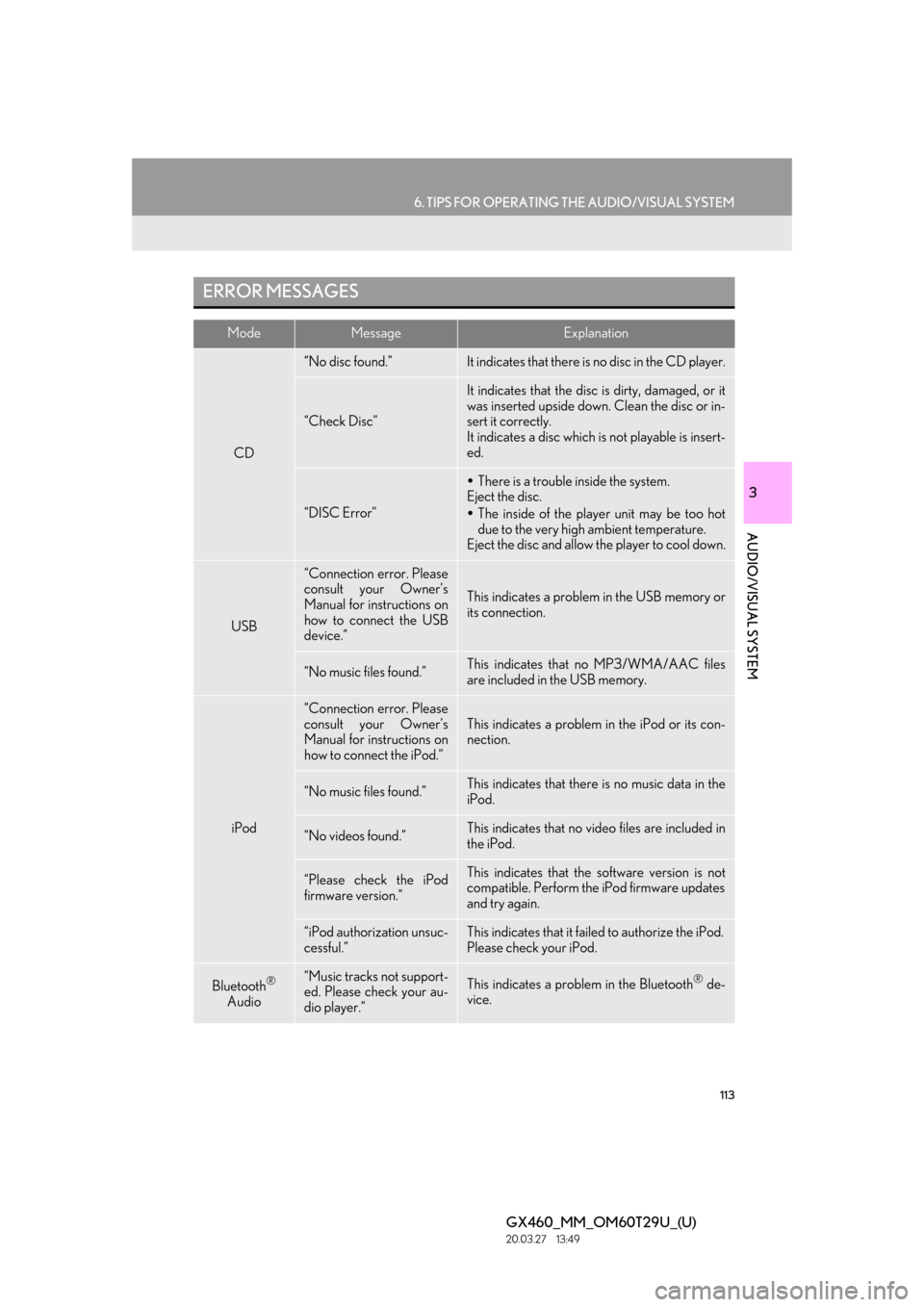

ERROR MESSAGES
ModeMessageExplanation
CD
“No disc found.”It indicates that there is no disc in the CD player.
“Check Disc”
It indicates that the disc is dirty, damaged, or it
was inserted upside down. Clean the disc or in-
sert it correctly.
It indicates a disc which is not playable is insert-
ed.
“DISC Error”
There is a trouble inside the system.
Eject the disc.
The inside of the player unit may be too hot
due to the very high ambient temperature.
Eject the disc and allow the player to cool down.
USB
“Connection error. Please
consult your Owner’s
Manual for instructions on
how to connect the USB
device.”
This indicates a problem in the USB memory or
its connection.
“No music files found.”This indicates that no MP3/WMA/AAC files
are included in the USB memory.
iPod
“Connection error. Please
consult your Owner’s
Manual for instructions on
how to connect the iPod.”This indicates a problem in the iPod or its con-
nection.
“No music files found.”This indicates that there is no music data in the
iPod.
“No videos found.”This indicates that no vi deo files are included in
the iPod.
“Please check the iPod
firmware version.”This indicates that the software version is not
compatible. Perform the iPod firmware updates
and try again.
“iPod authorization unsuc-
cessful.”This indicates that it failed to authorize the iPod.
Please check your iPod.
Bluetooth®
Audio“Music tracks not support-
ed. Please check your au-
dio player.”This indicates a problem in the Bluetooth® de-
vice.
Page 180 of 186
180
ALPHABETICAL INDEX
GX460_MM_OM60T29U_(U)20.03.27 13:49
S
Screen adjustment .....................................................29
Setting Bluetooth® details......................................36
“Bluetooth* setup” screen .................................36
Connecting a Bluetooth
® device ..................39
Deleting a Bluetooth® device ........................ 38
Editing the Bluetooth® device
information ........................................................... 41
Registering a Bluetooth
® device ................... 37
“System Settings” screen....................................42
Setup .................................................................... 102, 152
“Setup” screen .............................................................. 18
Some basics ....................................................... 54, 133 About the contacts in the contact list .......... 135
Audio screen adjustment .................................. 59
Disc slot .....................................................................56
Registering/connecting a Bluetooth
®
phone................................................................... 133
Selecting an audio source................................. 55
Sound settings........................................................ 58
Turning the system on and off ..........................54
USB/AUX port......................................................56
Using the phone switch/microphone ......... 134
Voice command system .......................... 59, 134
When selling or disposing of the vehicle ................................................................. 135
Steering switches........................................................99
T
Talking on the Bluetooth® phone ..................... 143
Incoming call waiting ......................................... 145
Tips for operating the audio/visual system ...................................................................... 105
Touch screen gestures............................................. 23
Touch screen operation .......................................... 24
Troubleshooting ....................................................... 165
U
USB memory ............................................................... 79 Overview.................................................................. 79
Playing a USB audio ............................................ 82
V
Voice command system..........................................115Using the voice command system ................. 116
Voice command system operation ............... 117
Voice command system operation .................... 116
Voice settings .............................................................. 49 Voice settings screen .......................................... 49
VTR .................................................................................. 97 Overview.................................................................. 97
W
What to do if... ............................................................ 165
X
XM satellite radio.......................................................68Displaying the radio ID ....................................... 72
How to subscribe to an XM satellite radio....................................................................... 70
If the satellite radio tuner malfunctions ........ 74
Overview..................................................................68
Presetting a channel ............................................ 72
Selecting a channel from the list ..................... 73
*: Bluetooth is a registered tr ademark of Bluetooth SIG, Inc.
