airbag Lexus GX460 2021 Owner's Manual / LEXUS 2021 GX460 OWNER'S MANUAL (OM60T19U)
[x] Cancel search | Manufacturer: LEXUS, Model Year: 2021, Model line: GX460, Model: Lexus GX460 2021Pages: 628, PDF Size: 12.51 MB
Page 1 of 628
GX460_OM_OM60T19U_(U)
Pictorial indexSearch by illustration
1For safety
and securityMake sure to read through them
2Instrument clusterHow to read the gauges and meters, the variety of
warning lights and indicators, etc.
3Operation of
each componentOpening and closing the doors and windows,
adjustment before driving, etc.
4DrivingOperations and advice whic h are necessary for driving
5Interior featuresUsage of the interior features, etc.
6Maintenance
and careCaring for your vehicle and maintenance procedures
7When trouble
arisesWhat to do in case of malfunction or emergency
8Vehicle
specificationsVehicle specifications, customizable features, etc.
9For owners
Reporting safety defects for U.S. owners, and seat belt,
SRS airbag and headlight aim instructions for
Canadian owners
IndexSearch by symptom
Search alphabetically
Page 2 of 628
TABLE OF CONTENTS2
GX460_OM_OM60T19U_(U)
For your information................................... 8
Reading this manual................................... 12
How to search ..............................................13
Pictorial index............................................... 14
1-1. For safe useBefore driving ................................ 26
For safe driving .............................. 28
Seat belts .......................................... 30
SRS airbags ..................................... 36
Front passenger occupant classification system ..................47
Safety information for children .......................................... 53
Child restraint systems ............... 54
Installing child restraints............. 58
Exhaust gas precautions............ 70
1-2. LEXUS Enform LEXUS Enform Safety Connect........................................... 71
1-3. Theft deterrent system Engine immobilizer system........ 77
Alarm ................................................. 79
2. Instrument cluster Warning and indicators lights ................................................ 84
Gauges and meters ..................... 90
Multi-information display .......... 93
Fuel consumption information ................................. 100 3-1. Key information
Keys .................................................. 104
3-2. Opening, closing and locking the doors
Side doors...................................... 108
Back door ........................................ 115
Glass hatch ....................................120
Smart access system with push-button start.......................125
3-3. Adjusting the seats Front seats ......................................132
Rear seats .......................................134
Driving position memory..........145
Head restraints ............................ 150
3-4. Adjusting the steering wheel and mirrors
Steering wheel ..............................153
Inside rear view mirror ............. 155
Outside rear view mirrors ....... 157
3-5. Opening, closing the windows and moon roof
Power windows ........................... 160
Moon roof.......................................163
1For safety and security
2Instrument cluster
3Operation of each
component
Page 6 of 628
TABLE OF CONTENTS6
GX460_OM_OM60T19U_(U)
8-1. SpecificationsMaintenance data (fuel, oil level, etc.) .................. 560
Fuel information ......................... 570
Tire information .......................... 573
8-2. Customization Customizable features ............ 584
8-3. Items to initialize Items to initialize......................... 593
Reporting safety defects for U.S. owners .................................... 596
Seat belt instructions for Canadian owners
(in French).............................................. 597
SRS airbag instructions for Canadian owners
(in French).............................................. 599
Headlight aim instructions for Canadian owners
(in French).............................................. 607 What to do if...
(Troubleshooting)................................ 610
Alphabetical inde x ..................................614
8Vehicle specifications
9For owners
Index
For vehicles with navigation system or multimedia system, refer to the “NAVI-
GATION SYSTEM OWNER’S MANU AL” or “MULTIMEDIA OWNER’S
MANUAL” for information regard ing the equipment listed below.
• Navigation system
• Audio/video system
• Rear seat entertainment system
• Hands-free system (for cellular phone)
• Lexus Enform
Page 8 of 628
8
GX460_OM_OM60T19U_(U)
For your information
Please note that this manual applies to all models and explains all equipment, including
options. Therefore, you may find some expl anations for equipment not installed on your
vehicle.
All specifications provided in this manual are current at the time of printing. However,
because of the Lexus policy of continual pr oduct improvement, we reserve the right to
make changes at any time without notice.
Depending on specifications, th e vehicle shown in the illustrations may differ from your
vehicle in terms of color and equipment.
Approximately five hours after the engine is turned off, you may hear sound coming from
under the vehicle for several minutes. This is the sound of a fuel evaporation leakage
check and, it does not indicate a malfunction.
A wide variety of non-genuine spare parts and accessories for Lexus vehicles are cur-
rently available in the market. You should kn ow that Toyota does not warrant these prod-
ucts and is not responsible fo r their performance, repair, or replacement, or for any
damage they may cause to, or adverse effect they may have on, your Lexus vehicle.
This vehicle should not be modified with non-genuine Lexus products. Modification with
non-genuine Lexus products could affect its performance, safety or durability, and may
even violate governmental regulations. In addition, damage or performance problems
resulting from the modification may not be covered under warranty.
The installation of a mobile two-way radio system in your vehicle could affect electronic
systems such as:
●Multiport fuel injection system/seque ntial multiport fuel injection system
●Lexus Safety System +
●Anti-lock brake system
●SRS airbag system
●Seat belt pretensioner system
Be sure to check with your Lexus dealer for precautionary measures or special instruc-
tions regarding installation of a mobile two-way radio system.
Main Owner’s Manual
Noise from under vehicle after turning off the engine
Accessories, spare parts and modification of your Lexus
Installation of a mobile two-way radio system
Page 11 of 628
GX460_OM_OM60T19U_(U)
11
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with th e airbags and seat belt pretensioners left as
they are, this may cause an accident such as fire. Be sure to have the systems of the SRS
airbag and seat belt pretensioner removed and disposed of by a qualified service shop or
by your Lexus dealer befo re you scrap your vehicle.
Special handling may apply,
See www.dtsc.ca.gov/hazard ouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These components may
include airbag, seat belt pretensioners, and wireless remote control batteries.
Scrapping of your Lexus
Perchlorate Material
WARNING
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and
certain drugs delay reaction time, impair judgment and reduce coordination, which
could lead to an accident that could result in death or serious injury.
Defensive driving: Always driv e defensively. Anticipate mistakes that other drivers or
pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that distracts the
driver, such as adjusting controls, talking on a cellular phone or reading can result in a
collision with resulting death or serious in jury to you, your occupants or others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicl e, and never allow children to have or use
the key.
Children may be able to start the vehicle or sh ift the vehicle into neutral. There is also a
danger that children may injure themselves by play ing with the windows, the moon
roof, or other features of the vehicle. In addition, heat build-up or extremely cold tem-
peratures inside the vehicle can be fatal to children.
Page 22 of 628
22Pictorial index
GX460_OM_OM60T19U_(U)
6-passenger models
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 36
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 26
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132
Second seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 134
Third seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 134
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 150
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Console box
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 404
Cool box
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 417
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 11 0
Cup holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P . 406
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 40 8
Rear air conditioning system
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 394
Rear seat entertainment system
*1, 2
1
2
3
4
5
6
7
8
9
10
11
12
13
Page 25 of 628
25
GX460_OM_OM60T19U_(U)
For safety and security1
1-1. For safe useBefore driving................................. 26
For safe driving .............................. 28
Seat belts .......................................... 30
SRS airbags ..................................... 36
Front passenger occupant classification system.................. 47
Safety information for children .......................................... 53
Child restraint systems ............... 54
Installing child restraints.............58
Exhaust gas precautions ............ 70
1-2. LEXUS Enform LEXUS Enform Safety Connect ........................................... 71
1-3. Theft deterrent system Engine immobilizer system ........77
Alarm ................................................. 79
Page 36 of 628
361-1. For safe use
GX460_OM_OM60T19U_(U)
SRS airbags

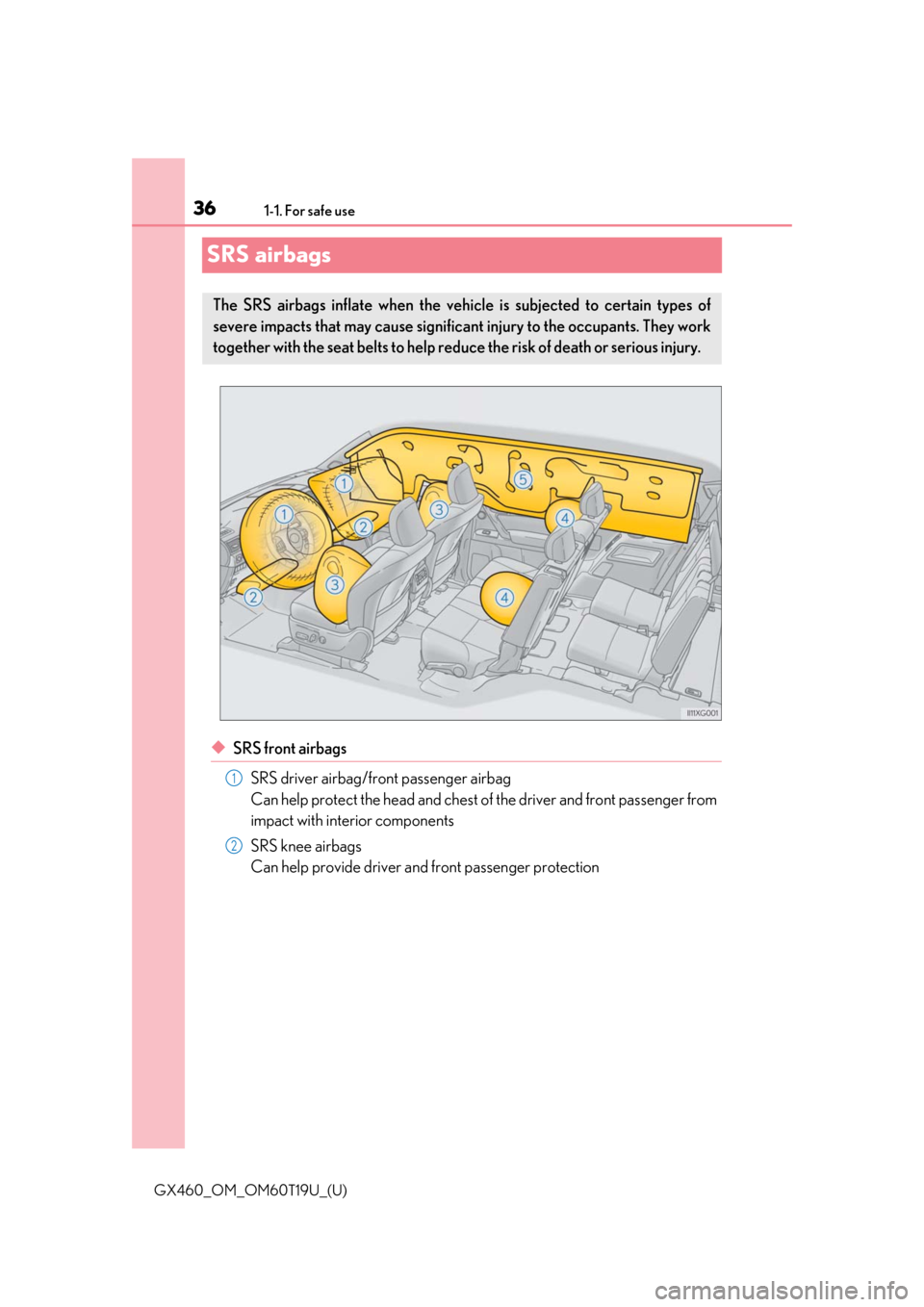

◆SRS front airbagsSRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from
impact with interior components
SRS knee airbags
Can help provide driver and front passenger protection
The SRS airbags inflate when the vehi cle is subjected to certain types of
severe impacts that may ca use significant injury to the occupants. They work
together with the seat belts to help redu ce the risk of death or serious injury.
1
2
Page 37 of 628
371-1. For safe use
GX460_OM_OM60T19U_(U)
1
For safety and security
◆SRS side and curtain shield airbags SRS front side airbags
Can help protect the torso of the front seat occupants
SRS rear side airbags
Can help protect the torso of occupant s in the outer second seats (7-pas-
senger models) or second seats (6-passenger models)
SRS curtain shield airbags
●Can help protect primarily the head of occupants in the outer seats
●Can help prevent the occupants from being thrown from the vehicle in
the event of vehicle rollover
3
4
5
Page 38 of 628
381-1. For safe use
GX460_OM_OM60T19U_(U)
SRS airbag system components
Knee airbags
Curtain shield airbags
Front passenger airbag
Side impact sensors (front door)
“AIR BAG ON” and
“AIR BAG OFF” indicator lights
Front side airbags
SRS warning light
Side impact sensors (rear)
Rear side airbags (outer second
seats [7-passenger models] or sec-
ond seats [6-passenger models])Driver airbag
Driver’s seat belt buckle switch
Safing sensor (rear)
Front passenger’s seat belt buckle
switch
Airbag sensor assembly
Front impact sensors
Seat belt pretensioners and force
limiters
Front passenger occupant classifi-
cation system (ECU and sensors)1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
