automatic transmission Lexus GX460 2021 Owner's Manual /

3
1
8 7
6
5
4
3
2
GX460_OM_OM60T19U_(U)
9
4-1. Before driving Driving the vehicle ..................... 168
Cargo and luggage .................... 176
Vehicle load limits ...................... 180
Trailer towing (with towing hitch) ..................... 181
Dinghy towing ...............................199
4-2. Driving procedures Engine (ign ition) switch ...........200
Automatic transmission .......... 206
Turn signal lever ............................ 211
Parking brake ................................ 212
4-3. Operating the lights and wipers
Headlight switch ..........................213
Automatic High Beam...............216
Fog light switch .............................221
Windshield wipers and washer ......................................... 222
Rear window wiper and washer ......................................... 226
Headlight cleaner switch........ 228
4-4. Refueling Opening the fuel tank cap ..... 229 4-5. Using the driving support
systems
Lexus Safety System + ............. 233
PCS (Pre-Collision System) ....................................... 239
LDA (Lane Departure Alert) ............................................ 250
Dynamic radar cruise control ......................................... 258
Intuitive parking assist.............. 270
Rear view monitor system...... 278
Multi-terrain Select...................288
Multi-terrain Monitor............... 292
Rear height control air suspension ................................. 339
AVS (Adaptive Variable Suspension System) .............. 343
Four-wheel drive system ........ 344
Crawl Control............................. 348
Downhill assist control system.......................................... 352
Driving assist systems .............. 355
BSM (Blind Spot Monitor).......361 • The Blind Spot Monitor function .................................... 366
• The Rear Cross Traffic Alert function......................... 369
4-6. Driving tips Winter driving tips..................... 374
Off-road precautions................377
4Driving

167
GX460_OM_OM60T19U_(U)
4Driving
4-1. Before drivingDriving the vehicle ...................... 168
Cargo and luggage .................... 176
Vehicle load limits .......................180
Trailer towing (with towing hitch) .................... 181
Dinghy towing .............................. 199
4-2. Driving procedures Engine (ignition) switch .......... 200
Automatic transmission.......... 206
Turn signal lever.............................211
Parking brake ............................... 212
4-3. Operating the lights and wipers
Headlight switch .......................... 213
Automatic High Beam .............. 216
Fog light switch ............................ 221
Windshield wipers and washer.......................................... 222
Rear window wiper and washer.......................................... 226
Headlight cleaner switch ........228
4-4. Refueling Opening the fuel tank cap......229 4-5. Using the driving support
systems
Lexus Safety System + ............. 233
PCS (Pre-Collision System)........................................ 239
LDA (Lane Departure Alert) ............................................250
Dynamic radar cruise control .........................................258
Intuitive parking assist .............. 270
Rear view monitor system ...... 278
Multi-terrain Select .................. 288
Multi-terrain Monitor ............... 292
Rear height control air suspension ................................. 339
AVS (Adaptive Variable Suspension System)............... 343
Four-wheel drive system ........ 344
Crawl Control .............................348
Downhill assist control system .......................................... 352
Driving assist systems ..............355
BSM (Blind Spot Monitor) ...... 361 • The Blind Spot Monitor function .................................... 366
• The Rear Cross Traffic Alert function ......................... 369
4-6. Driving tips Winter driving tips ..................... 374
Off-road precautions ............... 377

206
GX460_OM_OM60T19U_(U)4-2. Driving procedures
Automatic transmission
While the engine switch is in IGNITION ON mode, move the shift lever
with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the vehicle is
completely stopped.
*1: Shifting to the D position allows the system
to select a gear suitable for the driving
conditions. Setting the shift lever to the D position is recommended for normal driv-
ing.
*2: Selecting shift ranges using S mode rest ricts the upper limit of the possible gear
ranges, controls engine braking forces , and prevents unnecessary upshifting.
Shifting the shift lever
Shift position purpose
Shift positionPurpose and condition
PParking the vehicle/starting the engine
RReversing
NNeutral
(Condition in which the power is not transmitted)
DNormal driving*1
SS mode driving*2 (  P. 207)

GX460_OM_OM60T19U_(U)
2094-2. Driving procedures
4
Driving
■If the shift lever cannot be shifted from P
First, check whether the brake pedal is being depressed.
If the shift lever cannot be shifted with your foot on the brake pedal, there may be a prob-
lem with the shift lock system. Have the vehicle inspected by your Lexus dealer, immedi-
ately.
The following steps may be used as an emergency measure to ensure that the shift lever
can be shifted.
Releasing the shift lock: Set the parking brake.
Turn the engine switch off.
Depress the brake pedal.
■If the “S” indicator does not come on ev en after shifting the shift lever to S
This may indicate a malfunction in the automatic transmission system. Have the vehicle
inspected by your Lexus dealer immediately.
(In this situation, the transmission will operat e in the same manner as when the shift lever
is in D.)
■Downshift restriction warning buzzer (S mode)
To help ensure safety and driving performance, downshifti ng operation may sometimes
be restricted. In some circum stances, downshifting may not be possible even when the
shift lever is operated. (A buzzer will sound twice.) Pry the cover up with
a flathead screwdriver
or tool.
To prevent damage to the cover, cover the tip
of the screwdriver with a rag.
Press the shift lock override button.
The shift lever can be shifted while the button
is pressed.
1
2
3
4
5

GX460_OM_OM60T19U_(U)
3514-5. Using the driving support systems
4
Driving
■When the Crawl Control system is operated continuously
This may cause the brake actuator to overheat . In this case, the Crawl Control system will
stop operating, a buzzer will sound, the Crawl Control indicator will turn off after flashing
and the “TRAC OFF” indicator will come on. In this case, quickly stop the vehicle in a safe
place and give the actuator adequate time to cool off. Refrain from using the system until
the “TRAC OFF” indicator turns off. (The ve hicle can be driven normally during this
time.)
■When depressing the accelerator pedal while the Crawl Control is operating
Multi-terrain Select operates in AUTO mode. ( P. 288)
■If the automatic transmission system overheats
The system will cease operation, a buzzer w ill sound and a warning message will be dis-
played to alert the driver. Stop the vehicle in a safe place until the warning message turns
off. ( P. 528)
■Sounds and vibrations caused by the Crawl Control system
●A sound may be heard from the engine compartment when the engine is started or just
after the vehicle begins to move. This soun d does not indicate that a malfunction has
occurred in Crawl Control system.
●Either of the following conditions may occu r when the Crawl Control system is operat-
ing. None of these are indicators that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard afte r the vehicle comes to a stop.
■If the slip indicator comes on...
It may indicate a malfunction in the system. Cons ult your Lexus dealer.
WARNING
■When using Crawl Control
Do not rely solely on the Crawl Control. This function does not extend the vehicle’s
performance limitations. Always thoroughly check the road conditions, and drive
safely.
■These conditions may cause the system not to operate properly
When driving on the following surfaces, the sy stem may not be able to maintain a fixed
low speed, which may re sult in an accident:
●Extremely steep inclines.
●Extremely uneven surfaces.
●Snow-covered roads, or other slippery surfaces.

GX460_OM_OM60T19U_(U)
3814-6. Driving tips
4
Driving
NOTICE
■To prevent the water damage
Take all necessary safety measures to ensure that water damage to the engine or other
components does not occur.
●Water entering the engine air intake will cause severe engine damage.
●Water entering the automatic transmission will cause deterioration in shift quality,
locking up of your transmission accompanied by vibration, and ultimately damage.
●Water can wash the grease from wheel be arings, causing rusting and premature fail-
ure, and may also enter the differentials, tr ansmission and transfer case, reducing the
gear oil’s lubricating qualities.
■When you drive through water
If driving through water, such as when cro ssing shallow streams, first check the depth of
the water and the bottom of the riverbed for firmness. Drive slowly and avoid deep
water.
■Inspection after off-road driving
●Sand and mud that has accumulated in brake drums and around brake discs may
affect braking efficiency and may damage brake system components.
●Always perform a maintenance inspection afte r each day of off-road driving that has
taken you through rough terrain, sand, mud, or water. For scheduled maintenance
information, refer to the “Warranty and Se rvices Guide”, “Owner’s Manual Supple-
ment” or “Scheduled Maintenance”.

452
GX460_OM_OM60T19U_(U)6-2. Maintenance

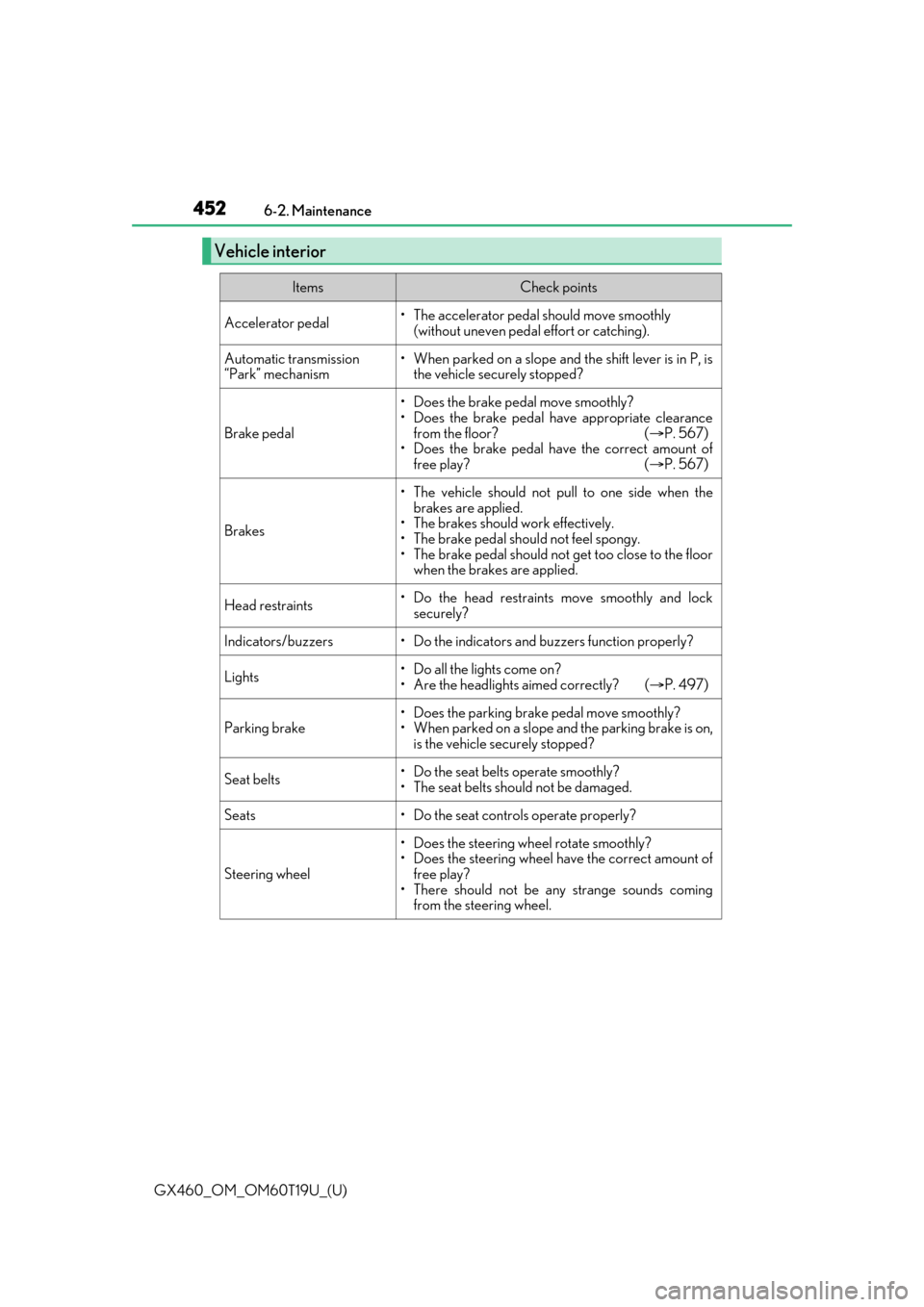

Vehicle interior
ItemsCheck points
Accelerator pedal• The accelerator pedal should move smoothly
(without uneven pedal effort or catching).
Automatic transmission
“Park” mechanism• When parked on a slope and the shift lever is in P, isthe vehicle securely stopped?
Brake pedal
• Does the brake pedal move smoothly?
• Does the brake pedal have appropriate clearance
from the floor? ( P. 567)
• Does the brake pedal have the correct amount of
free play? ( P. 567)
Brakes
• The vehicle should not pull to one side when the
brakes are applied.
• The brakes should work effectively.
• The brake pedal should not feel spongy.
• The brake pedal should no t get too close to the floor
when the brakes are applied.
Head restraints• Do the head restraints move smoothly and lock
securely?
Indicators/buzzers• Do the indicators and buzzers function properly?
Lights• Do all the lights come on?
• Are the headlights aimed correctly? ( P. 497)
Parking brake• Does the parking brake pedal move smoothly?
• When parked on a slope and the parking brake is on,
is the vehicle securely stopped?
Seat belts• Do the seat belts operate smoothly?
• The seat belts should not be damaged.
Seats• Do the seat controls operate properly?
Steering wheel
• Does the steering wheel rotate smoothly?
• Does the steering wheel have the correct amount offree play?
• There should not be any strange sounds coming from the steering wheel.

456
GX460_OM_OM60T19U_(U)6-3. Do-it-yourself maintenance
Headlight aim
(
 P. 497)• Phillips-head screwdriver
Light bulbs
( P. 499)
• Bulb with same number and wattage rating as original
• Phillips-head screwdriver•Flathead sc rewdriver
•Wrench
Power steering fluid
level (P. 467)• Automatic transmission fluid DEXRON® II or III
• Rag or paper towel•Clean funnel
Radiator and con-
denser ( P. 465)
Tire inflation pres-
sure (P. 484)• Tire pressure gauge• Compressed air source
Washer fluid
( P. 471)• Water or washer fluid containing antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)
ItemsParts and tools

GX460_OM_OM60T19U_(U)
4676-3. Do-it-yourself maintenance
6
Maintenance and care
■Fluid level
The fluid level should be within the appropriate range.Full (when cold)
Add fluid (when cold)
Full (when hot)
Add fluid (when hot)
Hot: The vehicles has been driven around 50 mph (80 km/h) for 20 min- utes, or slightly longer in frigid temperatures.
(Fluid temperature, 140 F - 175 F [60 C - 80 C]).
Cold: The engine has not been run for about 5 hours. (Room temperature, 50 F - 85 F [10 C - 30 C]).
■Checking the fluid level
Make sure to check the fluid type and prepare the necessary items.
Clean all dirt off the reservoir.
Remove the cap by turnin g it counterclockwise.
Wipe the dipstick clean.
Reinstall the cap and remove it again.
Check the fluid level.
Power steering fluid
1
2
3
4
Fluid typeAutomatic transmission fluid DEXRON® II or III
ItemsRag or paper, clean funnel (only for adding fluid)
1
2
3
4
5

518
GX460_OM_OM60T19U_(U)7-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer
sounds
Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system
. However, if this continues to occur,
have the vehicle inspecte d by your Lexus dealer.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
(U.S.A.)
(Canada)
Brake system warning light (warning buzzer) Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning.
 Immediately stop the vehicle in a safe place and contact your
Lexus dealer. Continuing to drive the vehicle may be dangerous.
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
 Immediately stop the vehicle in a safe place and contact your
Lexus dealer.
Low engine oil pressure warning light*1
Indicates that the engine oil pressure is too low
 Immediately stop the vehicle in a safe place and contact your
Lexus dealer.
(U.S.A.)
(Canada)
Malfunction indicator lamp Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system
 Have the vehicle inspected by your Lexus dealer immediately.
High coolant temperature warning light (warning buzzer)*1
Indicates that the engine coolant temperature is too high
 Immediately stop the vehicle in a safe place. Handling method
( P. 553)
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
 Have the vehicle inspected by your Lexus dealer immediately.
