buttons Lexus GX470 2003 Audio System /

AUDIO
200(e) Your compact disc player with changer
Your compact disc player with changer can store up to 6 discs
and play selected discs or continuously play all the discs set in
the player.
When
you set discs into the player, make sure their labels face
up. If not, the player will display “ERROR 1” and the disc
number.
NOTICE
 Never try to disassemble or oil any part of the
compact disc player. Do not insert anything other
than compact discs into the slot.
 Do not insert a disc upon another one.
The player is intended for use with 12 cm (4.7 in.) discs only.
Radio operation
(a) Listening to the radio
Push these buttons to choose either an AM or FM station.
“AM”, “FM1”, “FM2” or “FM TYPE” appears on the d\
isplay.

AUDIO
201
Turn this knob to the right to step up the frequency or to
the left to step down.
Your radio automatically changes to stereo reception when a
stereo broadcast is received. “ST” appears on the display. If
the signal becomes weak, the radio reduces the amount of
channel separation to prevent the weak signal from creating
noise. If the signal becomes extremely weak, the radio
switches from stereo to mono reception. In this case, “ST”
disappears from the display.(b) Presetting a station
1. Tune in the desired station.
2. Push
one of the station selector buttons ( 16 ) and hold
it until a beep is heard. This sets the station to the button
and the button number ( 16 ) appears on the display.
Each button can store one AM station and two FM stations. To
change the preset station to a different one, follow the same
procedure.
The preset station memory is cancelled when the power
source is interrupted by battery disconnection or a blown fuse.

AUDIO
223
(c) Controller holder
The controller can be stowed in the holder when it is not
in use. The holder can be hooked on the back of the
driver’s or front passenger’s seatback.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop while driving, stow the controller in the
holder when it is not in use.
NOTICE
Do not leave the controller exposed to high
temperatures (such as on the instrument panel) for a
long time, otherwise the controller may be damaged.
Quick reference for your remote control
22PY112

1 DISC/CH/PROG buttons

2 TUNE/TRACK buttons

3 “ON/SOURCE” button

4 “OFF” button

AUDIO
238
1“TUNE/TRACK” buttons:
Operate the front audio system or select the
track/chapter when the DVD player is operated.
2“DISC/CH/PROG” buttons:
Skip directly to a desired preset station, disc, track or
chapter.
3“CURSOR” button:
Indicates the control switches on the screen when the
DVD player is operated.
4Joy stick:
Select a control switch, mode switch on the screen or
the menu for the disc.
5“ENT” button:
Input the selected switch or the selected menu for the
disc.
6“SOURCE” button:
Turn on the rear seat entertainment system and selects
the mode.
7“DISPLAY” button:
Adjust the color, tone, contrast and brightness of the
screen.
8“VIDEO” button:
Turn on the video mode when your personal audio
device is connected.
9“DVD” button:
Turn on the DVD mode.
10“RETURN” button:
Skip to the predetermined scene for the disc.
11“SET UP” button:
Indicate the initial set up screen when the DVD player
is operated.
12“SEARCH” button:
Indicate the title search screen when the DVD player is
operated.
13“ANGLE” button:
Select the angle of the screen when the DVD player is
operated.
14“  ”, “”, “ ” and “ ” buttons:
Reverse, pause or fast forward a screen when the DVD
player is operated.
15“TOP MENU” button:
Indicate the title selection screen for DVD video when
the DVD player is operated.
16“AUDIO” button:
Indicate the changing audi o screen when the DVD
player is operated.
17“SUB TITLE” button:
Indicate the changing subtitle screen when the DVD
player is operated.
18“MENU” button:
Indicate the menu screen for DVD video when the DVD
player is operated.
19“OFF” button:
Turn off the rear seat entertainment system.

AUDIO
252(d) DVD player operation switches
The DVD player can be operated with the controller
buttons directly.
The player can also be operated with the switches on the
screen.
To operate the switches on the screen, select the switch by the
joy stick and push the “ENT” button. You cannot select the
switches on the screen by touching them directly.
When the switch is selected by the joy stick, the outline of the
switch
changes to blue. Push the “ENT” button, and the switch
will be highlighted in green.

AUDIO
258(b) Operating the “
”, “
”, “ ” and “ ”
switches/buttons
22PY062
 1 For DVD video2 For DVD audio3 Controller button
“
” switch/button: Push this switch/button to pause the
disc.

AUDIO
259
“
 ” switch/button: Push this switch/button to cancel the
pause and return to normal playing.
“  ” and “ ” switches/buttons: Push and hold the
“  ” or “ ” switch/button to fast forward or reverse. If you
want to return to the beginning of the current track, release the
switch/button.
DVD video only: Push the “” or “” switch/button while
pausing, the DVD video plays the slow −motion video replay or

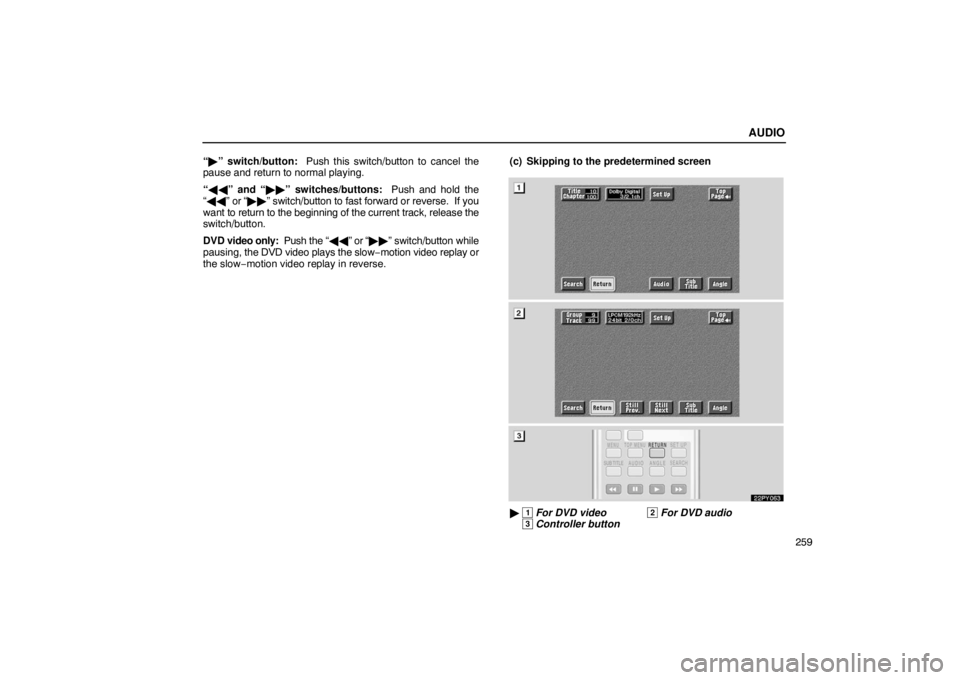

the slow− motion video replay in reverse. (c) Skipping to the predetermined screen
22PY063

1 For DVD video2 For DVD audio3 Controller button
