GAUGES, METERS AND SERVICE REMINDER INDICATORS
50
(j) “VSC TRAC” Warning Light
The light warns that there is a problem somewhere in the
following.
Vehicle skid control system
 Active traction control system
 Downhill assist control system
 Hill− start assist control system
The light will come on when the ignition key turned to “ON”, and
will go off after a few seconds.
It is not a malfunction that the warning light may stay on for 60
seconds after the ignition key is turned to the “ON” position.
Depressing the brake pedal repeatedly may turn on the lights.
It is normal if they go out after a few seconds.
There is no problem when the “VSC TRAC” warning light
comes on when the brake actuator temperature becomes high.
If the light comes on while driving, the above mentioned
systems do not work. However, as conventional braking
operates when applied, there is no problem to continue your
driving.
In the following cases, contact your Lexus dealer:
 The warning light does not come on after the ignition key is
turned to “ON”.
 The warning light remains on after the ignition key is turned
to “ON”.
 The warning light comes on while driving.
(k) Discharge Warning Light
This light warns that the battery is being discharged.
If it comes on while you are driving, stop the vehicle, turn off the
engine, and check for the cause. Look first at the engine drive
belt.
 If it is loose or broken, the generator will not charge the
battery properly.
 If the belt is O.K., there is a problem somewhere in the
charging system.
The engine ignition will continue to operate, however, until the
battery is discharged. Turn off the air conditioning, blower,
radio, etc., and drive directly to the nearest Lexus dealer or
repair shop.
NOTICE
Do not continue driving if the engine drive belt is broken
or loose.
(l) Low Engine Oil Pressure Warning Light
This light warns that the engine oil pressure is too low.
If it flickers or stays on while you are driving, pull off the road
to a safe place and stop the engine immediately. Call a Lexus
dealer or qualified repair shop for assistance.

STARTING AND DRIVING
308
(e) Parking
 1 Brake pedal

2 Parking brake lever

3 “P” (Park) position
1. Bring the vehicle to a complete stop.
2. Apply the parking brake fully.
3. With the brake pedal held down with your foot, shift the
selector lever to the “P” position.
CAUTION
While the vehicle is moving, never attempt to move the
selector lever into “P” under any circumstances.
Serious mechanical damage and loss of vehicle control
may result.
(f) Good driving practice
 If the transmission repeatedly shifts up and down between
the fourth and overdrive gears when climbing a gentle slope,
shift the selector lever to the “4” position. Be sure to shift the
selector lever to the “D” position after climbing the slope.
 When towing a trailer, in order to maintain efficient engine
braking and electrical charging performance, do not use
overdrive.
CAUTION
Always keep your foot on the brake pedal while stopped
with the engine running. This prevents the vehicle from
creeping.
NOTICE
Always use the brake pedal or parking brake to hold the
vehicle on an upgrade. Do not attempt to hold the
vehicle using the accelerator pedal, as this can cause
the transmission to overheat.

DRIVING TIPS
355

Crosswinds and rough roads will adversely affect handling
of your vehicle and trailer, causing sway. Pay attention to
the rear from time to time to prepare yourself for being
passed by large trucks or buses, which may cause your
vehicle and trailer to sway. If swaying happens, firmly grip
the steering wheel and reduce speed immediately but
gradually. Never increase speed. If it is necessary to
reduce speed, brake slowly. Steer straight ahead. If you
make no extreme correction with the steering or brakes,
your vehicle and trailer will stabilize.
 Be careful when passing other vehicles. Passing requires
considerable distance. After passing a vehicle, do not forget
the length of your trailer and be sure you have plenty of room
before changing lanes.
 In order to maintain efficient engine braking and electrical
charging performance, do not use overdrive. Transmission
must be “4” position.
 Because of the added load of the trailer, your vehicle’s
engine may overheat on hot days (at temperatures over
30C [85 F]) when going up a long or steep grade with a
trailer. If the engine coolant temperature gauge indicates
overheating, immediately turn off the air conditioning (if in
use), pull your vehicle off the road and stop in a safe spot.
See “If your vehicle overheats” on page 363.
Always pl ace wheel blocks under both the vehicle and trailer
wheels when parking. Apply the parking brake firmly. Put
the transmission in “P”. Avoid parking on a slope with a
trailer, but if it cannot be avoided, do so only after performing
the following:
1. Apply the brakes and keep them applied.
2. Have someone place wheel blocks under both the vehicle
and trailer wheels.
3. When the wheel blocks are in place, release your brakes
slowly until the blocks absorb the load.
4. Apply the parking brake firmly.
5. Shift into “P” and turn off the engine.

IN CASE OF AN EMERGENCY
362JUMP STARTING PROCEDURE
1. If the booster battery is installed in another vehicle, make
sure the vehicles are not touching. Turn off all unnecessary
lights and accessories.
2. If required, remove all the vent plugs from the booster
battery. Lay a cloth over the open vents on the booster battery.
(This
helps reduce the explosion hazard, personal injuries and
burns.)
If the booster battery is an extended maintenance interval
battery, it is not necessary to remove the vent plugs.
3. If the engine in the vehicle with the booster battery is not
running, start it and let it run for about 5 minutes. During jump
starting, run the engine at about 2000 rpm with the accelerator
pedal lightly depressed.
4. Locate positive (+) and negative ( −) terminals of each
battery. Connect the jumper cables in the exact order (
1
2
3
4
) shown in the illustration.
1Connect a positive (red) jumper cable clamp to the
positive (+) terminal of the discharged battery.
2Connect the clamp at the other end of the positive (red)
cable to the positive (+) terminal of the booster battery.
3Connect a negative (black) cable clamp to the negative
(−) terminal of the booster battery.
4Connect the clamp at the other end of the negative (black)
cable to a solid, stationary, unpainted metallic point (e.g.
engine hanger) away from the battery. Do not connect it
to or near any part that moves when the engine is
cranked.
CAUTION
When making the connections, to avoid serious injury,
do not lean over the battery or accidentally let the
jumper cables or clamps touch anything except the
correct battery terminals or the ground.
5. Start your engine in the normal way. After starting, run it at
about 2000 rpm for several minutes with the accelerator pedal
lightly depressed.
6. Carefully disconnect the cables in the exact reverse order:
the negative cable and then the positive cable.
7. Carefully dispose of the battery cover cloths which may
now contain sulfuric acid.
8. If removed, replace all the battery vent plugs.
If the cause of your battery discharging is not apparent (for
example, lights left on), you should have it checked at your
Lexus dealer.

ENGINE
413
COOLING SYSTEM
Capacity
12.9 L (13.6 qt., 11.4 lmp.qt.)
Coolant type“Toyota Genuine Long Life Coolant” or equivalent
With ethylene− glycol type coolant for a proper corrosion
protection of aluminum components
Do not use alcohol type antifreeze or plain water alone.
NOTE:
“Toyota Genuine Long Life Coolant” is filled in your Lexus vehicle. In\
order to avoid technical problems, we strongly recommen d
using “Toyota Genuine Long Life Coolant” or equivalent. Please contact your \
Lexus dealer for further details.
FUEL
Fuel type
Only UNLEADED
Octane rating87 (Research octane number 91) or higher
IGNITION SYSTEMSpark plug − Make
DENSO
NGK
− Gap
SK20R11
IFR6A11
1.1 mm (0.043 in.)
ELECTRICAL SYSTEM
Battery Open voltage at 20C (68F):
Charging rates
12.6 − 12.8 V Fully charged
12.2 − 12.4 V Half charged
11.8 − 12.0 V Discharged
[Voltage that is checked 20 minutes after the key is removed
with all the lights turned off]
5A max.

SECTION 6 – 4
442
SERVICE PROCEDURES AND
SPECIFICATIONS
Electrical components
Specifications443
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Checking battery condition 447
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 450
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing the blade type fuses 450
. . . . . . . . . . . . . . . .
Checking the cartridge type fuses 453
. . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 454
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Replacing light bulbs 455
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

ELECTRICAL COMPONENTS
444
 Driver’s side instrument panel
No.FUSEAMPERECIRCUIT
1 SPARE10Spare fuse
2 ALT140
Charging system and all
components in “AM1”,
“HEATER”, “CDS FAN”, “FR
FOG”, “DEFOG”, “AIR SUS”,
“AC115V INV”, “SEAT HEATER”,
“BATT CHG”, “BRAKE CTRL”
and “TOWING” fuses
3 SPARE15Spare fuse
4 HEATER50Air conditioning system
5 AIR
SUS50Rear height control air suspen-
sion
6 AM150
All components in “ACC”, “CIG”,
“IG1”, “FR WIP −WSH”, “RR
WIP”, “RR WSH”, “DIFF”,
“TEMS” and “STA” fuses
7 BRAKE
CTRL30Trailer brake controller
8 J/B50
All components in “P FR P/W”,
“P RR P/W”, “D RR P/W”, “D
P/SEAT”, “P P/SEAT”, “TAIL”,
“PANEL” and “POWER OR
TI&TE” fuses
9 BATTCHG30Trailer sub battery
10 TOWING40Trailer lights
11 CDS FAN20Electric cooling fan
12 RR A/C30Rear air conditioning system

ELECTRICAL COMPONENTS
446
No.FUSEAMPERECIRCUIT
33 ABSSOL50
Anti −lock brake system,
vehicle skid control system,
active traction control system,
brake assist system
34 ALTS7.5Charging system
35 MAYDAY7.5Lexus link system
36 HORN10Horns
37 TRNHAZ15Turn signal lights
38 ETCS10Electronic throttle control system
39 EFI20Multiport fuel injection
system/sequential multiport fuel
injection system
40 D FR P/W20Power window
41 DR/LCK25Power door lock
42 TOWING30Towing converter
43 RADIO
NO.230Car audio system, navigation
system
44 IGN10
Multiport fuel injection
system/sequential multiport fuel
injection system, vehicle skid
control system
45 SRS10SRS airbag system
46 GAUGE7.5Gauges and meters
47 ST27.5Multiport fuel injection
system/sequential multiport fuel
injection system
No.FUSEAMPERECIRCUIT
48 FR
WIPWSH30Windshield wipers, windshield
washer
49 TEMS20Electronic modulated suspen-
sion
50 DIFF20Four−wheel drive system
51 RR WIP15Rear window wiper
52 D P/SEAT30Driver’s power seats
53 P P/SEAT30Front passenger’s power seats
54 PWR
OUTLET15Power outlet (12 VDC)
55 IG1 NO.210Rear air conditioning system, in-
side rear view mirror
56 RR WSH15Rear window washer
57 ECUIG10
Shift lock control system, power
windows, outside rear view
mirror defogger, anti −lock brake
system, active traction control
system, vehicle skid control
system, air conditioning system,
navigation system, power
windows, moon roof, Lexus link
system, tilt and telescopic
steering, multi −information
display, driving position
memory system
58 IG110
Air conditioning system, back −up
lights, rear window defogger,
seat heaters, vehicle skid control
system

ELECTRICAL COMPONENTS
449
NOTICE
Make sure the engine and all accessories are turned
off before performing maintenance.
 When checking the battery, remove the ground cable
first and reinstall it last.
 Be careful not to cause a short circuit with tools.
 Take care no solution gets into the battery when
washing it.
If the battery is disconnected or run down
The power windows and moon roof may not operate
automatically and the jam protection function will not function
correctly after you reconnect, replace or recharge the battery.
In any of these cases, you should normalize the power
windows and moon roof. To normalize the power windows and
moon roof, see pages 35 and 88.

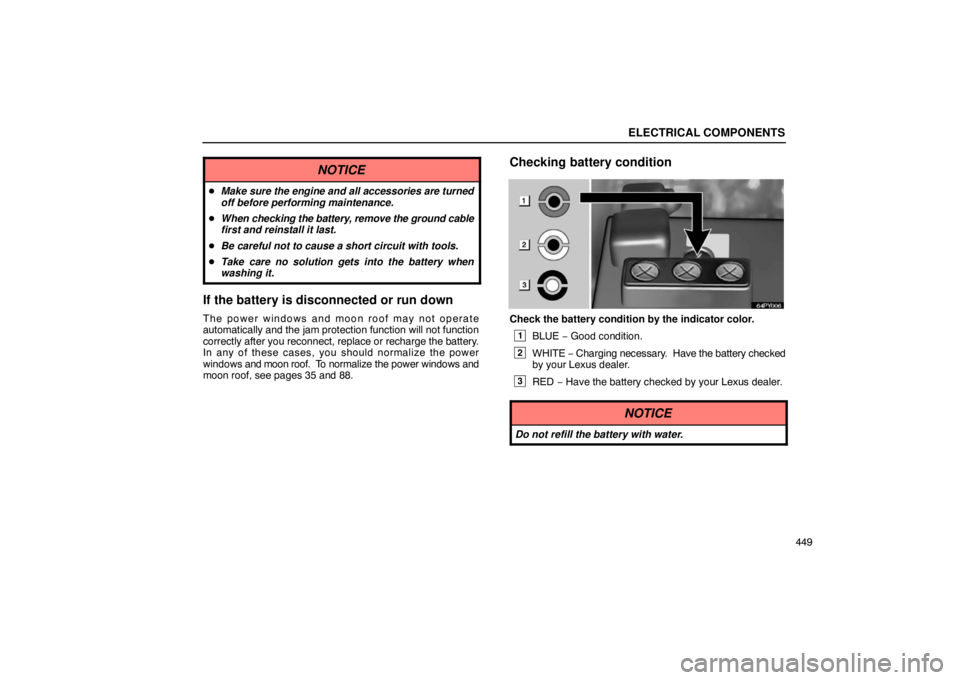

Checking battery condition
Check the battery condition by the indicator color.
1BLUE − Good condition.
2WHITE − Charging necessary. Have the battery checked
by your Lexus dealer.
3RED − Have the battery checked by your Lexus dealer.
NOTICE
Do not refill the battery with water.

ELECTRICAL COMPONENTS
450
BATTERY RECHARGINGPRECAUTIONS
During recharging, the battery is producing hydrogen
gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be
sure to disconnect the ground cable.
2. Make sure the power switch on the recharger is off when
connecting the charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an unconfined area. Do
not charge the battery in a garage or closed room
where there is not sufficient ventilation.
 Only do a slow charge (5 A or less). Charging at a
quicker rate is dangerous. The battery may explode
causing personal injuries.
NOTICE
Never recharge the battery while the engine is running.
Also, make sure all accessories are turned off.
CHECKING AND REPLACING THE BLADE TYPE FUSES
The engine compartment fuse box is located under the left
side engine compartment cover. Before checking the
engine compartment fuses, remove the cover. (For
details, see “Removing the engine compartment covers”
on page 405.)
Engine compartment
1
Pullout tool 2
Spare fuses
