Lexus GX470 2003 Basic Functions / LEXUS 2003 GX470 OWNER'S MANUAL (OM60979U)

AUDIO
198
Push the “AM”, “FM”, “TAPE” or “DISC” button to turn on
that mode. The selected mode turns on directly.
Push these buttons if you want to switch from one mode to
another.
If the tape or disc is not set, the cassette player or compact disc
player does not turn on.
You can turn off the cassette player by ejecting the cassette
tape. If the audio system was previously off, then the entire
audio system will be turned off when you eject the cassette
tape. If another function was previously playing, it will come on
again.In the “TAPE” or “CD” mode, the applicable functions are
shown in the lowest part of the display. Push the switch
just below to turn on each function.
(b) Tone and balance
How good an audio program sounds to you is largely
determined by the mix of the treble, mid −range, and bass
levels. In fact, different kinds of music and vocal programs
usually sound better with different mixes of treble, mid −range
and bass.
A good balance of the left and right stereo channels and of the
front and rear sound levels is also important.
Keep in mind that if you are listening to a stereo recording or
broadcast, changing the right/left balance will increase the
volume of one group of sounds while decreasing the volume
of another.

AUDIO
199
Each time you push the “AUDIO·TUNE” knob, the display
changes as in the following. To adjust the tone and
balance or turn on or off the automatic sound levelizer,
turn the knob.
BAS: Adjusts low −pitched tones.
MID: Adjusts mid− pitched tones.
TRE: Adjusts high− pitched tones.
FAD: Adjusts the sound balance between the front and rear
speakers.
BAL: Adjusts the sound balance between the right and left
speakers.
ASL: Turns on or off the automatic sound levelizer.
Automatic sound levelizer: When the audio sound becomes
difficult to be heard due to road noise, wind noise, etc. during
driving, the system adjusts to the optimum volume and tone
quality according to the noise level. While the automatic sound
levelizer is on, “ASL” appears on the display. (c) Your radio antennas
The wire antenna is mounted inside the quarter windows.
NOTICE

When cleaning the inside of the quarter windows, be
careful not to scr atch or damage the wire antennas or
connectors.
 Putting a window tint (especially, conductive or
metallic type) on the quarter windows may affect the
reception of radio or mobile telephone. For the
installation of the window tint, consult with your
Lexus dealer.
(d) Your cassette player
When you insert a cassette, the exposed tape should face to
the right.
NOTICE
Do not oil any part of the cassette player, and do not
insert anything except a cassette tape into the slot.

AUDIO
200(e) Your compact disc player with changer
Your compact disc player with changer can store up to 6 discs
and play selected discs or continuously play all the discs set in
the player.
When
you set discs into the player, make sure their labels face
up. If not, the player will display “ERROR 1” and the disc
number.
NOTICE
 Never try to disassemble or oil any part of the
compact disc player. Do not insert anything other
than compact discs into the slot.
 Do not insert a disc upon another one.
The player is intended for use with 12 cm (4.7 in.) discs only.
Radio operation
(a) Listening to the radio
Push these buttons to choose either an AM or FM station.
“AM”, “FM1”, “FM2” or “FM TYPE” appears on the d\
isplay.

AUDIO
201
Turn this knob to the right to step up the frequency or to
the left to step down.
Your radio automatically changes to stereo reception when a
stereo broadcast is received. “ST” appears on the display. If
the signal becomes weak, the radio reduces the amount of
channel separation to prevent the weak signal from creating
noise. If the signal becomes extremely weak, the radio
switches from stereo to mono reception. In this case, “ST”
disappears from the display.(b) Presetting a station
1. Tune in the desired station.
2. Push
one of the station selector buttons ( 16 ) and hold
it until a beep is heard. This sets the station to the button
and the button number ( 16 ) appears on the display.
Each button can store one AM station and two FM stations. To
change the preset station to a different one, follow the same
procedure.
The preset station memory is cancelled when the power
source is interrupted by battery disconnection or a blown fuse.

AUDIO

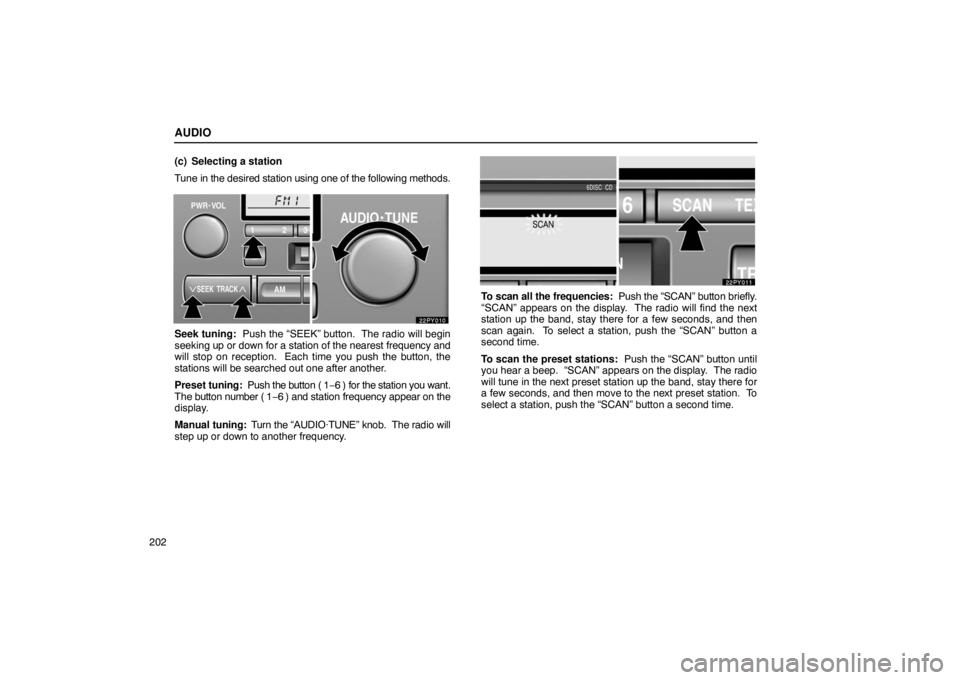

202(c) Selecting a station
Tune in the desired station using one of the following methods.
Seek tuning: Push the “SEEK” button. The radio will begin
seeking up
or down for a station of the nearest frequency and
will stop on reception. Each time you push the button, the
stations will be searched out one after another.
Preset tuning: Push the button ( 1 −6 ) for the station you want.
The button number ( 1 −6 ) and station frequency appear on the
display.
Manual tuning: Turn the “AUDIO·TUNE” knob. The radio will
step up or down to another frequency.
To scan all the frequencies: Push the “SCAN” button briefly.
“SCAN” appears on the display. The radio will find the next
station up the band, stay there for a few seconds, and then
scan again. To select a station, push the “SCAN” button a
second time.
To scan the preset stations: Push the “SCAN” button until
you hear a beep. “SCAN” appears on the display. The radio
will tune in the next preset station up the band, stay there for
a few seconds, and then move to the next preset station. To
select a station, push the “SCAN” button a second time.

AUDIO
203
(d) RDS (Radio Data System)
When you push the “RDS” button briefly during FM reception,
the RDS turns on. “RDS” and “RDS SEARCH” appear on the
display and the radio starts to search RDS stations.
If no RDS stations can be found, “NO RDS ST” appears and
the display returns to the previous mode.
If RDS stations are found, “FOUND” and the number of the
RDS stations appear on the display in the FM TYPE mode and
the RDS stations are preset by program type.
To turn off the RDS, push the “RDS” button until you hear a
beep.
TYPE (Program type):
When you push the “TYPE” button while receiving an RDS
station, the current program type appears on the display.
Each time you push the “TYPE” button, the program type
changes as in the following:

ROCK
 EASY LIS (Easy listening)
 CLS/JAZZ (Classical music and jazz)
 R&B (Rhythm and Blues)
 INFORM (Information)
 RELIGION
 MISC
 ALERT (Emergency message)

AUDIO
204TRAF (Traffic) function: A station that regularly
broadcasts traffic information is automatically located.
When you push the “TRAF” button, “RDS” and “TRAF SEEK”\
appear on
the display and the radio will start seeking any traffic
program station.
If no traf fic program station is found, “NO TRAF INFO” appears
on the display for a few seconds and the display returns to the
previous mode. Radio text message:
If the radio receives a radio text message during FM reception,
“MSG” and a text message appears on the display. After the
text message goes off, “MSG” also goes off.
After the text message goes off from the display, pushing the
“TEXT” button during message reception shows the text
message again on the display.
The RDS audio system can store three messages consisting
of 64 characters in memory. To store a message in memory,
push the “TEXT” button until you hear a beep.
If three messages are already stored in memory, the oldest
message will be overwritten by the new message.

AUDIO
205
To recall a radio text message, push the “TEXT” button. Each
time you push the button, the available message will be
displayed beginning with the newest one.
If there is no radio text message in memory and when no
message is received, “NO MESSAGE” appears on the display.
After this, the display returns to the previous mode.
Cassette tape player operation
(a) Playing a cassette tape
When you insert a ca
ssette tape, the exposed tape should
face to the right.
The player will automatically start when you insert a cassette
tape. At this time, “TAPE” appears on the display.
To stop or eject the cassette tape, push the “EJECT” button.
Autoreverse feature: After the cassette player reaches the
end of a tape, it automatically reverses and begins to play the
other side, regardless of whether the cassette was playing or
fast forwarding.

AUDIO
206
If a cassette is already in the slot, push the “TAPE” button.
Dolby\b Noise Reduction* feature: If you are listening to a
tape that was recorded with Dolby* Noise Reduction, push the
button. The display will indicate that the Dolby noise
reduction system is on.
The Dolby NR mode reduces tape noise by about 10 dB. For
best sound reproduction, play your tapes with the Dolby NR on
or off according to the mode used for recording the tape.
To play a tape recorded without Dolby NR, push the button
again to turn off the Dolby NR.
* Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation. “DOLBY” and the double −D
symbol
are trademarks of Dolby Laboratories Licensing
Corporation.
(b) Manual program selection
“Program” button: Push the “” button to select the
other side of a cassette tape. The display indicates which side
is currently selected (“ ” indicates top side, “
” indicates
bottom side).
“Rewind” button: Push the “ ” button to rewind a tape.
“REW” appears on the display.
To stop rewinding, push the same button or “TAPE” button.
“Fast forward” button: Push the “ ” button to fast forward
a cassette tape. “FF” appears on the display.
To stop fast forwarding, push the same button or “TAPE”
button.

AUDIO
207
(c) Automatic program selection
“RPT” button: The repeat feature automatically replays the
current program.
Push
the “RPT” button while the program is playing. When the
program ends, it will automatically be rewound and replayed.
Push the button again to turn off the repeat feature.
There must be at least 3 seconds of blank space between
programs for the repeat feature to work correctly.
“Automatic program selection” button: The automatic
program selection feature allows you to program your cassette
player to skip forward or backward to locate the song you want
to hear. You can skip up to 9 programs at a time.
Push this button on the upper side to skip forward. “FF” and
the number will appear on the display. Push the button until the
number you want to skip appears on the display. After that, the
player will automatically skip forward.
When the end of the tape is reached, the player automatically
reverses sides and resumes normal play.
