audio Lexus GX470 2003 Basic Functions / LEXUS 2003 GX470 OWNER'S MANUAL (OM60979U)

HOW TO USE THIS MANUAL
iv
HOW TO USE THIS MANUAL
The contents of this manual are explained briefly on this
page to help you make the best use of the manual. Please
read this page and the rest of the Owner’s Manual
carefully to make sure you fully understand the operation
of your vehicle.
This will help you enjoy safe and comfortable driving.
TABLE OF CONTENTS
The table of contents and the pictorial index provide easy
reference to the appropriate pages.
BASIC OPERATION QUICK REFERENCE
Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.
SECTION 1 INSTRUMENTS AND CONTROLS
The vehicle’s equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.
1. Keys and doors
2. Switches
3. Gauges, meters and service reminder indicators
4. Interior equipment
5. Exterior equipment
6. Comfort adjustment
7. Theft deterrent
SECTION 2 AIR CONDITIONING AND AUDIO
The features of the vehicle’s air conditioning and audio are
explained in detail. Be sure to read this section so that you can
make full use of them.
SECTION 3 STARTING AND DRIVING
Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this section, and remember − drive safely!
SECTION 4 IN CASE OF AN EMERGENCY
This section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire,
etc. If such a problem occu rs, check the contents of this
Owner’s Manual and follow the instructions given.
SECTION 5 MAINTENANCE
This section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.
SECTION 6 SERVICE PROCEDURES AND
SPECIFICATIONS
Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.
INDEX
The page number is listed for each item in the Owner ’s Manual
so that you can rapidly find the item and page you are
searching for.

For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
viiiPage
1Driving position memory switches
171
. . . . . . . . . . .
2Power window switches 33
. . . . . . . . . . . . . . . . . . . . . . .
3Power door lock switch 20
. . . . . . . . . . . . . . . . . . . . . . .
4Window lock switch 34
. . . . . . . . . . . . . . . . . . . . . . . . . . .
5Power rear view mirror control switches 116 . . . . . . .
6Side vents 189
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Headlight, turn signal and fog light switch 24 . . . . . .
8Wiper and washer switch 27
. . . . . . . . . . . . . . . . . . . . . .
9Center vents 189
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10Emergency flasher switch 36
. . . . . . . . . . . . . . . . . . . . .
11Car audio 195
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12Multiinformation display 53
. . . . . . . . . . . . . . . . . . . . . .
13Automatic air conditioning controls 179
. . . . . . . . . .
14Rear window defogger switch 31
. . . . . . . . . . . . . . . . . .
15Front passenger’s seat belt reminder light 46 . . . . . .
16Glove box 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Ashtray 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
18Cigarette lighter 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Seat heater switches 37
. . . . . . . . . . . . . . . . . . . . . . . . . . Page
20Fourwheel drive control lever
309
. . . . . . . . . . . . . . .
21Automatic transmission selector lever 303 . . . . . . . .
22Parking brake lever 301
. . . . . . . . . . . . . . . . . . . . . . . . .
23Center differential lock switch 309
. . . . . . . . . . . . . . .
24Power outlet (12 VDC) 68
. . . . . . . . . . . . . . . . . . . . . . . . .
25Downhill assist control switch 326
. . . . . . . . . . . . . . .
26Electronic modulated suspension
control switch 320 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27Rear height control air suspension
switches 315. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Ignition switch 300
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29“2nd STRT” switch 309
. . . . . . . . . . . . . . . . . . . . . . . . . .
30Cruise control switch 312
. . . . . . . . . . . . . . . . . . . . . . .
31Steering pad switches 214
. . . . . . . . . . . . . . . . . . . . . . .
32Hood lock release lever 83
. . . . . . . . . . . . . . . . . . . . . . .
33Fuel filler door opener 84
. . . . . . . . . . . . . . . . . . . . . . . . .
34Instrument panel light control dial 60
. . . . . . . . . . . . . .
35Outside rear view mirror defogger switch 32 . . . . . . .
36Power outlet (115 VAC) main switch 68
. . . . . . . . . . . .

Finish
INTERIOR EQUIPMENT
63
INTERIOR LIGHTS
Center
 Vehicles with rear seat audio system
 Vehicles without rear seat audio system To turn on the interior light, slide the switch.
The interior light switch has the following positions:
“ON” −
Keeps the light on all the time.
“OFF” − Turns the light off.
“DOOR” − Turns the light on when any side door is opened. The
light goes off when all the doors are closed. For details, see
“Illuminated entry system” on page 65.

COMFORT ADJUSTMENT
101
 Third seat
Lean forward and pull the lock release lever. Then lean
back to the desired angle and release the lever.
CAUTION
To reduce the risk of sliding under the lap belt during a
collision, avoid reclining the seatback any more than
needed. The seat belts provide maximum protection
when the passengers are sitting up straight and well
back in the seats. If you are reclined, the lap belt may
slide past your hips and apply restraint forces directly
to the abdomen. In the event of a frontal collision, the
more the seat is reclined, the greater the risk of personal
injury.
Folding up second seat (for third seat entry)
Vehicles with third seat: For easy access to the third seat,
fold up the second seat in accordance with the following
procedure.
Before folding up the second seat, stow the second seat
buckles as shown above.
This prevents the buckles from falling out when you fold up the
second seat.
Vehicles with rear seat audio system or rear seat
entertainment system: Before folding up the second seat,
close the headphone input jack lid.

COMFORT ADJUSTMENT
102
NOTICE
The seat belt buckles must be stowed before you fold
up the second seat.
 Vehicles with rear seat audio system or rear seat
entertainment system: The headphone input jack lid
must be closed before you fold up the second seat.
1. Lower the head restraints to the lowest position.
2. Fold down the seatbacks while pulling the lock release
levers and swing the whole seats up and forward until they
are locked.
To return the seats to the original positions, push the red
knobs and swing the whole seats down and swing the
seatback up.

SECTION 2 – 1
178
AIR CONDITIONING AND AUDIO
Air conditioning
Automatic air conditioning controls179
. . . . . . . . . . . . . . . . . . . . . . . . .
Rear cooler controls 192
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
For vehicles equipped with Navigation System,
please refer to the separate “Navigation System
Owner’s Manual”.

SECTION 2 – 2
194
AIR CONDITIONING AND AUDIO
Audio
Audio system195
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Rear seat audio system 220
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seat entertainment system 233
. . . . . . . . . . . . . . . . . . . . . . . . . . .
For ”Audio system” instructions for vehicles
equipped with Navigation System, please refer to
the separate ”Navigation System Owner’s Manual”.

AUDIO
195
AUDIO SYSTEM

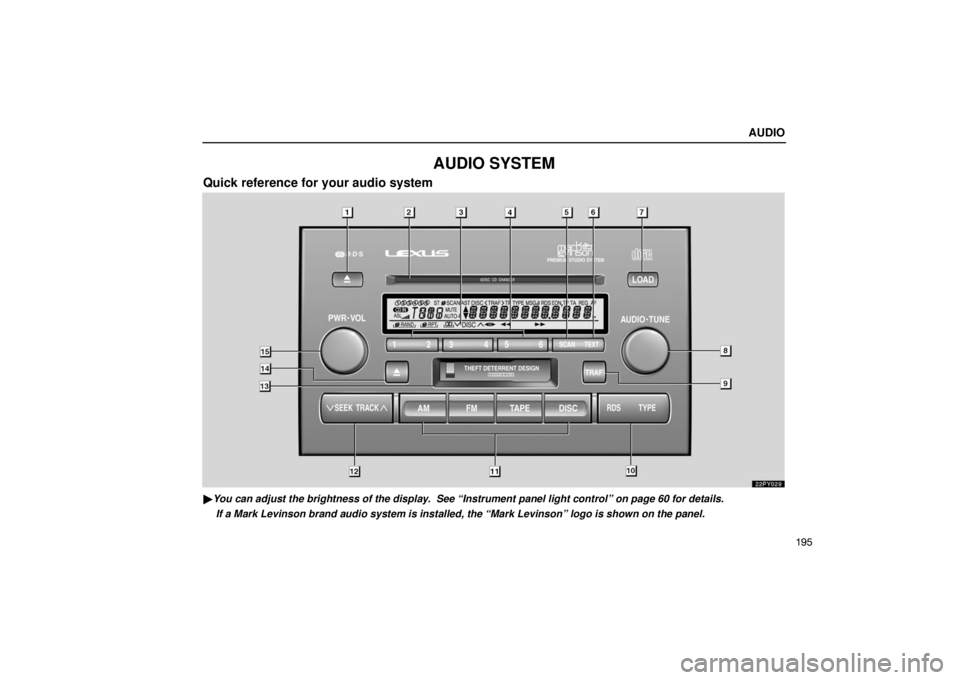

Quick reference for your audio system
22PY029
You can adjust the brightness of the display. See “Instrument panel light control” on page 60 for details.
If a Mark Levinson brand audio system is installed, the “Mark Levinso\
n” logo is shown on the panel.

AUDIO
196
1Ejecting a compact disc
(See page 209 for details.)
2Compact disc slot
(See page 208 for details.)
3Display of functions in TAPE or CD mode
RPT: Automatic repeat
(See page 207 or 212 for details.)
:DOLBY NR
(See page 206 for details.)

: Side change
(See page 206 for details.)
 : Rewinding or reversing
(See page 206 or 211 for details.)
 : Fast forwarding
(See page 206 or 211 for details.)
RAND: Random access
(See page 212 for details.)
:Disc selection
(See page 210 for details.)
4Station selector and function buttons
(See page 202 for details.)
5Radio mode: Scan tuning
(See page 202 for details.)
CD mode: Scan selection
(See page 211 for details.)
6Radio mode:Radio text message
(See page 204 for details.)
CD mode: Compact disc text
(See page 213 for details.)
7Compact disc load button
(See page 208 for details.)
8AUDIO·TUNE knob
(See page 199 for details.)
9Traffic announcement
(See page 204 for details.)
10Radio data system/Program type
(See page 203 for details.)
11Mode selectors
(See page 198 for details.)
12Radio mode:Seek tuning
(See page 202 for details.)
TAPE mode: Direct access to a desired program
(See page 207 for details.)
CD mode: Direct access to a desired program
(See page 211 for details.)
13Cassette tape slot
(See page 205 for details.)
14Stopping and ejecting a cassette tape
(See page 205 for details.)
15Turning the system on and adjusting the volume
(See page 197 for details.)

AUDIO
197
Using your audio system: some basics
This section describes some of the basic features of the Lexus
audio system. Some information may not pertain to your
system.
Your audio system adjusts to the optimum volume and tone
quality automatically. While the system is adjusting the audio
sound, the audio sound fades out and then fades in.
Your audio system works when the ignition switch is in the
“ACC” or “ON” position.
NOTICE
To prevent the battery from being discharged, do not
leave the car audio on longer than necessary when the
engine is not running.
(a) Turning the system on and off
Push this knob to turn the audio system on and off. Turn
this knob to adjust the volume.
The system turns on in the last mode used.
