NOTICE
Make sure the positive side and negative side of the
battery are faced correctly.
 Do not replace the battery with wet hands. Water may
cause unexpected rust.
 Do not touch or move any components in the
transmitter, or it may interfere with proper operation.
 Be careful not to bend the electrode of the battery
insertion and that dust or oils do not adhere to the
inside of the module.
 Take care not to lose the screws and Oring.
5. Install the lid with the 2 screws.
NOTICE
Take care not to damage or bend the Oring when
installing.
6. Install the module into the key frame and secure the cover
with the screw.
7. When pushing any switch on the wireless key, make sure
the indicator light comes on.
SIDE DOORS
Locking with key
 1 Lock2 Unlock
Turn the key towards the front of the vehicle to lock and
towards the back to unlock.
All the side doors and back door lock and unlock
simultaneously with the driver’s door. In the driver’s door lock,
turning the key once will unlock the driver’s door and twice in
succession will unlock all the side doors and back door
simultaneously.*
NOTE:
*The 2step unlocking function can be changed.
Ask your Lexus dealer for details.

KEYS AND DOORS
19
Together with the activation of unlocking, the personal lights
and center interior light come on for 15 seconds if the personal
light and center interior light switches are in the “DOOR”
positions, and the running board lights come on for about 15
seconds. However, this function does not work when the
ignition
key is in the “ON” position. For further information, see
“Illuminated entry system” on page 65.
Locking with inside lock button
 1 Lock2 Unlock
Push in the lock button to lock and unlock the door.
The front doors can be opened by pulling the inside handles
even if the lock buttons are in the locked position.
CAUTION
Do not pull the inside handle of the front doors while
driving. The doors will open and an accident may occur.
Lexus strongly recommends that all children be placed
in the rear seat of the vehicle.
Closing the door with the lock button pushed in will also lock the
door. Be careful not to lock your keys in the vehicle. Doors
cannot be locked when either front door is open and the key is
in the ignition.
CAUTION
Before driving, make sure the doors are closed and
locked, especially when small children are in the
vehicle. Along with the proper use of seat belts, locking
the doors helps prevent the driver and passengers from
being thrown out from the vehicle during an accident.
It also helps prevent the doors from being opened
unintentionally.

KEYS AND DOORS
20
Locking with power door lock switch
 1 Lock2 Unlock
To lock all the side doors and back door simultaneously,
push the power door lock switch down on the front side.
Pushing down on the rear side will unlock them.
The same switch is also located on the front passenger’s side.
If you do any of the following, no door can be unlocked with the
power door lock switch.
 Lock all the doors with the key or wireless remote control
when all the doors are closed.
 Open the driver’s door or front passenger’s door and move
the inside lock buttons of both front doors to the lock
position, then close the front doors. The power door lock switch can be reset in the following ways.

Turn the ignition key to the “ON” position.
 Unlock all the side doors and back door with the key or
wireless remote control.
 Unlock the driver’s door or front passenger’s door with the
inside lock button, and then unlock all the doors with the
power door lock switch.
Auto door locking function*: All the side doors and back
door will lock automatically when the selector lever is moved
out of “P” position. This auto door locking function is operable
if any doors are unlocked while the engine running.
NOTE:
*This auto door locking function can be disabled or
changed.
Ask your Lexus dealer for details.

KEYS AND DOORS
21

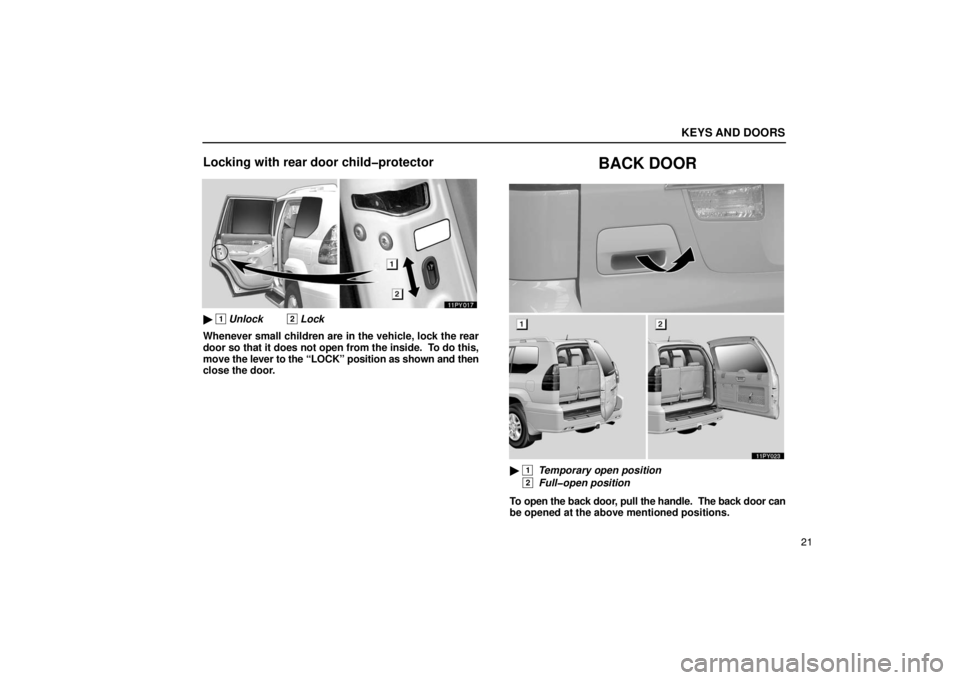

Locking with rear door childprotector
 1 Unlock2 Lock
Whenever small children are in the vehicle, lock the rear
door so that it does not open from the inside. To do this,
move the lever to the “LOCK” position as shown and then
close the door.
BACK DOOR
11PY023
 1 Temporary open position

2 Fullopen position
To open the back door, pull the handle. The back door can
be opened at the above mentioned positions.

KEYS AND DOORS
22The back door can be locked and unlocked together with the
side doors by means of the power door lock system. (For
instructions, see “Locking with power door lock switch” on
page 20.)
See “Luggage stowage precautions” on page 81 for
precautions when loading luggage.
CAUTION

Keep the back door closed while driving. This not
only keeps the luggage from being thrown out but
also prevents exhaust gases from entering the
vehicle.
 If the open back door hides the rear stop and tail
lights or rear turn signal lights while you are parked,
other road users must be warned of the presence of
your vehicle by a warning triangle or other device.
Back door stopper
 1 Lock2 Unlock
For your safety, lock the back door with the door stopper
when you fully open the back door.
When closing the back door, check that the back door stopper
is unlocked.
CAUTION
 When keeping the back door open, use only the lock
lever of the back door stopper without touching the
other parts.
 To avoid serious person al injury, make sure not to get
your hands caught in the back door stay when
closing the back door.

SECTION 1 – 2
23
INSTRUMENTS AND CONTROLS
Switches
Headlight switch24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Headlight dimmer and turn signal switch 25
. . . . . . . . . . . . . . . . . . . . .
Fog light switch 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Windshield wiper and washer switch 27
. . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer switch 30
. . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger switch 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirror defogger switch 32
. . . . . . . . . . . . . . . . . . . . .
Power window switches 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.

SWITCHES
24
HEADLIGHT SWITCH
To turn the lights on, twist the knob on the end of the lever.
FIRST CLICKSTOP: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
SECOND CLICKSTOP: Headlights also turn on.
THIRD CLICKSTOP (“AUTO”): The headlights and all other
lights automatically turn on depending on the darkness of the
surroundings. *
NOTE:
* The sensitivity of the automatic light control sensor can be
changed.
Ask your Lexus dealer for details.
When the headlights are on, the headlight indicator lights up in
the instrument cluster. With
the knob in the “AUTO” position, there may be a case
that the headlights do not turn on immediately, even when
the vehicle enters a dark place such as a tunnel or parking
lot according to lighting conditions. In this case, we
recommend you to twist the knob manually to the second
clickstop to turn on the headlights immediately.
When the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control dial
is turned fully up.
However, the brightness of the instrument cluster will not be
reduced in daytime even when the headlight switch is turned
to first or second clickstop.
The automatic light control sensor is on top of the driver’s side
instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.

SWITCHES
25
When the headlights are on, they automatically turn off about
30 seconds after any side door is opened and closed with the
ignition key turned to the “ACC” or “LOCK” position.* If you
want to turn off
the lights immediately, push the “LOCK” button
on the wireless remote control key twice. The lights also can
be turned off immediately by pushing the “LOCK” button on the
wireless remote control key with all the doors locked.
NOTE:
* The time before turning off the lights can be changed.
Ask your Lexus dealer for details.
If any of the side door is kept opened, the lights automatically
turn off after 30 minutes.
When the headlight switch is on with all the doors locked,
pushing the “LOCK” button on the wireless remote control key
turns off the headlights.
If you are going to park for over one week, make sure the
headlight switch is off.
Daytime Running Light System
The daytime running light system make your front turn signal
lights turn on when the parking brake is released with the
engine started and the headlights are turned off. They will not
go off until the ignition switch is turned off.
NOTICE
To prevent the battery from being discharged, do not
leave the lights on longer than necessary when the
engine is not running.
HEADLIGHT DIMMER AND TURN SIGNAL SWITCH
12PY003
For high beam, push the lever forward. Pull it back for low
beam. For the headlight flasher, pull it further back.
A blue light in the instrument cluster indicates high beam or
headlight flasher is on.
The headlight flasher works even when the headlight switch is
off.

SWITCHES
26
For signaling turns, move the lever up or down in the
conventional manner.
The ignition key must be in the “ON” position.
The turn signal is self−cancelling after a turn, but after a lane
change, you may have to cancel it by hand. You can also signal
a lane change by moving the turn signal lever partway and
holding it there.
If the green light in the instrument cluster flashes faster than
normal, it indicates that the front or rear turn signal bulb has
burned out. If this indicator light does not come on, the fuse
or the indicator light itself has probably failed.
FOG LIGHT SWITCH
To turn on the fog lights, turn the switch to the “ON”
position. The fog lights come on only when the headlights
are on low beam.

SWITCHES
27

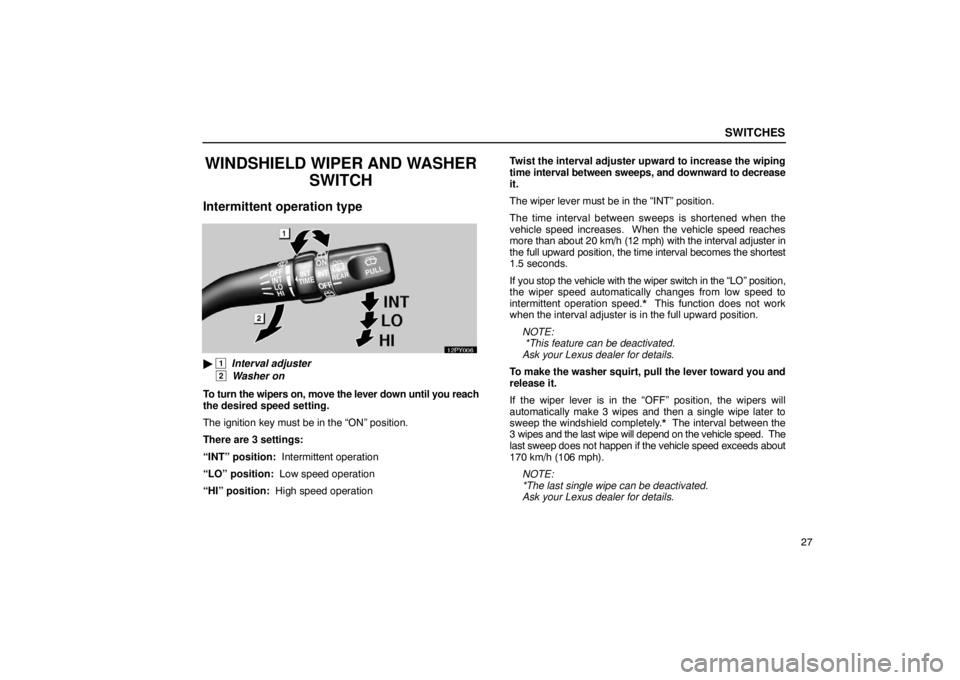

WINDSHIELD WIPER AND WASHERSWITCH
Intermittent operation type
 1 Interval adjuster

2 Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The ignition key must be in the “ON” position.
There are 3 settings:
“INT” position: Intermittent operation
“LO” position: Low speed operation
“HI” position: High speed operation Twist the interval adjuster upward to increase the wiping
time
interval between sweeps, and downward to decrease
it.
The wiper lever must be in the “INT” position.
The time interval between sweeps is shortened when the
vehicle speed increases. When the vehicle speed reaches
more than about 20 km/h (12 mph) with the interval adjuster in
the full upward position, the time interval becomes the shortest
1.5 seconds.
If you stop the vehicle with the wiper switch in the “LO” position,
the wiper speed automatically changes from low speed to
intermittent operation speed.* This function does not work
when the interval adjuster is in the full upward position.
NOTE:
*This feature can be deactivated.
Ask your Lexus dealer for details.
To make the washer squirt, pull the lever toward you and
release it.
If the wiper lever is in the “OFF” position, the wipers will
automatically make 3 wipes and then a single wipe later to
sweep the windshield completely.* The interval between the
3 wipes and the last wipe will depend on the vehicle speed. The
last sweep does not happen if the vehicle speed exceeds about
170 km/h (106 mph).
NOTE:
*The last single wipe can be deactivated.
Ask your Lexus dealer for details.
