ELECTRICAL COMPONENTS
448
If electrolyte gets on your skin, thoroughly wash the
contacted area. If you feel a pain or burn, get medical
attention immediately.
 If electrolyte gets on your clothes, there is a
possibility of its soaking through to your skin, so
immediately take off the exposed clothing and follow
the procedure above, if necessary.
 If you accidentally to swallow electrolyte, drink a
large quantity of water or milk. Follow with milk of
magnesia, beaten raw egg or vegetable oil. Then go
immediately for emergency help.
 Warning: Battery posts, terminals and related
accessories contain lead and lead compounds,
chemicals known to the State of California to cause
cancer and reproductive harm. Wash hands after
handling.Checking battery exterior
 1 Terminals2 Holddown clamp
Check the battery for corroded or loose connections,
cracks, or loose holddown clamps.
1. If the battery is corroded, wash it off with a solution of warm
water and baking soda. Coat the terminals with grease to
prevent further corrosion.
2. If the connections are loose, tighten the clamp bolts − but
do not overtighten.
3. Tighten the hold −down clamp only enough to keep the
battery firmly in place. Overtightening may damage the battery
case.

ELECTRICAL COMPONENTS
449
NOTICE
Make sure the engine and all accessories are turned
off before performing maintenance.
 When checking the battery, remove the ground cable
first and reinstall it last.
 Be careful not to cause a short circuit with tools.
 Take care no solution gets into the battery when
washing it.
If the battery is disconnected or run down
The power windows and moon roof may not operate
automatically and the jam protection function will not function
correctly after you reconnect, replace or recharge the battery.
In any of these cases, you should normalize the power
windows and moon roof. To normalize the power windows and
moon roof, see pages 35 and 88.

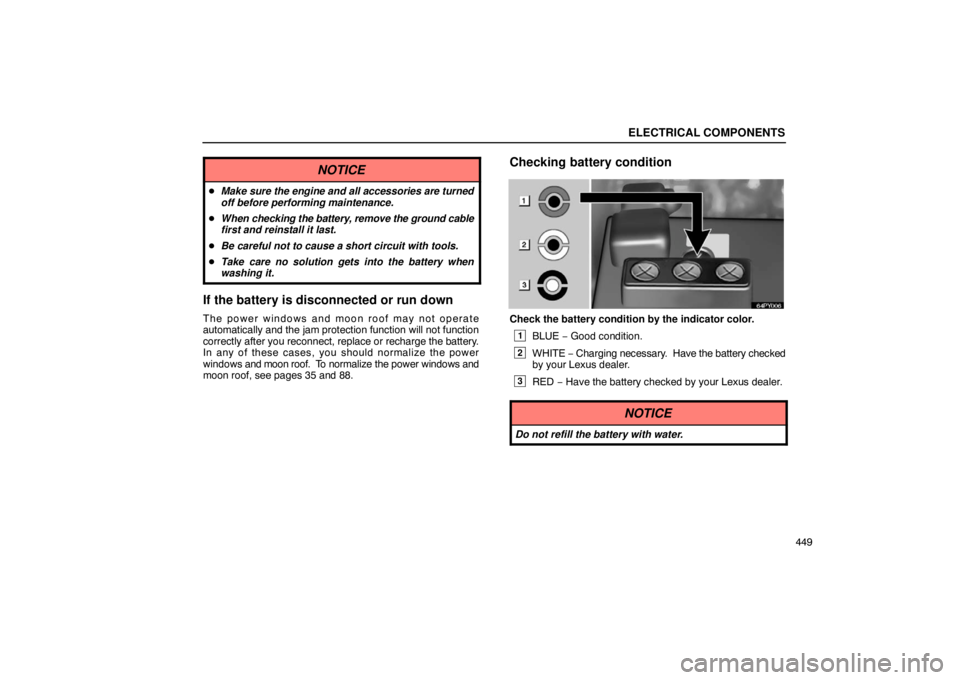

Checking battery condition
Check the battery condition by the indicator color.
1BLUE − Good condition.
2WHITE − Charging necessary. Have the battery checked
by your Lexus dealer.
3RED − Have the battery checked by your Lexus dealer.
NOTICE
Do not refill the battery with water.

ELECTRICAL COMPONENTS
450
BATTERY RECHARGINGPRECAUTIONS
During recharging, the battery is producing hydrogen
gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be
sure to disconnect the ground cable.
2. Make sure the power switch on the recharger is off when
connecting the charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an unconfined area. Do
not charge the battery in a garage or closed room
where there is not sufficient ventilation.
 Only do a slow charge (5 A or less). Charging at a
quicker rate is dangerous. The battery may explode
causing personal injuries.
NOTICE
Never recharge the battery while the engine is running.
Also, make sure all accessories are turned off.
CHECKING AND REPLACING THE BLADE TYPE FUSES
The engine compartment fuse box is located under the left
side engine compartment cover. Before checking the
engine compartment fuses, remove the cover. (For
details, see “Removing the engine compartment covers”
on page 405.)
Engine compartment
1
Pullout tool 2
Spare fuses

ELECTRICAL COMPONENTS
451
 Driver’s side instrument panel
1. Turn the ignition switch off and open the fuse box lid.
Determine which fuse may be causing the problem. The lid of
the fuse box shows the name of the circuit for each fuse.2. Make sure the inoperative component is turned off. Pull
the suspected fuse straight out with the pullout tool and
check it. If it has blown, push a new fuse into the clips.

ELECTRICAL COMPONENTS
452
 Good  Blown
a. Look carefully at the fuse. If the thin wire is broken, the fuse
has blown. If you are not sure or if it is too dark to see, try
replacing the suspected fuse with one of the same value that
you know is good.
b. Only install a fuse with the amperage rating designated on
the fuse box lid.
If you do not have a spare fuse, in an emergency you can pull
out the “CIG”, “RADIO NO.1” or “SEAT HEATER” fuse, which
may be dispensable for normal driving, and use it if its
amperage rating is the same.
If you cannot use one of the same amperage, use one lower
than, but as close as possible to, the amperage. If the
amperage is lower than that specified, the fuse might blow out
again but this does not indicate anything wrong. Be sure to get
the correct fuse as soon as possible and return the substitute
to its original clips. It is a good idea to purchase a set of spare fuses and keep them
in your vehicle for emergencies.
If the new fuse immediately blows out, there is a problem with
the electrical system. Have your Lexus dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher amperage rating, or any
other object, in place of a fuse. This may cause
extensive damage and possibly a fire.

ELECTRICAL COMPONENTS
453
CHECKING THE CARTRIDGE TYPEFUSES
The engine compartment fuse box is located under the left
side engine compartment cover. Before checking the
engine compartment fuses, remove the cover. (For
details, see “Removing the engine compartment covers”
on page 405.)
Engine compartment
Driver’s side instrument panel
 Good  Blown

ELECTRICAL COMPONENTS
454If the headlights or other electrical components do not
work and the blade type fuses are O.K., check the
cartridge
type fuses. If any of the cartridge type fuses are
blown, they must be replaced.
If there is an overload in the circuits from the battery, the fuses
are designed to blow before the entire wiring harness is
damaged.
NOTICE
Before replacing the fuses, have the cause of electrical
overload determined and repaired by your Lexus dealer.
CAUTION
Always use a genuine Lexus fuse or equivalent for
replacement. Never install an ordinary wire even for
a temporary fix. This may cause extensive damage and
possibly a fire.
ADDING WASHER FLUID
If the washer tank becomes nearly empty, add washer
fluid.
You may use plain water as washer fluid. However, in cold
areas where temperatures range below the freezing point, use
washer fluid containing antifreeze. This product is available at
your Lexus dealer and most auto parts stores. Follow the
manufacturer’s directions for how much to mix with water.
NOTICE
Do not use engine antifreeze or any other substitute
because it may damage your vehicle’s paint.

ELECTRICAL COMPONENTS
455
REPLACING LIGHT BULBS
The illustrations on the following pages show the locations of
light bulbs. If it is necessary to replace a bulb, take your vehicle
to your Lexus dealer as soon as possible. Use bulbs with the
bulb numbers and wattage ratings given in the table.
CAUTION
 To prevent burning yourself, do not replace the light
bulbs while they are hot.
 Halogen bulbs have pressurized gas inside and
require special handling. They can burst or shatter if
scratched or dropped. Hold a bulb only by its plastic
or metal case. Do not touch the glass part of a bulb
with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights such as headlights may
temporarily fog up when the lens becomes wet in the rain or in
a car wash. This is not a problem because the fogging is
caused by the temperature dif ference between the outside and
inside of the lens, just like the windshield fogged up in the rain.
However, if there is a large drop of water on the inside of the
lens, or if there is water pooled inside the light, contact your
Lexus dealer. LIGHT LOCATION
Light Bulbs Bulb No. W Type
1Headlights (High beam) 9005 60 A
2Headlights (Low beam)
−−55 B
3Front side marker lights 168 5 C
4Front turn signal lights 4157NAK 27/8 D
5Parking lights 168 5 C
6Fog lights −−55 E

ELECTRICAL COMPONENTS
456
Light Bulbs Bulb No. W Type
7Running board lights 194 3.8 C
8Rear turn signal lights 7440 21 C
9Stop/tail lights7443 21/5 C
10Stop/tail and rear side
marker lights7443 21/5 C
11Back−
up lights 7440 21 C
12License plate lights 168 5 C
Light Bulbs Bulb No. W Type
13Vanity lights −−2F
14Personal lights −−8G
15Interior lights −−8F
16Door courtesy lights −−3.8 G
17Glove box light −−1.2 C
A: HB3 halogen bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)
E: H3 halogen bulbs
F: Double end bulbs
G: Single end bulbs
