glove box Lexus GX470 2004 Audio / LEXUS 2004 GX470 FROM NOV. 2003 THROUGH DEC. 2003 PROD. OWNER'S MANUAL (OM60A74U)

For detailed information, refer to the description given in each Section.
PICTORIAL INDEX
x
Page
1Driving position memory switches 208. . . . . . . . . . .
2Power window switches 45. . . . . . . . . . . . . . . . . . . . . . .
3Power door lock switch 22. . . . . . . . . . . . . . . . . . . . . . .
4Window lock switch 46. . . . . . . . . . . . . . . . . . . . . . . . . . .
5Power rear view mirror control switches 213. . . . . .
6Side vents 237. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Headlight, turn signal and
fog light switches 31, 33, 34. . . . . . . . . . . . . . . . . . . . . .
8Wiper and washer switch 34. . . . . . . . . . . . . . . . . . . . . .
9Center vents 237. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10Emergency flasher switch 48. . . . . . . . . . . . . . . . . . . . .
11Car audio 244. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12Multi-information display 70. . . . . . . . . . . . . . . . . . . . . .
13Automatic air conditioning controls 224. . . . . . . . . .
14Rear window defogger switch 42. . . . . . . . . . . . . . . . . .
15Front passenger's seat belt reminder light 61. . . . . .
16Glove box 88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Ashtray 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Cigarette lighter 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Seat heater switches 49. . . . . . . . . . . . . . . . . . . . . . . . . .
20Four-wheel drive control lever 384. . . . . . . . . . . . . . . Page
21Automatic transmission selector lever 376. . . . . . . .
22Parking brake lever 374. . . . . . . . . . . . . . . . . . . . . . . . .
23Center differential lock switch 384. . . . . . . . . . . . . . .
24Power outlet (12 VDC) 85. . . . . . . . . . . . . . . . . . . . . . . . .
25Downhill assist control switch 408. . . . . . . . . . . . . . .
26Electronic modulated suspension
control switch 402. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27Rear height control air suspension
switches 395. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Ignition switch 372. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
292nd STRTº switch 384. . . . . . . . . . . . . . . . . . . . . . . . . .
30Tire pressure warning system
selector switch 425. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31Cruise control switch 392. . . . . . . . . . . . . . . . . . . . . . .
32Steering pad switches 265. . . . . . . . . . . . . . . . . . . . . . .
33Instrument panel light control dial 76. . . . . . . . . . . . . .
34Hood lock release lever 103. . . . . . . . . . . . . . . . . . . . .
35Fuel filler door opener 104. . . . . . . . . . . . . . . . . . . . . . .
36Roll sensing of curtain shield airbags
off switch 183. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
37Outside rear view mirror defogger switch 44. . . . . . .
38Power outlet (115 VAC) main switch 85. . . . . . . . . . . .

For detailed information, refer to the description given in each Section.
PICTORIAL INDEX
xii
Page
1Driving position memory switches 208. . . . . . . . . . .
2Power window switches 45. . . . . . . . . . . . . . . . . . . . . . .
3Power door lock switch 22. . . . . . . . . . . . . . . . . . . . . . .
4Window lock switch 46. . . . . . . . . . . . . . . . . . . . . . . . . . .
5Power rear view mirror control switches 213. . . . . .
6Side vents 237. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Headlight, turn signal and
fog light switches 31, 33, 34. . . . . . . . . . . . . . . . . . . . . .
8Wiper and washer switch 34. . . . . . . . . . . . . . . . . . . . . .
9Center vents 237. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10Emergency flasher switch 48. . . . . . . . . . . . . . . . . . . . .
11Rear view monitor/navigation system display
(See the separate Navigation System
Owner's Manualº.) 388. . . . . . . . . . . . . . . . . . . . . . . . . .
12Multi-information display 70. . . . . . . . . . . . . . . . . . . . . .
13Automatic air conditioning controls 224. . . . . . . . . .
14Rear window defogger switch 42. . . . . . . . . . . . . . . . . .
15Front passenger's seat belt reminder light 61. . . . . .
16Glove box 88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Car audio 244. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Ashtray 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Cigarette lighter 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20Seat heater switches 49. . . . . . . . . . . . . . . . . . . . . . . . . . Page
21Four-wheel drive control lever 384. . . . . . . . . . . . . . .
22Automatic transmission selector lever 376. . . . . . . .
23Parking brake lever 374. . . . . . . . . . . . . . . . . . . . . . . . .
24Center differential lock switch 384. . . . . . . . . . . . . . .
25Power outlet (12 VDC) 85. . . . . . . . . . . . . . . . . . . . . . . . .
26Downhill assist control switch 408. . . . . . . . . . . . . . .
27Electronic modulated suspension
control switch 402. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Rear height control air suspension
switches 395. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29Ignition switch 372. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
302nd STRTº switch 384. . . . . . . . . . . . . . . . . . . . . . . . . .
31Tire pressure warning system
selector switch 425. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32Cruise control switch 392. . . . . . . . . . . . . . . . . . . . . . .
33Steering pad switches 265. . . . . . . . . . . . . . . . . . . . . . .
34Instrument panel light control dial 76. . . . . . . . . . . . . .
35Hood lock release lever 103. . . . . . . . . . . . . . . . . . . . .
36Fuel filler door opener 104. . . . . . . . . . . . . . . . . . . . . . .
37Roll sensing of curtain shield airbags
off switch 183. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38Outside rear view mirror defogger switch 44. . . . . . .
39Power outlet (115 VAC) main switch 85. . . . . . . . . . . .

KEYS AND DOORS
8
KEYS
1Master keys (black) Ð These keys work in every lock.
For your Lexus dealer to make a new key with a
built-in transponder chip, your dealer will need one
of them.
2Sub key (gray) Ð This key will not open the glove box.
3Key number plate Ð Keep the plate in a safe place
such as your wallet, not in the vehicle.
A transponder chip for the engine immobilizer system has been
placed in the head of the master and sub keys. These chips
are required for the system to function correctly, so be careful
not to lose these keys. If you make your own duplicate key, you
will not be able to cancel the system or start the engine.
To protect items locked in the glove box when using valet
parking, leave the sub key with the attendant.Since the side doors and back door can be locked without a
key, you should always carry a spare master key in case you
accidentally lock your keys inside the vehicle.
If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.
We recommend writing down the key number and storing it in
a safe place.

SECTION 1 ± 4
78
INSTRUMENTS AND CONTROLS
Interior equipment
Vanity mirrors79 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lights80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal lights81 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Illuminated entry system82 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray83 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box88 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear console box89 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage door opener89 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holders92 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overhead console box94 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary box96 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat97 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning reflector holder98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coat hooks98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage cover99 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tie-down hookss100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INTERIOR EQUIPMENT
88The power outlet is not designed for the following electric
appliances even though their power consumption is
under 115 VAC/100W. These appliances may not operate
properly.
Appliances with high initial peak wattage: Cathode-ray
tube type televisions, compressor-driven refrigerators,
electric pumps, electric tools, etc.
Measuring devices which process precise data: Medical
equipment, measuring instruments, etc.
Other appliances requiring an extremely stable power
supply: Microcomputer-controlled electric blankets, touch
sensor lamps, etc.
Certain electrical appliances may cause radio noise.
GLOVE BOX
1Unlock2Open3Lock
To open the glove box door, pull the lever. To lock the
glove box door, insert the master key and turn it
clockwise.
With the tail lights on, the glove box light will come on when the
glove box door is open.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the glove box door closed
while driving.

AIR CONDITIONING
238
(e) Checking and replacing the air conditioning
filter
The air conditioning filter information label is placed in the
glove box as shown and indicates that a filter has been
installed.
The air conditioning filter prevents dust from entering the
vehicle through the air conditioning vent.
The air conditioning filter is behind the glove box.
The air conditioning filter may clog after long use. The filter
may need to be replaced if the air flow of the air conditioner and
heater experiences extreme reductions in operating efficiency,
or if the windows begin to fog up easily.
To maintain the air conditioning efficiency, inspect and replace
the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, such
as inner city or desert areas, early replacement may be
required. (For scheduled maintenance information, please
refer to the Owner's Manual Supplement/Scheduled
Maintenanceº.)

AIR CONDITIONING
239

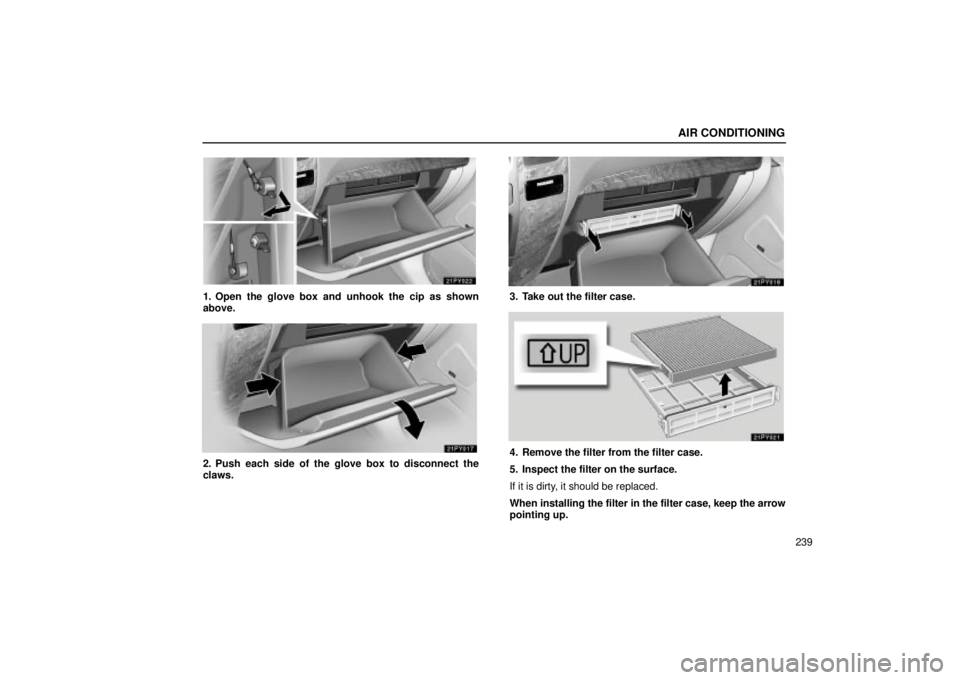

1. Open the glove box and unhook the cip as shown
above.
2. Push each side of the glove box to disconnect the
claws.
3. Take out the filter case.
4. Remove the filter from the filter case.
5. Inspect the filter on the surface.
If it is dirty, it should be replaced.
When installing the filter in the filter case, keep the arrow
pointing up.

DRIVING TIPS
449
Service connector for towing brake controller
Your vehicle is equipped with a service connector for the
towing brake controller as shown. Link the connector to the
towing brake controller via the sub wire harness stored in the
glove box. The detailed explanation of the sub wire harness
circuit is packed together with the sub wire harness. Be sure
to position the towing brake controller where it does not prevent
the driver from operating the pedal. Lexus recommends that
the sub wire harness be stored in the glove box when it is not
in use.
Tires
Ensure that your vehicle's tires are properly inflated. Adjust
the tire pressure to the recommended cold tire pressure
indicated below.
Tire pressure: 220 kPa (2.2 kgf/cm
2 or bar, 32 psi)
The trailer tires should be inflated to the pressure
recommended by the trailer manufacturer in respect to the
total trailer weight.

ELECTRICAL COMPONENTS
603
Light Bulbs Bulb No. W Type
13Vanity lights -- 2 F
14Personal lights -- 8 G
15Interior lights -- 8 F
16Door courtesy lights -- 3.8 G
17Glove box light -- 1.2 C
A: HB3 halogen bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)
E: H3 halogen bulbs
F: Double end bulbs
G: Single end bulbs
