Lexus GX470 2004 Pictorial Index / LEXUS 2004 GX470 FROM AUG. 2004 THROUGH SEP. 2004 PROD. OWNER'S MANUAL (OM60B55U)

OCCUPANT RESTRAINT SYSTEMS
212
2. To remove the child restraint system, press the
buckle-release button and allow the belt to retract.
Using a top strap
Follow the procedure below for a child restraint system
that requires the use of a top strap.

OCCUPANT RESTRAINT SYSTEMS
213

1Anchor brackets2Symbol mark
Use the anchor brackets on the back of the second seatback
to attach the top strap.
Anchor brackets are installed for each second seating
positions.
This symbol mark indicates the location of the anchor brackets.
1. Remove the head restraint.
2. Open the cover of the anchor bracket.

OCCUPANT RESTRAINT SYSTEMS
214

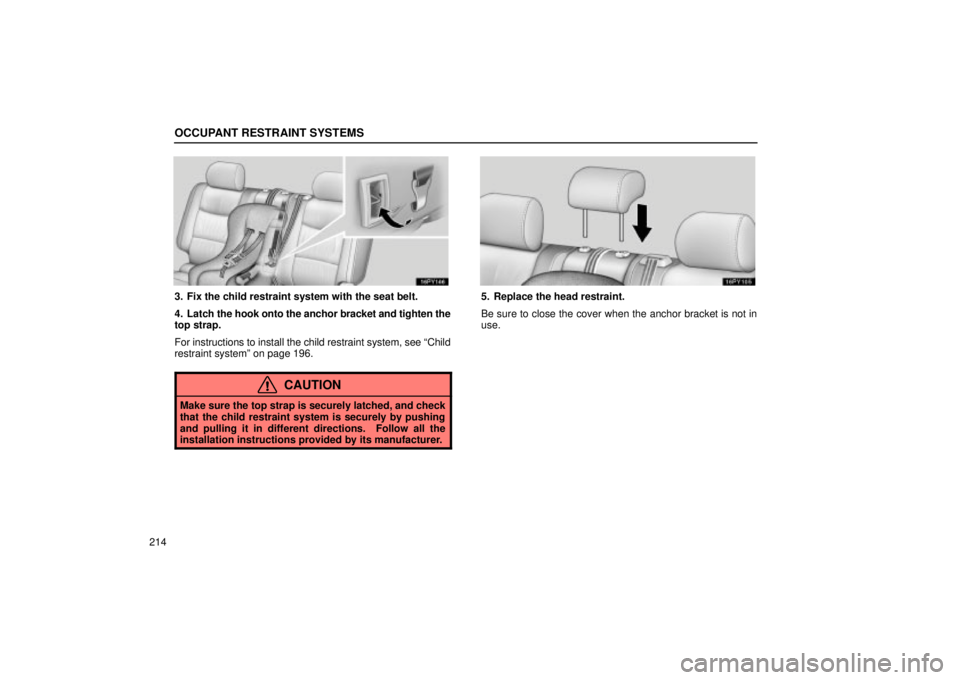

3. Fix the child restraint system with the seat belt.
4. Latch the hook onto the anchor bracket and tighten the
top strap.
For instructions to install the child restraint system, see Child
restraint systemº on page 196.
CAUTION
Make sure the top strap is securely latched, and check
that the child restraint system is securely by pushing
and pulling it in different directions. Follow all the
installation instructions provided by its manufacturer.
5. Replace the head restraint.
Be sure to close the cover when the anchor bracket is not in
use.

OCCUPANT RESTRAINT SYSTEMS
215
Installation with child restraint lower
anchorages
The lower anchorages for the child restraint system
interfaced with the FMVSS225 or CMVSS210.2
specification are installed in the second seat.
The anchorages are installed in the seat cushion of the right
side seating position and between the center and left side
seating position.
Child restraint system interfaced with the FMVSS213 or
CMVSS213 specification can be fixed with these anchorages.
In this case, it is not necessary to fix the child restraint system
with a seat belt on the vehicle.
11st look position
25th look position
CHILD RESTRAINT SYSTEM INSTALLATION
1. Fold down the seatback. Make sure the rear seat legs
are relocked into place (folding down the seatback will
disengage them) by pushing downward on the back of the
seat. Adjust the seatback to the 1st lock position (most
upright position) and then to the 5th lock position.
Make sure the seat and seatback is locked securely.

OCCUPANT RESTRAINT SYSTEMS
216
16PY170
Canada only


Type A (anchor position indicated by tags)
16PY173
Canada only


Type A (anchor position indicated by buttons)

OCCUPANT RESTRAINT SYSTEMS
217
16PY171
Canada only


Type B (anchor position indicated by tags)
16PY174
Canada only


Type B (anchor position indicated by buttons)

OCCUPANT RESTRAINT SYSTEMS
2182. Take off the cover on the seat cushion.
3. Widen the slits of the seat cushion a little and confirm
the position of the lower anchorages near the tags or
buttons on the seatback.
4. Type A Ð Latch the hooks of lower straps onto the
anchorages and tighten the lower straps.
4. Type B Ð Latch the buckles onto the anchorages.
For owners in Canada Ð
The symbol on a child restraint
system indicates the presence of a lower connector system.
If your child restraint system has a top strap, it should be
anchored. (For the installation of the top strap, see Using a top
strapº on page 212.)
For installation details, refer to the instruction manual equipped
with each product.
CAUTION
 When using the lower anchorages for the child
restraint system, be sure that there are no irregular
objects around the anchorages or that the seat belt is
not caught.
 Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its
manufacturer.
 Do not install a child restraint system on the second
seat if it interferes with the lock mechanism of the
front seats. This can cause death or serious injury to
the child and front passenger in case of sudden
braking or a collision.

OCCUPANT RESTRAINT SYSTEMS
219

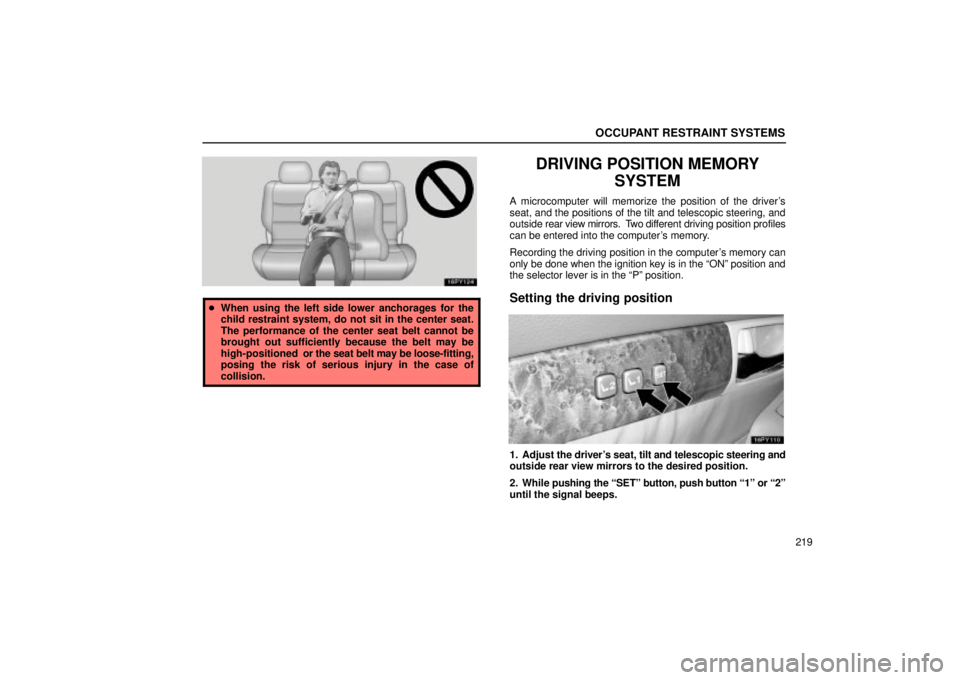

When using the left side lower anchorages for the
child restraint system, do not sit in the center seat.
The performance of the center seat belt cannot be
brought out sufficiently because the belt may be
high-positioned or the seat belt may be loose-fitting,
posing the risk of serious injury in the case of
collision.
DRIVING POSITION MEMORY
SYSTEM
A microcomputer will memorize the position of the driver's
seat, and the positions of the tilt and telescopic steering, and
outside rear view mirrors. Two dif ferent driving position profiles
can be entered into the computer's memory.
Recording the driving position in the computer's memory can
only be done when the ignition key is in the ONº position and
the selector lever is in the Pº position.
Setting the driving position
1. Adjust the driver's seat, tilt and telescopic steering and
outside rear view mirrors to the desired position.
2. While pushing the SETº button, push button 1º or 2º
until the signal beeps.

OCCUPANT RESTRAINT SYSTEMS
220The beep sound means that the positions are recorded in the
computer's memory.
By repeating these two steps and pressing the remaining
button, the driving position for another driver can be recorded.
To set a new memorized position, select the desired position
and perform step 2. The previous memory will be erased and
the new position will be set.
To make only slight changes to an already memorized position,
the easiest way is to first activate the memorized position, then
make the desired changes and perform step 2 above.
Recalling the memorized position
When
you push button 1º or 2º, the driving position will
be automatically adjusted to the position recorded for that
button. Conditions for memorized position activation

Ignition key ONº and selector lever in Pº position.
All parts of the memorized positions can be activated.
 Key not in ignition switch and within 30 seconds of opening
driver's door.
The memorized position can be activated, except for the tilt
and telescopic steering.
If any driving position memory switch is pushed while one of the
memorized driving position profiles is being activated, the
operation will stop.
To activate the system, push the desired button (1º or 2º)
again.
The driving position memory control system cannot be
operated while the vehicle is moving.
If the vehicle's battery is disconnected, the computer's
memory will be erased and the memorized positions will have
to be set again.

OCCUPANT RESTRAINT SYSTEMS
221
CAUTION
Do not start the vehicle while the adjustments are
being made.
 Take care not to select the wrong button, or the seat
could strike the rear passenger or hit your body
against the steering wheel. If this happens, you can
stop the movement by pressing another driving
position memory switch.
