INSTRUMENTS AND CONTROLS
Steering wheel and mirrors
Tilt and telescopic steering wheell223
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Outside rear view mirrors 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . .
Inside rear view mirror 227
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirrors 233
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

STEERING WHEEL AND MIRRORS
223
TILT AND TELESCOPIC STEERINGWHEEL

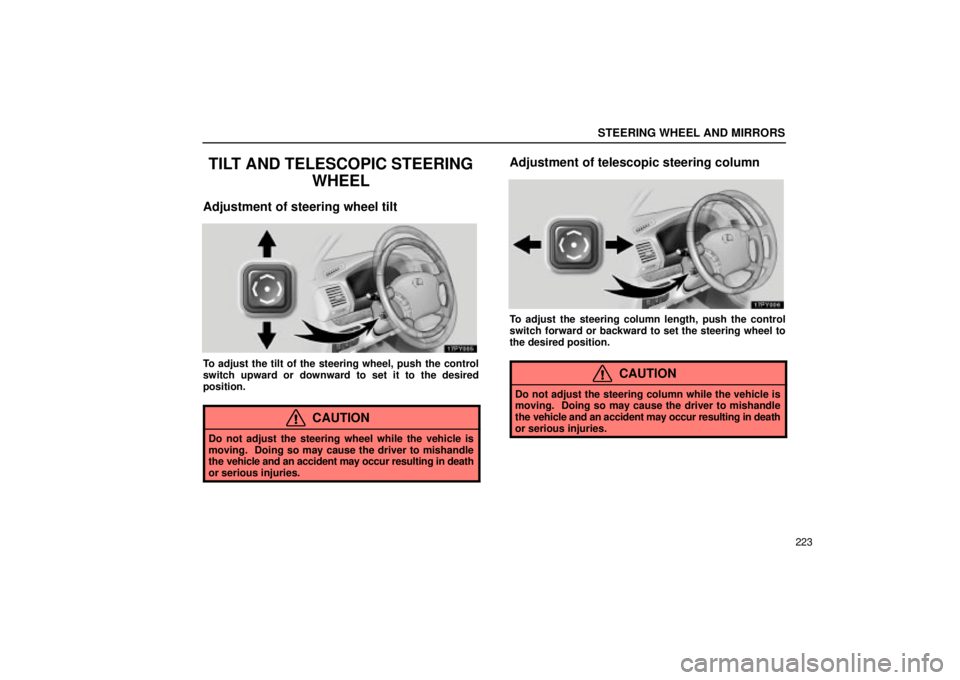

Adjustment of steering wheel tilt
To adjust the tilt of the steering wheel, push the control
switch upward or downward to set it to the desired
position.
CAUTION
Do not adjust the steering wheel while the vehicle is
moving. Doing so may cause the driver to mishandle
the vehicle and an accident may occur resulting in death
or serious injuries.
Adjustment of telescopic steering column
To adjust the steering column length, push the control
switch forward or backward to set the steering wheel to
the desired position.
CAUTION
Do not adjust the steering column while the vehicle is
moving. Doing so may cause the driver to mishandle
the vehicle and an accident may occur resulting in death
or serious injuries.

STEERING WHEEL AND MIRRORS
224
Auto tilt away*
When the ignition key is removed, the steering column
moves forward away from the driver and also tilts up for
easy exit and entry.
When the key is inserted in the ignition switch, the steering
column returns to the previously set position.
NOTE: * This feature can be deactivated. Ask your Lexus dealer for details.
OUTSIDE REAR VIEW MIRRORS
Adjust the mirror so that you can just see the side of your
vehicle in the mirror.
Be careful when judging the size or distance of any object seen
in the outside rear view mirror on the passenger's side
because it is a convex mirror. Any object seen in a convex
mirror will look smaller and farther away than if seen in a normal
flat mirror.
When you push the outside rear view mirror defogger switch,
the heater panels in the outside rear view mirrors will quickly
clear the mirror surface. (See Outside rear view mirror
defogger switchº on page 47.)
The rear view mirrors are rain clearing mirrors that clear the
driver's rear view when it rains. (For details, see Rain clearing
mirrorsº on page 642.)

STEERING WHEEL AND MIRRORS
225
CAUTION
Do not adjust the mirror while the vehicle is moving.
Doing so may cause the driver to mishandle the
vehicle and an accident may occur, resulting in death
or serious injuries.
 Since the mirror surfaces can get hot, do not touch
them when the outside rear view mirror defogger
switch is on.
Power rear view mirror control

1Master switch2Control switch
To adjust the power rear view mirror, first place the master
switch at Lº (left) or Rº (right), and push the control
switch on the desired side.
The power rear view mirrors can be adjusted when the key is
in the ACCº or ONº position.

STEERING WHEEL AND MIRRORS
226When
the automatic transmission selector lever is shifted
into Rº position with the master switch in the Lº or Rº
position, the rear view mirrors automatically down to help
backing up. The mirrors return to the previous position in the following
operations.

Shift the transmission lever out of Rº position.
 Place the master switch in the neutral position.
NOTICE
If ice should jam the mirror, do not operate the control
or scrape the mirror face. Use a spray de-icer to free themirror.

STEERING WHEEL AND MIRRORS
227
Folding rear view mirrors
To fold the rear view mirror, push backward.
The rear view mirrors can be folded backward for parking in
compact areas.
CAUTION
Do not drive with the mirrors folded backward. Both the
driver and passenger side rear view mirrors must be
extended and properly adjusted before driving.
INSIDE REAR VIEW MIRROR
Adjust the mirror so that you can just see the rear of your
vehicle in the mirror.
Pushing the MIRRORº switch changes the mode
between AUTO and DAY.
The indicator comes on when the automatic function mode is
selected.
DAY mode: The mirror surface is normal.
AUTO mode: If the mirror detects light from the headlights
of the vehicle behind you, the mirror surface darkens
slightly to reduce the reflected light.
When the ignition key is inserted and turned on, the inside rear
view mirror always turns on in the automatic function mode.

STEERING WHEEL AND MIRRORS
228When the outside air temperature is low, it may take a little
longer for the mirror to darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the vehicle is moving.
Doing so may cause the driver to mishandle the vehicle
and an accident may occur resulting in death or serious
injuries.
To ensure correct functioning of the anti-glare mirror
sensors located on both sides of the mirror, do not touch
or cover the sensors with your finger or a piece of cloth,
etc.
Compass
The compass indicates the direction in which the vehicle
is heading. The illustration shown above indicates the
vehicle is heading north.
Push the COMPº switch to turn the compass system on
and off.
If the ignition switch was turned off with the system on, the
system
will automatically turn back on when the ignition switch
is turned on.

STEERING WHEEL AND MIRRORS
229
Displays
Directions
N
NE E
SE S
SW W
NWNorth
Northeast East
Southeast South
Southwest West
Northwest
The compass may not show the correct direction in the
following conditions:
 The vehicle is stopped immediately after turning.
The compass does not adjust while the vehicle is stopped.
 The ignition switch is turned off immediately after turning.
 The vehicle is on an inclined surface.
 The vehicle is in a place where the earth's magnetic field is
subject to interference by artificial magnetic fields
(underground parking, under a steel tower, between
buildings, roof parking, near a crossing, near a large vehicle,
etc.).
 The vehicle is magnetized. (There is a magnet or a metal
object on or near the inside rear view mirror.)
 The battery has been disconnected. If your vehicle is out of the set zone, refer to Calibrating the
compassº in this Section to set the zone number.
If the deviation is small, the compass works to calibrate the
direction automatically while the vehicle is in motion.
For additional precision or for complete calibrating, see
Calibrating the compassº below.

STEERING WHEEL AND MIRRORS
230If the direction is not indicated or the system does not operate
properly, contact your Lexus dealer.

Compass sensor
NOTICE
Do not put magnets or a metal object on or near the
inside rear view mirror of the vehicle. Doing this maycause malfunction of the compass sensor in the mirror.

STEERING WHEEL AND MIRRORS
231
Calibrating the compass (deviation calibration)
The direction display on the compass deviates from the true
direction determined by the earth's magnetic field. The angle
of deviation varies according to the geographic position of the
vehicle.
To adjust this deviation, stop the vehicle, then push and hold
the COMPº switch until the zone number appears on the
display. Then push the COMPº switch, referring to the
following map to select the number of the zone where the
vehicle is.
16Z001
Samoa: 5 Guam: 8 Saipan: 8


Zone numbers
