Lexus GX470 2005 Pictorial Index / LEXUS 2005 GX470 OWNER'S MANUAL (OM60B11U)

IN CASE OF AN EMERGENCY
500
40PY040

1Jack
2Spare tire
3Tool tray
1. Get the tool, jack and spare tire.To remove the tool tray, turn the knob
counterclockwise and open the cover, then pull the
tray out.
To prepare yourself for an emergency, you should
familiarize yourself with the use of the jack and each
tool, and their storage locations.
When storing the jack, put it into place and secure
to prevent it from flying forward during a collision or
sudden braking.

1Jack handle extension with bolt
2Jack handle extension without bolt
3Jack handle

IN CASE OF AN EMERGENCY
501
To remove the spare tire under the luggage
compartment:
Put a jack handle and jack handle extensions together
as shown in the illustration.
CAUTION
Make sure they are securely fixed with the
screws.
When connecting the jack handle extensions, use a
Phillips±head screwdriver or jack handle to tighten the
bolts on the joints as shown in the illustration. When
connecting the jack handle with extension, tighten the
bolt on the joint securely. Make sure the hollow meets
the bolt on every joint when you tighten the bolts.
NOTICE
Tighten all the joints securely. Otherwise, theextension may come off and it may damage the
paint or vehicle body.

IN CASE OF AN EMERGENCY
502
40PY053

1Lower2Raise3Cloth
To remove the spare tire:
1. Open the back door and remove the spare tire
carrier lid using a flat±bladed screwdriver.
2. Insert the end of the jack handle extension into the
lowering screw and put a cloth between the jack
handle extension and rear bumper to protect the
bumper surface.
3. Turn the jack handle counterclockwise until the
spare tire completely lowered to the ground. Make
sure the handle remains firmly fitted onto the jack
handle extension.

IN CASE OF AN EMERGENCY
503

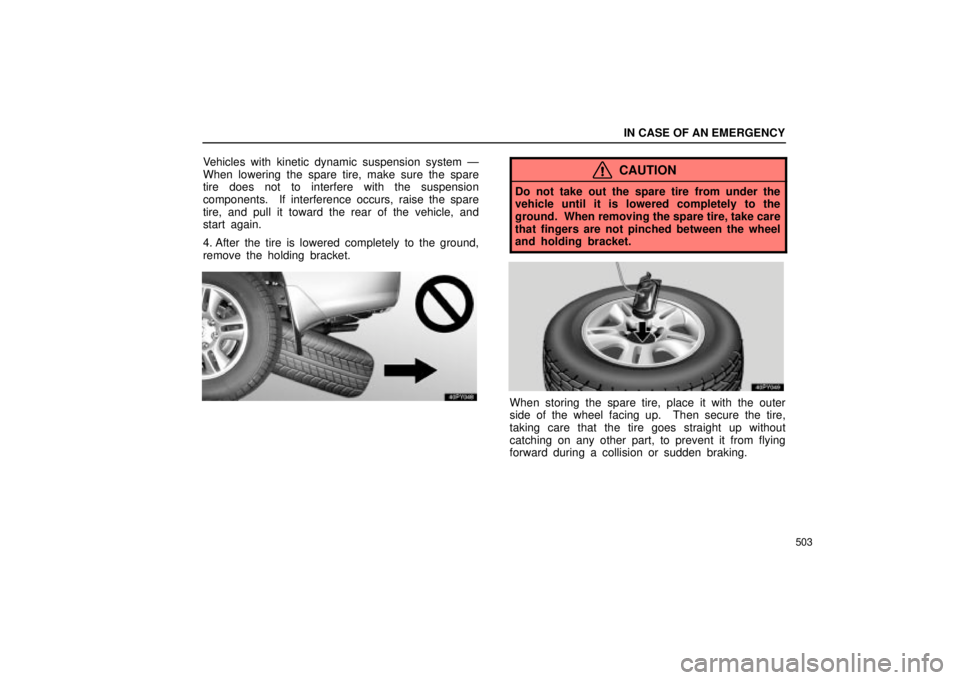

Vehicles with kinetic dynamic suspension system Ð
When lowering the spare tire, make sure the spare
tire does not to interfere with the suspension
components. If interference occurs, raise the spare
tire, and pull it toward the rear of the vehicle, and
start again.
4. After the tire is lowered completely to the ground,
remove the holding bracket.CAUTION
Do not take out the spare tire from under the
vehicle until it is lowered completely to the
ground. When removing the spare tire, take care
that fingers are not pinched between the wheel
and holding bracket.
When storing the spare tire, place it with the outer
side of the wheel facing up. Then secure the tire,
taking care that the tire goes straight up without
catching on any other part, to prevent it from flying
forward during a collision or sudden braking.

IN CASE OF AN EMERGENCY
504
Vehicles with kinetic dynamic suspension system Ð
When raising the spare tire, pull the tire toward the
rear of the vehicle. After raising the tire, visually check
that the tire does not interfere with the suspension
components. If interference occurs, lower the spare
tire and start again.

IN CASE OF AN EMERGENCY
505
NOTICE
Tighten the spare tire clamp bolt to hold thespare wheel carrier by the hook securely.
Vehicles with kinetic dynamic suspensionsystem Ð Make sure that the spare tire does
not interfere with the suspension componentswhen the spare tire is stowed. If interference
occurs, the suspension system will bedamaged.

IN CASE OF AN EMERGENCY
506
2. Block the wheel diagonally opposite the flat tire
to keep the vehicle from rolling when it is jacked
up.
When blocking the wheel, place a wheel block in front
of one of the front wheels or behind one of the rear
wheels.3. Remove the wheel ornament.
Pry off the wheel ornament, using the beveled end
of the wheel ornament remover as shown.
CAUTION
Do not try to pull off the ornament by hand.
Take due care in handling the ornament to avoid
unexpected personal injury.

IN CASE OF AN EMERGENCY
507
4. Loosen all the wheel nuts.
Always loosen the wheel nuts before raising the
vehicle.
Turn the wheel nuts counterclockwise to loosen them.
To get maximum leverage, fit the wrench to the nut
so that the handle is on the right side, as shown
above. Grab the wrench near the end of the handle
and pull up on the handle. Be careful that the wrench
does not slip off the nut.
Do not remove the nuts yet Ð just unscrew them
about one±half turn.
CAUTION
Never use oil or grease on the bolts or nuts.
The nuts may loose and the wheels may fall off,
which could cause a serious accident.

IN CASE OF AN EMERGENCY
508

Front (vehicles without kinetic dynamic
suspension system)

Front (vehicles with kinetic dynamic
suspension system)

Rear
5. Position the jack at the jack points as shown.
Front Ð Under the frame side rail
Rear Ð Under the rear axle housing

IN CASE OF AN EMERGENCY
509
NOTICE
Make sure to place the jack as shown inillustrations. Otherwise, your vehicle may be
damaged.
Make sure the jack is positioned on a level and solid
surface.

1Jack handle end
2Jack handle extension with bolt
3Jack handle extension without bolt
4Jack handle
Put a jack handle, jack handle extensions and jack
handle end together as shown in the illustration.
CAUTION
Make sure they are securely fixed with the
screws.
