Adjusting lumbar support
Push the control switch on either side.
The amount of lumbar support will change while the switch is
pushed.
REAR SEATS
Rear seat precautions
CAUTION
Adjustment should not be made while the vehicle is
moving.
 When folding the seat, secure the seat by adjusting
the length of the anchorage strap to prevent the seat
from falling down.
 When returning the seat to its original position,
observe the following precautions in order to prevent
personal injury in a collision or sudden stop.
There is no person or luggage around the seat and
operate slowly by supporting the seat with your
hands.
The seat is securely locked by pushing forward and
rearward on the top of the seatback and by trying to
pull up the edge of the bottom cushion. Failure to do
so will prevent seat belt from operating properly.
The seat belts are not twisted or caught under the
seat and are arranged in their proper position and are
ready to use.
 When using the seat, make sure the seat is securely
locked.

OCCUPANT RESTRAINT SYSTEMS
132

Third seat
Lean forward and pull the lock release lever. Then lean
back to the desired angle and release the lever.
CAUTION
Avoid reclining the seatback any more than needed.
The seat belts provide maximum protection when the
passengers are sitting up straight and well back in the
seats. If you are reclined, the lap belt may slide past
your hips and apply restraint forces directly to the
abdomen or your neck may contact the shoulder belt.
In the event of a frontal collision, the more the seat is
reclined, the greater the risk of death or personal injury.

OCCUPANT RESTRAINT SYSTEMS
134
NOTICE
The seat belt buckles must be stowed before youtumble the second seat.
The headphone input jack lid of the rear seat audiosystem or the rear seat entertainment system mustbe closed before you tumble the second seat.
1. Lower the head restraints to the lowest position.2. Fold down the seatbacks while pulling the lock release
levers and swing the whole seats up and forward until they
are locked.

OCCUPANT RESTRAINT SYSTEMS
135
To return the seats to the original positions, push the red
knobs and swing the whole seats down and swing the
seatback up.If you cannot raise the left side seatback because of the locked
seat belt, do not try it hard. Release the lock of the seat belt
in the following way.

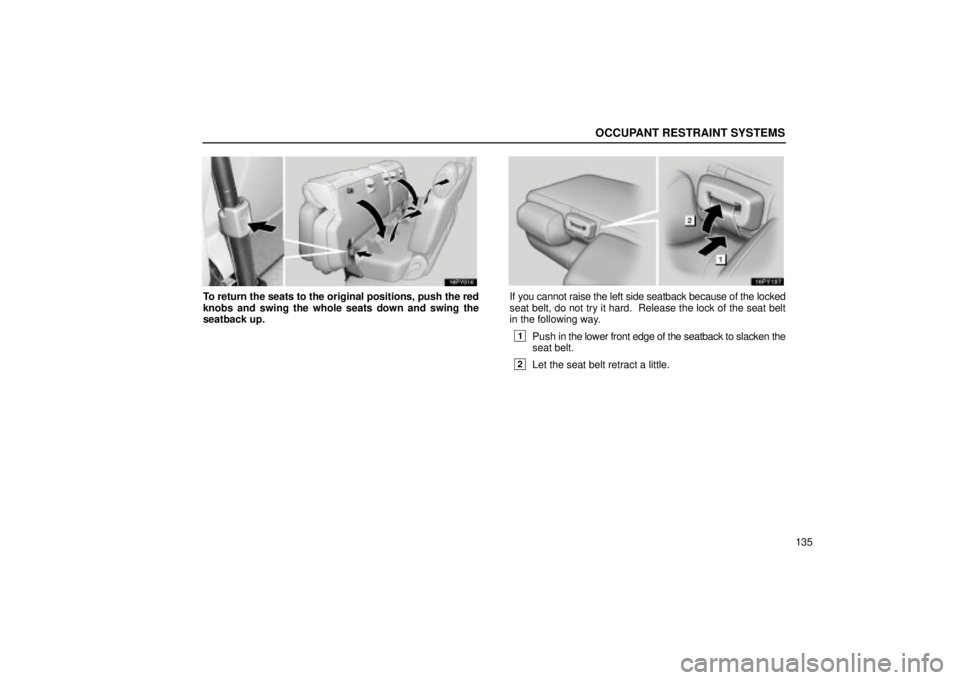

1Push in the lower front edge of the seatback to slacken the
seat belt.
2Let the seat belt retract a little.

OCCUPANT RESTRAINT SYSTEMS
136
CAUTION
When returning the seats to their original position,
observe the following precautions in order to prevent
personal injury in a collision or sudden stop:
Be careful not get your hands or feet pinched in the
seat.
 Make sure the seats are securely locked by pushing
forward and rearward on the top of the seatbacks or
by trying to pull up the edge of the bottom cushions.
Failure to do so will prevent the seat belt from
operating properly.
 Make sure the seat belts are not twisted or caught
under the seat and are arranged in their proper
position and are ready to use.
Folding up third seats
Stow the rear seat belt buckles as shown above.

OCCUPANT RESTRAINT SYSTEMS
137

Seat belt hanger
For the outer seat belts, use the seat belt hangers to
prevent the belts from being tangled.
For the center seat belt, stow the seat belt tabs into the
cover of the roof as shown above.Make sure the tabs are securely locked in the cover.

OCCUPANT RESTRAINT SYSTEMS
139

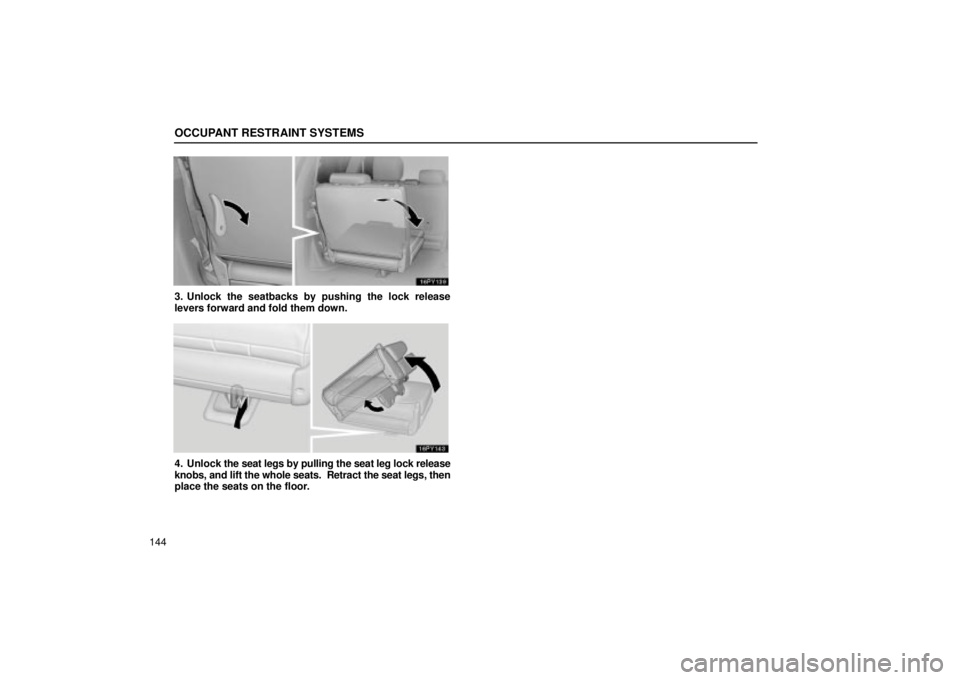

3. Unlock the seatbacks by pushing the lock release
levers forward and fold them down.
4. Unlock the seat legs by pulling the seat leg lock release
knobs, and lift the whole seats sideward.
5. Retract the seat legs, then take the holding straps out
and hang the straps to the assist grips. Pull the straps on
the free end to secure the seats.

OCCUPANT RESTRAINT SYSTEMS
140
CAUTION
When folding up the third seats, fix the seats securely
by adjusting the length of the holding strap. Failure to
do so may cause an unexpected injury in the event of
emergency braking or collision.
When the third seat to its original position, stow the holding
straps into the holders facing the direction shown in the
illustration.
To return them to the original positions, reverse the steps
above.
CAUTION
When returning the seats to their original position,
observe the following precautions in order to prevent
personal injury in a collision or sudden stop:
Be careful not get your hands or feet pinched in the
seat.
 Make sure the seats are securely locked by pushing
forward and rearward on the top of the seatbacks or
by trying to pull up the edge of the bottom cushions.
Failure to do so will prevent the seat belt from
operating properly.
 Make sure the seat belts are not twisted or caught
under the seat and are arranged in their proper
position and are ready to use.

OCCUPANT RESTRAINT SYSTEMS
142Make sure the tabs are securely locked in the cover.

OCCUPANT RESTRAINT SYSTEMS
144
3. Unlock the seatbacks by pushing the lock release
levers forward and fold them down.
4. Unlock the seat legs by pulling the seat leg lock release
knobs, and lift the whole seats. Retract the seat legs, then
place the seats on the floor.
