OCCUPANT RESTRAINT SYSTEMS
145
5. Remove the seat lock cover and push the seat lock
release knobs, then pull up the whole seats and remove
them. After removing the seats, reinstall the seat lock
cover.
NOTICE
Avoid putting heavy loads on the removed seats. Themetallic tips of the seat legs may be damaged and theseats cannot be reinstalled.

OCCUPANT RESTRAINT SYSTEMS
146To return them to the original positions, reverse the steps
above.
CAUTION
When removing or reinstalling the seats, observe the
following to prevent personal injury:

Do not remove or reinstall the seats while the vehicle
is moving.
 Be careful not to get your hands or feet pinched in the
seats.
 Be careful not to hit the removed seats against a
person or drop it on yourself.
 Do not try to sit on or place anything on the removed
seat.
To prevent personal injury in a collision or sudden stop:
Do not sit on or place anything on the folded seatback
while driving.
 Do not leave the removed seat loose in the vehicle.
 After reinstalling the seats, make sure the seats are
securely locked by pushing forward and rearward on
the top of the seatbacks or by trying to pull up the
edge of the bottom cushions. Failure to do so will
prevent the seat belt from operating properly.
 Install each seat in the same position from which it
was removed. Failure to do so will prevent third seat
occupants from using seat belts properly.
 Make sure the seat belts are not twisted or caught
under the seat and are arranged in their proper
position and are ready to use.

OCCUPANT RESTRAINT SYSTEMS
147

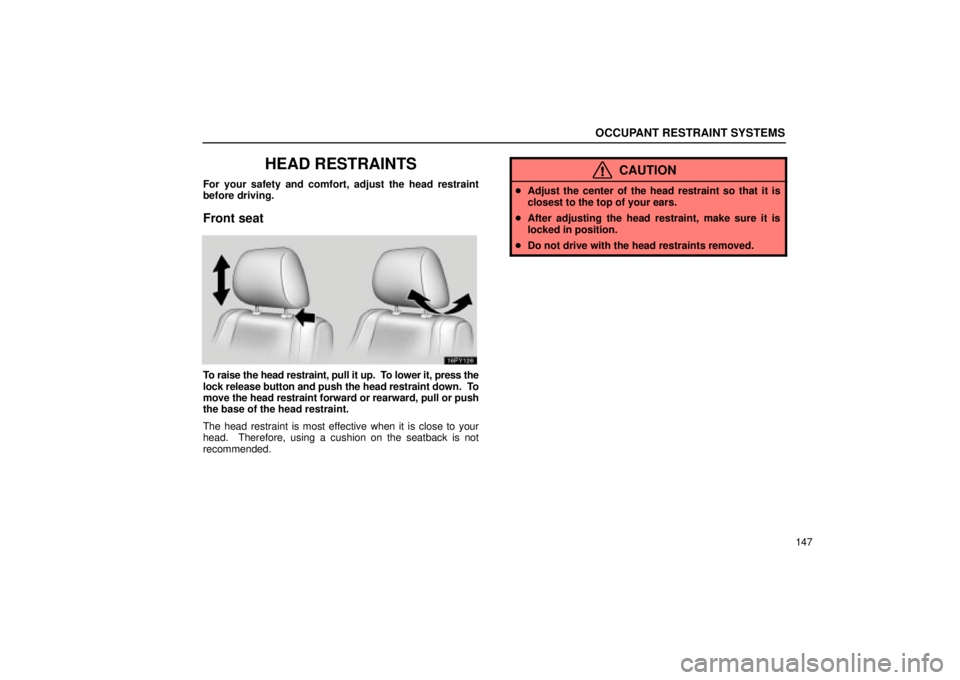

HEAD RESTRAINTS
For your safety and comfort, adjust the head restraint
before driving.
Front seat
To raise the head restraint, pull it up. To lower it, press the
lock release button and push the head restraint down. To
move the head restraint forward or rearward, pull or push
the base of the head restraint.
The head restraint is most effective when it is close to your
head. Therefore, using a cushion on the seatback is not
recommended.
CAUTION
Adjust the center of the head restraint so that it is
closest to the top of your ears.
 After adjusting the head restraint, make sure it is
locked in position.
 Do not drive with the head restraints removed.

OCCUPANT RESTRAINT SYSTEMS
148
Second and third seats
To raise the head restraint, pull it up. To lower it, press the
lock release button and push the head restraint down.
Second center head restraint: When an occupant sits on the
second center seat, always pull up the head restraint to the lock
position.
The head restraint is most effective when it is close to your
head. Therefore, using a cushion on the seatback is not
recommended.
CAUTION
 Adjust the center of the head restraint so that it is
closest to the top of your ears.
 After adjusting the head restraint, make sure it is
locked in position.
 Do not drive with the head restraints removed.
Stowing the third center head restraint
The third center head restraint can be stowed in the right
side third seatback when they are not in use.
To stow the head restraint, unfasten the zippers behind
the seatback and stow it into the seatback.

OCCUPANT RESTRAINT SYSTEMS
149

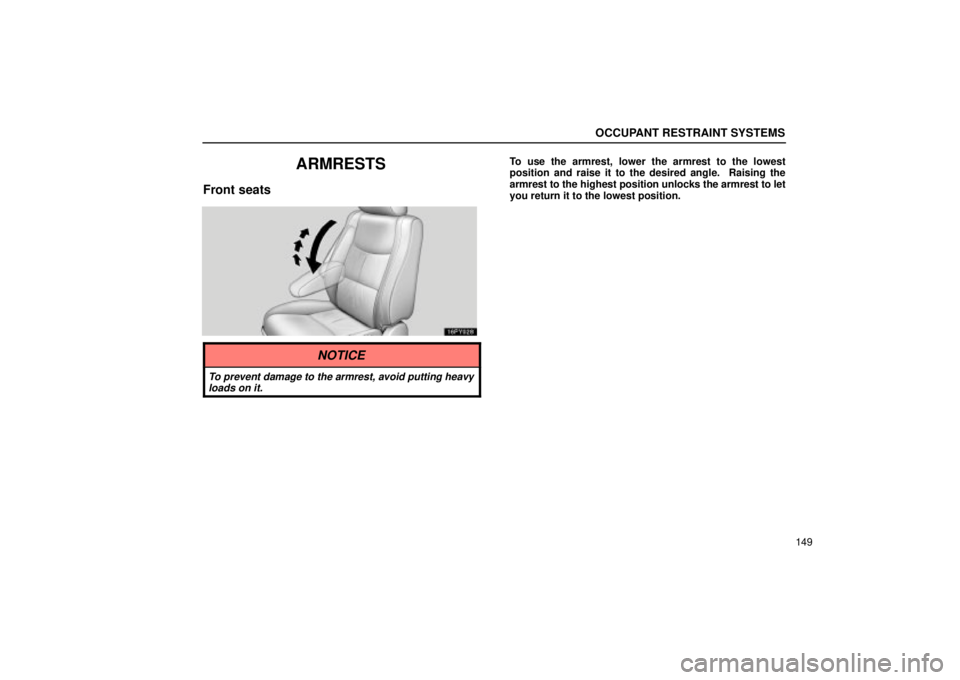

ARMRESTS
Front seats
To use the armrest, lower the armrest to the lowest
position and raise it to the desired angle. Raising the
armrest to the highest position unlocks the armrest to let
you return it to the lowest position.
NOTICE
To prevent damage to the armrest, avoid putting heavyloads on it.

OCCUPANT RESTRAINT SYSTEMS
153
Fastening front, second and third seat belts
Adjust the seat as needed and sit up straight and well back
in the seat. To fasten your belt, pull it out of the retractor
and insert the tab into the buckle.
You will hear a click when the tab locks into the buckle.
The seat belt length automatically adjusts to your size and the
seat position.
The retractor will lock the belt during a sudden stop or on
impact. It also may lock if you lean forward too quickly. A slow,
easy motion will allow the belt to extend, and you can move
around freely. When a passenger's shoulder belt is completely extended and
is then retracted even slightly, the belt is locked in that position
and cannot be extended. This feature is used to hold the child
restraint system securely.
(For details, see ªChild restraintº on
page 200.) To free the belt again, fully retract the belt and then
pull the belt out once more.
If the seat belt cannot be pulled out of the retractor, firmly pull
the belt and release it. You will then be able to smoothly pull
the belt out of the retractor.
CAUTION
 After inserting the tab, make sure the tab and buckle
are locked and that the belt is not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
 If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed, because it cannot
protect an adult occupant or your child from injury.

OCCUPANT RESTRAINT SYSTEMS
154

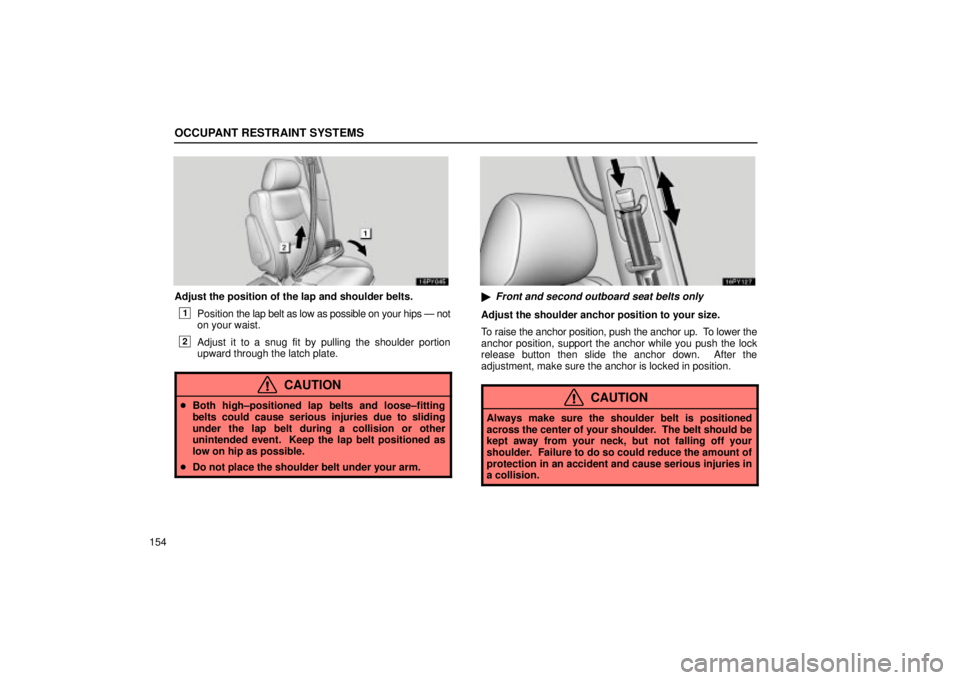

Adjust the position of the lap and shoulder belts.
1Position the lap belt as low as possible on your hips Ð not
on your waist.
2Adjust it to a snug fit by pulling the shoulder portion
upward through the latch plate.
CAUTION
 Both high±positioned lap belts and loose±fitting
belts could cause serious injuries due to sliding
under the lap belt during a collision or other
unintended event. Keep the lap belt positioned as
low on hip as possible.
 Do not place the shoulder belt under your arm.

Front and second outboard seat belts only
Adjust the shoulder anchor position to your size.
To raise the anchor position, push the anchor up. To lower the
anchor position, support the anchor while you push the lock
release button then slide the anchor down. After the
adjustment, make sure the anchor is locked in position.
CAUTION
Always make sure the shoulder belt is positioned
across the center of your shoulder. The belt should be
kept away from your neck, but not falling off your
shoulder. Failure to do so could reduce the amount of
protection in an accident and cause serious injuries in
a collision.

OCCUPANT RESTRAINT SYSTEMS
157
CAUTION
Do not use the third center seat belt with either buckle
release. Fastening only the shoulder belt or lap belt may
cause severe personal injury in case of sudden braking
or a collision.
STOWING THE THIRD CENTER SEAT BELT
Stow the seat belt tabs into the cover of the roof as shown
above.
Make sure the tabs are securely locked in the cover.

OCCUPANT RESTRAINT SYSTEMS
161
To connect the extender to the seat belt, insert the tab into
the seat belt buckle so that the ªPRESSº signs on the
buckle release buttons of the extender and the seat belt
are both facing outward as shown.
You will hear a click when the tab locks into the buckle.
When releasing the seat belt, press on the buckle release
button on the extender, not on the seat belt. This helps prevent
damage to the vehicle interior and extender itself.
As far as the seat belt extender on the front passenger side is
concerned, do not fail to disconnect the extender from the seat
belt after the above operation in order to activate the front
passenger airbag correctly when getting into the vehicle next
time.
When not in use, remove the extender and store in the vehicle
for future use.
CAUTION
 After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt and the seat belt extender are not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
 If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed, because it cannot
protect an adult occupant or your child from injury.

OCCUPANT RESTRAINT SYSTEMS
163

1Front airbag sensors
2Seat belt pretensioner assemblies
3Front passenger occupant classification system(ECU and sensors)
4SRS warning light
5Front passenger's seat belt buckle switch
6Airbag sensor assembly
The front seat belt pretensioner system consists mainly of the
above components, and their locations are shown in the
illustration.
The front seat belt pretensioners are controlled by the airbag
sensor assembly. The airbag sensor assembly consists of a
safing sensor and airbag sensor.
When the front seat belt pretensioners are activated, an
operating noise may be heard and a small amount of non±toxic
gas may be released. This does not indicate that a fire is
occurring. This gas is normally harmless. Once
the front seat belt pretensioners have been activated, the
seat belt retractors remain locked.
CAUTION
 Do not modify, remove, strike or open the seat belt
pretensioner assemblies, airbag sensor or
surrounding area or wiring. Failure to follow these
instruction may prevent the seat belt pretensioners
from activating correctly, cause sudden operation of
the system or disable the system, which could result
in death or serious injury. Consult your Lexus dealer
about any repairs and modifications.
 Do not modify or change the suspension system.
Such changes may cause the curtain shield airbags
to inflate accidentally, which could result in death or
serious injury. Consult your Lexus dealer about any
repair and modification.
 Do not use tires or wheels other than the
manufacture's recommended size. Such a use may
cause the curtain shield airbags and seat belt
pretensioners to inflate accidentally, which could
result in death or serious injury. For details, see
ªChecking and replacing tiresº on page 589.
