AIR CONDITIONING
218
21PY027
Driver side setting
Passenger side setting
Mixed settingSETTING OPERATION — manual control
When one of the manual control buttons is depressed
while operating in automatic mode, the mode relevant to
the depressed button is set. Other conditions continue to
be adjusted automatically.
If manual air flow selection is desired —
The outlets from which air is delivered can be selected
manually by
pushing the button. The function of each mode is
as follows:
1Panel — Air flows mainly from the instrument panel vents.
2Bilevel — Air flows from both the floor vents and the
instrument panel vents.
3Floor — Air flows mainly from the floor vents.
4Floor/Windshield — Air flows mainly from the floor vents
and windshield vents.

AUDIO
233
1Ejecting a CD
(See page 246 for details.)
2CD slot
(See page 245 for details.)
3Display of functions in TAPE or CD mode
RPT: Automatic repeat
(See page 243 or 248 for details.)
:DOLBY NR
(See page 242 for details.)
Side change
(See page 243 for details.)
\b\b : Rewinding or reversing
(See page 243 or 248 for details.)
 : Fast forwarding
(See page 243 or 248 for details.)
RAND: Random access
(See page 249 for details.)
:CD selection
(See page 247 for details.)
4Station selector and function buttons
(See page 239 for details.)
5Radio mode: Scan tuning
(See page 240 for details.)
CD mode: Scan selection
(See page 247 for details.)
6Radio mode:Radio text message
(See page 241 for details.)
CD mode: CD text
(See page 249 for details.)
7CD load button
(See page 245 for details.)
8AUDIO·TUNE knob
(See page 236 for details.)
9Traffic announcement button
(See page 241 for details.)
10Program type button
(See page 240 for details.)
11Mode selectors
(See page 235 for details.)
12Radio mode:Seek tuning
(See page 239 for details.)
TAPE mode: Direct access to a desired program
(See page 244 for details.)
CD mode: Direct access to a desired program
(See page 248 for details.)
13Cassette tape slot
(See page 242 for details.)
14Stopping and ejecting a cassette tape
(See page 242 for details.)
15Turning the system on and adjusting the volume
(See page 234 for details.)
\b
:

AUDIO
235

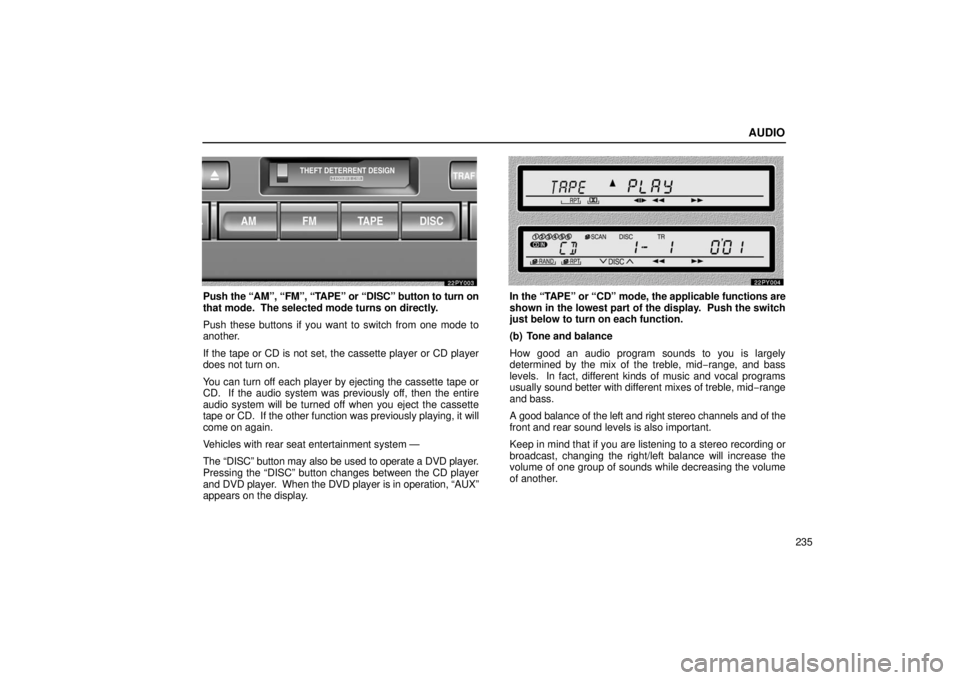

Push the “AM”, “FM”, “TAPE” or “DISC” button to turn on
that mode. The selected mode turns on directly.
Push these buttons if you want to switch from one mode to
another.
If the tape or CD is not set, the cassette player or CD player
does not turn on.
You can turn off each player by ejecting the cassette tape or
CD. If the audio system was previously off, then the entire
audio system will be turned off when you eject the cassette
tape or CD. If the other function was previously playing, it will
come on again.
Vehicles with rear seat entertainment system —
The “DISC” button may also be used to operate a DVD player.
Pressing the “DISC” button changes between the CD player
and DVD player. When the DVD player is in operation, “AUX”
appears on the display.In the “TAPE” or “CD” mode, the applicable functions are
shown in the lowest part of the display. Push the switch
just below to turn on each function.
(b) Tone and balance
How good an audio program sounds to you is largely
determined by the mix of the treble, mid −range, and bass
levels. In fact, different kinds of music and vocal programs
usually sound better with different mixes of treble, mid −range
and bass.
A good balance of the left and right stereo channels and of the
front and rear sound levels is also important.
Keep in mind that if you are listening to a stereo recording or
broadcast, changing the right/left balance will increase the
volume of one group of sounds while decreasing the volume
of another.

AUDIO
238
Radio operation
(a) Listening to the radio
Push these buttons to choose either an AM or FM station.
“AM”, “FM1”, “FM2” or “FM TYPE” appears on the d\
isplay.
Turn this knob to the right to step up the frequency or to
the left to step down.
Your radio automatically changes to stereo reception when a
stereo broadcast is received. “ST” appears on the display. If
the signal becomes weak, the radio reduces the amount of
channel separation to prevent the weak signal from creating
noise. If the signal becomes extremely weak, the radio
switches from stereo to mono reception. In this case, “ST”
disappears from the display.

AUDIO
239
(b) Presetting a station
1. Tune in the desired station.
2. Push one of the station selector buttons (1 — 6) and
hold it until a beep is heard. This sets the station to the
button and the button number (1 — 6) appears on the
display.
Each
button can store one AM station and two FM stations. To
change the preset station to a different one, follow the same
procedure.
The preset station memory is cancelled when the power
source is interrupted by battery disconnection or a blown fuse. (c) Selecting a station
Tune in the desired station using one of the following methods.
Seek tuning: Push the “SEEK” button. The radio will begin
seeking up
or down for a station of the nearest frequency and
will stop on reception. Each time you push the button, the
stations will be searched automatically one after another.
Preset tuning: Push the button (1 — 6) for the station you
want. The button number (1 — 6) and station frequency
appear on the display.
Manual tuning: Turn the “AUDIO·TUNE” knob. The radio will
step up or down to another frequency.

AUDIO
260(c) Remote control holder
The remote control can be stowed in the holder when it is
not in use. The holder can be hooked on the back of the
driver’s or front passenger’s seatback.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop while driving, stow the remote control in
the holder when it is not in use.
NOTICE
Do not leave the remote control exposed to high
temperatures (such as on the instrument panel) for a
long time, otherwise the remote control may be
damaged.
Quick reference for your remote control
22PY112
1“DISC/CH/PROG” buttons
2“TUNE/TRACK” buttons
3“ON/SOURCE” button
4“OFF” button

AUDIO
277
1“CURSOR” button:
Indicates the control switches on the screen when the
DVD player is operated.
2Joy stick:
Select a control switch, mode switch on the screen or
the menu for the CD.
3“ENT” button:
Input the selected switch or the selected menu for the
CD.
4“SOURCE” button:
Turn on the rear seat entertainment system and selects
the mode.
5“DISPLAY” button:
Adjust the color, tone, contrast and brightness of the
screen.
6“VIDEO” button:
Turn on the video mode when your personal audio
device is connected.
7“DVD” button:
Turn on the DVD mode.
8“RETURN” button:
Skip to the predetermined scene for the CD.
9“SET UP” button:
Indicate the initial set up screen when the DVD player
is operated.
10“SEARCH” button:
Indicate the title search screen when the DVD player is
operated.
11“ANGLE” button:
Select the angle of the screen when the DVD player is
operated.
12“  ” button: Fast forwards a screen when the DVD
player is operated.
13“  ” button: Play a screen when the DVD player is
operated.
14“” button: Pause a screen when the DVD player is
operated.
15“ \b\b ” button: Reverse a screen when the DVD player
is operated.
16“TOP MENU” button:
Indicate the title selection screen for DVD video when
the DVD player is operated.
17“AUDIO” button:
Indicate the changing audi o screen when the DVD
player is operated.
18“SUB TITLE” button:
Indicate the changing subtitle screen when the DVD
player is operated.
19“MENU” button:
Indicate the menu screen for DVD video when the DVD
player is operated.
20“OFF” button:
Turn off the rear seat entertainment system.
21“TUNE/TRACK” buttons:
Operate the front audio system or select the
track/chapter when the DVD player is operated.
22“DISC/CH/PROG” buttons:
Skip directly to a desired preset station, CD, track or
chapter.

AUDIO
293
(d) DVD player operation switches
The DVD player can be operated with the remote control
buttons directly.
The player can also be operated with the switches on the
screen.
To operate the switches on the screen, select the switch by the
joy stick and push the “ENT” button. You cannot select the
switches on the screen by touching them directly.
When the switch is selected by the joy stick, the outline of the
switch
changes to blue. Push the “ENT” button, and the switch
will be highlighted in green.

AUDIO
299
1Selecting switch on screen
2Selecting switch off screen
To select the menu for the disc, push the “
”, “”, “” or
“
” switches on the screen. Push the “Enter” switch to
select the menu for the disc.
You can also select the menu for the disc by the joy stick
and the “ENT” button on the remote control when the
control switches are not indicated on the screen.
Push the “Shift Keys” on the screen, and the switches (“
”,
“
”, “”, “”, “Enter” and “Shift Keys” switches) will move up
and down.
To turn off the switch, push the “OFF” switch on the screen. To
turn on the switch again, push the “ON” switch on the screen.
To return to the previous screen, push the “Back” switch on the
screen. (b) Operating the “
”, “
”, “\b\b ” and “ ”
switches/buttons
22PY062

AUDIO
300
1For DVD video2For DVD audio
3Remote control button
“
” switch/button: Push this switch/button to pause the
disc.
“  ” switch/button: Push this switch/button to cancel the
pause and return to normal playing.
“ \b\b ” and “ ” switches/buttons: Push and hold the
“ \b\b ” or “ ” switch/button to fast forward or reverse. If you
want to return to the beginning of the current track, release the
switch/button.
DVD video only: Push the “\b\b ” or “” switch/button while
pausing, the DVD video plays the slow −motion video replay or
the slow− motion video replay in reverse. (c) Skipping to the predetermined screen
22PY063
1For DVD video2For DVD audio
3Remote control button
