SECTION 3 – 1
341
STARTING AND DRIVING
Starting and driving
Three−way catalytic converters342
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust caution 343
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before starting the engine 344
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch 345
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Parking brake 347
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
How to start the engine 348
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 349
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Four−wheel drive system 356
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear view monitor system 358
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise control 362
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Rear height control air suspension 366
. . . . . . . . . . . . . . . . . . . . . . . . .
Electronic modulated suspension 371
. . . . . . . . . . . . . . . . . . . . . . . . . .
Active traction control system 372
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle stability control system 375
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Downhill assist control system 377
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hill −start assist control 380
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 383
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Tire pressure warning system 387
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake pad wear limit indicators 394
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Limited −slip differential 395
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

STARTING AND DRIVING
347
PARKING BRAKE
U.S.A.
Canada To set: Pull up the lever. For better holding power, first
depress the brake pedal and hold it while setting the
parking brake.
To release: Pull up the lever slightly (
1), press the lock
release button (2), and lower the lever (3).
Before leaving your vehicle, firmly apply the parking brake. For
better holding power, first depress the brake pedal and hold it
while setting the parking brake.
CAUTION
Before driving, make sure the parking brake is fully
released and that the parking brake reminder light is off.

STARTING AND DRIVING
348
HOW TO START THE ENGINE
Cranking hold function
Once you turn the ignition key to “START” position and release
it, the cranking hold function continues to crank the engine in
“ON” position until it starts.
The function stops cranking the engine after about 25 seconds
maximum if the engine has not started yet. When you crank
the engine again, wait a few seconds and restart it.
If you hold the key in “START” position, the function will keep
cranking for about 30 seconds maximum.
Before cranking
1. Apply the parking brake firmly.
2. Turn off unnecessary lights and accessories.
3. Put the selector lever in “P”. If you need to restart the engine
while the vehicle is moving, put the selector lever in “N”. A
starter safety device will prevent the starter from operating if
the selector lever is in any drive position.
4. Depress the brake pedal and hold it to the floor until driving
off.
Starting the engine
Before starting the engine, be sure to follow the instructions in
“Before cranking”.
Normal starting procedure
The multiport fuel injection system/sequential multiport fuel
injection system in your engine automatically controls the
proper air −fuel mixture for starting. You can start a cold or hot
engine as follows:
With your foot off the accelerator pedal, turn the ignition key to
“START” position, then release it.
Engine should be warmed up by driving, not in idle. For
warming up, drive with smoothly turning engine until engine
coolant temperature is within normal range.
If the engine stalls...
Simply restart it, using the correct procedure given in normal
starting.
If the engine will not start...
See “If your vehicle will not start” on page 426.
NOTICE
 Do not race a cold engine.
 If the engine becomes difficult to start or stalls
frequently, have the engine checked immediately.

STARTING AND DRIVING
349
AUTOMATIC TRANSMISSION
Your automatic transmission has a shift lock system to
minimize the possibility of incorrect operation. This
means you can only shift out of “P” position when the
brake pedal is depressed with the ignition switch in “ON”
position. ()
31PY039
The shift position is displayed beside the selector lever
and on the instrument cluster.
P: Parking, engine starting and key removal position
R: Reverse position
N: Neutral position
D: Normal driving position (Shifting into overdrive possible)
4: Position for engine braking (Shifting into overdrive not
possible)
When the cruise control is being used, even if you
downshift from “D” to “4”, engine braking will not be
enabled because the cruise control is not cancelled. For
the operation to decrease the vehicle speed, see page
365.
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking

STARTING AND DRIVING
351
1Brake pedal2“D” (Drive) position
2. With your foot holding down the brake pedal, shift the
selector lever to “D”.
Always use the “D” position to improve fuel economy and quiet
driving. Only in this position, shifting into the overdrive gear is
possible. However, while the engine coolant temperature is
low, the transmission will not shift into the overdrive gear even
in the “D” position. (See “(b) Using engine braking” and\
“(f)
Good driving practice” for exceptions.)
CAUTION
Never put your foot on the accelerator pedal while
shifting.
3. Release the parking brake and brake pedal. Depress
the accelerator pedal slowly for smooth starting.
In normal cruising, the vehicle will start in first gear and
automatically shift up to the most suitable gear. On inclines,
declines or winding roads, etc., the vehicle shifts up and down
automatically according to the running conditions to obtain the
suitable driving power and engine braking.
When the lever is in the “4” position, the automatic
transmission system will select the most suitable gear for the
running conditions such as hill climbing, hard towing, etc.
If you need to accelerate rapidly while driving, depress the
accelerator pedal to the full throttle position. This provides
more acceleration by automatically downshifting the
transmission to the next lower gear or beyond, depending on
the vehicle speed.
If engine braking is needed, such as in descending a long hill,
see “(b) Using engine braking”.

STARTING AND DRIVING
354Vehicles with rear view monitor system —
When the selector lever is shifted into “R” position with the
ignition switch in the “ON” position, rear view monitor system
will
activate. For instructions, see “Rear view monitor system”
on page 358.

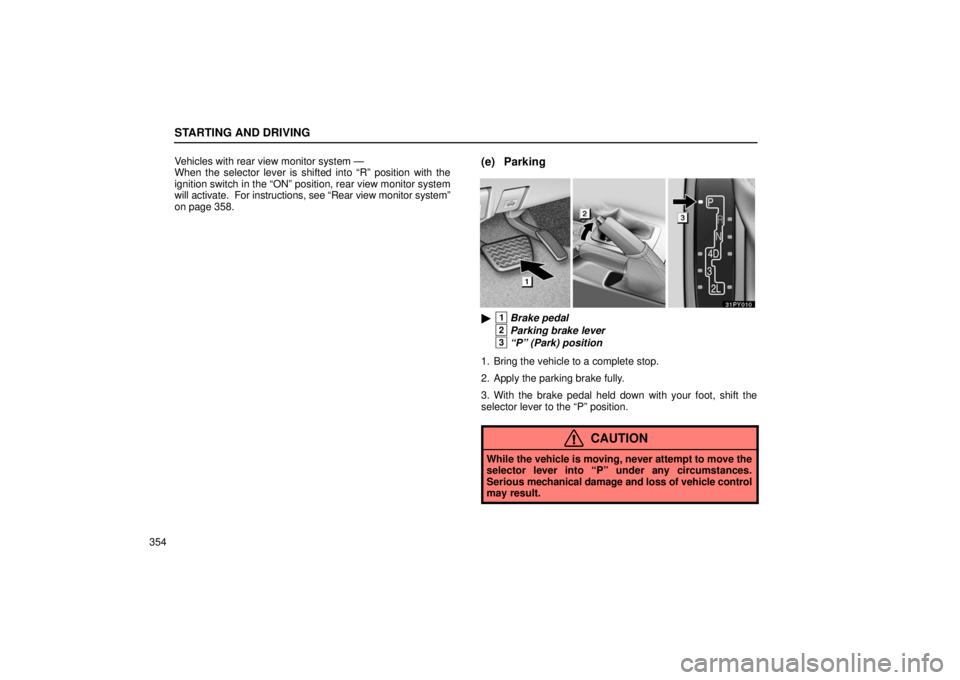

(e) Parking
1Brake pedal
2Parking brake lever
3“P” (Park) position
1. Bring the vehicle to a complete stop.
2. Apply the parking brake fully.
3. With the brake pedal held down with your foot, shift the
selector lever to the “P” position.
CAUTION
While the vehicle is moving, never attempt to move the
selector lever into “P” under any circumstances.
Serious mechanical damage and loss of vehicle control
may result.

STARTING AND DRIVING
355
(f) Good driving practice
If the transmission repeatedly shifts up and down between
the fourth and overdrive gears when climbing a gentle slope,
shift the selector lever to the “4” position. Be sure to shift the
selector lever to the “D” position after climbing the slope.
 When towing a trailer, in order to maintain efficient engine
braking and electrical charging performance, do not use
overdrive.
CAUTION
Always keep your foot on the brake pedal while stopped
with the engine running. This prevents the vehicle from
creeping.
NOTICE
Always use the brake pedal or parking brake to hold the
vehicle on an upgrade. Do not attempt to hold the
vehicle using the accelerator pedal, as this can cause
the transmission to overheat.
(g) If you cannot shift the selector lever
If you cannot shift the selector lever even though the brake
pedal is depressed, use the shift lock override button. For
instructions, see “If you cannot shift automatic transmission
selector lever” on page 453.
(h) Driving in second start mode
In the second start mode, the transmission system shifts up
from second gear. Use this mode when starting your vehicle
in sand, mud, ice or snow.
To set the second start mode, push the “2nd STRT” switch. In
the second start mode, the “2nd STRT” indicator light comes
on. To cancel the second start mode, push the “2nd STRT”
switch once again.

STARTING AND DRIVING
387
Brake assist system
When you slam the brakes on, the brake assist system
judges as an emergency stop and provides more powerful
braking for a driver who cannot hold down the brake pedal
firmly.
When you slam the brakes on, more powerful braking will be
applied. At this time, you may hear a sound in the engine
compartment and feel the vibrations of the brake pedal. This
does not indicate a malfunction.
The brake assist system becomes operative after the vehicle
has accelerated to a speed in excess of approximately 10 km/h
(6 mph). It stops operating when the vehicle decelerates to a
speed below approximately 5 km/h (3 mph).
The brake assist system may not work for about 60 seconds
after the engine is started.
For an explanation of this system’s warning light, see “ABS
warning light” on page 57.
Drumindisc type parking brake system
Your vehicle has a drum−in−disc type parking brake system.
This type of brake system needs bedding −down of the brake
shoes periodically or whenever the parking brake shoes and/or
drums are replaced.
Have your Lexus dealer perform the bedding −down.
TIRE PRESSURE WARNING
SYSTEM
The tire pressure warning system is designed to provide
warning when tire inflation pressure of one or more of
your tires (including the spare tire) is low. The low tire
pressure warning light comes on to inform you that low
tire inflation pressure may hamper driving.
Low tire pressure warning light
This light comes on when the ignition key is turned to the “ON”
position. It goes off after a few seconds. This indicates that the
tire pressure warning system is functioning properly.

DRIVING TIPS
400
OPERATION IN FOREIGNCOUNTRIES
If you plan to drive your Lexus in another country...
First, comply with the vehicle registration laws.
Second, confirm the availability of the correct fuel (unleaded
and minimum octane rating).
TIPS FOR DRIVING IN VARIOUS CONDITIONS
Always slow down in gusty crosswinds. This will allow you
much better control.
 Drive slowly onto curbs and, if possible, at a right angle.
Avoid driving onto high, sharp −edged objects and other
road hazards. Failure to do so can lead to severe tire
damage such as a tire burst.
Drive slowly when passing over bumps or travelling on a
bumpy road. Otherwise, the impact could cause severe
damage to the tires and/or wheels.
 When parking on a hill, turn the front wheels until they touch
the curb so that the vehicle will not roll. Apply the parking
brake, and place the trans mission in “P”. If necessary, block
the wheels.
 Washing your vehicle or driving through deep water may get
the brakes wet. To see whether they are wet, check that
there is no traffic near you and then press the pedal lightly.
If you do not feel a normal braking force, the brakes are
probably wet. To dry them, drive the vehicle cautiously while
lightly pressing the brake pedal with the parking brake
applied. If they still do not work safely, pull to the side of the
road and call a Lexus dealer for assistance.

DRIVING TIPS
401
CAUTION
Before driving off, make sure the parking brake is
fully released and that the parking brake reminder
light is off.
 Do not leave your vehicle unattended while the
engine is running.
 Do not rest your foot on the brake pedal while driving.
It can cause dangerous overheating, needless wear,
and poor fuel economy.
 To drive down a long or steep hill, reduce your speed
and downshift. Remember, if you ride the brakes
excessively, they may overheat and not work
properly. See page 352.
 Be careful when accelerating, upshifting,
downshifting or braking on a slippery surface. The
abrupt change in engine speed, such as sudden
acceleration or engine braking, could cause the
vehicle to skid or spin.
 Do not drive in excess of the speed limit. Even if the
legal speed limit permits it, do not drive over 140 km/h
(85 mph) unless your vehicle has highspeed
capability tires. Driving over 140 km/h (85 mph) may
result in tire failure, loss of control and possible
injury. Be sure to consult a tire dealer to determine
whether the tires on your vehicle are highspeed
capability tires or not before driving at such speeds.
 Do not continue normal driving when the brakes are
wet. If they are wet, your vehicle will require a longer
stopping distance, and it may pull to one side when
the brakes are applied. Also, the parking brake will
not hold the vehicle securely.
 If you drive through deep water over about 500 mm
(20 in.) in depth, put the vehicle height in the HI (High)
mode with the active height select switch and then
turn off the active height control suspension by
pushing the height control switch. Drive your vehicle
at 30 km/h (19 mph) or lower speed.
