Page 8 of 601
HOW TO USE THIS MANUAL
viii
HOW TO USE THIS MANUAL
The contents of this manual are explained briefly on this
page to help you make the best use of the manual. Please
read this page and the rest of the Owner’s Manual
carefully to make sure you fully understand the operation
of your vehicle.
This will help you enjoy safe and comfortable driving.
TABLE OF CONTENTS
The table of contents and the pictorial index provide easy
reference to the appropriate pages.
BASIC OPERATION — QUICK REFERENCE
Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.
SECTION 1 — INSTRUMENTS AND CONTROLS
The vehicle’s equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.
1. Keys and doors
2. Switches
3. Gauges, meters and service reminder indicators
4. Interior equipment
5. Exterior equipment
6. Occupant restraint systems
7. Steering wheel and mirrors
SECTION 2 — AIR CONDITIONING AND AUDIO
The features of the vehicle’s air conditioning and audio are
explained in detail. Be sure to read this Section so that you can
make full use of them.
SECTION 3 — STARTING AND DRIVING
Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this Section, and remember — drive safely!
Page 12 of 601
For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
xiiPage
1Driving position memory switches
198
. . . . . . . . . . .
2Power window switches 40
. . . . . . . . . . . . . . . . . . . . . . .
3Power door lock switch 22
. . . . . . . . . . . . . . . . . . . . . . .
4Window lock switch 41
. . . . . . . . . . . . . . . . . . . . . . . . . . .
5Power rear view mirror control switches 204 . . . . . .
6Side vents 225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Headlight, turn signal and
fog light switches 30, 32, 33 . . . . . . . . . . . . . . . . . . . . . .
8Wiper and washer switches 33
. . . . . . . . . . . . . . . . . . . .
9Center vents 225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10Emergency flasher switch 43
. . . . . . . . . . . . . . . . . . . . .
11Audio system 232
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12Multi information display 63
. . . . . . . . . . . . . . . . . . . . . .
13Automatic air conditioning controls 214
. . . . . . . . . .
14Rear window defogger switch 38
. . . . . . . . . . . . . . . . . .
15Front passenger’s seat belt reminder light 55 . . . . . .
16“AIRBAG ON” and “AIRBAG OFF”
indicator lights 169. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Glove box 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Ashtray 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
19Cigarette lighter 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20Seat heater switches 44
. . . . . . . . . . . . . . . . . . . . . . . . . . Page
21Four wheel drive control lever
356
. . . . . . . . . . . . . . .
22Automatic transmission selector lever 349 . . . . . . . .
23Parking brake lever 347
. . . . . . . . . . . . . . . . . . . . . . . . .
24Center differential lock switch 356
. . . . . . . . . . . . . . .
25Power outlet (12 VDC) 81
. . . . . . . . . . . . . . . . . . . . . . . . .
26Downhill assist control switch 377
. . . . . . . . . . . . . . .
27Electronic modulated suspension
control switch 371 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Rear height control air suspension
switches 366. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29Ignition switch 345
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30“2nd STRT” (second start) switch 355
. . . . . . . . . . . .
31Tire pressure warning system
selector switch 393 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32Cruise control switch 362
. . . . . . . . . . . . . . . . . . . . . . .
33Audio remote control switches 250
. . . . . . . . . . . . . . .
34Instrument panel light control dial 74
. . . . . . . . . . . . . .
35Hood lock release lever 100
. . . . . . . . . . . . . . . . . . . . .
36Fuel filler door opener 101
. . . . . . . . . . . . . . . . . . . . . . .
37“RSCA OFF” (roll sensing of curtain
shield airbags off) switch 174 . . . . . . . . . . . . . . . . . . . .
38Outside rear view mirror defogger switch 39 . . . . . . .
39Power outlet (115 VAC) main switch 82
. . . . . . . . . . . .
Page 14 of 601
For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
xivPage
1Driving position memory switches
198
. . . . . . . . . . .
2Power window switches 40
. . . . . . . . . . . . . . . . . . . . . . .
3Power door lock switch 22
. . . . . . . . . . . . . . . . . . . . . . .
4Window lock switch 41
. . . . . . . . . . . . . . . . . . . . . . . . . . .
5Power rear view mirror control switches 204 . . . . . .
6Side vents 225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Headlight, turn signal and
fog light switches 30, 32, 33 . . . . . . . . . . . . . . . . . . . . . .
8Wiper and washer switches 33
. . . . . . . . . . . . . . . . . . . .
9Center vents 225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10Emergency flasher switch 43
. . . . . . . . . . . . . . . . . . . . .
11Rear view monitor/navigation system display
including air conditioning controls and audio
system
(For the navigation system, see the separate
“Navigation System Owner’s Manual”.) 358 . . . . . . .
12Multi information display 63
. . . . . . . . . . . . . . . . . . . . . .
13Automatic air conditioning controls
See the separate
. . . . . . . . .
“Navigation System Owner’s Manual”.
14Rear window defogger switch 38
. . . . . . . . . . . . . . . . . .
15Front passenger’s seat belt reminder light 55 . . . . . .
16“AIRBAG ON” and “AIRBAG OFF”
indicator lights 169. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Glove box 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Audio system
See the separate
. . . . . . . . .
“Navigation System Owner’s Manual”.
19Ashtray 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. Page
20Cigarette lighter
80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21Seat heater switches 44
. . . . . . . . . . . . . . . . . . . . . . . . . .
22Four wheel drive control lever 356
. . . . . . . . . . . . . . .
23Automatic transmission selector lever 349 . . . . . . . .
24Parking brake lever 347
. . . . . . . . . . . . . . . . . . . . . . . . .
25Center differential lock switch 356
. . . . . . . . . . . . . . .
26Power outlet (12 VDC) 81
. . . . . . . . . . . . . . . . . . . . . . . . .
27Downhill assist control switch 377
. . . . . . . . . . . . . . .
28Electronic modulated suspension
control switch 371 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29Rear height control air suspension
switches 366. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30Ignition switch 345
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31“2nd STRT” (second start) switch 355
. . . . . . . . . . . .
32Tire pressure warning system
selector switch 393 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33Cruise control switch 362
. . . . . . . . . . . . . . . . . . . . . . .
34Speech command switch
See the separate
. . . . . . . . .
“Navigation System Owner’s Manual”.
35Audio remote control switches 250
. . . . . . . . . . . . . . .
36Instrument panel light control dial 74
. . . . . . . . . . . . . .
37Hood lock release lever 100
. . . . . . . . . . . . . . . . . . . . .
38Fuel filler door opener 101
. . . . . . . . . . . . . . . . . . . . . . .
39“RSCA OFF” (roll sensing of curtain
shield airbags off) switch 174 . . . . . . . . . . . . . . . . . . . .
40Outside rear view mirror defogger switch 39 . . . . . . .
41Power outlet (115 VAC) main switch 82
. . . . . . . . . . . .
Page 70 of 601
GAUGES, METERS AND SERVICE REMINDER INDICATORS
49
ENGINE COOLANT
TEMPERATURE GAUGE
Normal range
The gauge indicates the engine coolant temperature when
the ignition switch is on. The engine operating
temperature will vary with changes in weather and engine
load.
If the needle points to the red zone or higher, stop your vehicle
and allow the engine to cool.
Your vehicle may overheat during severe operating conditions,
such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high speed driving.
Idling for a long period with the air conditioning on in
stop−and−go traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in the engine cooling
system as this may cause the engine to overheat. The
thermostat is designed to control the flow of coolant
to keep the temperature of the engine within the
specified operating range.
Do not continue driving with an overheated engine.
See “If your vehicle overheats” on page 431.
Page 234 of 601
SECTION 2 – 1
213
AIR CONDITIONING AND AUDIO
Air conditioning
Automatic air conditioning controls214
. . . . . . . . . . . . . . . . . . . . . . . . .
Rear cooler controls 228
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
For vehicles equipped with Navigation System,
please refer to the separate “Navigation System
Owner’s Manual”.
Page 235 of 601
AIR CONDITIONING
214
AUTOMATIC AIR CONDITIONING CONTROLS
21PY023
You can adjust the brightness of the display. See “Instrument panel light control” on page 74 for details.
Page 236 of 601
AIR CONDITIONING
215
The automatic air conditioning automatically maintains
the set temperature.
In the automatic operation mode, the air conditioning selects
the most suitable fan speed, air flow, air intake and on−
off the
air conditioning according to the temperature.
The ignition key must be in the “ON” position.
NOTICE
To prevent the battery from being discharged, do not
leave the air conditioning on longer than necessary
when the engine is not running.
1“AUTO” button
2“OFF” button
3Driver side temperature display (in degrees
Fahrenheit or Centigrade)
4Fan speed display
5Air flow display
6Passenger side temperature display (in degrees
Fahrenheit or Centigrade)
7Windshield air flow button
8“PASSENGER TEMP” (passenger side temperature
control) button
9“DUAL” (temperature setting mode change) button
10“A/C” button
11“MODE”(air flow control) button
12Fan speed control button
13Air intake control button
14“TEMP” (driver side temperature control) button
Page 237 of 601
AIR CONDITIONING
216

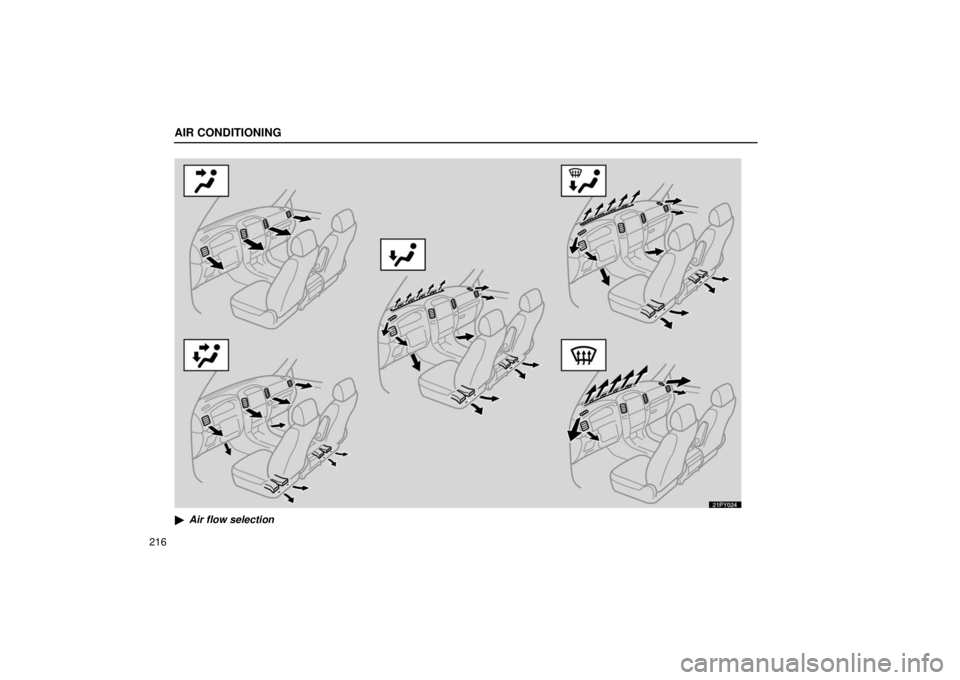

21PY024
Air flow selection
Page 238 of 601
AIR CONDITIONING
217
(a) Climate control
SETTING OPERATION — automatic control
1. Push the “AUTO” button.
An indicator light will illuminate to show that the automatic
operation mode has been selected.
Air flow quantity, switching of the diffusers, on−off of the air
conditioning and switching of the air intake between
RECIRCULATED AIR and OUTSIDE AIR are automatically
adjusted. The operation status is shown by each indicator.
When one of the manual control buttons is depressed while
operating in automatic mode, the operation corresponding to
the button depressed is set. Other conditions continue to be
adjusted automatically.
Push the “OFF” button to turn the air conditioning system off.
2. Use the “TEMP” or “PASSENGER TEMP” button to set
the desired temperature.
The “TEMP” or “PASSENGER TEMP” button is used to set the
desired temperature. The temperature will be controlled on the
driver and passenger sides simultaneously or individually.
“TEMP” button — Changes the temperature on the driver and
passenger sides simultaneously or the driver side only.
“PASSENGER TEMP” button — Changes the temperature
settings separate from driver side.
“DUAL” button — Changes the mode of the temperature
setting.
The indicator on the “DUAL” button has two modes:
With the indicator on — For individual temperature setting
With the indicator off — For simultaneous temperature
setting
Page 239 of 601
AIR CONDITIONING
218
21PY027
Driver side setting
Passenger side setting
Mixed settingSETTING OPERATION — manual control
When one of the manual control buttons is depressed
while operating in automatic mode, the mode relevant to
the depressed button is set. Other conditions continue to
be adjusted automatically.
If manual air flow selection is desired —
The outlets from which air is delivered can be selected
manually by
pushing the button. The function of each mode is
as follows:
1Panel — Air flows mainly from the instrument panel vents.
2Bi level — Air flows from both the floor vents and the
instrument panel vents.
3Floor — Air flows mainly from the floor vents.
4Floor/Windshield — Air flows mainly from the floor vents
and windshield vents.
