IN CASE OF AN EMERGENCY
426
IF YOUR ENGINE STALLS WHILEDRIVING
If your engine stalls while driving...
1. Reduce your speed gradually, keeping a straight line. Move
cautiously off the road to a safe place.
2. Turn on your emergency flashers.
3. Turn the ignition key to “ACC” or “LOCK”, and try starting the
engine again.
If the engine will not start, see “If your vehicle will not start”\
.
CAUTION
If the engine is not running, the power assist for the
brakes and steering will not work, so steering and
braking will be much harder than usual.
IF YOUR VEHICLE WILL NOT START
(a) Simple checks
Before making these checks, make sure you have followed the
correct starting procedure instructions in “How to start the
engine” on page 348 and that you have sufficient fuel. Since
your vehicle is equipped with the engine immobilizer system,
also check whether the other keys will start the engine. If they
work, your key may be broken. Have the key checked at your
Lexus dealer. If none of your keys work, there may be a
malfunction in the immobilizer system. Call your Lexus dealer.
See “Keys” on page 8.
If the engine is not turning over or is turning over too
slowly —
1. Check that the battery terminals are tight and clean.
2. If the battery terminals are O.K., switch on the interior light.
3. If the light is out, dim or goes out when the starter is cranked,
the battery is discharged. You may try jump starting. See “(c)
Jump starting” for further instruction.
If the light is O.K., but the engine still will not start, it needs
adjustment or repair. Call a Lexus dealer, Roadside
Assistance or Customer Service Assistance. (See
“Foreword”.)

IN CASE OF AN EMERGENCY
429
JUMP STARTING PROCEDURE
1. If the booster battery is installed in another vehicle, make
sure the vehicles are not touching. Turn off all unnecessary
lights and accessories.
When boosting, use the battery of matching or higher quality.
Any other battery may be difficult to jump start with.
If jump starting is difficult, charge the battery for several
minutes.
2. If required, remove all the vent plugs from the booster
battery. Lay a cloth over the open vents on the booster battery.
(This
helps reduce the explosion hazard, personal injuries and
burns.)
If the booster battery is an extended maintenance interval
battery, it is not necessary to remove the vent plugs.
3. If the engine in the vehicle with the booster battery is not
running, start it and let it run for about 5 minutes. During jump
starting, run the engine at about 2000 rpm with the accelerator
pedal lightly depressed.
4. Locate positive (+) and negative ( −) terminals of each
battery. Connect the jumper cables in the exact order (
1 23 4) shown in the illustration.
1Connect a positive (red) jumper cable clamp to the
positive (+) terminal of the discharged battery.
2Connect the clamp at the other end of the positive (red)
cable to the positive (+) terminal of the booster battery.
3Connect a negative (black) cable clamp to the negative
(−) terminal of the booster battery.
4Connect the clamp at the other end of the negative (black)
cable to a solid, stationary, unpainted metallic point (e.g.
engine hanger) away from the battery. Do not connect it
to or near any part that moves when the engine is
cranked.
CAUTION
When making the connections, to avoid serious injury,
do not lean over the battery or accidentally let the
jumper cables or clamps touch anything except the
correct battery terminals or the ground.
5. Charge the discharged battery with the jumper cables
connected for approximately 5 minutes. At this time, run the
engine in the vehicle with the booster battery at about 2000 rpm
with the accelerator pedal lightly depressed.
6. Start your engine in the normal way. After starting, run it at
about 2000 rpm for several minutes with the accelerator pedal
lightly depressed.
7. Carefully disconnect the cables in the exact reverse order:
the negative cable and then the positive cable.
8. Carefully dispose of the battery cover cloths which may now
contain sulfuric acid.
9. If removed, replace all the battery vent plugs.
If the cause of your battery discharging is not apparent (for
example, lights left on), you should have it checked at your
Lexus dealer.

IN CASE OF AN EMERGENCY
430If the first start attempt is not successful...
Check
that the clamp on the jumper cables are tight. Recharge
the discharged battery with the jumper cables connected for
several minutes and restart your engine in the normal way.
If the another attempt is not successful, the battery may be
depleted. Have it checked at your Lexus dealer.
IF YOU CANNOT INCREASE ENGINE SPEED
If engine speed does not increase when the accelerator pedal
is depressed, there may be a problem somewhere in the
electronic throttle control system.
At this time, vibration may occur. However, if you depress the
accelerator pedal more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle checked by your
Lexus dealer as soon as possible.
Even if the abnormality of the electronic throttle control system
is corrected during low speed driving, the system may not be
recovered until the engine is stopped and the ignition key is
turned to “ACC” or “LOCK” position.
CAUTION
Be especially careful to prevent erroneous pedal
operation.

IN CASE OF AN EMERGENCY
431
IF YOUR VEHICLE OVERHEATS
If your engine coolant temperature gauge indicates
overheating, if you experience a loss of power, or if you
hear a loud knocking or pinging noise, the engine has
probably overheated.
When the engine overheats
Pull safely off the road, stop the vehicle and turn on your
emergency flashers. Put the transmission in “P” and apply the
parking brake.
A: If steam is coming from your engine:
Turn off the engine. Leave the hood closed until there is no sign
of steam or coolant. Your engine could have been seriously
damaged already. Call your Lexus dealer for assistance.
CAUTION
To help avoid personal injury, keep the hood closed until
there is no steam. Escaping steam or coolant is sign of
very high pressure.
B: If no steam is coming from your engine:
Leave the engine running and turn off the air conditioning.
Check the following.
 Is the cooling fan operating?
 Is the coolant in the acceptable range?
 Is the engine drive belt O.K.?
CAUTION
When the engine is running, keep hands and clothing
away from the moving fan and engine drive belt.
 Do not attempt to remove the radiator cap when the
engine and radiator are hot. Serious injury could
result from scalding hot fluid and steam blown out
under pressure.
If the cooling fan is not operating or the coolant is not in the
acceptable range, turn off the engine and call your Lexus
dealer.
If both conditions are O.K., after the engine coolant
temperature has cooled to normal, continue driving your
vehicle.
If the engine coolant temperature does not cool down, or your
vehicle overheats again, have it checked as soon as possible
by your Lexus dealer.

IN CASE OF AN EMERGENCY
452A driver must be in the vehicle to steer it and operate the
brakes.
Towing in this manner may be done only on hard
−surfaced
roads for a short distance and at low speeds. Also, the wheels,
axles, drive train, steering and brakes must all be in good
condition.
CAUTION
Use extreme caution when towing the vehicle. Avoid
sudden starts or erratic driving maneuvers which would
place excessive stress on the emergency towing eyelet
and towing cable or chain. The eyelet and towing cable
or chain may break and cause serious injury or damage.
NOTICE
Use only a cable or chain specifically intended for use
in towing vehicles. Securely fasten the cable or chain
to the towing eyelet provided.
Before towing, check that the center differential is unlocked.
(The indicator light must be off with the ignition on.) Release
the parking brake and put the transmission in “N”. The ignition
key must be in “ACC” (engine off) or “ON” (engine running).
CAUTION
If the engine is not running, the power assist for the
brakes and steering will not work so steering and
braking will be much harder than usual.
Emergency towing hook precautions:
 Before emergency towing, check that the eyelet is not
broken or damaged and that the installation bolts are not
loose.
 Fasten the towing cable or chain securely to the hook.
 Do not jerk the eyelet. Apply steady and even force.
 To avoid damaging the eyelet, do not pull from the side or at
a vertical angle. Always pull straight ahead.

IN CASE OF AN EMERGENCY
454

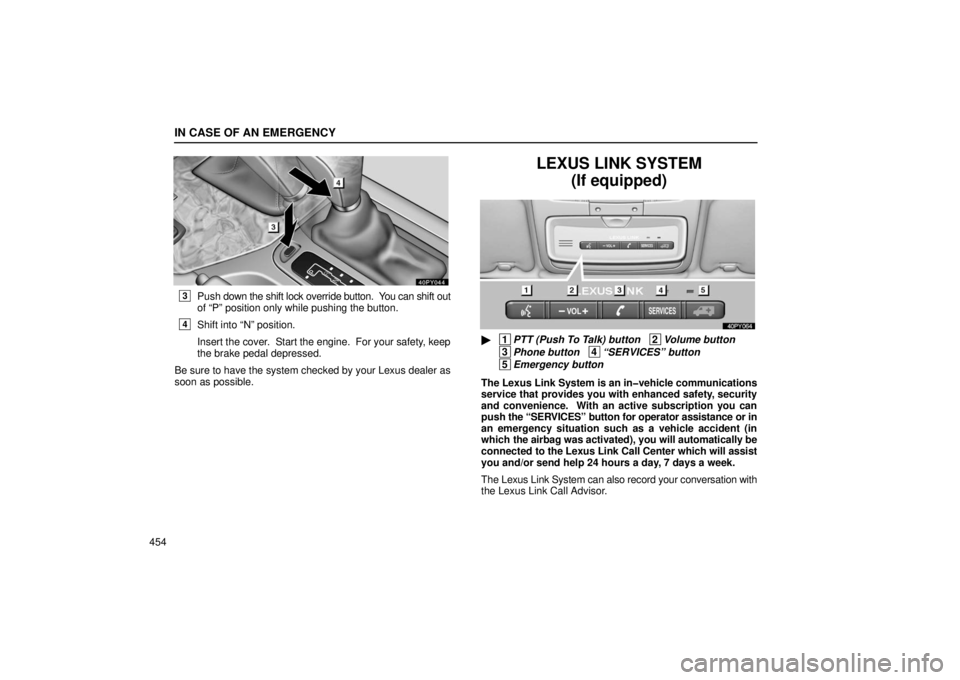

3Push down the shift lock override button. You can shift out
of “P” position only while pushing the button.
4Shift into “N” position.
Insert the cover. Start the engine. For your safety, keep
the brake pedal depressed.
Be sure to have the system checked by your Lexus dealer as
soon as possible.
LEXUS LINK SYSTEM (If equipped)
 1
PTT (Push To Talk) button 2
Volume button
3
Phone button 4
“SERVICES” button
5
Emergency button
The Lexus Link System is an invehicle communications
service that provides you with enhanced safety, security
and convenience. With an active subscription you can
push the “SERVICES” button for operator assistance or in
an emergency situation such as a vehicle accident (in
which the airbag was activated), you will automatically be
connected to the Lexus Link Call Center which will assist
you and/or send help 24 hours a day, 7 days a week.
The Lexus Link System can also record your conversation with
the Lexus Link Call Advisor.

MAINTENANCE
485
Your copy of the repair order is proof that all required
maintenance has been performed for warranty coverage. If
any problems should arise with your vehicle while under
warranty,
your Lexus dealer will promptly take care of it. Again,
be sure to keep a copy of the repair order for any service
performed on your Lexus.
What about doityourself maintenance?
Many of the maintenance items are easy to do yourself, if you
have a little mechanical ability and a few basic automotive
tools. Simple instructions for how to perform them are
presented in Section 6.
If you are a skilled do −it− yourself mechanic, the Lexus service
manuals are recommended. Please be aware that
do−it−yourself maintenance can affect your warranty
coverage. See your “Owner’s Guide”, “Owner’s Manual
Supplement” or “Warranty Booklet” for the details.
GENERAL MAINTENANCE
Listed below are the general maintenance items that should be
performed at the intervals specified. It is recommended that
any problem you notice be brought to the attention of your
Lexus dealer or qualified service shop for their advice.
CAUTION
Make these checks only with adequate ventilation if you
run the engine.
Engine compartment
Items listed below should be checked from time to time,
e.g. each time when refueling.
Washer fluid
Make sure there is sufficient fluid in the tank. See page 558 for
additional information.
Engine coolant level
Make sure the coolant level is between the “F” and “L” lines on
the see− through reservoir when the engine is cold. See page
514 for additional information.
Radiator, condenser and hoses
Check that the front of the radiator and condenser are clean
and not blocked with leaves, dirt, or insects. See page 516 for
additional information.

MAINTENANCE
486Battery
Check the battery condition by the indicator color. See page
551 for additional information.
Brake fluid level
Make sure the brake fluid level is correct. See page 521 for
additional information.
Engine oil level
Check the level on the dipstick with the engine turned off and
the vehicle parked on a level spot. See page 511 for
additional
information.
Power steering fluid level
Check the level through the reservoir. The level should be in
the “HOT” or “COLD” range depending on the fluid
temperature. See page 522 for additional information.
Exhaust system
If you notice any change in the sound of the exhaust or smell
exhaust fumes, have the cause located and corrected
immediately. (See “Engine exhaust caution” on page 343.)
Vehicle interior
Items listed below should be checked regularly, e.g. while
performing periodic services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail lights, turn signal
lights, and other lights are working. Check headlight aim. Service reminder indicators and warning buzzers
Check
that all service reminder indicators and warning buzzers
function properly.
Steering wheel
Check that it has the specified free play. Be alert for changes
in steering condition, such as hard steering, excessive free
play or strange noise.
Seats
Check that all front seat controls such as seat adjusters,
seatback recliner, etc. operate smoothly. Check that the head
restraints move up and down smoothly and that the locks hold
securely in any latched position. For folding −up second and
third seats, and detachable third seat, check that the latches
lock securely.
Seat belts
Check that the seat belt system such as buckles, retractors
and anchors operate properly and smoothly. Make sure the
belt webbing is not cut, frayed, worn or damaged.
Accelerator pedal
Check the pedal for smooth operation and uneven pedal ef fort
or catching.
Brake pedal
Check the pedal for smooth operation and the proper
clearance and free play. Check the brake booster function.

MAINTENANCE
487
Brakes
In a safe place, check that the brakes do not pull to one side
when applied.
Parking brake
Check that the lever has the proper travel and that, on a safe
incline,
your vehicle is held securely with only the parking brake
applied.
Automatic transmission “Park” mechanism
Check the lock release button of the selector lever for proper
and smooth operation. On a safe incline, check that your
vehicle is held securely with the selector lever in “P” position
and all brakes released.
Vehicle exterior
Items listed below should be performed from time to time,
unless otherwise specified.
Fluid leaks
Check underneath for leaking fuel, oil, water or other fluid after
the vehicle has been parked for a while. If you smell fuel fumes
or notice any leak, have the cause found and corrected
immediately.
Doors and engine hood
Check that all side doors and back door, operate smoothly and
all latches lock securely. Make sure the engine hood
secondary latch secures the hood when the primary latch is
released.
Tire inflation pressure
Check the pressure with a gauge every two weeks,
or at least once a month and adjust as shown on the
tire pressure label. See page 523 for additional
information.
Tire surface
Check the tires carefully for cuts, damage or
excessive wear. See page 538 for additional
information.
Wheel nuts
When checking the tires, make sure to check the nuts
for looseness. Tighten them if necessary.
Tire rotation
Rotate the tires according to the maintenance
schedule. (For scheduled maintenance information,
please refer to the “Owner’s Manual
Supplement/Scheduled Maintenance”.) See page 537
for additional information.

MAINTENANCE
488
DOES YOUR VEHICLE NEEDREPAIRING?
Be on the alert for changes in performance and sounds, and
visual tip −offs that indicate service is needed. Some important
clues are:
 Engine missing, stumbling, or pinging
 Appreciable loss of power
 Strange engine noises
 A fluid leak under the vehicle (However, water dripping from
the air conditioning after use is normal.)
 Change in exhaust sound (This may indicate a dangerous
carbon monoxide leak. Drive with the windows open and
have the exhaust system checked immediately.)
 Flat−looking tires, excessive tire squeal when cornering,
uneven tire wear
 Vehicle pulls to one side when driving straight on a level
road
 Strange noises related to suspension movement
 Loss of brake effectiveness, spongy feeling brake pedal,
pedal almost touches floors, vehicle pulls to one side when
braking
 Engine coolant temperature continually higher than normal If you notice any of these clues, take your vehicle to your Lexus
dealer as soon as possible. It probably needs adjustment or
repair.
CAUTION
Do not continue driving with the vehicle unchecked. It
could result in serious vehicle damage and possibly
personal injury.
