TABLE OF CONTENTSIndex
ii
1-1. Key information .............................. 2Keys ......................................................... 2
1-2. Opening, closing and locking the doors......................................... 4
Wireless remote control ................. 4
Side doors ............................................. 6
Back door .............................................. 11
1-3. Adjustable components ............. 13 Front seats ........................................... 13
Rear seats ............................................ 15
Driving position memory system ............................................... 24
Head restraints................................. 26
Seat belts ............................................ 28
Steering wheel.................................. 35
Inside rear view mirror.................. 36
Outside rear view mirrors ........... 37
Roof luggage carrier ..................... 39
1-4. Opening and closing the windows and moon roof ........... 41
Power windows................................. 41
Moon roof .......................................... 43
1-5. Refueling ........................................ 46 Opening the fuel tank cap........... 46 1-6. Theft deterrent system............... 49
Engine immobilizer system ......... 49
Alarm..................................................... 51
Theft prevention labels (U.S.A.) ............................................. 53
1-7. Safety information ....................... 54 Correct driving posture ............... 54
SRS airbags ....................................... 56
Front passenger occupant classification system .................... 69
Child restraint sy stems ................. 74
Installing child restraints ............... 77
2-1. Driving procedures.................... 88 Driving the vehicle ......................... 88
Starting the engine ......................... 95
Automatic transmission................ 98
Turn signal lever.............................. 101
Parking brake ................................. 102
2-2. Instrument cluster ..................... 103 Gauges and meters ..................... 103
Indicators and warning lights................................................. 105
Trip information display .............. 108
1Before driving
2When driving

1
2
3
4
5
6
7
v
5-1. Essential information .............. 338If your vehicle needs to be towed............................................. 338
If you think something is wrong ............................................. 343
Fuel pump shut off system ........ 344
Event data recorder .................... 345
5-2. Steps to take in an emergency ............................... 347
If a warning light turns on or a warning buzzer sounds... ....... 347
If you have a flat tire..................... 356
If the engine will not start .......... 367
If the shift lever cannot be shifted from P ............................. 368
If you lose your keys .................... 369
If the vehicle battery is discharged ................................... 370
If your vehicle overheats ........... 373
If the vehicle becomes stuck................................................ 375 6-1. Specifications ............................ 378
Maintenance data ........................ 378
Fuel information ............................ 387
Tire information ........................... 390
6-2. Customization .......................... 398 Customizable features ............. 398
6-3. Initialization ................................ 401 Items to initialize ............................ 401
Reporting safety defects for U.S. owners.................................. 404
Alphabetical index................... 406
What to do if................................ 414
5When trouble arises6Vehicle specifications
7For US owners
Index

12
1-2. Opening, closing and locking the doors
■The back door can be locked/unlocked
Using wireless remote control: P. 4
Using door lock switch: P. 6
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious personal injury.
■Caution while driving
●Keep the back door closed.
This not only keeps personal belongings from being thrown out, but also prevents
exhaust gases from entering the vehicle.
●Do not get on the rear step bumper.
■If the back door is opened while parked
The open back door hides the rear lights. Other road users must be warned of the
presence of your vehicle by a warning triangle or other device.
■When closing the back door
Make sure not to get your hands caught in the back door stay.
NOTICE
■To prevent damage to the rear step bumper
Do not allow more than one person to get on at a time.

57
1-7. Safety information
1
Before driving
Airbag system componentsYour vehicle is equipped with “ADVANCED AIRBAGS” designed based
on US motor vehicle sa fety standards (FMVSS208). The airbag system
controls airbag deployment power for the driver and front passenger. The
driver airbag system consist s of the driver’s seat position sensor etc. The
front passenger’s airbag system con sists of the front passenger occupant
classification sensor etc. Front passenger airbag
Curtain shield airbag
Occupant detection system
(ECU and sensors)
“AIRBAG ON” and “AIRBAG
OFF” indicator light
Side airbag
Curtain shield airbag sensor
SRS warning light and “RSCA
OFF” indicator light
Driver airbag
Side and curtain shield airbag
sensor
Driver's seat position sensor
Driver's seat belt buckle switch
“RSCA OFF” switch
Front passenger’s seat belt
buckle switch
Airbag sensor assembly
Front airbag sensor

69
1
1-7. Safety information
Before driving
Front passenger occupant classification system
Condition and operation in the front passenger occupant classification system
■Adult*1
Your vehicle is equipped with a front passenger occupant classification sys-
tem. This system detects the conditions of the front passenger seat and
activates or deactivates the devices for front passenger.
SRS warning light
Front passenger’s seat belt reminder light
“AIRBAG OFF” indicator light
“AIRBAG ON” indicator light
Indicator/
warning light “AIRBAG ON” and “AIRBAG OFF”
indicator lights “A I R B A G
ON”
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
DevicesFront passenger airbag
Activated
Side airbag in the front passenger seat
Curtain shield airbag
on the front passenger side
Front passenger’s seat belt pretensioner

70
1-7. Safety information
■Child*3 or child restraint system*4
■Unoccupied
Indicator/
warning light “AIRBAG ON” and “AIRBAG OFF”
indicator lights “A I R B A G
OFF”*5
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
DevicesFront passenger airbag
Deactivated
Side airbag in the front passenger seat
Curtain shield airbag
on the front passenger side Activated
Front passenger’s seat belt pretensioner
Indicator/
warning light “AIRBAG ON” and “AIRBAG OFF”
indicator lights Not illumi-
nated
SRS warning light Off
Front passenger’s seat belt reminder light
Devices Front passenger airbag
Deactivated
Side airbag in the front passenger seat
Curtain shield airbag
on the front passenger side Activated
Front passenger’s seat belt pretensioner Deactivated

71
1-7. Safety information
1
Before driving
■System malfunction
*
1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may recognize him/
her as a child depending on his/her physique and posture.
*
2: In the event the front passenger does not wear a seat belt.
*3: When a large child who has outgrown a child restraint system sits in the front passenger seat, the sy stem may recognize him/her as an
adult depending on his/her physique and posture.
*
4: Never install a rear-facing child restraint system on the front passen- ger seat. A forward-facing child restraint system should only be
installed on the front passenger seat when it is unavoidable.
( P. 77)
*
5: In case indicator is not illuminated, consult this manual as for install-
ing the child restraint system properly. ( P. 74 )
Indicator/
warning light “AIRBAG ON” and “AIRBAG OFF”
indicator lights “A I R B A G
OFF”
SRS warning light On
Front passenger’s seat belt reminder light Off
Devices Front passenger airbag
Deactivated
Side airbag in the front passenger seat
Curtain shield airbag
on the front passenger side Activated
Front passenger’s seat belt pretensioner

73
1-7. Safety information
1
Before driving

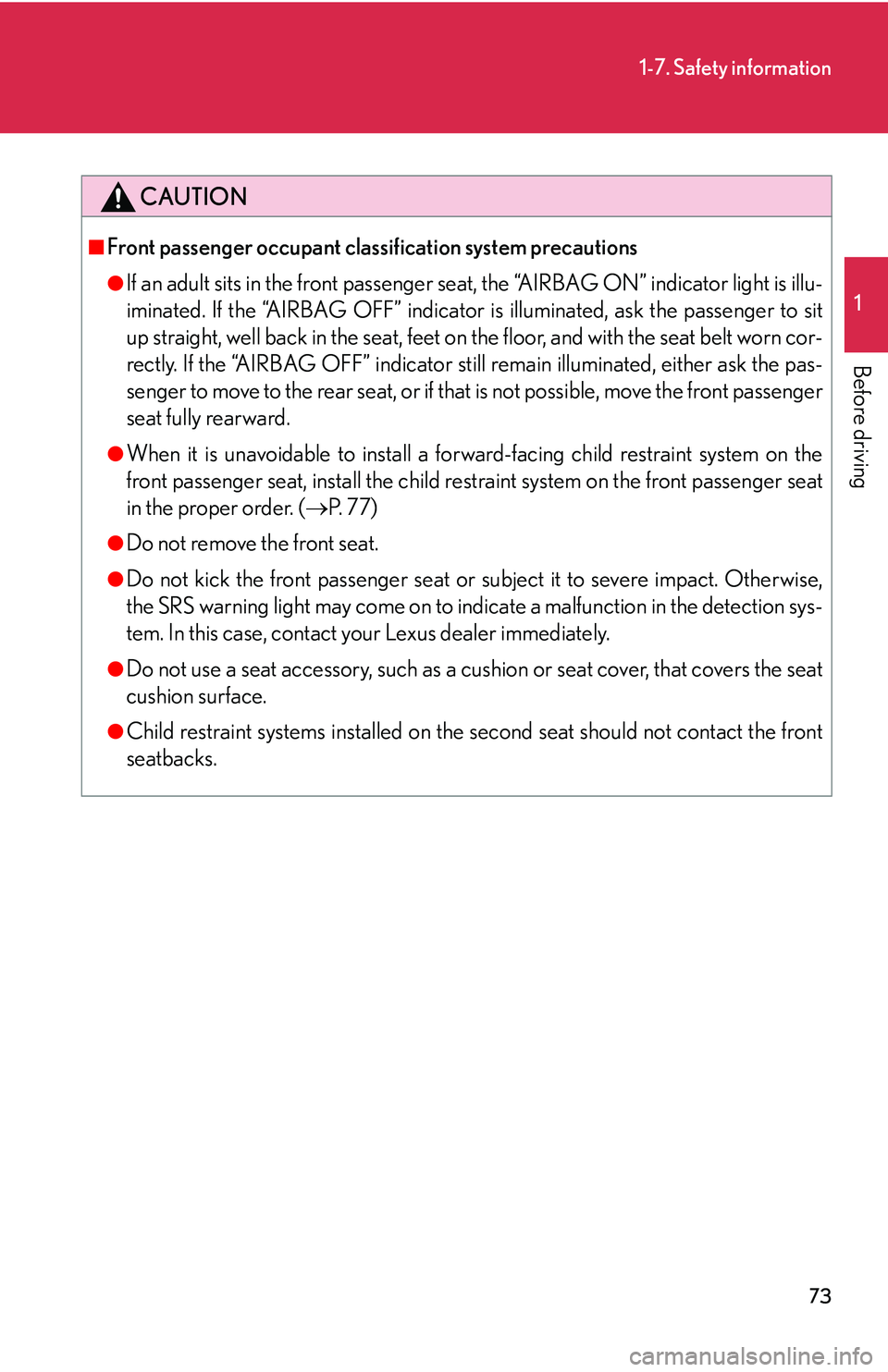

CAUTION
■Front passenger occupant classification system precautions
●If an adult sits in the front passenger se at, the “AIRBAG ON” indicator light is illu-
iminated. If the “AIRBAG OFF” indicator is illuminated, ask th e passenger to sit
up straight, well back in the seat, feet on the floor, and with the seat belt worn cor-
rectly. If the “AIRBAG OFF” indicator still remain illuminated, either ask the pas-
senger to move to the rear seat, or if th at is not possible, move the front passenger
seat fully rearward.
●When it is unavoidable to install a forw ard-facing child restraint system on the
front passenger seat, install the child rest raint system on the front passenger seat
in the proper order. ( P. 77)
●Do not remove the front seat.
●Do not kick the front passenger seat or subject it to severe impact. Otherwise,
the SRS warning light may come on to indicate a malfunction in the detection sys-
tem. In this case, contact your Lexus dealer immediately.
●Do not use a seat accessory, such as a cushion or seat cover, that covers the seat
cushion surface.
●Child restraint systems installed on the second seat should not contact the front
seatbacks.

When driving2
87
2-1. Driving procedures ................. 88Driving the vehicle ...................... 88
Starting the engine ...................... 95
Automatic transmission ............. 98
Turn signal lever ........................... 101
Parking brake ............................... 102
2-2. Instrument cluster................... 103 Gauges and meters .................. 103
Indicators and warning lights.............................................. 105
Trip information display............ 108 2-3. Operating the lights and
windshield wipers.................... 111
Headlight switch............................ 111
Fog light switch ............................. 113
Windshield wipers and washer ........................................... 114
Rear window wiper and washer ........................................... 117
2-4. Using other driving systems ..................................... 118
Cruise control ............................... 118
Four-wheel drive system ........... 121
Rear height control air suspension ................................ 123
Electronic modulated suspension .................................. 129
DAC (Downhill Assist Control system) ....................... 130
Driving assist systems............... 132
2-5. Driving information................ 135 Off-road precautions ............... 135
Cargo and luggage................... 140
Vehicle load limits ...................... 144
Winter driving tips ..................... 146
Trailer towing................................ 150
Dinghy towing ............................. 160

105
2-2. Instrument cluster
2
When driving
Indicators and warning lights
The indicator and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
Instrument cluster
The units used on the speedometer and some indicators may differ depend-
ing on the target region.
Center panel
