Lexus GX470 2007 Theft deterrent system /

1
When Driving
Topic 3
Overview
Contents
Entering and Exiting
Topic 1
Before Driving
Topic 2
lStartingP. 2 1
lAutomatic TransmissionP. 2 2
lParking BrakeP. 2 2
lTu r n S i g n a l L e v e rP. 2 3
lEmergency Flasher SwitchP. 2 3
lCruise ControlP. 2 4
lTrip Information DisplayP. 2 5
lRoll Sensing Of Curtain Shield
Airbags Off SwitchP. 2 5
lCenter Differential Lock
SwitchP. 2 6
lTi r e P r e s s u r e Wa r n i n g S e l e c t
SwitchP. 2 6
lKeysP. 7
lTheft Deterrent System P.8
The Quick Guide is not intended as a substitute for your Owner’s
Manual. We strongly encourage you to review the Owner’s
Manual and supplementary manuals so you will have a better
understanding of your vehicle’s capabilities and limitations.
lCigarette LighterP. 2 6
lPow e r O u t l e t sP. 2 7
lFour-Wheel Drive Control
LeverP. 2 7
lDamping Mode Select
SwitchP. 2 8
lRear Height Control
SwitchP. 2 8
l“DAC” SwitchP. 2 8
lFront SeatsP.1 1
lSecond SeatsP.1 2
lThird SeatsP.1 3
lDriving Position Memory
SystemP.1 5
lHead RestraintsP.1 6
lSeatbeltsP.1 6
lOutside Rear View MirrorsP.1 7
lInside Rear View MirrorP.1 7
lSteering WheelP.1 8

Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
2
Driving Comfort
Topic 5
Opening and Closing
Topic 6
What to do if ...
Customizing Your LexusResponding to warning/indicator lights
and other problems that may arise.
A list of features that can be customized.

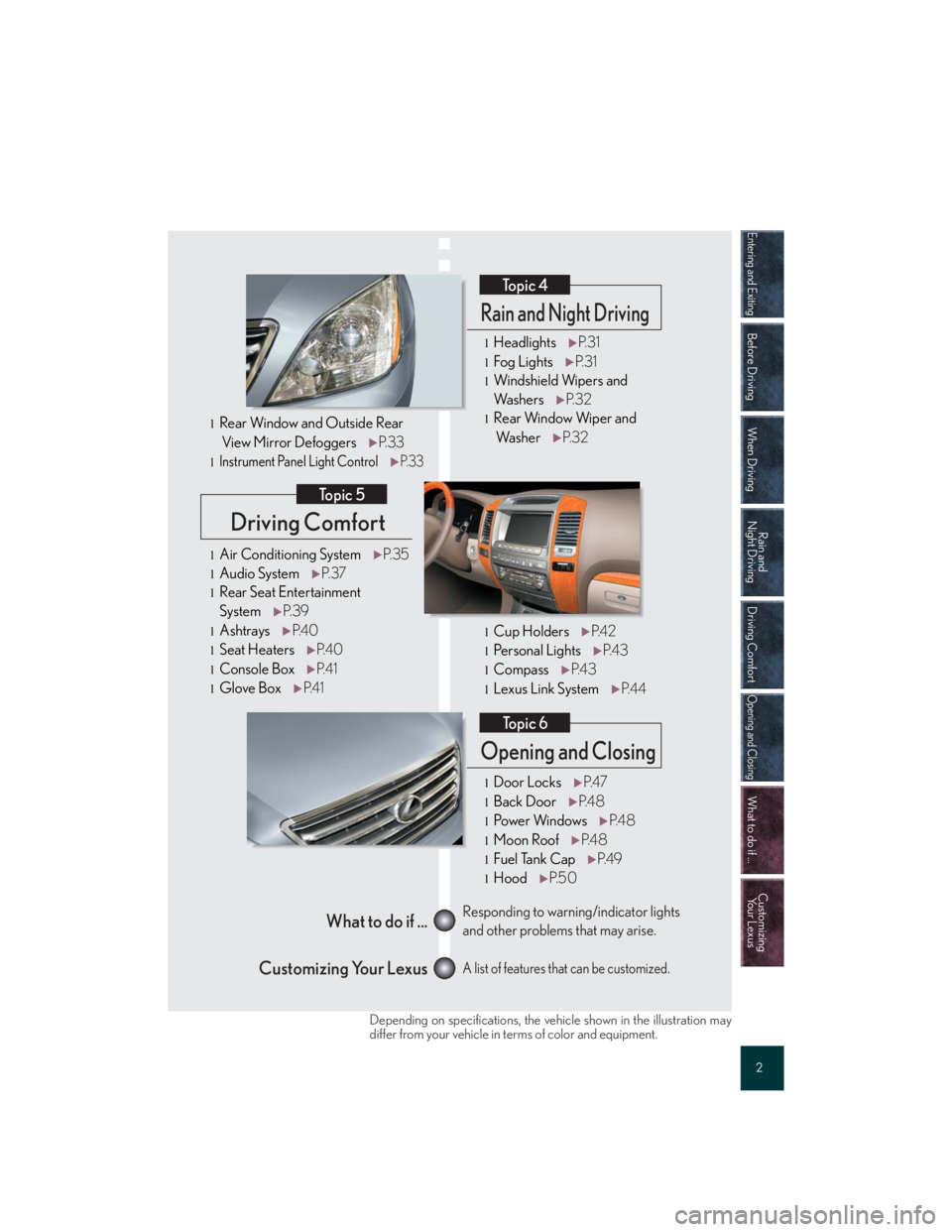

Rain and Night Driving
Topic 4
lHeadlightsP. 3 1
lFog LightsP. 3 1
lWindshield Wipers and
Wa s h e r sP. 3 2
lRear Window Wiper and
Wa s h e rP. 3 2
lCup HoldersP. 4 2
lPe r s o n a l L i g h t sP. 4 3
lCompassP. 4 3
lLexus Link SystemP. 4 4
lDoor LocksP. 4 7
lBack DoorP. 4 8
lPo w e r Wi n d o w sP. 4 8
lMoon RoofP. 4 8
lFuel Tank CapP. 4 9
lHoodP. 5 0
lAir Conditioning SystemP. 3 5
lAudio SystemP. 3 7
lRear Seat Entertainment
SystemP. 3 9
lAshtraysP. 4 0
lSeat HeatersP. 4 0
lConsole BoxP. 4 1
lGlove BoxP. 4 1
lRear Window and Outside Rear
View Mirror DefoggersP. 3 3
lInstrument Panel Light ControlP. 3 3
Depending on specifications, the vehicle shown in the illustration may
differ from your vehicle in terms of color and equipment.

3

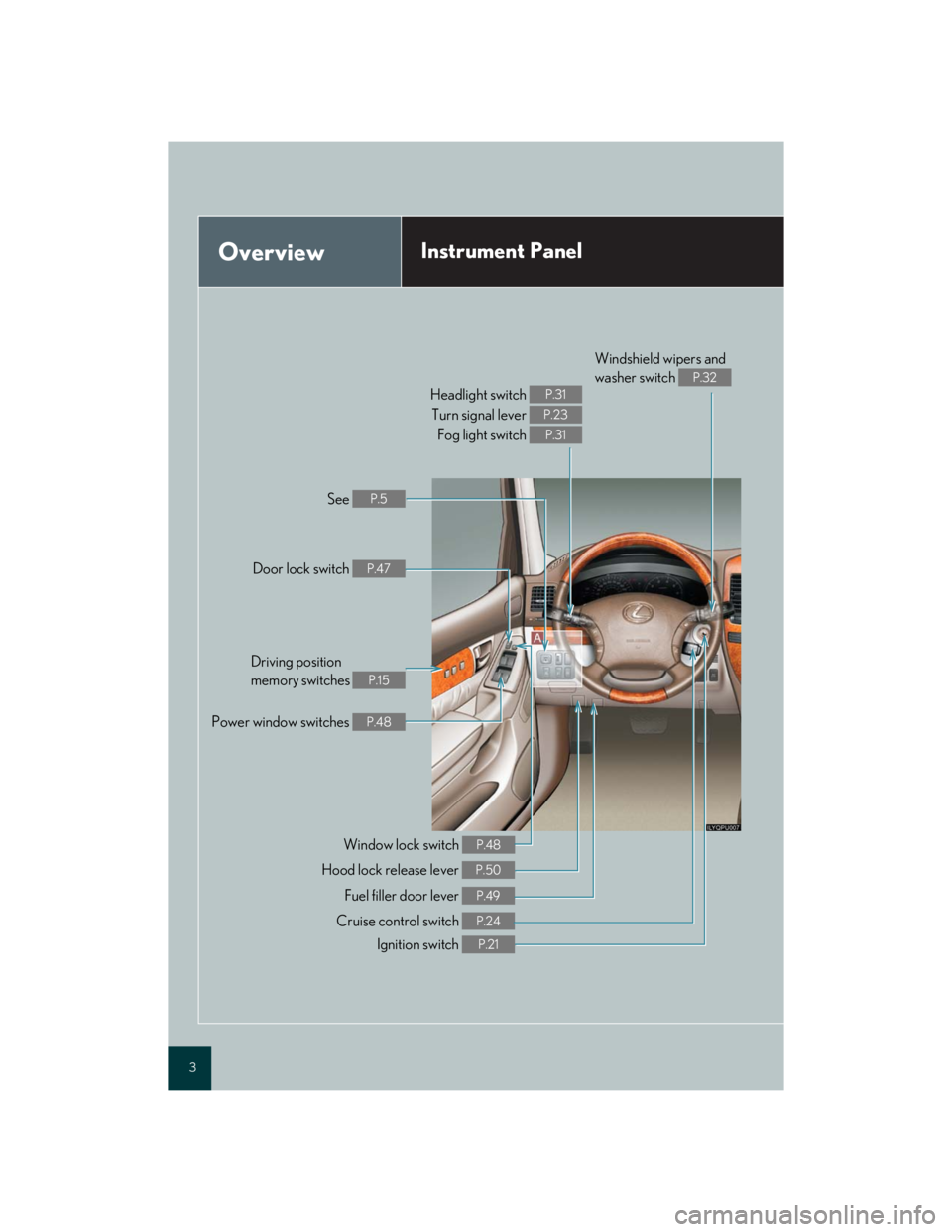

OverviewInstrument Panel
Windshield wipers and
washer switch
P.32
Headlight switch
Turn signal lever
Fog light switch P.31
P.23
P.31
See P.5
Hood lock release lever P.50
Door lock switch P.47
Power window switches P.48
Window lock switch P.48
Cruise control switch P.24
Driving position
memory switches
P.15
Fuel filler door lever P.49
Ignition switch P.21

4

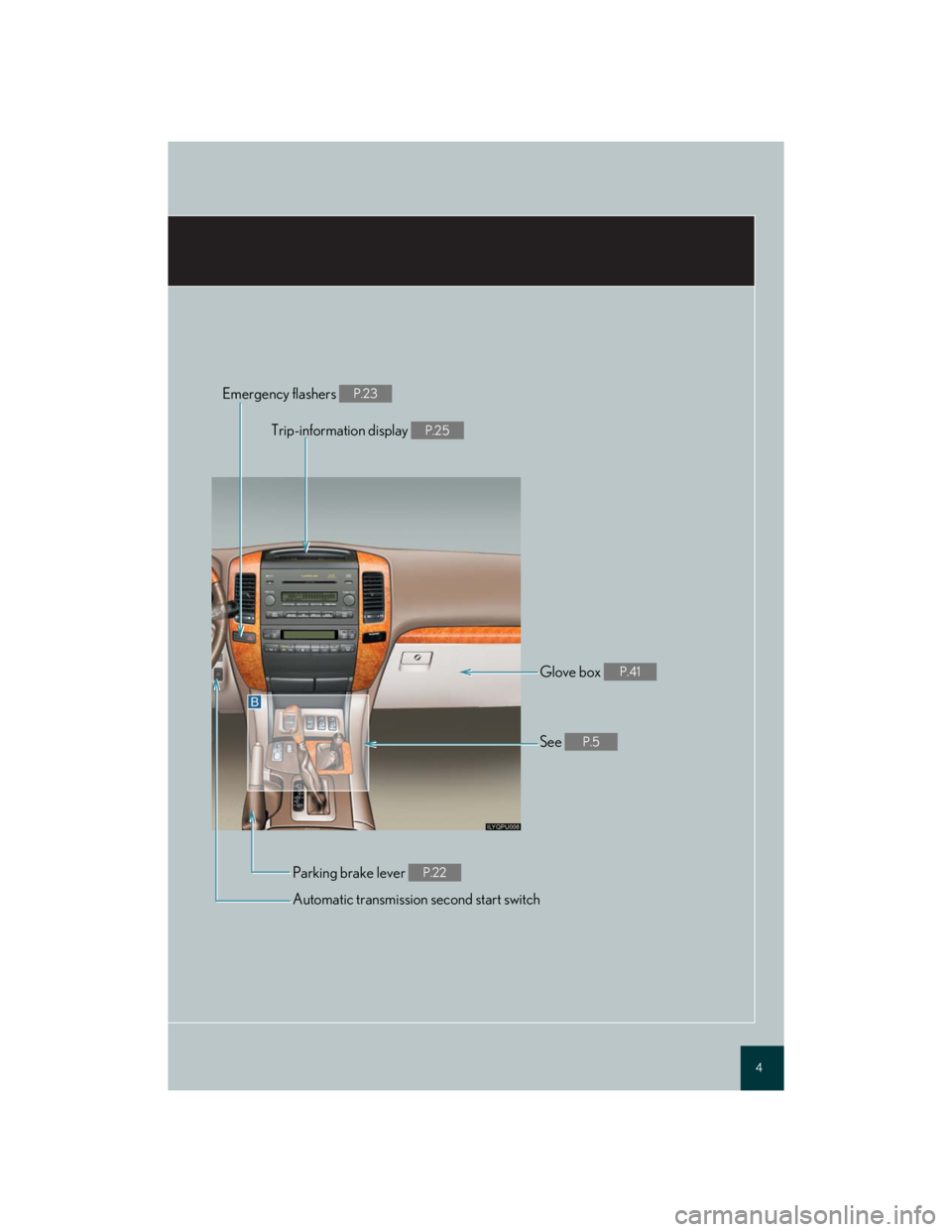

Trip-information display P.25
Parking brake lever P.22
Automatic transmission second start switch Emergency flashers
P.23
Glove box P.41
See P.5

5
OverviewInstrument Panel
Instrument panel light control P.33
Outside rear view mirror
heater switch
P.33
Power outlet switch P.27
Outside rear view mirror switches P.17
“RSCA OFF” switch P.25
Center differential lock switch P.26
AUX adapter P.38
“DAC” switch P.28
Height control switches
Damping mode select switch P.28
P.28
Power outlet P.27
Four-wheel drive control lever P.27
Seat heater switches P.40
Shift lever P.22

Entering and ExitingTopic 1
Keys ............................................................................. 7
Theft Deterrent System ......................................... 8

Topic 1
Entering and Exiting
7
Keys
nKeys
Master keys
Wo r k i n e v e r y l o c k .
Va l e t k e y
Cannot lock/unlock the glove box.
Key number plate
Flat key
Use in emergencies. Works in every lock.
nWireless remote control
“LOCK” button: Locks all doors
“UNLOCK” button:
Press once — Unlocks driver's door
Press twice — Unlocks all doors
“PANIC” button:Sounds the alarm
(press and hold)
(Use this function if you notice anyone suspi-
cious near the vehicle)
1
2
3
4
1
2
3
Press and hold the “UNLOCK” button to open all the windows.

Topic 1
Entering and Exiting
8
Entering and Exiting
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Before DrivingBefore Driving
Theft Deterrent System
nEngine immobilizer system
The engine immobilizer system prevents the
engine from being started if an unregistered key
is used.
nAlarm
When forcible entry is detected, the alarm
attracts attention to the vehicle by sounding the
horn and flashing the exterior lights.
When all the doors are locked, the security indi-
cator light comes on and begins to flash after
approximately 30 seconds to indicate that the
theft deterrent system is armed.
nSteering lock
The steering lock is engaged when the ignition
key is turned to the “LOCK” position.
The theft deterrent system includes the following features to help protect your vehicle from
theft.
To stop the alarm, start the engine or unlock the doors using the ignition key or wireless
remote control. (The alarm will stop after several seconds.)

Topic 1
Entering and Exiting
9

Before DrivingTopic 2
Front Seats................................................................ 11
Second Seats .......................................................... 12
Third Seats ............................................................... 13
Driving Position Memory System..................... 15
Head Restraints ..................................................... 16
Seatbelts................................................................... 16
Outside Rear View Mirrors ............................... 17
Inside Rear View Mirror...................................... 17
Steering Wheel ...................................................... 18
