5
When trouble arises
343
5-1. Essential information
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■Visible symptoms
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temper ature gauge needle continually points
higher than normal
■ Audible symptoms
●Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
●Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor

5
When trouble arises
373
5-2. Steps to take in an emergency
If your vehicle overheats
If the engine overheats:
Stop the vehicle in a safe place and turn off the automatic air
conditioning system.
Check to see if steam is coming out from under the hood.
If you see steam: Turn off the engine and carefully lift the hood.
If you do not see steam: Leave the engine running and carefully lift the hood.
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the engine coolant temperature gauge begins to
fall and then stop the engine.
If the fan is not operating: Stop the engine immediately and call your local Lexus
dealer.
After the engine has cooled
down sufficiently, check the
coolant level and inspect the
radiator for any leaks.STEP1
STEP2
STEP3
STEP4

374
5-2. Steps to take in an emergency
■Overheating
In the following situations, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when in specting under the hood of your vehicle
●Keep hands and clothing away from the fan and engine drive belt while the
engine is running.
●Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
NOTICE
■When adding coolant
Wait until the engine has cooled down before adding coolant.
When adding coolant, do so slowly. Adding cold coolant to a hot engine too quickly
can cause damage to the engine.
Add coolant if required.
Water can be used as an emer-
gency measure if coolant is
unavailable. ( P. 3 8 2 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP5

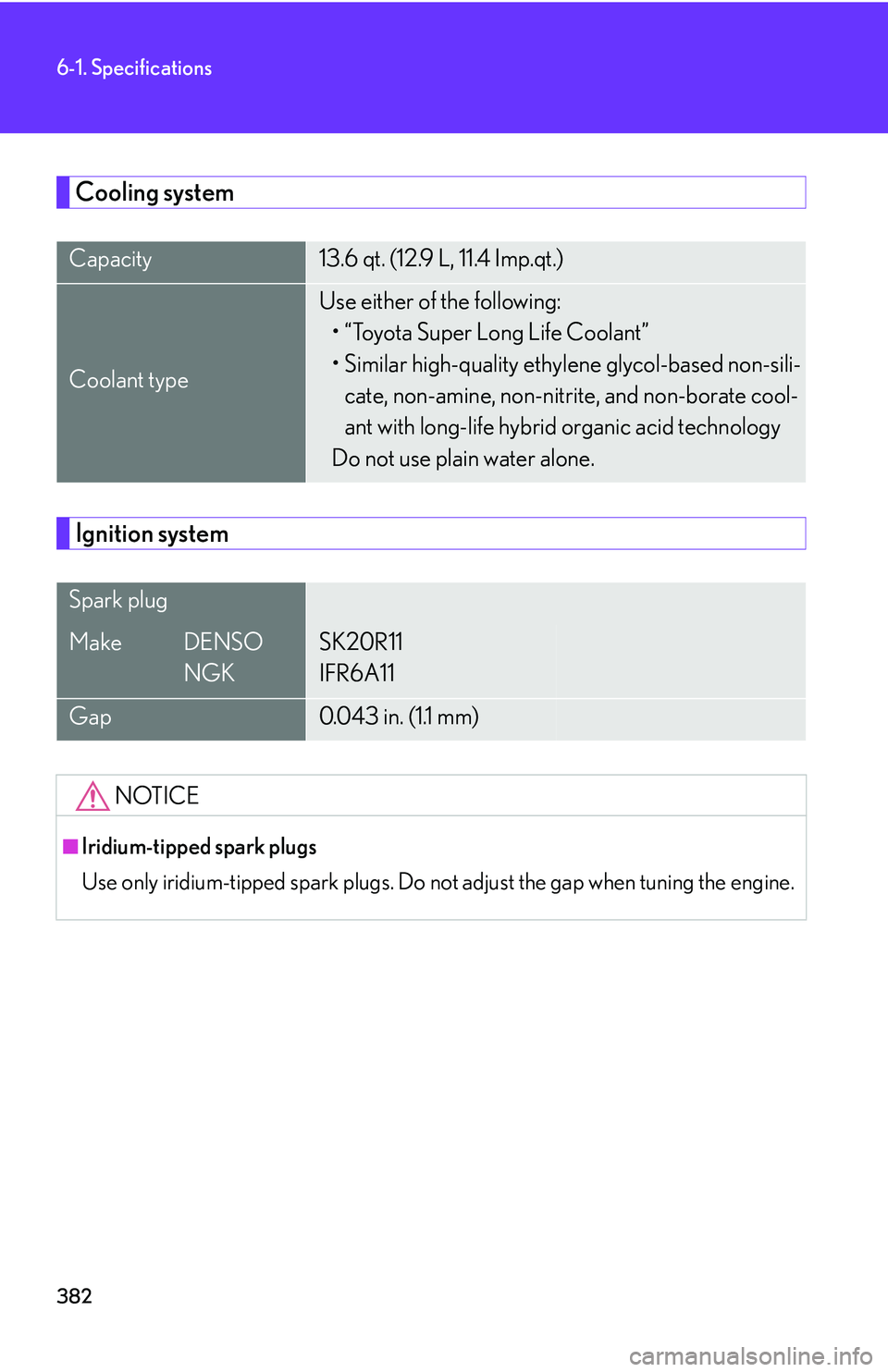

382
6-1. Specifications
Cooling system
Ignition system
Capacity13.6 qt. (12.9 L, 11.4 Imp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili- cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make DENSO NGKSK20R11
IFR6A11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do no t adjust the gap when tuning the engine.

395
6-1. Specifications
6
Vehicle specifications
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in
combination, can cause heat build up and possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1
* that follows

408
Alphabetical index
Electronic modulated suspension .. 129
Emergency, in case ofIf a warning light turns on .............. 347
If the engine will not start........................................................ 367
If the shift lever cannot be shifted from P ...................................368
If the vehicle battery is discharged ....................................... 370
If you have a flat tire .........................356
If you lose your keys.........................369
If you think something is wrong ................................................... 343
If your vehicle becomes stuck..... 375
If your vehicle needs to be towed ...................................................338
If your vehicle overheats ................ 373
Engine Compartment ..................................... 287
Hood........................................................286
How to start the engine..................... 95
If the engine will not start........................................................ 367
Overheating......................................... 373
Engine compartment cover ............ 288
Engine coolant temperature gauge....................................................... 103
Engine coolant Capacity ................................................. 382
Checking ............................................... 294
Preparing and checking before winter ......................................146
Engine immobilizer system.................. 49 Engine oil
Capacity .................................................. 381
Checking............................................... 289
Preparing and checking before winter...................................... 146
Engine oil maintenance data ........... 292
Event data recorder ............................ 345
First-aid kit storage belt ..................... 246
Flat key .............................................................2
Floor mats ................................................ 244
Fluid Brake ....................................................... 296
Power steering ....................................297
Washer..................................................... 301
Fog lights Switch .......................................................... 113
Wattage ................................................. 386
Foot light .................................................. 225
Front passenger's seat belt
reminder light ...................................... 351
Front passenger occupant classification system ............................ 69
Front seats Adjustment ................................................ 13
Driving position memory .................. 24
Front turn signal lights Wattage ................................................. 386
Fuel Capacity ................................................380
Fuel gauge .............................................. 103
Gas station information ................... 416
Information ........................................... 387
Refueling ....................................................46
Fuel filler door ........................................... 46
Fuses ............................................................321E
F

414
What to do if...
What to do if...
A tire puncturesP. 3 5 6If you have a flat tire
The engine does not start
P. 4 9Engine immobilizer system
P. 3 6 7If the engine will not start
P. 3 7 0If the battery is discharged
The shift lever cannot be
moved outP. 3 6 8If the shift lever cannot be shifted
from “P”
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 3 7 3If your vehicle overheats
The key is lostP. 3 6 9If you lose your keys
The battery is dischargedP. 3 7 0If the vehicle has a discharged battery
The doors cannot be lockedP. 6Doors
The horn begins to soundP. 5 1Alarm
The vehicle is stuck in mud or
sandP. 3 7 5If the vehicle becomes stuck
