display Lexus GX470 2007 Instrument cluster / LEXUS 2007 GX470 (OM60C64U) Owner's Guide

212
3-3. Using the rear audio system
Using the DVD player (video CD)
■Remote control
Select a switch
Select a chapter
Play/pause
Rewind
Display operation switches
Enter the selected option
Fast forward
Stop
Change the initial setting

213
3-3. Using the rear audio system
3
Interior features
Selecting a disc menu numberSelect
to display the disc menu number search screen.
Select the disc menu number, and press “ENT” to input it.
Select to return to the previous screen.
■ Display (page 1)
Select a disc menu number
Turn off the menu screen
Display page 2
Turn on the disc menu
Return to the previous page
screen (with the disc menu
displayed)
Proceed to the next page
screen (with the disc menu
displayed)
Change to a multiplex trans-
mission
■ Display (page 2)
Display page 1
Rewind
Play/pause
Fast forward

214
3-3. Using the rear audio system
Using the DVD player (audio CD/CD text)
■Canceling random, repeat and scan play
Select , or again.
■Control screen
Press to display the con-
trol screen.
Repeat play
Random play
Scan play

215
3-3. Using the rear audio system
3
Interior features
Using the DVD player (MP3 discs)
Repeat play■ Repeat a file
Select .
■ Repeat all of files in a folder
Select , and press and hold “ENT” on the remote control.
Random play
■ Playing files from a particular folder in random order
Select .
■ Playing all of the files on a disc in random order
Select , and press and hold “ENT” on the remote control.
■Control screen
Press to display the con-
trol screen.
Repeat play
Random play
Scan play
Display file information
Select a folder

218
3-3. Using the rear audio system
Changing the initial setting
Changing the audio languageSelect “Audio Language”.
Select the language you want to
hear, and press “ENT” to input it.
Select “Others” if you cannot find
the language you want to hear.
Enter the appropriate 4-digit lan-
guage code. Select a number, and
press “ENT” to input it.
Language code list (P. 222)
If a code that is not in the list is
entered, Incorrect Code will
appear on the screen.
Press or select to
display the initial settings
screen.
The following settings can be
changed here.
• Audio language
• Subtitle language
• DVD language
• Angle mark
• Parental lock

221
3-3. Using the rear audio system
3
Interior features
Select a restriction level (1-8), and
press “ENT”. The smaller the level
number, the stricter the age limit.
Setting the display modePressing changes the dis-
play modes sequentially as follows:
NormalWide 1  Wide 2
■Returning to the previous screen
Select , and press “ENT”.
■To initialize the password
Press “ ” on the remote control or unit ten times when the personal code input
screen is displayed.

235
3-6. Other interior features
3
Interior features
Clock
■The clock is displayed when
The ignition switch is in the “ACC” or “ON” position.
■When the 12 volt battery is disconnected
The time display will automatically be set to 1:00.
■Adjust clock
Push and hold the “MODE” button until “ILL” appear on the
display.
Push “MODE” button once . The time will blink.
Adjust hours.
Adjust minutes.
Round the nearest hour.
After setting, push “MODE”
button.
STEP1
STEP2
STEP3

236
3-6. Other interior features
Outside temperature display
■Operating conditions
The ignition switch is in the “ON” position.
■When -- is displayed
The system may be malfunctioning. Take your vehicle to your Lexus dealer.
The displayed temperature ranges from -22°F (-30°C) up to 122°F
(50°C).

253
3-6. Other interior features
3
Interior features
Compass
The compass on the inside rear view mirror indicates the direction in which
the vehicle is heading.
■ Operation
To turn the compass on or off,
push the button for longer than
3 seconds.
■ Displays and directions
DisplayDirection
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWe s t
NWNorthwest

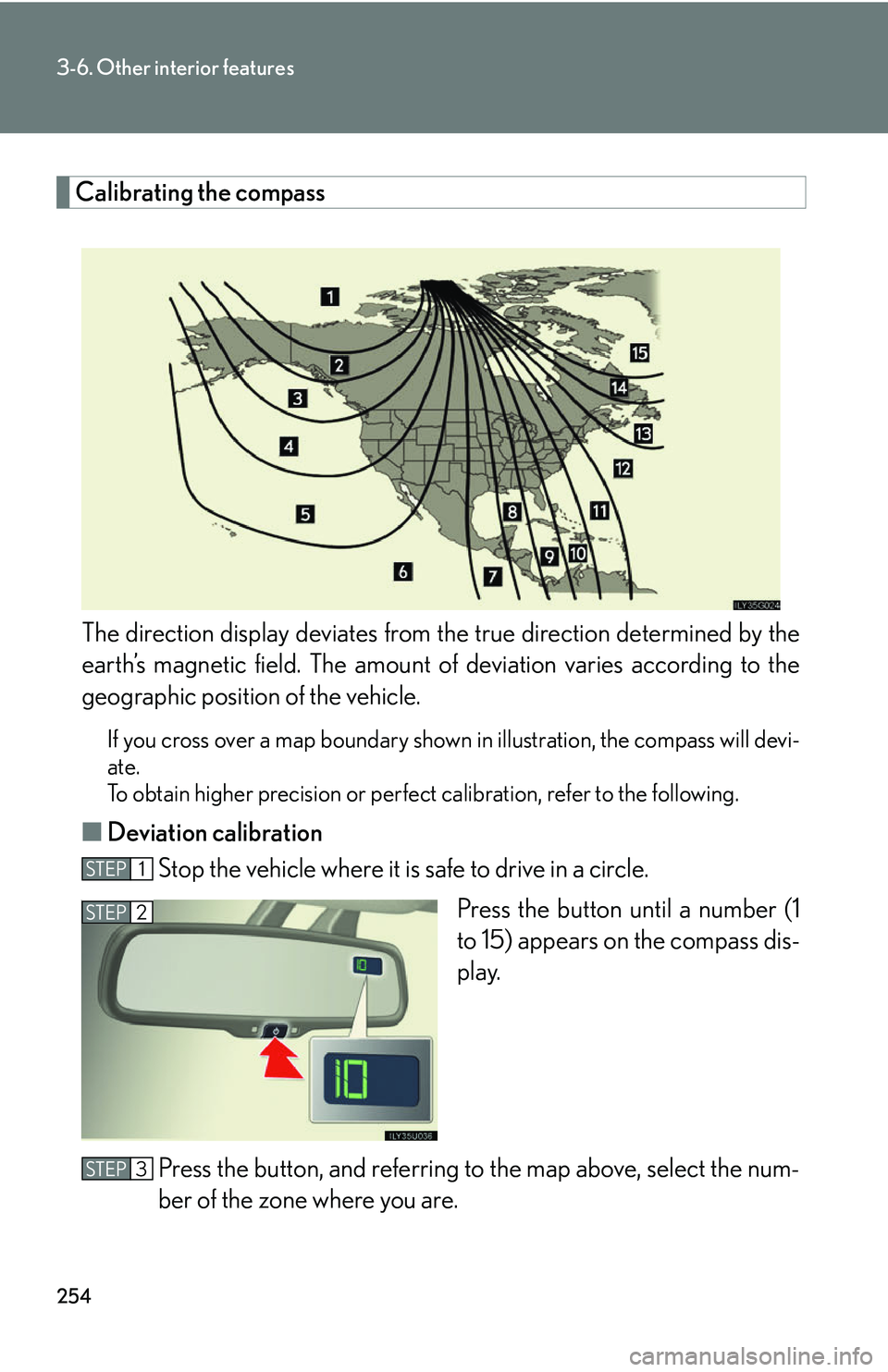

254
3-6. Other interior features
Calibrating the compassThe direction display deviates from the true direction determined by the
earth’s magnetic field. The amount of deviation varies according to the
geographic position of the vehicle.
If you cross over a map boundary shown in illustration, the compass will devi-
ate.
To obtain higher precision or perfec t calibration, refer to the following.
■Deviation calibration
Stop the vehicle where it is safe to drive in a circle.
Press the button until a number (1
to 15) appears on the compass dis-
play.
Press the button, and referring to the map above, select the num-
ber of the zone where you are.
STEP1
STEP2
STEP3
