326
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
35A/F HEATER15A/F sensor
36TRN-HAZ15Turn signal lights
37ETCS10Electronic throttle control system
38EFI20
Multiport fuel injection system/
sequential multiport fuel injection
system
39D FR P/W20Po w e r w i n d o w
40DR/LCK25Power door lock
41TOW I N G30To w i n g c o n v e r t e r
42RADIO NO.230Audio system, navigation system
43A/PUMP50
Multiport fuel injection system/
sequential multiport fuel injection
system

327
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Driver’s side instrument panel
FuseAmpereCircuit
1IGN10
Multiport fuel injection system/
sequential multiport fuel injection
system, vehicle stability control sys-
tem
2SRS10SRS airbag system, front passenger
occupant classification system
3GAUGE7. 5Gauges and meters
4ST27. 5
Multiport fuel injection system/
sequential multiport fuel injection
system
5FR WIP-WSH30Windshield wipers, windshield
washer
6TEMS20Electronic modulated suspension
7DIFF20Four-wheel drive system
8RR WIP15Rear window wiper
9D P/SEAT30Driver's power seat
10P P/SEAT30Front passenger's power seat
11PWR OUTLLET15Po w e r o u t l e t ( 1 2 V D C )

328
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
12IG1 NO.210
Rear air conditioning system, inside
rear view mirror, kinetic dynamic sus-
pension system
13RR WSH15Rear window washer
14ECU-IG10
Shift lock control system, power win-
dows, outside rear view mirror defog-
ger, anti-lock brake system, active
traction control system, vehicle stabil-
ity control system, air conditioning
system, navigation system, power
windows, moon roof, tilt and tele-
scopic steering, trip information dis-
play, driving position memory system,
rear view monitor system, tire pres-
sure warning system
15IG110
Air conditioning system, back-up
lights, rear window defogger, seat
heaters, vehicle stability control sys-
tem
16STA7. 5
Multiport fuel injection system/
sequential multiport fuel injection
system
17P FR P/W20Front passenger's power window
18P RR P/W20Rear right side power window
19D RR P/W20Rear left side power window
20PA N E L10Instrument panel lights
21TA I L10Parking lights, tail lights, license plate
lights, front fog lights

329
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
22ACC7. 5
Shift lock control system, power out-
let, outside rear view mirror, audio
system, navigation system, power
rear view mirrors, trip information
display, rear view monitor system
23CIG10Cigarette lighter
24POWER OR
TI&TE30Power windows, moon roof, tilt and
telescopic steering
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 3 3 1 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.

330
4-3. Do-it-yourself maintenance

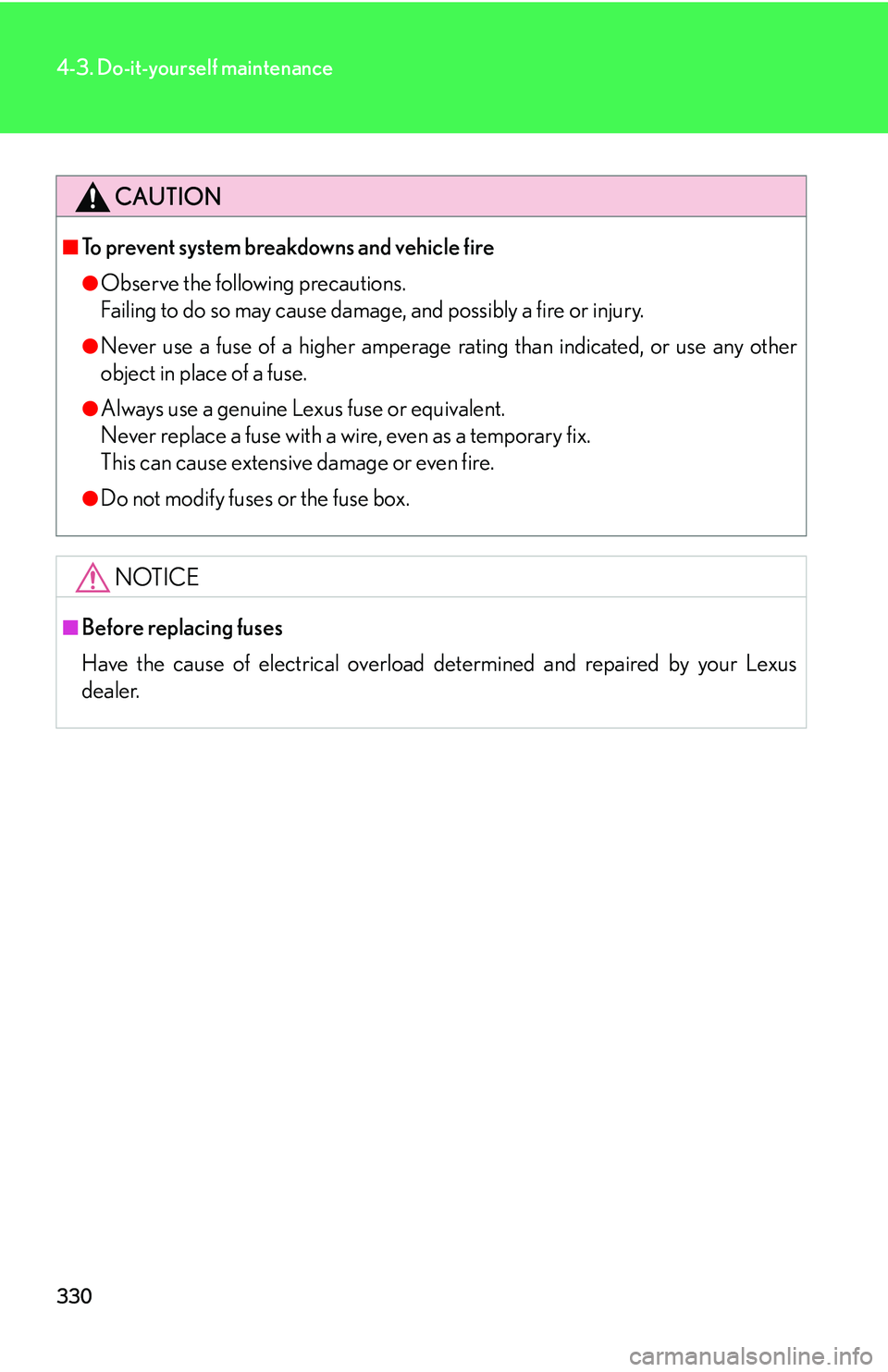

CAUTION
■To prevent system breakdowns and vehicle fire
●Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.

401
6
Vehicle specifications

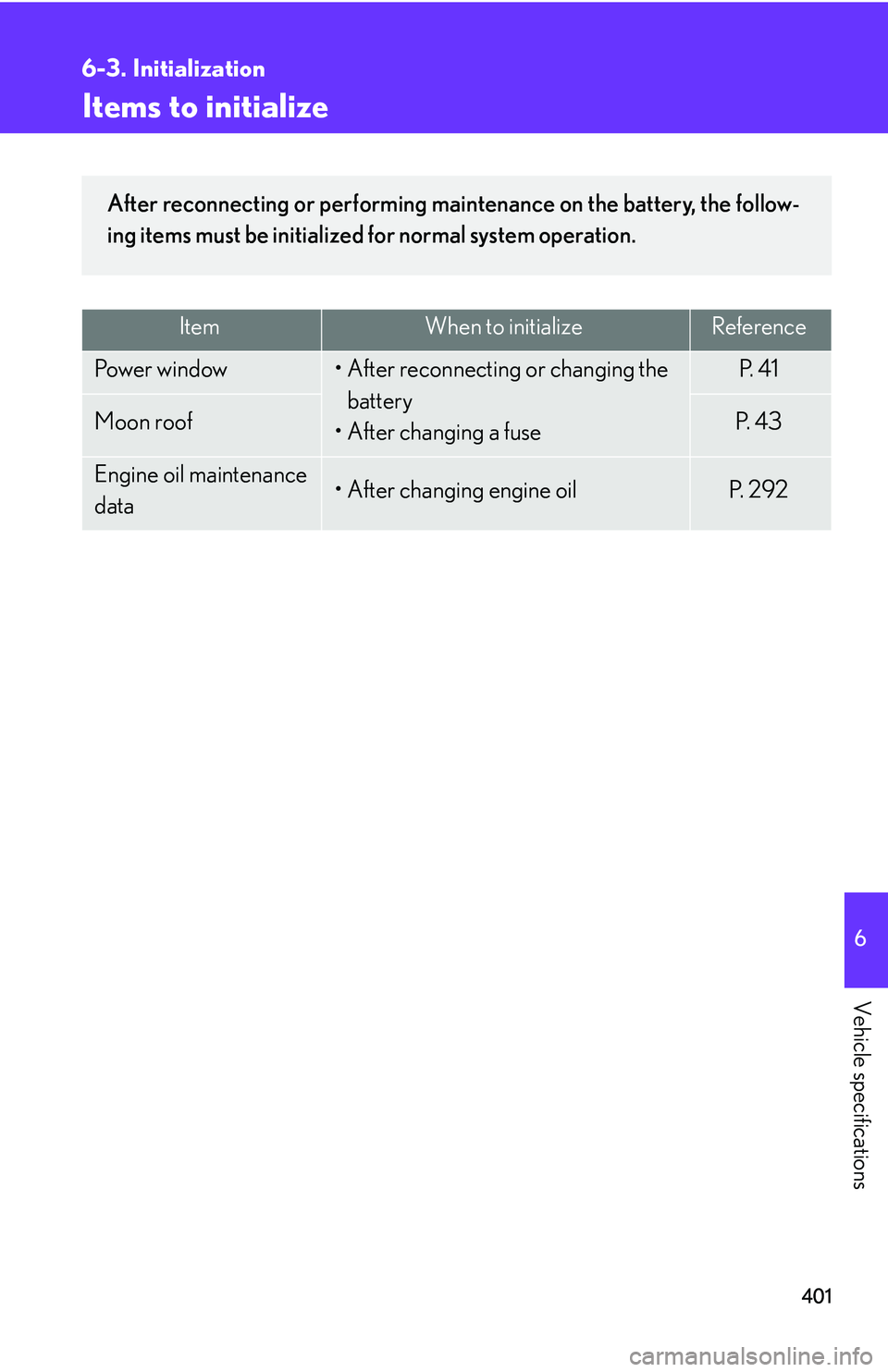

6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Pow e r w i n d ow• After reconnecting or changing the battery
• After changing a fuseP. 4 1
Moon roofP. 4 3
Engine oil maintenance
data• After changing engine oilP. 2 9 2
After reconnecting or performing main tenance on the battery, the follow-
ing items must be initialized for normal system operation.

408
Alphabetical index
Electronic modulated suspension .. 129
Emergency, in case ofIf a warning light turns on .............. 347
If the engine will not start........................................................ 367
If the shift lever cannot be shifted from P ...................................368
If the vehicle battery is discharged ....................................... 370
If you have a flat tire .........................356
If you lose your keys.........................369
If you think something is wrong ................................................... 343
If your vehicle becomes stuck..... 375
If your vehicle needs to be towed ...................................................338
If your vehicle overheats ................ 373
Engine Compartment ..................................... 287
Hood........................................................286
How to start the engine..................... 95
If the engine will not start........................................................ 367
Overheating......................................... 373
Engine compartment cover ............ 288
Engine coolant temperature gauge....................................................... 103
Engine coolant Capacity ................................................. 382
Checking ............................................... 294
Preparing and checking before winter ......................................146
Engine immobilizer system.................. 49 Engine oil
Capacity .................................................. 381
Checking............................................... 289
Preparing and checking before winter...................................... 146
Engine oil maintenance data ........... 292
Event data recorder ............................ 345
First-aid kit storage belt ..................... 246
Flat key .............................................................2
Floor mats ................................................ 244
Fluid Brake ....................................................... 296
Power steering ....................................297
Washer..................................................... 301
Fog lights Switch .......................................................... 113
Wattage ................................................. 386
Foot light .................................................. 225
Front passenger's seat belt
reminder light ...................................... 351
Front passenger occupant classification system ............................ 69
Front seats Adjustment ................................................ 13
Driving position memory .................. 24
Front turn signal lights Wattage ................................................. 386
Fuel Capacity ................................................380
Fuel gauge .............................................. 103
Gas station information ................... 416
Information ........................................... 387
Refueling ....................................................46
Fuel filler door ........................................... 46
Fuses ............................................................321E
F

411
Alphabetical index
Rear window defogger ........................ 169
Rear window wiper and washer ........117
Replacing Fuses .......................................................... 321
Light bulbs .............................................. 331
Reporting safety defects for U.S.A. owners .................................... 404
Roof luggage carrier ..............................39
Seat belts Adjusting the seat belt ....................... 28
Automatic Locking Retractor (ALR) ........................................................ 31
Child restraint system installation .............................................. 77
Cleaning and maintaining the seat belts......................................275
Emergency Locking Retractor (ELR) ......................................................... 31
How to wear your seat belt............. 28
How your child should wear the seat belt...........................................32
Pregnant women,
proper seat belt use..........................32
Reminder light....................................... 351
Seat belt extenders ...............................32
Seat belt pretensioners........................ 31
Seat heaters.............................................. 241
Seating capacity ..................................... 144 Seats
Child seats/child restraint system installation...............................77
Cleaning ................................................. 274
Driving position memory .................. 24
Folding up the third seat..................... 18
Head restraint ......................................... 26
Properly sitting in the seat ................ 54
Seat adjustment .......................................13
Seat adjustment precautions............. 14
Seat heaters ............................................241
Removing the third seat....................... 21
Tumbling the second seat ..................16
Security indicator................................... 106
Service reminder indicators ............. 106
Shift lever If the shift lever cannot be shifted from P .................................. 368
Shift lock system ....................................368
Side airbags................................................ 56
Side marker lights Switch............................................................ 111
Side mirror Adjusting and folding.......................... 37
Driving position memory .................. 24
Spare tire Inflation pressure ............................... 385
Spark plug................................................382
Specifications ......................................... 378
Speedometer .......................................... 103
S
