5

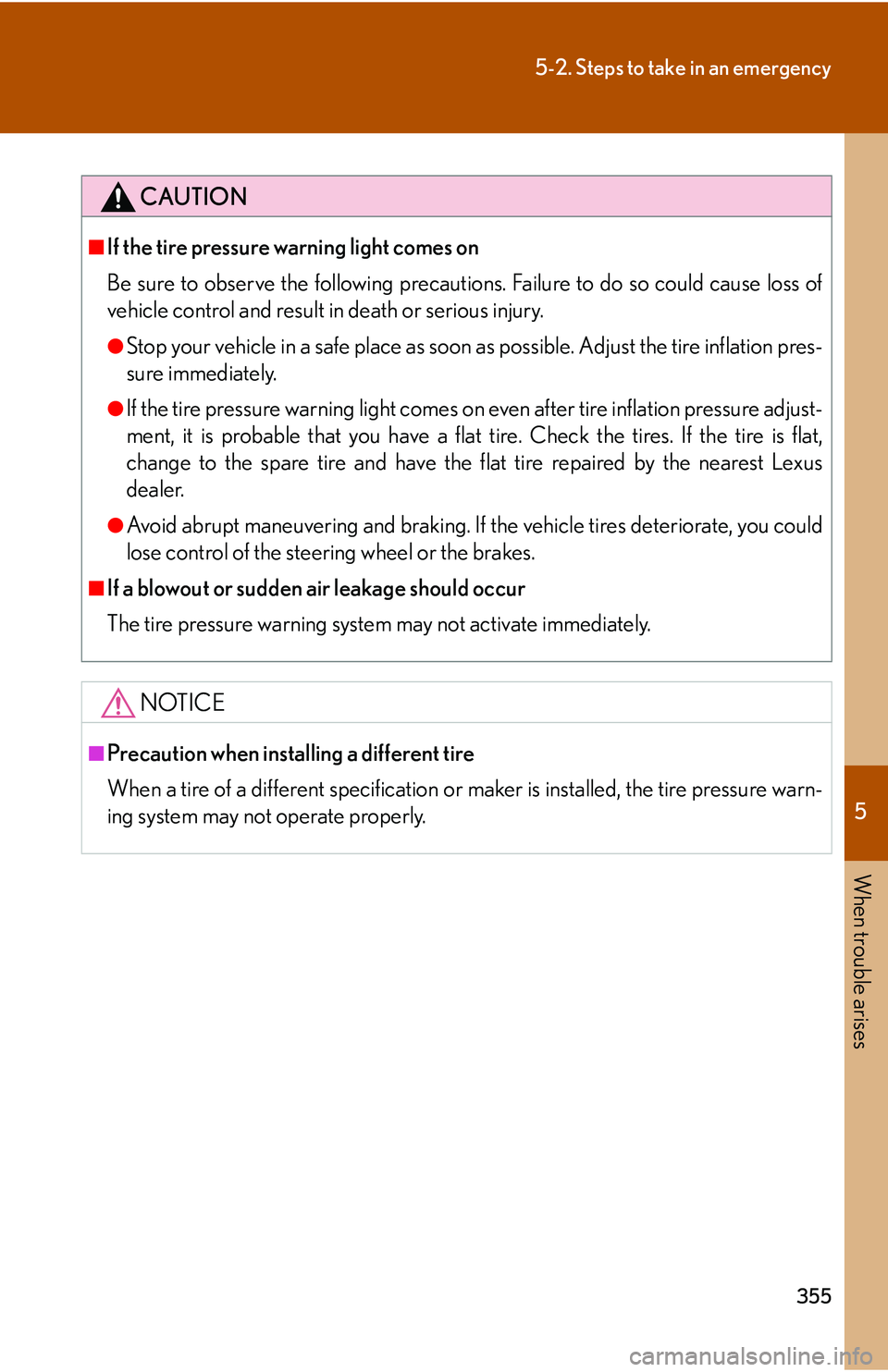

When trouble arises
355
5-2. Steps to take in an emergency
CAUTION
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause loss of
vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pres-
sure immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If the tire is flat,
change to the spare tire and have the flat tire repaired by the nearest Lexus
dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
NOTICE
■Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pressure warn-
ing system may not operate properly.

366
5-2. Steps to take in an emergency
NOTICE
■Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair.
■When stowing the flat tire
●Ensure that there is no object caught between the tire and the vehicle underbody.
●Vehicles with kinetic dynamic suspension: To avoid damaging the suspension sys-
tem, make sure that the spare tire does not interfere with the suspension compo-
nents when stowed.
■When replacing the tires
●When removing or fitting the wheels, tires or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and
transmitter may be damaged if not handled correctly.
●Replace the grommets for the tire pressure warning valves and transmitters as
well.
■To avoid damaging the tire pressu re warning valves and transmitters
Do not use liquid sealants on flat tires.

394
6-1. Specifications
■Treadwear
The treadwear grade is a comparative rating based on the wear rate of
the tire when tested under controll ed conditions on a specified gov-
ernment test course.
For example, a tire graded 150 would wear one and a half (1 - 1 /2) times as
well on the government course as a tire graded 100.
The relative performance of tires de pends upon the actual conditions of
their use, however, and may depart significantly from the norm due to varia-
tions in driving habits, service practices and differences in road characteris-
tics and climate.
■ Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C, and
they represent the tire's ability to stop on wet pavement as measured
under controlled condit ions on specified government test surfaces of
asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turning) trac-
tion.
■ Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire's resistance to the generation of heat and its ability to dissipate
heat when tested under controlled conditions on a specified indoor
laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate
and reduce tire life, and excessive temperature can lead to sudden tire fail-
ure.
The grade C corresponds to a level of performance which all passenger car
tires must meet under the Federal Mo tor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance on the laboratory
test wheel than the minimum required by law.

395
6-1. Specifications
6
Vehicle specifications
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in
combination, can cause heat build up and possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1
* that follows

406
Alphabetical index
Alphabetical index
A/C (Air conditioning system) ........ 162
ABS (Anti-lock Brake System) ........ 132
Active traction control......................... 132
Air conditioning system (A/C)Air conditioning filter .........................315
Automatic air conditioning system .................................................... 162
Airbags Airbag operating conditions........... 59
Airbag precautions for your child.......................................................... 64
Airbag warning light ........................348
Curtain shield airbag precautions .......................................... 66
General airbag precautions ........... 63
Locations of airbags............................ 56
Modification and disposal of airbags .................................................... 67
Side airbag precautions .................... 65
Side and curtain shield airbags operating conditions ....................... 59
SRS airbags ............................................. 56
Alarm ............................................................. 51
Antenna .......................................... 178, 269
Armrest ..................................................... 243
Ashtrays .................................................... 237
Audio system Antenna ....................................................178
CD player/changer ............................ 181
DVD information ...............................209
DVD player ..........................................200
DVD video/audio .............................205
MP3/WMA disc ................................ 188
Optimal use............................................194
Radio .......................................................... 173
Rear sear entertainment system ..................................................200 Steering switches ................................198
Video CD ................................................212
Automatic light control system............111
Automatic transmission ........................ 98
BA (Brake Assist)...................................132
Back door ...................................................... 11
Back-up lights Wattage ................................................. 386
Battery Battery .................................................... 299
Checking............................................... 299
If the vehicle battery is discharged ........................................ 370
Preparing and checking before winter...................................... 146
Brake Fluid .......................................................... 296
Parking brake........................................ 102
Care Exterior .................................................... 272
Interior...................................................... 274
Seat belts ................................................275
Cargo capacity....................................... 140
Cargo hooks .......................................... 245
CD player ................................................... 181
Center differential lock ......................... 121
Chains ......................................................... 147
Child-protectors..........................................7
Child restraint system (CRS) Definition ................................................... 74
Installation ................................................. 77
Installing CRS with lower anchorages ............................................ 81
Installing CRS with seatbelts ...........78A
B
C

408
Alphabetical index
Electronic modulated suspension .. 129
Emergency, in case ofIf a warning light turns on .............. 347
If the engine will not start........................................................ 367
If the shift lever cannot be shifted from P ...................................368
If the vehicle battery is discharged ....................................... 370
If you have a flat tire .........................356
If you lose your keys.........................369
If you think something is wrong ................................................... 343
If your vehicle becomes stuck..... 375
If your vehicle needs to be towed ...................................................338
If your vehicle overheats ................ 373
Engine Compartment ..................................... 287
Hood........................................................286
How to start the engine..................... 95
If the engine will not start........................................................ 367
Overheating......................................... 373
Engine compartment cover ............ 288
Engine coolant temperature gauge....................................................... 103
Engine coolant Capacity ................................................. 382
Checking ............................................... 294
Preparing and checking before winter ......................................146
Engine immobilizer system.................. 49 Engine oil
Capacity .................................................. 381
Checking............................................... 289
Preparing and checking before winter...................................... 146
Engine oil maintenance data ........... 292
Event data recorder ............................ 345
First-aid kit storage belt ..................... 246
Flat key .............................................................2
Floor mats ................................................ 244
Fluid Brake ....................................................... 296
Power steering ....................................297
Washer..................................................... 301
Fog lights Switch .......................................................... 113
Wattage ................................................. 386
Foot light .................................................. 225
Front passenger's seat belt
reminder light ...................................... 351
Front passenger occupant classification system ............................ 69
Front seats Adjustment ................................................ 13
Driving position memory .................. 24
Front turn signal lights Wattage ................................................. 386
Fuel Capacity ................................................380
Fuel gauge .............................................. 103
Gas station information ................... 416
Information ........................................... 387
Refueling ....................................................46
Fuel filler door ........................................... 46
Fuses ............................................................321E
F

412
Alphabetical index
Steering wheelAdjustment............................................... 35
Audio switches .................................... 198
Driving position memory...................24
Storage feature......................................228
Stuck If your vehicle becomes stuck..... 375
Sun visors .................................................233
Switch “2nd STRT” switch ............................... 99
Center differential lock switch ........121
“DAC” switch ....................................... 130
Fog light switch .......................................113
Height control off switch.................. 123
Light switches ........................................... 111
Power door lock switch ........................6
Power window switch .......................... 41
“RSCA OFF” switch............................ 68
Window lock switch ............................. 41
Wipers and washer switch ...............114
Tail lights Switch ........................................................... 111
Theft deterrent system Alarm ............................................................ 51
Theft prevention labels .......................... 53
Tire inflation pressure ........................ 385
Tire information Glossary.................................................395
Size ........................................................... 392
Tire identification number ...............391
Uniform Tire Quality Grading.... 393 Tires
Chains....................................................... 147
Checking............................................... 302
If you have a flat tire ......................... 356
Inflation pressure ............................... 385
Information ........................................... 390
Pressure warning system .............. 302
Replacing .............................................. 356
Rotating tires........................................ 302
Size ........................................................... 385
Snow tires................................................ 148
Tools........................................................... 356
Total load capacity .................................144
Towing Dinghy towing ......................................160
Emergency towing ........................... 339
Trailer towing ........................................150
Trip information display ...................... 108
Trip meter ................................................. 103
Turn signal lights Replacing light bulbs ......................... 331
Switch ..........................................................101
Wattage ................................................. 386
Vanity lights Vanity lights...........................................234
Wattage ................................................. 386
Vanity mirrors ............................................234
Vehicle identification number......... 379
Vehicle load limits ..................................144
VSC (Vehicle Stability Control) ......132
T
V

413
Alphabetical index
Warning buzzersSeat belt reminder .............................. 351
Warning lights “AIRBAG ON/OFF” indicators..............................................106
Anti-lock brake system (ABS) ... 349
Brake system ........................................347
Charging system ............................... 348
Downhill assist control indicator................................................106
Engine oil replacement reminder light...................................350
Height control indicator...................106
Low engine oil pressure ................ 348
Low fuel level.......................................350
Low washer fluid................................350
Malfunction indicator lamp .......... 348
Open door ...........................................350
Seat belt reminder light .................... 351
SRS airbags .......................................... 348
Tire pressure warning light............. 351
Unengaged “P” .................................. 349
“VSC TRAC” ...................................... 349
Warning reflector holder...................246
Washer Checking .................................................301
Preparing and checking before winter ...................................... 146
Switch .......................................................... 114
Washing and waxing ........................... 272
Weight Cargo capacity ....................................140
Load limits ............................................... 144
Weight .................................................... 378 Wheels ....................................................... 313
Window glasses ........................................41
Window lock switch .................................41
Windows
Power windows ....................................... 41
Rear window defogger.................... 169
Washer ...................................................... 114
Windshield wipers ...................................... 114
Winter driving tips ................................. 146
Wireless remote control Locking/Unlocking ................................ 4
Replacing the battery.........................317
WMA disc ................................................ 188W

415
What to do if...
The warning light or indicator
light comes onP. 3 4 7If the warning light turns on
■Warning lights
or orv
P. 3 4 7P. 3 4 8
P. 3 5 1
or
P. 3 4 9P. 3 5 1
P. 3 4 9P. 3 5 1
P. 3 5 0P. 3 4 9
P. 3 4 8P. 3 4 9
P. 3 5 0P. 3 4 9
P. 3 4 8P. 3 5 0
P. 3 4 8
Brake system warning lightMalfunction indicator lamp
ABS warning lightDriver’s seat belt reminder
light
Front passenger’s seat belt
reminder light
“VSC/TRAC” warning lightTire pressure warning light
Kinetic dynami c suspension
system warning lightLow fuel level warning light
Automatic transmission fluid
temperature warning lightSRS warning light
Open door warning lightUnengaged “Park” warning
light
Charging system warning
lightLow washer fluid warning
light
Low engine oil pressure
warning light
