297
3-2. Using the audio system
3
Interior features
HS250h_U_75033U(Canada)

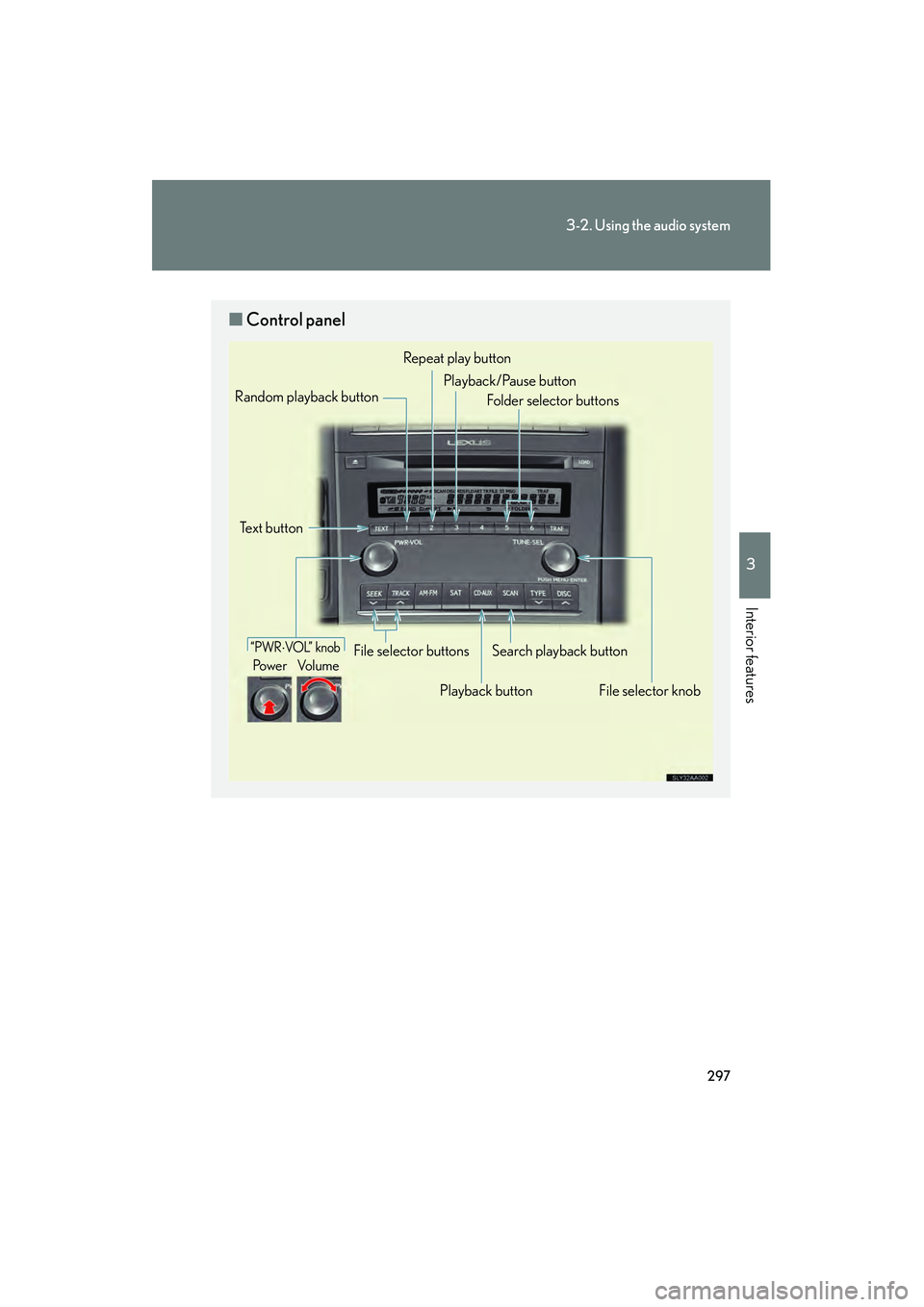

■Control panel
“PWR⋅VOL” knob
Po we r Vo l u m e
Repeat play button
Folder selector buttons
Random playback button
File selector buttons Search playback buttonPlayback button File selector knobPlayback/Pause button
Te x t b u t t o n

319
3-3. Using the Bluetooth® audio system
3
Interior features
HS250h_U_75033U(Canada)
Operating a Bluetooth® enabled portable player
“PWR⋅VOL” knob
Po we r Vo l u m e
Text button
Playback buttonSearch playback button
Random playback button
BT·A menu knob
Repeat play button
Track selector buttons Playback/Pause button
Album selector buttons

383
3-7. Other interior features
3
Interior features
HS250h_U_75033U(Canada)
Garage door opener
The garage door opener (HomeLink Universal Transceiver) is manufactured
under license from HomeLink.
Programming the HomeLink (for U.S.A. owners)
The HomeLink
 compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Overhead console type
Indicator light
Buttons
Inside rear view mirror type Indicator light
Buttons
The garage door opener can be programmed to operate garage doors,
gates, entry doors, door locks, home lighting systems, security systems, and
other devices.

384
3-7. Other interior features
HS250h_U_75033U(Canada)■
Programming HomeLink

Overhead console type
Point the remote control transmit-
ter for the device 1 to 3 in. (25 to
75 mm) from the HomeLink
 but-
tons.
Keep the HomeLink indicator
light in view while programming.
Inside rear view mirror type
Point the remote control transmit-
ter for the device 1 to 3 in. (25 to
75 mm) from the HomeLink
 but-
tons.
Keep the HomeLink indicator
light in view while programming.
Overhead console type
Press and hold one of the
HomeLink
 buttons and the trans-
mitter button. When the
HomeLink
 indicator light
changes from a slow to a rapid
flash, you can release both buttons.
If the HomeLink indicator light
comes on but does not flash, or
flashes rapidly for 2 seconds and
remains lit, the HomeLink
 button
is already programmed. Use the
other buttons or follow the “Repro-
gramming a HomeLink
 button”
instructions. ( →P. 3 8 8 )

385
3-7. Other interior features
3
Interior features
HS250h_U_75033U(Canada)Inside rear view mirror type
Press and hold one of the
HomeLink
 buttons and the trans-
mitter button. When the
HomeLink
 indicator light
changes from a slow to a rapid
flash after 20 seconds, release
both buttons.
Overhead console type Test the HomeLink
 operation by
pressing the newly programmed
button.
If a HomeLink button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
garage transmitter is of the rolling
code type. Press and hold the pro-
grammed HomeLink
 button. The
remote control transmitter is of the
rolling code type if the HomeLink

indicator light flashes rapidly for 2
seconds and then remains lit. If
your transmitter is the rolling code
type, proceed to the heading “Pro-
gramming a rolling code system”.

386
3-7. Other interior features
HS250h_U_75033U(Canada)Inside rear view mirror type
Test the HomeLink
 operation by
pressing the newly programmed
button.
If a HomeLink button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
garage transmitter is of the rolling
code type. Press and hold the pro-
grammed HomeLink
 button. The
remote control transmitter is of the
rolling code type if the HomeLink

indicator light flashes rapidly for 2
seconds and then remains lit. If
your transmitter is the rolling code
type, proceed to the heading “Pro-
gramming a rolling code system”.
Repeat the steps above to program another device for any of the
remaining HomeLink buttons.
■ Programming a rolling code system (for U.S.A. owners)
If your device is rolling code equipped, follow the steps under the
heading “Programming HomeLink
” before proceeding with the
steps listed below.
Locate the training button on the ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener motor.
Refer to the operation manual supplied with the garage door opener
for the location of the training button.
Press the training button.
Following this step, you have 30 seconds in which to initiate step 3
below.

387
3-7. Other interior features
3
Interior features
HS250h_U_75033U(Canada)Press and hold the vehicle’s programmed HomeLink
 button for
2 seconds and release it. Repeat this step once again. The garage
door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should now recognize
the HomeLink
 signal and operate the garage door.
Repeat the steps above to program another rolling code system
for any of the remaining HomeLink buttons.
■ Programming an entry gate (for U.S. owners)/Programming a
devices in the Canadian market
Place the remote control transmit ter 1 to 3 in. (25 to 75 mm)
away from the HomeLink
 buttons.
Keep the HomeLink indicator light in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the remote control trans-
mitter for 2 seconds each until step 4 is completed.
When the HomeLink
 indicator light starts to flash rapidly,
release the buttons.
Test the HomeLink
 operation by pressing the newly pro-
grammed button. Check to see if the gate/device operates cor-
rectly.
Repeat the steps above to program another device for any of the
remaining HomeLink
 buttons.
■ Programming other devices
To program other devices such as home security systems, home door
locks and lighting, contact your Lexus dealer for assistance.
■ Reprogramming a button
The individual HomeLink
 buttons cannot be erased but can be
reprogrammed. To reprogram a button, follow the “Reprogramming a
HomeLink
 button” instructions.
