450
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)

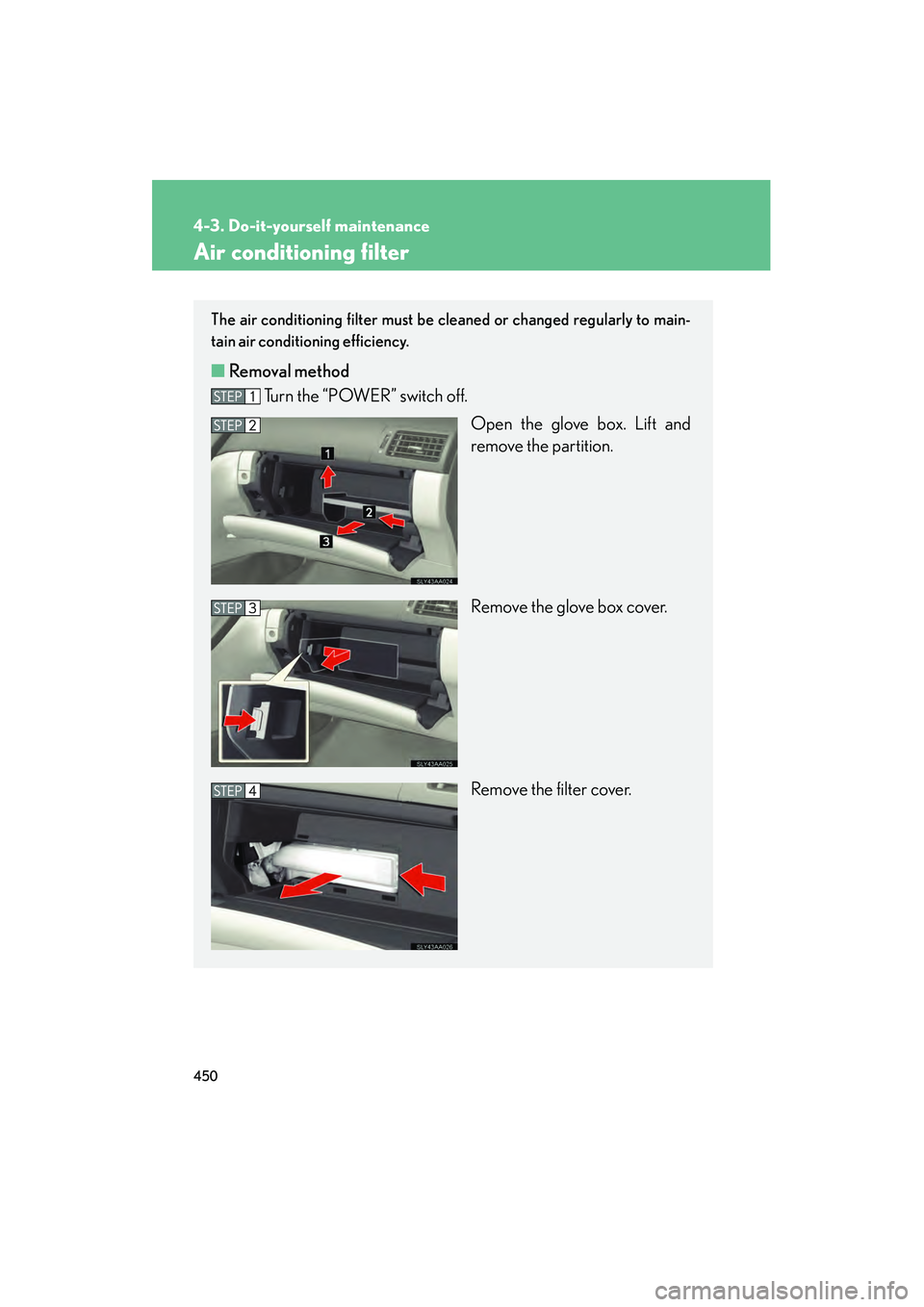

Air conditioning filter
The air conditioning filter must be cleaned or changed regularly to main-
tain air conditioning efficiency.
■ Removal method
Turn the “POWER” switch off.
Open the glove box. Lift and
remove the partition.
Remove the glove box cover.
Remove the filter cover.

462
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)Driver’s side instrument panel
FuseAmpereCircuit
1TA I L10 AParking lights, tail lights, license plate
lights, side maker lights, front fog lights
2PA N E L10 A
Navigation system, audio system, air
conditioning system, emergency
flashers switch, wiper de-icer switch,
seat heater switch, P position switch,
headlight cleaner switch, front pas-
senger’s seatbelt reminder light,
power window switch, VSC-OFF
switch, HUD switch, AFS-OFF switch,
POWER ·ECO· EV mode switch,
view select switch, trunk opener
switch, fuel lid opener switch, glove
box light, rear sun shade switch,
remote touch, rear view mirror switch

598
Alphabetical index
HS250h_U_75033U(Canada)
Front side marker lightReplacing light bulbs........................ 469
Wattage................................................. 558
Front turn signal lights
Replacing light bulbs........................ 469
Switch ....................................................... 159
Wattage................................................. 558
Fuel
Capacity................................................. 552
Fuel gauge .............................................. 162
Gas station information................. 608
Information............................................559
Refueling ................................................... 92
Type..........................................................559
Fuel door ..................................................... 92
Fuel filler door ........................................... 92
Fuses ..........................................................455
Garage door opener ......................... 383
Gas station information..................... 608
Gauges ...................................................... 162
Glove box ................................................364
Grocery bag hooks .............................. 381
Hands-free system (for cellular phone) ...........................328
Head restraints Adjustment ............................................... 71
Headlights aim ....................................... 467
Headlights cleaner .............................. 200
Headlights Adaptive front lighting
system ................................................... 185
Discharge headlights
precautions ...................................... 480
Replacing light bulbs........................ 469 Switch ........................................................ 183
Wattage .................................................558
Heaters Seat heaters ..........................................375
Side mirrors.......................................... 260
Hill-start assist control ........................ 230
Hood ............................................................419
Hooks
Grocery bag ......................................... 381
Horn .............................................................. 161
Hybrid system Emergency shut off system ..............28
Energy monitor/consumption ........................................ 32
Engine switch ........................................ 145
High voltage components................ 27
Hybrid system indicators ................ 165
Ignition switch ....................................... 145
Power switch ......................................... 145
I/M test .......................................................415
Identification Electric motor .......................................551
Engine ....................................................... 551
Vehicle....................................................550
Ignition switch ..........................................145
Illuminated entry system ....................360
Immobilizer system................................. 96
Indicator lights .........................................165
Initialization
Items to initialize.................................586
Inside rear view mirror ............................81
Instrument panel light control ...........163
Interior lights
Interior lights ........................................ 360
Switch ........................................................ 361
