Page 4 of 611
TABLE OF CONTENTSIndex
HS250h_U_75033U(Canada)
2
1-1. Hybrid systemHybrid system................................... 24
Hybrid system precautions ......... 27
Energy monitor/consumption screen................................................ 32
Hybrid vehicle driving tips........... 37
1-2. Key information Keys ...................................................... 39
1-3. Opening, closing and locking the doors
Smart access system with push-button start .......................... 44
Wireless remote control .............. 54
Doors.................................................... 57
Trunk..................................................... 60 1-4. Adjustable components (seats,
mirrors, steering wheel)
Front seats.......................................... 64
Driving position memory (driver’s seat) ................................. 68
Head restraints................................... 71
Seat belts ............................................ 73
Steering wheel.................................. 79
Inside rear view mirror................... 81
Outside rear view mirrors ........... 83
1-5. Opening and closing the windows and moon roof
Power windows................................ 86
Moon roof .......................................... 89
1-6. Refueling Opening the fuel tank cap........... 92
1-7. Theft deterrent system Immobilizer system ........................ 96
Alarm.................................................... 98
Theft prevention labels (for U.S.A.) ..................................... 101
1Before driving
For information regarding the equipment listed below, refer to the “Navigation
System Owner’s Manual”.
• Navigation system
• Air conditioning
• Windshield wiper de-icer
• Rear view monitor system
• Intuitive parking assist • Audio/video system
• Rear window and outside rear view
mirror defogging
•Climate control
• Wide view front monitor system
Page 18 of 611
HS250h_U_75033U(Canada)
16
Pictorial indexInstrument panel
Telephone switches ∗ *2P. 333
Multi-information
switches
P. 169
Audio remote
control switches
*2P. 308
Cruise control switch∗
Dynamic radar cruise control switch
∗
P. 201
P. 205
Distance switch ∗ P. 205
LKA (Lane Keeping Assist) switch
∗ P. 217
Horn P. 161
Talk switch ∗ *2P. 333
Page 21 of 611
HS250h_U_75033U(Canada)
19
Installation of a mobile two-way radio system
As the installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as the multiport fuel injection system/sequential multiport
fuel injection system, cruise control system, anti-lock brake system, SRS airbag sys-
tem and seat belt pretensioner system, be sure to check with your Lexus dealer for
precautionary measures or special instructions regarding installation.
High voltage parts and cables on the hybrid vehicles emit approximately the same
amount of electromagnetic waves as the conventional gasoline powered vehicles or
home electronic appliances despite of their electromagnetic shielding.
Unwanted noise may occur in the reception of the mobile two-way radio.
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These components may
include airbag, seat belt pretensioners, and wireless remote control batteries.
Page 25 of 611
Before driving1
23
HS250h_U_75033U(Canada)
1-1. Hybrid systemHybrid system ............................ 24
Hybrid system precautions .... 27
Energy monitor/consumption screen ............. 32
Hybrid vehicle driving tips...... 37
1-2. Key information Keys ............................................... 39
1-3. Opening, closing and locking the doors
Smart access system with push-button start .................... 44
Wireless remote control ......... 54
Doors ............................................ 57
Trunk ............................................. 60
1-4. Adjustable components (seats, mirrors, steering
wheel)
Front seats ................................... 64
Driving position memory (driver’s seat).......... 68
Head restraints ........................... 71
Seat belts ..................................... 73
Steering wheel ........................... 79
Inside rear view mirror ............. 81 Outside rear view mirrors...... 83
1-5. Opening and closing the windows and moon roof
Power windows .......................... 86
Moon roof ................................... 89
1-6. Refueling Opening the fuel tank cap ..... 92
1-7. Theft deterrent system Immobilizer system .................. 96
Alarm............................................ 98
Theft prevention labels (for U.S.A.) .............................. 101
1-8. Safety information Correct driving posture ....... 102
SRS airbags .............................. 104
Front passenger occupant classification system.............. 116
Child restraint systems .......... 121
Installing child restraints....... 125
Page 41 of 611
39
1
Before driving
HS250h_U_75033U(Canada)
1-2. Key information
Keys
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart accesssystem with push-button start
(→ P. 4 4 )
• Operating the wireless remote control function
(→ P. 5 4 )
Mechanical keys
Key number plate
Card key (electronic key) (if
equipped)
Operating the smart access sys-
tem with push-button start
(→ P. 4 4 )
Page 51 of 611
49
1-3. Opening, closing and locking the doors
1
Before driving
HS250h_U_75033U(Canada)
●If the smart access system with push-button start has not been used for 14 days
or longer, the doors cannot be unlocked at any doors except the driver’s door.
In this case, take hold of the driver’s door handle, or use the wireless remote
control or the mechanical key, to unlock the doors.
■Conditions affecting operation
The smart access system with push-button start uses weak radio waves. In the fol-
lowing situations, the communication between the electronic key and the vehicle
may be affected, preventing the smart access system with push-button start, wire-
less remote control and immobilizer system from operating properly.
(Ways of coping: →P. 5 3 3 )
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wire-
less communication devices
●When the electronic key is in contact with, or is covered by the following metal-
lic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When other wireless key (that emit radio waves) is being used nearby
●When carrying the electronic key together with the following devices that emit
radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or metallic objects are attached to the rear
window
Page 52 of 611
50
1-3. Opening, closing and locking the doors
HS250h_U_75033U(Canada)
■Note for the entry function
●Even when the electronic key is within the effective range (detection areas), the
system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near theground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear bumper center when the trunk is unlocked.
• The electronic key is on the instrument panel, rear package tray or floor, or in
the door pockets or glove box when the hybrid system is started or
“POWER” switch modes are changed.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone.
●Even if the electronic key is not inside the vehicle, it may be possible to start the
hybrid system if the electronic key is near the window.
●The doors may unlock if a large amount of water splashes on the door handle,
such as in the rain or in a car wash when the electronic key is within the effective
range. (The door will automatically be locked after approximately 60 seconds if
the doors are not opened and closed.)
●Gripping the door handle when wearing a glove may not unlock the door.
●If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by the
entry function. (Use the wireless remote control to unlock the doors.)
●A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the original
position and check that the doors unlock before pulling the door handle again.
■Notes for locking the doors
●Touching the door lock sensor while wearing gloves may delay or prevent lock
operation. Remove the gloves and touch the lock sensor again.
●When the lock operation is performed using the lock sensor, recognition signals
will be shown up to two consecutive time s. After this, no recognition signals will
be given.
●If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. Place the key in a position 6 ft.
(2 m) or more separate from the vehicle while the vehicle is being washed. (Take
care to ensure that the key is not stolen.)

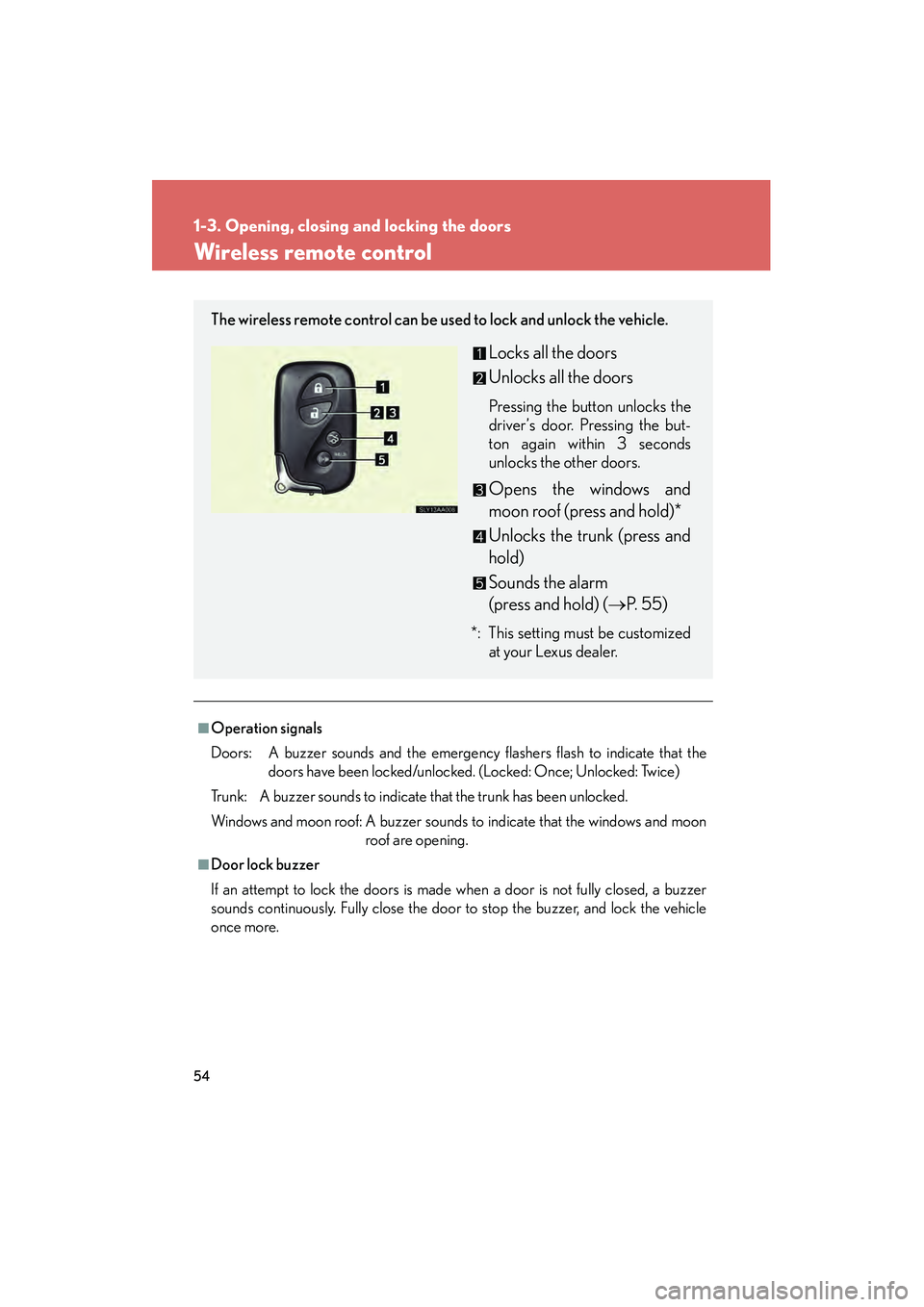

Page 56 of 611
54
1-3. Opening, closing and locking the doors
HS250h_U_75033U(Canada)
Wireless remote control
■Operation signals
Doors: A buzzer sounds and the emergency flashers flash to indicate that thedoors have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Trunk: A buzzer sounds to indicate that the trunk has been unlocked.
Windows and moon roof: A buzzer sounds to indicate that the windows and moon roof are opening.
■Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a buzzer
sounds continuously. Fully close the door to stop the buzzer, and lock the vehicle
once more.
The wireless remote control can be us ed to lock and unlock the vehicle.
Locks all the doors
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 3 seconds
unlocks the other doors.
Opens the windows and
moon roof (press and hold)*
Unlocks the trunk (press and
hold)
Sounds the alarm
(press and hold) (→P. 5 5 )
*: This setting must be customized
at your Lexus dealer.
Page 57 of 611
55
1-3. Opening, closing and locking the doors
1
Before driving
HS250h_U_75033U(Canada)
■Pa n i c m o d e
■Security feature
→P. 4 8
■Alarm
Using the wireless remote control to lock the doors will set the alarm system.
(→ P. 9 8 )
■Conditions affecting operation
→P. 4 9
■If the wireless remote control does not operate properly
Locking and unlocking the doors, unlocking the trunk: Use the mechanical key.
(→ P. 5 3 3 )
■Electric key battery depletion
→P. 5 2
■When the electric key battery is fully depleted
→P. 4 5 3
■Customization
Settings (e.g. door unlocking function) can be changed.
(Customizable features →P. 5 74 ) When is pressed for longer than about
one second, an alarm will sound intermit-
tently and the vehicle lights will flash to deter
any person from trying to break into or dam-
age your vehicle.
To stop the alarm, press any button on the
electronic key.
Page 58 of 611
56
1-3. Opening, closing and locking the doors
HS250h_U_75033U(Canada)
■Certification for wireless remote control
For vehicles sold in the U.S.A.
FCC ID: HYQ14ACX FCC ID: HYQ14ADF
FCC ID: HYQ14AEB FCC ID: HYQ14AEF
FCC ID: HYQ13CZK FCC ID: HYQ13CZL
FCC ID: NI4TMLF8-13
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
