Lexus HS250h 2010 Owner's Manual

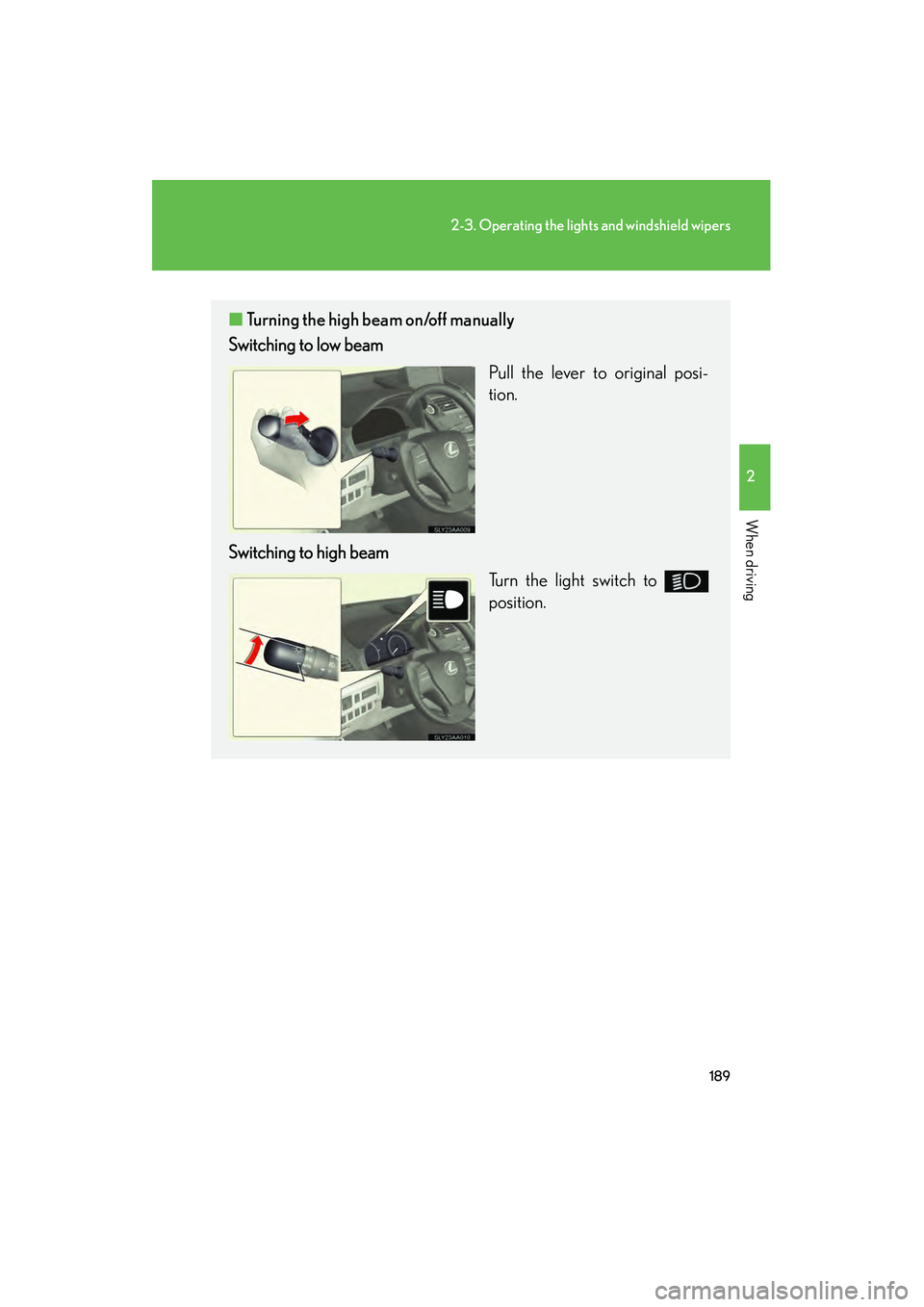

189
2-3. Operating the lights and windshield wipers
2
When driving
HS250h_U_75033U(Canada)
■Turning the high beam on/off manually
Switching to low beam
Pull the lever to original posi-
tion.
Switching to high beam Turn the light switch to
position.

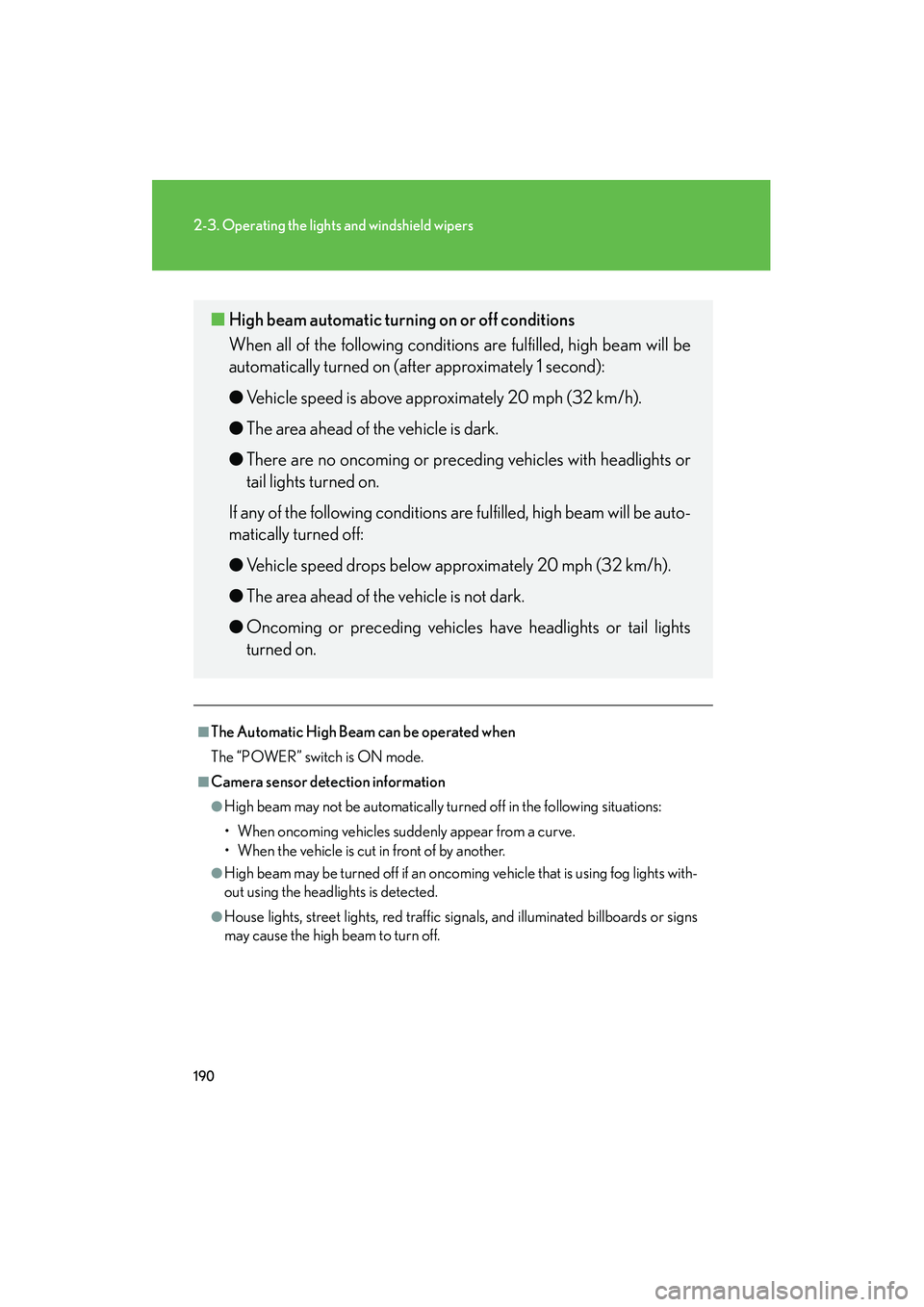

190
2-3. Operating the lights and windshield wipers
HS250h_U_75033U(Canada)
■The Automatic High Beam can be operated when
The “POWER” switch is ON mode.
■Camera sensor detection information
●High beam may not be automatically turned off in the following situations:
• When oncoming vehicles suddenly appear from a curve.
• When the vehicle is cut in front of by another.
●High beam may be turned off if an oncoming vehicle that is using fog lights with-
out using the headlights is detected.
●House lights, street lights, red traffic signals, and illuminated billboards or signs
may cause the high beam to turn off.
■High beam automatic turn ing on or off conditions
When all of the following conditions are fulfilled, high beam will be
automatically turned on (after approximately 1 second):
● Vehicle speed is above approximately 20 mph (32 km/h).
● The area ahead of the vehicle is dark.
● There are no oncoming or preceding vehicles with headlights or
tail lights turned on.
If any of the following conditions are fulfilled, high beam will be auto-
matically turned off:
● Vehicle speed drops below approximately 20 mph (32 km/h).
● The area ahead of the vehicle is not dark.
● Oncoming or preceding vehicles have headlights or tail lights
turned on.

191
2-3. Operating the lights and windshield wipers
2
When driving
HS250h_U_75033U(Canada)
●The following factors may affect the amount of time taken to turn high beam on
or off:
• The brightness of headlights, fog lights, and tail lights of oncoming and pre-ceding vehicles
• Road conditions (wetness, ice, snow etc.)
• The number of passengers and amount of baggage
●High beam may be turned on or off when unexpected by the driver.
●In the situations below, the system may not be able to correctly detect the sur-
rounding brightness levels, and may flash or expose nearby pedestrians to the
high beam. Therefore, you should consider turning the high beams on or off
manually rather than relying on the Automatic High Beam System.
• In bad weather (rain, snow, fog, sandstorms etc.)
• The windshield is obscured by fog, mist, ice, dirt etc.
• The windshield is cracked or damaged.
• The inside rear view mirror or camera sensor is deformed or dirty.
• Surrounding brightness levels are equal to those of headlights, tail lights or fog lights.
• Vehicles ahead have headlights that are either switched off, dirty, are chang-
ing color, or have are not aimed properly.
• When driving through an area of intermittently changing brightness and darkness
• When frequently and repeatedly driving ascending/descending roads, or roads with rough, bumpy or uneven surfaces (such as stone-paved roads,
gravel tracks etc.)
• When frequently and repeatedly taking curves or driving on a winding road
• There is a highly reflective object ahead of the vehicle, such as a sign or a mir- ror.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or tilting, due to a flat tire, a trailer being towed etc.
• The Automatic High Beam indicator is flashing.
• The high beam and low beam are repeatedly being switched between in an abnormal manner.
• The driver believes that the high beam may be causing problems or distress to other drivers or pedestrians nearby.

192
2-3. Operating the lights and windshield wipers
HS250h_U_75033U(Canada)
■If the Automatic High Beam indicator flashes
It may indicate a malfunction in the system. Contact your Lexus dealer.
■Temporary lowering sensor sensitivity
The sensitivity of the sensor can be temporarily lowered.
To lower the sensitivity, push and hold the “AUTO” button on the inside rear view
mirror for 15 to 20 seconds, and release. The indicator light on the inside rear view
mirror will flash to indicate that the sensitivity has been lowered.
When the “POWER” switch is turned off, the sensitivity will be returned to its nor-
mal level.
■Customization that can be configured at your Lexus dealer
The Automatic High Beam can be turned off.

193
2-3. Operating the lights and windshield wipers
2
When driving
HS250h_U_75033U(Canada)
NOTICE
■Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care to
observe your surroundings and turning high beam on or off manually if necessary.
■Notes when using the Automatic High Beam system
●Do not touch the camera sensor.
●Do not subject the inside rear view mirror or the camera sensor to a strong
impact.
●Do not disassemble the camera sensor.
●Do not spill liquid onto the inside rear view mirror or the camera sensor.
●Do not apply window tinting or stickers to the camera sensor or the area of wind-
shield near the camera sensor.
●Do not place items on the dashboard. There is a possibility that the camera sensor
will mistake items reflected in the windshield for streetlights, the headlights of
other vehicles, etc.
●Do not install a parking tag or any other accessories near or around the inside
rear view mirror and the camera sensor.
●Do not overload the vehicle.
●Do not modify the vehicle.
●Do not replace windshield with non-genuine windshield.
Contact your Lexus dealer.
Observe the following to ensure that the
Automatic High Beam functions correctly.

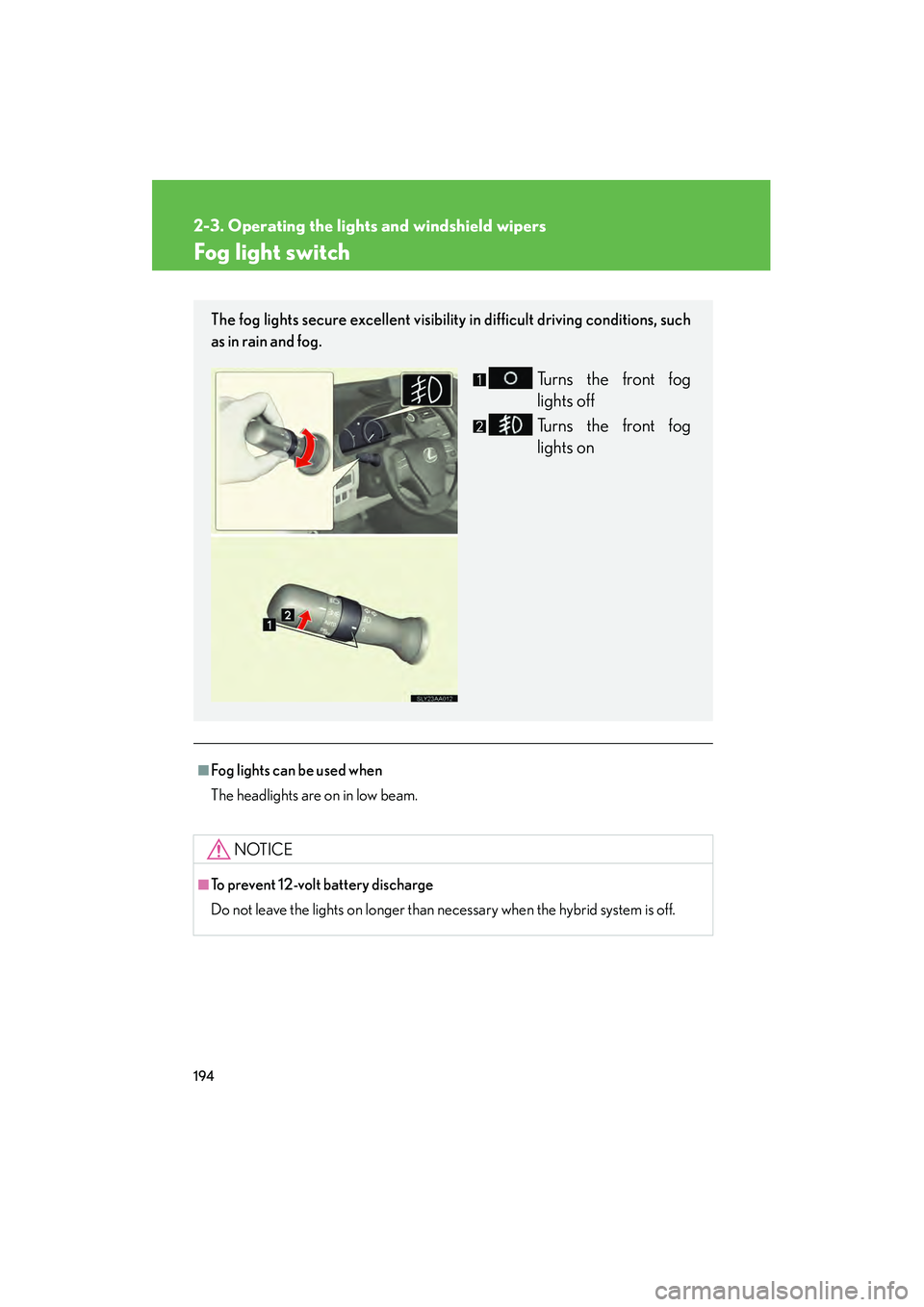

194
2-3. Operating the lights and windshield wipers
HS250h_U_75033U(Canada)
Fog light switch
■Fog lights can be used when
The headlights are on in low beam.
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is off.
The fog lights secure excellent visibility in difficult driving conditions, such
as in rain and fog.
Turns the front fog
lights off
Turns the front fog
lights on

195
2-3. Operating the lights and windshield wipers
2
When driving
HS250h_U_75033U(Canada)
Windshield wipers and washer
Intermittent windshield wipers with interval adjuster (if equipped)
The wiper operation is selected as follows by turning the switch ring.
When intermittent windshield wiper operation is selected, wiper inter-
vals can be also adjusted.
Intermittent wind-
shield wiper operation
Low speed windshield
wiper operation
High speed wind-
shield wiper operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency

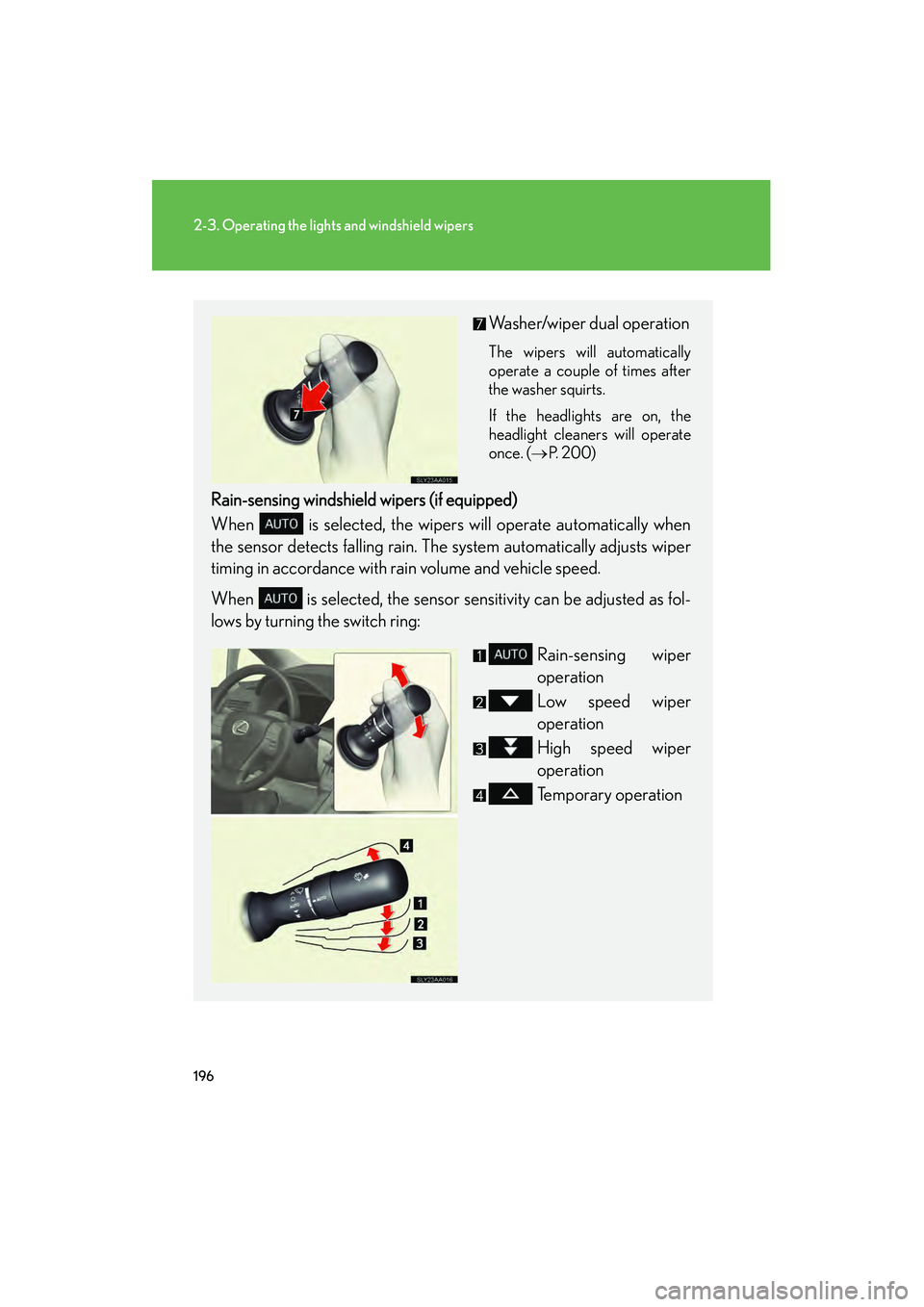

196
2-3. Operating the lights and windshield wipers
HS250h_U_75033U(Canada)
Washer/wiper dual operation
The wipers will automatically
operate a couple of times after
the washer squirts.
If the headlights are on, the
headlight cleaners will operate
once. (→P. 200)
Rain-sensing windshield wipers (if equipped)
When is selected, the wipers will operate automatically when
the sensor detects falling rain. The system automatically adjusts wiper
timing in accordance with rain volume and vehicle speed.
When is selected, the sensor sensitivity can be adjusted as fol-
lows by turning the switch ring:
Rain-sensing wiper
operation
Low speed wiper
operation
High speed wiper
operation
Temporary operation

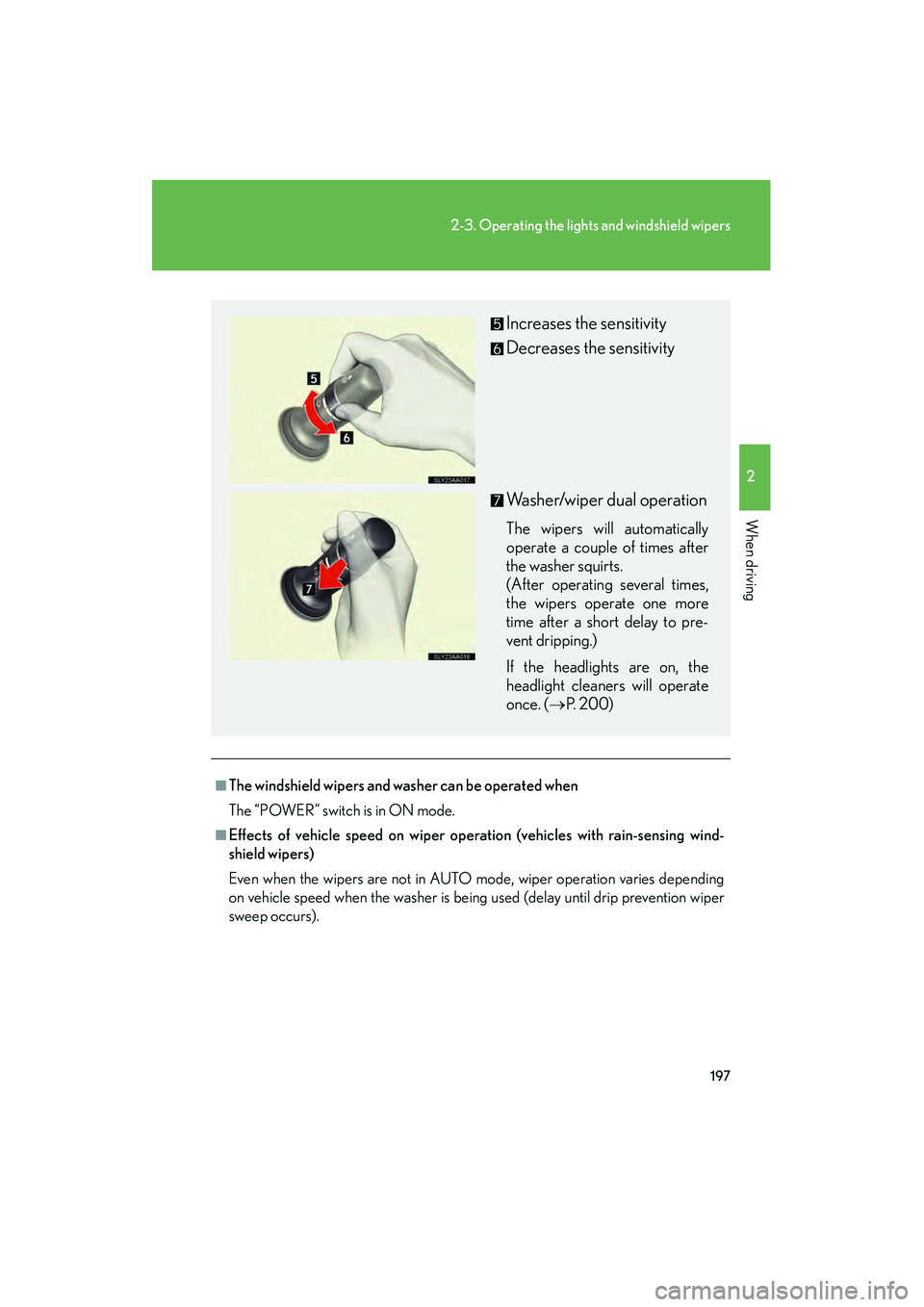

197
2-3. Operating the lights and windshield wipers
2
When driving
HS250h_U_75033U(Canada)
■The windshield wipers and washer can be operated when
The “POWER” switch is in ON mode.
■Effects of vehicle speed on wiper operation (vehicles with rain-sensing wind-
shield wipers)
Even when the wipers are not in AUTO mode, wiper operation varies depending
on vehicle speed when the washer is being used (delay until drip prevention wiper
sweep occurs).
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
The wipers will automatically
operate a couple of times after
the washer squirts.
(After operating several times,
the wipers operate one more
time after a short delay to pre-
vent dripping.)
If the headlights are on, the
headlight cleaners will operate
once. (→P. 200)

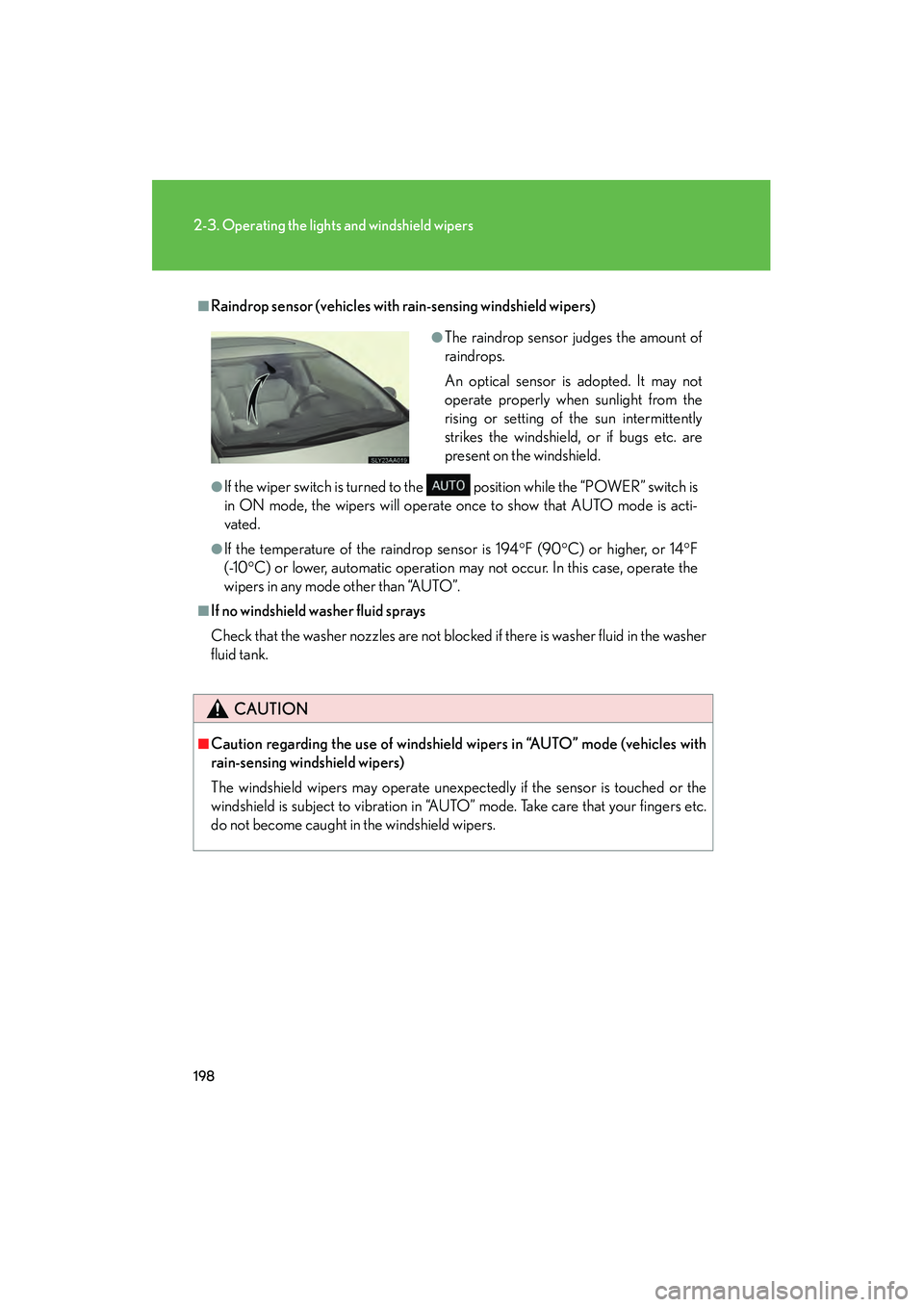

198
2-3. Operating the lights and windshield wipers
HS250h_U_75033U(Canada)
■Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If the wiper switch is turned to the position while the “POWER” switch is
in ON mode, the wipers will operate once to show that AUTO mode is acti-
vated.
●If the temperature of the raindrop sensor is 194 °F (90 °C) or higher, or 14 °F
(-10 °C) or lower, automatic operation may not occur. In this case, operate the
wipers in any mode other than “AUTO”.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the washer
fluid tank.
CAUTION
■Caution regarding the use of windshield wipers in “AUTO” mode (vehicles with
rain-sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in “AUTO” mode. Take care that your fingers etc.
do not become caught in the windshield wipers.
●The raindrop sensor judges the amount of
raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.
