387
3-7. Other interior features
3
Interior features
HS250h_U_75033U(Canada)Press and hold the vehicle’s programmed HomeLink
 button for
2 seconds and release it. Repeat this step once again. The garage
door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should now recognize
the HomeLink
 signal and operate the garage door.
Repeat the steps above to program another rolling code system
for any of the remaining HomeLink buttons.
■ Programming an entry gate (for U.S. owners)/Programming a
devices in the Canadian market
Place the remote control transmit ter 1 to 3 in. (25 to 75 mm)
away from the HomeLink
 buttons.
Keep the HomeLink indicator light in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the remote control trans-
mitter for 2 seconds each until step 4 is completed.
When the HomeLink
 indicator light starts to flash rapidly,
release the buttons.
Test the HomeLink
 operation by pressing the newly pro-
grammed button. Check to see if the gate/device operates cor-
rectly.
Repeat the steps above to program another device for any of the
remaining HomeLink
 buttons.
■ Programming other devices
To program other devices such as home security systems, home door
locks and lighting, contact your Lexus dealer for assistance.
■ Reprogramming a button
The individual HomeLink
 buttons cannot be erased but can be
reprogrammed. To reprogram a button, follow the “Reprogramming a
HomeLink
 button” instructions.

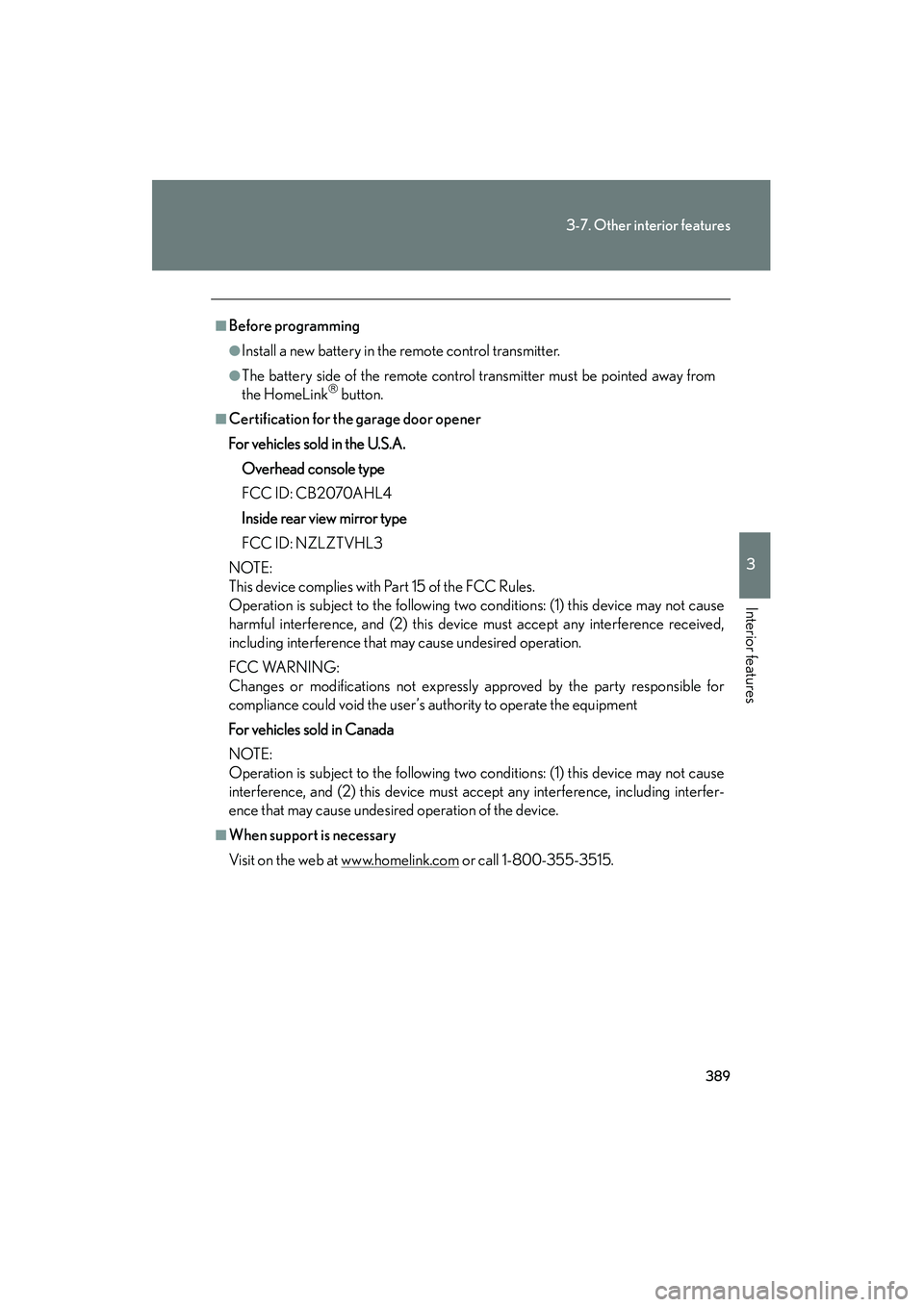

389
3-7. Other interior features
3
Interior features
HS250h_U_75033U(Canada)
■Before programming
●Install a new battery in the remote control transmitter.
●The battery side of the remote control transmitter must be pointed away from
the HomeLink button.
■Certification for the garage door opener
For vehicles sold in the U.S.A.Overhead console type
FCC ID: CB2070AHL4
Inside rear view mirror type
FCC ID: NZLZTVHL3
NOTE:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
■When support is necessary
Visit on the web at www.homelink.com
or call 1-800-355-3515.

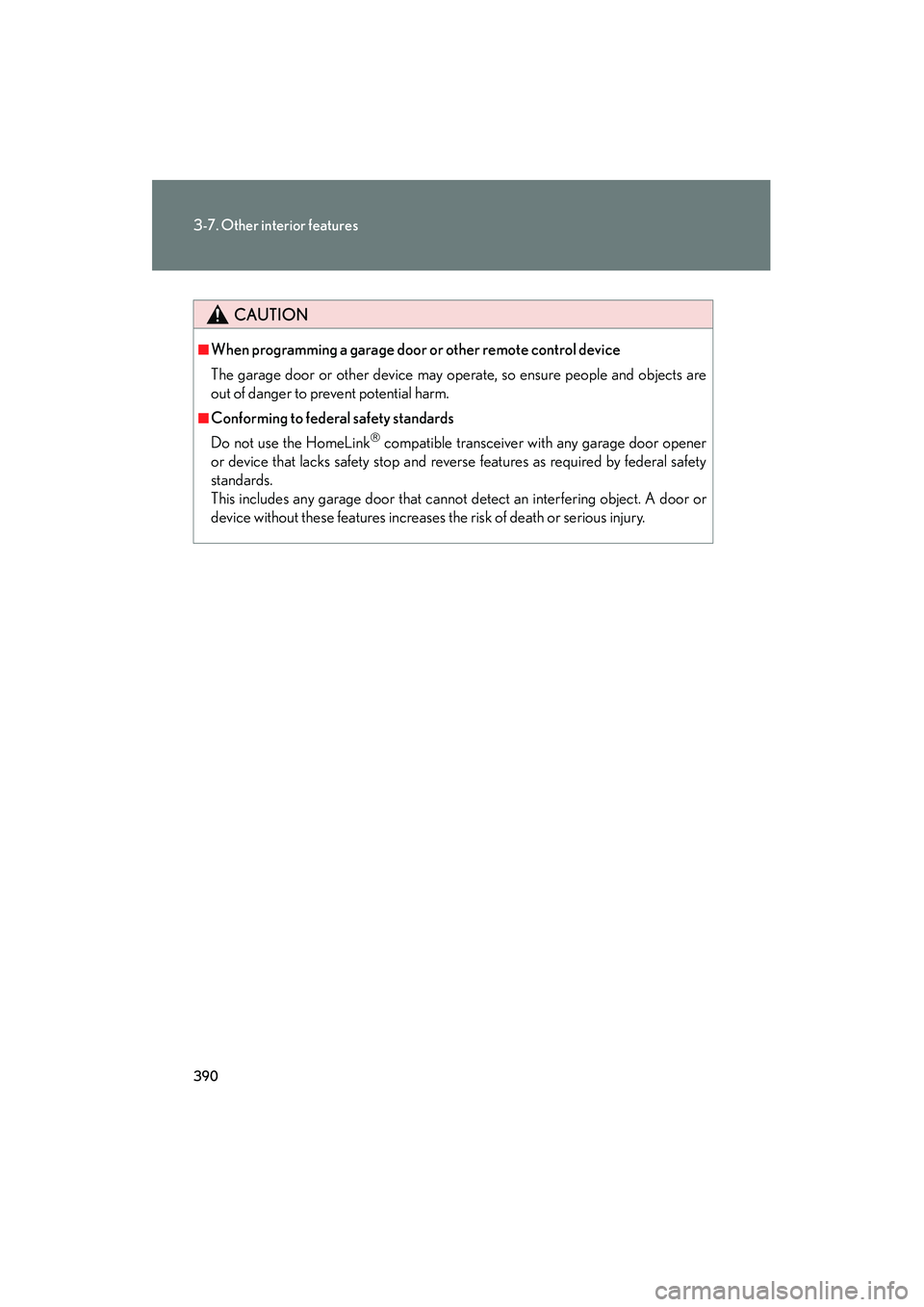

390
3-7. Other interior features
HS250h_U_75033U(Canada)
CAUTION
■When programming a garage door or other remote control device
The garage door or other device may operate, so ensure people and objects are
out of danger to prevent potential harm.
■Conforming to federal safety standards
Do not use the HomeLink
 compatible transceiver with any garage door opener
or device that lacks safety stop and reverse features as required by federal safety
standards.
This includes any garage door that cannot detect an interfering object. A door or
device without these features increases the risk of death or serious injury.

434
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)
■Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flammable
and explosive. Therefore, observe the following precautions before recharging:
●If recharging with the 12-volt battery installed on the vehicle, be sure to discon-
nect the ground cable.
●Make sure the power switch on the charger is off when connecting and discon-
necting the charger cables to the 12-volt battery.
■After recharging/reconnecting the 12-volt battery
●Unlocking the doors using the smart key system may not be possible immedi-
ately after reconnecting the 12-volt battery. If this happens, use the wireless
remote control or the mechanical key to lock/unlock the doors.
●Start the hybrid system with the “POWER” switch in ACCESSORY mode. The
hybrid system may not start with the “POWER” switch turned OFF. However,
the hybrid system will operate normally from the second attempt.
●The “POWER” switch mode is recorded by the vehicle. If the battery is recon-
nected, the vehicle will return the “POWER” switch mode to the status it was in
before the battery was disconnected. Make sure to turn off the power before
disconnect the battery. Take extra care when connecting the battery if the
“POWER” switch mode prior to discharge is unknown.
If the system will not start even after multiple attempts, contact your Lexus dealer.
■ Exterior
Make sure that the 12-volt battery terminals are not corroded and
that there are no loose connections, cracks or loose clamps.
Te r m i n a l s
Hold-down clamp

454
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, local electrical appliance
shops or camera stores.
●Replace only with the same or equivalent type recommended by the manufac-
turer.
●Dispose of used batteries according to local laws.
■When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer
can replace the battery for you.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart access system with push-button start and wireless remote control will
not function properly.
●The operational range will be reduced.
CAUTION
■Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child, they can
cause choking. Failure to do so could result in death or serious injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the remote control.
●Do not bend either of the battery terminals.

5
When trouble arises
533
5-2. Steps to take in an emergency
HS250h_U_75033U(Canada)
If the electronic key does not operate properly
Locking and unlocking the doors, unlocking the trunk and key linked functions
DoorsUse the mechanical key (→P. 39)
in order to perform the following
operations (driver’s door only):
Locks all the doors
Closes the windows and moon
roof (turn and hold)
*
Unlocks the door
Turning the key rearward unlocks
the driver's door. Turning the key
once again unlocks the other
doors.
Opens the windows and moon
roof (turn and hold)
*
*: This setting must be customized at your Lexus dealer.
If communication between the electronic key and vehicle is interrupted
(→ P. 49) or the electronic key canno t be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors and trunk can be
opened and the hybrid system can be started by following the procedure
below.

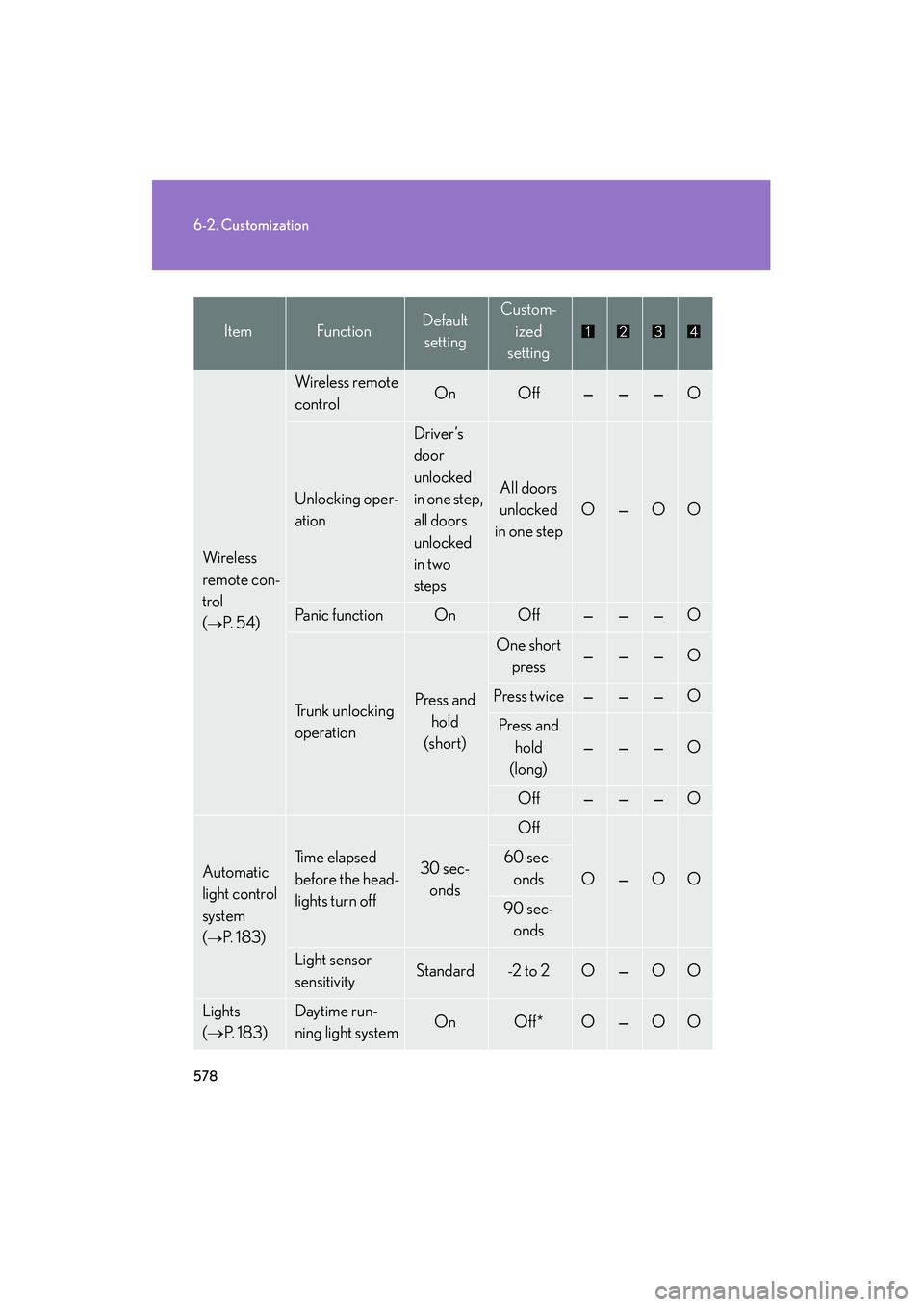

578
6-2. Customization
HS250h_U_75033U(Canada)
Wi re le ss
remote con-
trol
(
→P. 5 4 )
Wireless remote
controlOnOff———O
Unlocking oper-
ation
Driver’s
door
unlocked
in one step,
all doors
unlocked
in two
steps
All doors
unlocked
in one step
O—OO
Panic functionOnOff———O
Trunk unlocking
operationPress and
hold
(short)
One short press———O
Press twice———O
Press and
hold
(long)
———O
Off———O
Automatic
light control
system
(
→P. 1 8 3 )
Ti m e e l a p s e d
before the head-
lights turn off30 sec- onds
Off
O—OO
60 sec-
onds
90 sec- onds
Light sensor
sensitivityStandard-2 to 2O—OO
Lights
(→ P. 1 8 3 )Daytime run-
ning light systemOnOff*O—OO
ItemFunctionDefault
settingCustom-
ized
setting

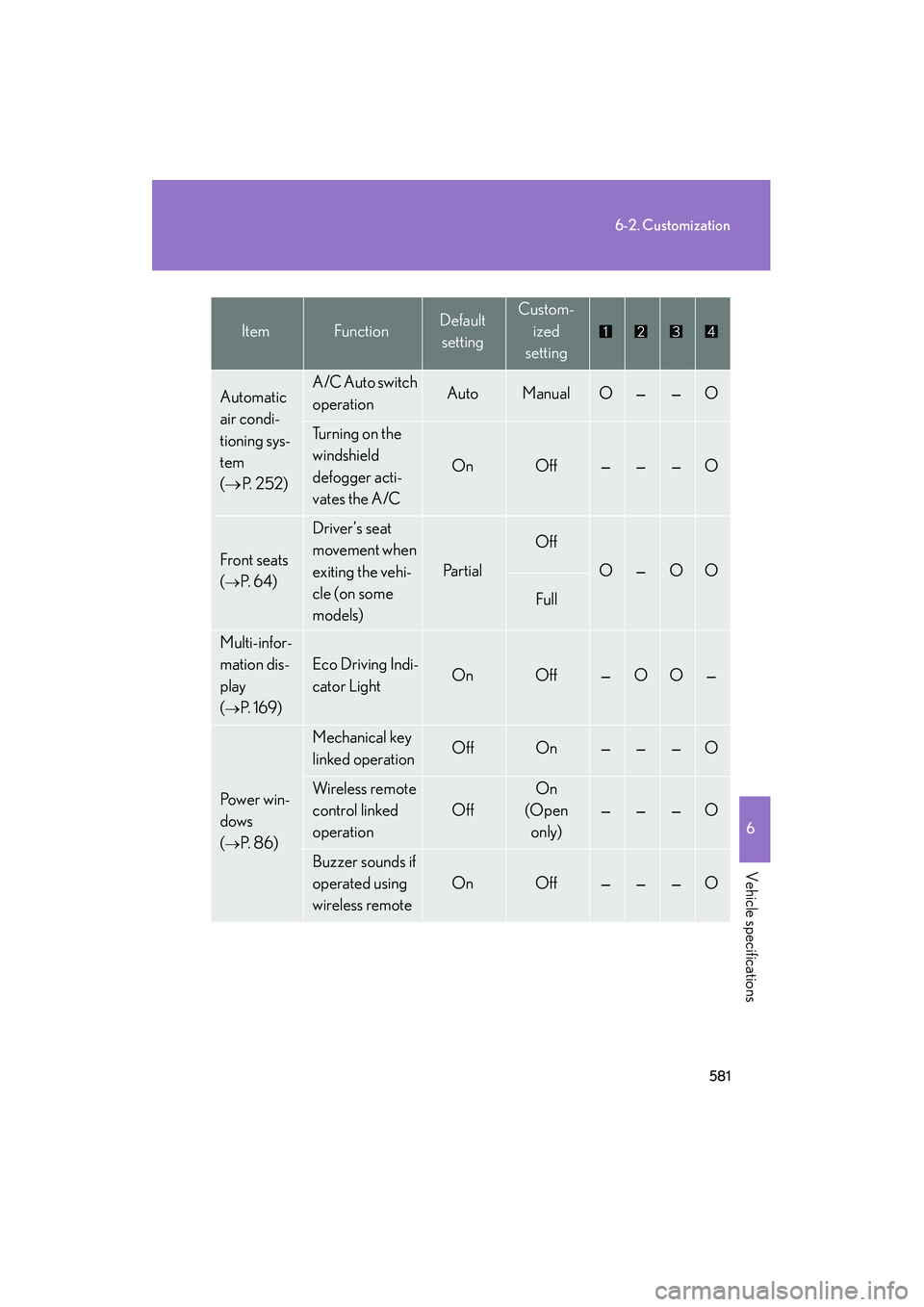

581
6-2. Customization
6
Vehicle specifications
HS250h_U_75033U(Canada)
Automatic
air condi-
tioning sys-
tem
(→ P. 2 5 2 )A/C Auto switch
operationAutoManualO——O
Tu r n i n g o n t h e
windshield
defogger acti-
vates the A/C
OnOff———O
Front seats
(
→P. 6 4 )
Driver’s seat
movement when
exiting the vehi-
cle (on some
models)
Pa r t i a l
Off
O—OO
Full
Multi-infor-
mation dis-
play
(
→P. 1 6 9 )
Eco Driving Indi-
cator LightOnOff—OO—
Po w e r w i n -
dows
(
→P. 8 6 )
Mechanical key
linked operationOffOn———O
Wireless remote
control linked
operation
Off
On
(Open only)
———O
Buzzer sounds if
operated using
wireless remote
OnOff———O
ItemFunctionDefault settingCustom-
ized
setting

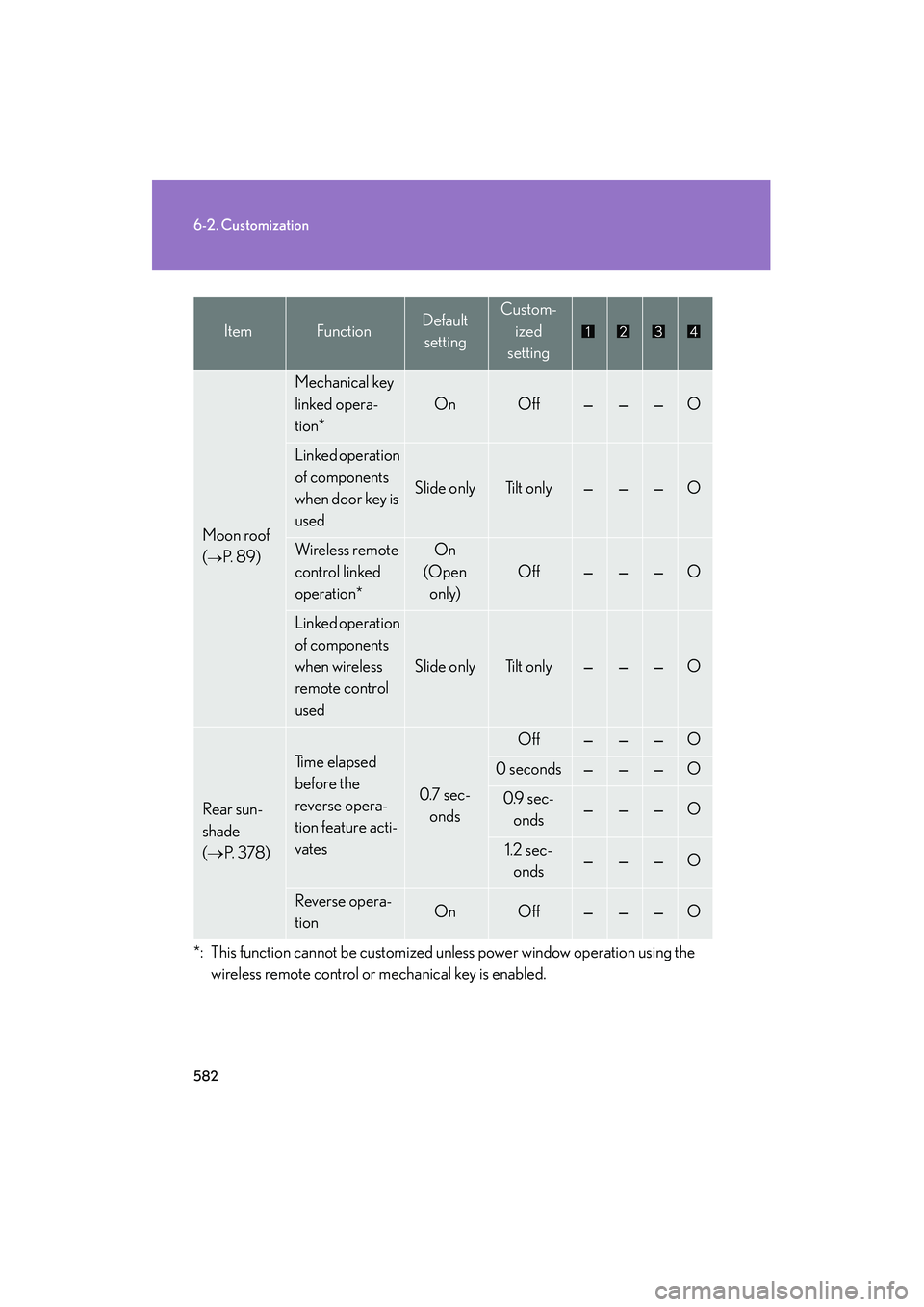

582
6-2. Customization
HS250h_U_75033U(Canada)
Moon roof
(
→P. 8 9 )
Mechanical key
linked opera-
tion*
OnOff———O
Linked operation
of components
when door key is
used
Slide onlyTilt only———O
Wireless remote
control linked
operation*On
(Open only)
Off———O
Linked operation
of components
when wireless
remote control
used
Slide onlyTilt only———O
Rear sun-
shade
(→ P. 3 7 8 )
Ti m e e l a p s e d
before the
reverse opera-
tion feature acti-
vates
0.7 sec-
onds
Off———O
0 seconds———O
0.9 sec-onds———O
1.2 sec-onds———O
Reverse opera-
tionOnOff———O
*: This function cannot be customized unless power window operation using the wireless remote control or mechanical key is enabled.
ItemFunctionDefault settingCustom-
ized
setting

594
HS250h_U_75033U(Canada)
Alphabetical index
Alphabetical index
A/CAir conditioning filter .......................450
Automatic air conditioning system (vehicles without
navigation system)......................... 252
Automatic air conditioning
system (vehicles with
navigation system) *
ABS............................................................. 225
AFS .............................................................. 185
Adaptive front lighting system ......... 185
Air conditioning filter ......................... 450
Air conditioning system (vehicles without navigation
system)Air conditioning filter .......................450
Automatic air conditioning system .................................................. 252
Air conditioning system (vehicles with navigation
system)*
Airbags
Airbag operating conditions..................................107, 108
Airbag precautions for your child............................................................ 111
Airbag warning light ........................ 493
Curtain shield airbag operating conditions............................................ 108
Curtain shield airbag
precautions ............................................ 111
Front passenger occupant
classification system......................... 116
General airbag precautions ............. 111
Locations of airbags.......................... 104
Modification and disposal of
airbags .................................................... 115 Proper driving posture.............. 102, 111
Side airbag operating
conditions ............................................108
Side airbag precautions.......................111
Side and curtain shield airbags operating conditions ......................108
Side and curtain shield airbags precautions .............................................111
SRS airbags............................................ 104
Alarm............................................................ 98
Antenna .................................................... 270
Anti-lock brake system ...................... 225
Armrest .....................................................377
Audio input.............................................. 307
Audio remote control switches*
Audio system Antenna...................................................270
Audio input........................................... 307
Audio visual input.............................. 307
AUX adapter ...................................... 307
CD player .............................................. 273
CD player/changer .......................... 273
MP3/WMA disc................................. 281
Optimal use ......................................... 304
Portable music player ..................... 307
Radio ....................................................... 265
Steering wheel audio switch........308
Audio/video system*
Audio visual input ................................. 307
Automatic air conditioning system Air conditioning filter ....................... 450
Air conditioning system ..................252
Automatic air conditioning
system...................................................252
Automatic headlight leveling
system ......................................................187A
