4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)

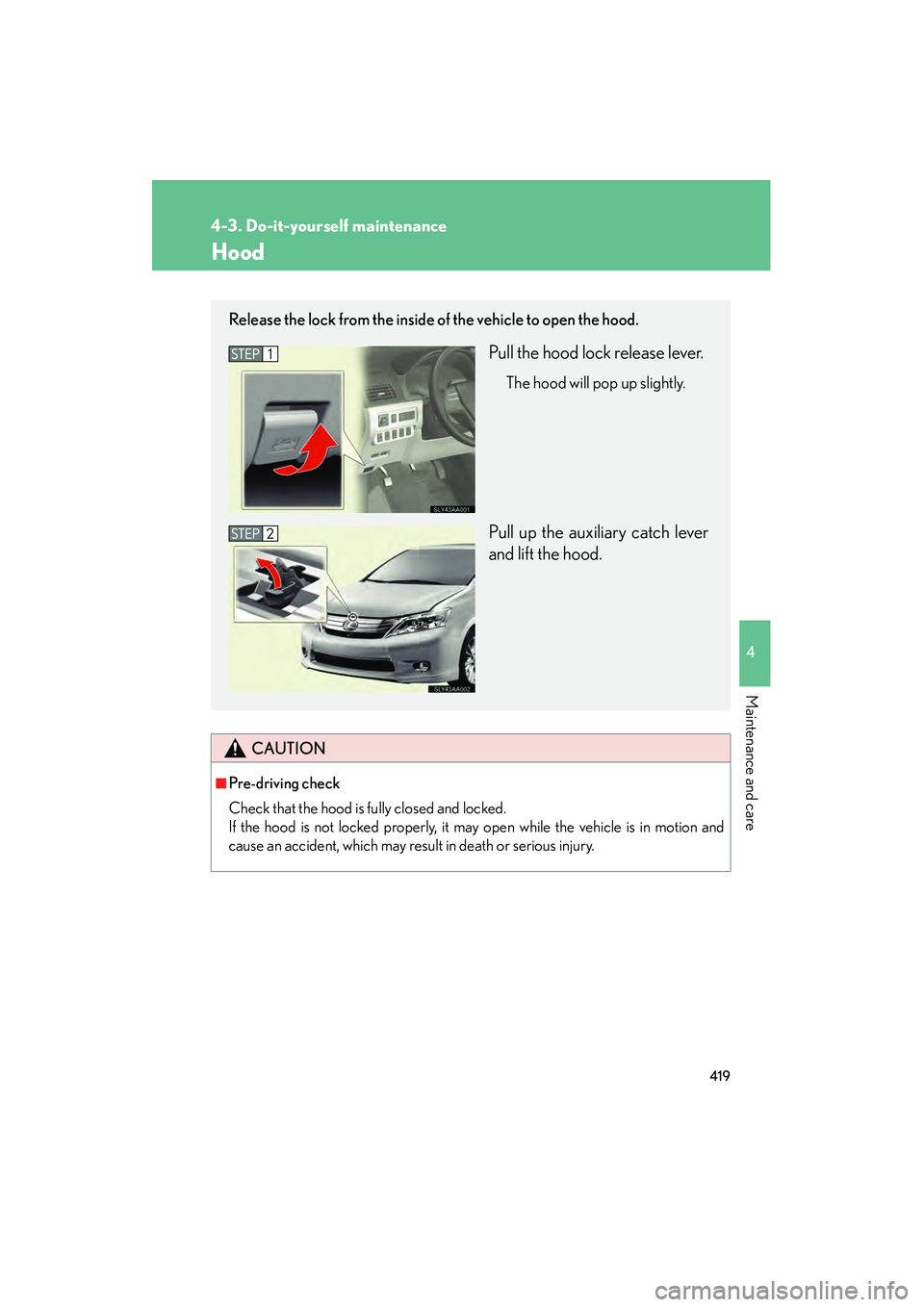

Hood
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion and
cause an accident, which may result in death or serious injury.
Release the lock from the inside of the vehicle to open the hood.
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever
and lift the hood.

420
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)

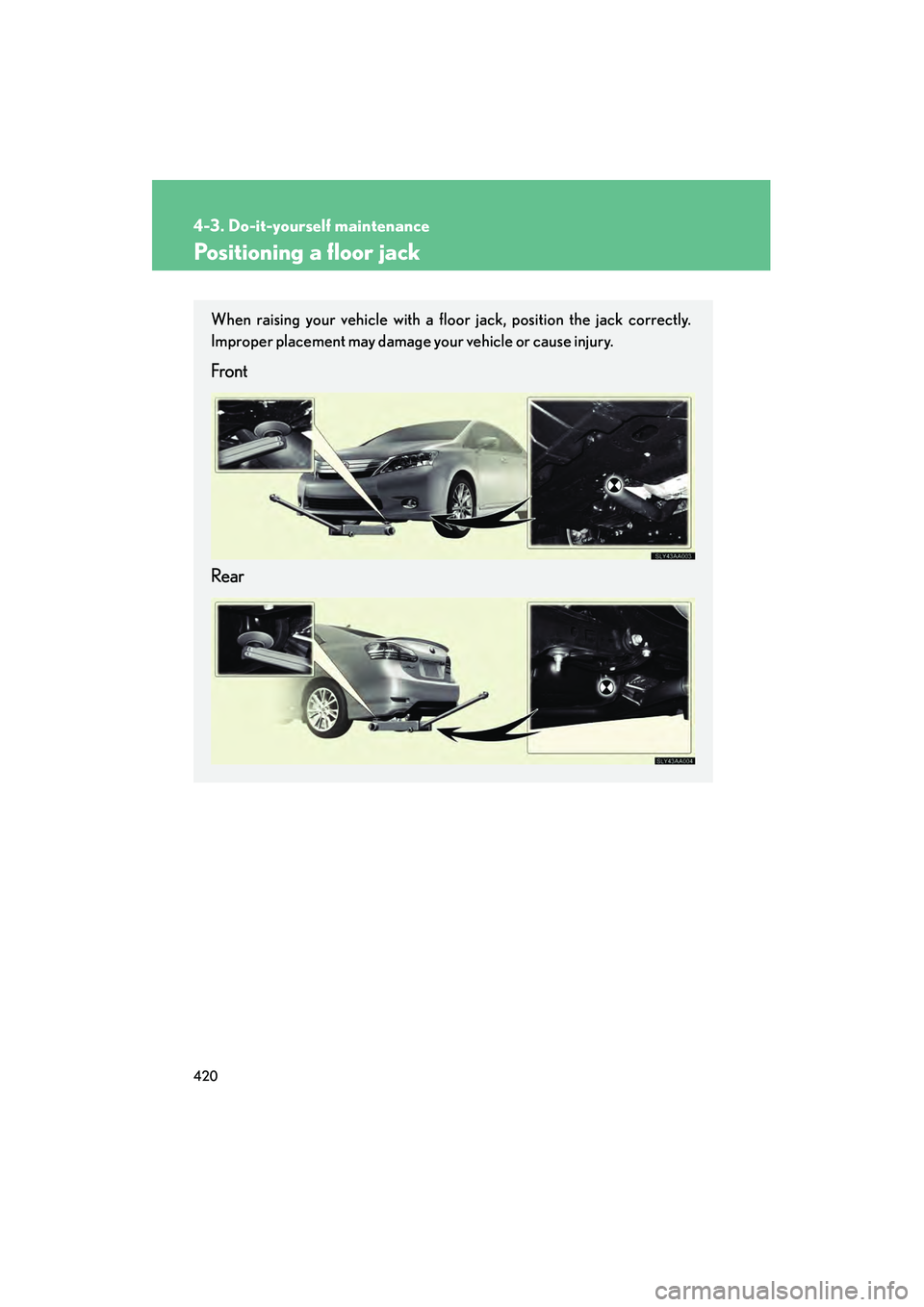

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
Front
Rear

421
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)
CAUTION
■When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of death or
serious injury:
●Do not use the jack that was supplied with your vehicle.
●Do not put any part of your body underneath the vehicle when it is supported
only by the floor jack.
Always use automotive jack stands on a solid, level surface.
●Do not start the hybrid system while the vehicle is supported by the floor jack.
●Stop the vehicle on level, firm ground, firmly set the parking brake and push the P
position switch.
●Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage the vehi-
cle and may cause the vehicle to fall off the floor jack.
●Do not raise the vehicle while someone is in the vehicle.
●When raising the vehicle, do not place any object on top of or underneath the
floor jack.
●Lift up the vehicle using a floor jack such as
the one shown in the illustration.

422
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)
Engine compartment
Engine coolant reservoir (→P. 4 2 8 )
Engine oil filler cap (→P. 425)
Engine oil level dipstick (→P. 4 2 4 )
Power control unit coolant
reservoir ( →P. 4 2 8 )
Brake fluid reservoir (→P. 4 3 1 )Fuse box ( →P. 455)
Engine coolant radiator (→P. 4 3 0 )
Power control unit coolant
radiator (→ P. 4 3 0 )
Condenser ( →P. 4 3 0 )
Electric cooling fans
Washer fluid tank (→P. 4 3 2 )

423
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)
Engine compartment cover■ Removing the engine compartment cover
■ Installing the clips

424
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)
Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After turning off the hybrid sys-
tem, wait more than 5 minutes for the oil to drain back into the
bottom of the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
Wipe the dipstick and reinsert it fully. Low
Full

425
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)■
Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as that already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection→P. 5 5 3
Oil quantity
(Low → Full)1.2 qt. (1.1 L, 1.0 lmp. qt.)
ItemsClean funnel

426
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)
■Engine oil consumption
●The amount of engine oil consumed depends on the oil viscosity, the quality of
the oil and the way the vehicle is driven.
●More oil is consumed under driving conditions such as high speeds and fre-
quent acceleration and deceleration.
●A new engine consumes more oil.
●When judging the amount of oil consumption, keep in mind that the oil may
have become diluted, making it difficult to judge the true level accurately.
●Oil consumption: Max. 1.1 qt./600 miles, 0.9 Imp. qt./600 miles (1.0 L per 1000
km)
●If your vehicle consumes more than 1.1 qt. (1.0 L, 0.9 Imp. qt.) every 600 miles
(1000 km), contact your Lexus dealer.
■After changing the engine oil (U.S.A. only)
The engine oil maintenance data should be reset. Perform the following proce-
dures:Switch the display to the trip meter “A” when the hybrid system is operat-
ing. (→P. 1 6 3 )
Turn the “POWER” switch off.
While pressing the trip meter reset button ( →P. 1 6 3 ) , t u r n t h e “ P O W E R ”
switch to ON mode (do not start the hybrid system because otherwise
the reset mode will be canceled). Continue to press and hold the button
until the trip meter displays “000000” and the multi-information display
indicates that the reset is complete.

427
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin
disorders such as inflammation and skin cancer, so care should be taken to avoid
prolonged and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dis-
pose of used oil and filters in household trash, in sewers or onto the ground.
Call your Lexus dealer, service station or auto parts store for information con-
cerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.

428
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)
CoolantThe coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the hybrid system is cold.
Engine coolant reservoir Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line. (→P. 5 5 4 )
