Lexus HS250h 2010 Owner's Manual

459
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)
10AM27. 5 A
Smart access system with push-button
start, hybrid system, multiport fuel
injection system/sequential multiport
fuel injection system, P position con-
trol system, cruise control system,
dynamic radar cruise control system
11ECU-B27. 5 A
Smart access system with push-button
start, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, trunk opener switch
12MAYDAY10 ALexus link system
13ECU-B310 AAir conditioning system, rear window
defogger, mirror heater
14TURN & HAZ10 ATurn signal lights, emergency flashers
15ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
16ABS MAIN NO.120 AElectronically controlled brake system
17P/ I 240 A
P position control system, hybrid sys-
tem, transmission, smart access sys-
tem with push-button start, horn,
headlights (low beam), back-up lights
18ABS MTR 130 AElectronically controlled brake system
19ABS MTR 230 AElectronically controlled brake system
20H-LP HI MAIN20 AHeadlights (high beam)
21AMP NO.230 AAudio system, navigation system
22DOOR NO.225 ANo circuit
FuseAmpereCircuit

460
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)
23P/ I 160 AIG2, EFI MAIN, BATT FAN
24EPS60 AElectric power steering system
25PCU10 AHybrid system
26IGCT NO.210 A
Smart access system with push-button
start, hybrid system, P position control
system, multiport fuel injection sys-
tem/sequential multiport fuel injection
system
27MIR HTR10 ARear window defogger, mirror heater
28RAD NO.115 AAudio system, navigation system
29DOME10 A
Interior lights, antiglare inside rear
view mirror, audio system, navigation
system, garage door opener
30ECU-B7. 5 A
Smart access system with push-button
start, air conditioning system, gauges
and meters, outside rear view mirror,
clock, seats position memory, electric
tilt & telescopic steering wheel
31H-LP LH HI10 ALeft-hand headlight (high beam)
32H-LP RH HI10 ARight-hand headlight (high beam)
33EFI NO. 210 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
34IGCT NO.310 AHybrid system
FuseAmpereCircuit

461
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)
35SPARE30 ASpare fuse
36SPARE10 ASpare fuse
37SPARE7. 5 ASpare fuse
38EFI MAIN20 AEFI NO.2, fuel system
39BATT FAN10 ABattery cooling fan
40IG220 A
Hybrid system, multiport fuel injec-
tion system/sequential multiport fuel
injection system, MET, IGN
FuseAmpereCircuit

462
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)Driver’s side instrument panel
FuseAmpereCircuit
1TA I L10 AParking lights, tail lights, license plate
lights, side maker lights, front fog lights
2PA N E L10 A
Navigation system, audio system, air
conditioning system, emergency
flashers switch, wiper de-icer switch,
seat heater switch, P position switch,
headlight cleaner switch, front pas-
senger’s seatbelt reminder light,
power window switch, VSC-OFF
switch, HUD switch, AFS-OFF switch,
POWER ·ECO· EV mode switch,
view select switch, trunk opener
switch, fuel lid opener switch, glove
box light, rear sun shade switch,
remote touch, rear view mirror switch

463
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)
3IGN10 A
Electronically controlled brake sys-
tem, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, Lexus link system, smart access
system with push-button start, stop
lights
4MET7. 5 AMeters
5WIP30 AWindshield wipers
6WA S H E R15 AWindshield washer
7A/C10 AAir conditioning system
8GAUGE10 AAFS, turn signal lights, emergency
flasher lights
9AFS10 AAdaptive front-lighting system
10ECU-IG NO.210 A
Pre-collision system, LKA, dynamic
radar cruise control, air conditioning
system, outside rear view mirror,
HUD, navigation system, tire inflation
pressure warning system
FuseAmpereCircuit

464
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)
11ECU-IG NO.110 A
Rear view mirror, electronically con-
trolled brake system, electric power
steering system, moon roof, rain-sens-
ing windshield wiper, emergency
flashers switch, air conditioning sys-
tem, electric head restraints, driver
monitor, steering switch, seat heaters/
ventilators, electric tilt & telescopic
steering wheel, rear sun shead. AFS
12S/ROOF30 AElectric moon roof
13DOOR RL25 ARear power window (left-side)
14DOOR RR25 ARear power window (right-side)
15SHADE RR10 ARear sun shade
16D FR DOOR25 ADriver’s side power window, outside
rear view mirror
17P FR DOOR25 APassenger’s side power window, out-
side rear view mirror
18TI & TE30 AElectric tilt & telescopic steering
wheel
19STOP10 AStop lights, electronically controlled
brake system
20A/C NO.210 ANo circuit
FuseAmpereCircuit

465
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)
21RR FOG7. 5 ANo circuit
22FUEL OPN7. 5 ATrunk opener switch, fuel filler door
opener switch
23OBD7. 5 AOn-board diagnosis
24PWR SEAT FL30 ADriver’s side power seat
25FR FOG15 AFront fog lights
26PWR SEAT FR30 APassenger’s side power seat
27PSB30 APre-collision seat belts system
28WELCAB30 ANo circuit
29DOOR NO.125 APower door lock system
30SEAT HTR FL10 ADriver’s side seat heater
31SEAT HTR FR10 APassenger’s side seat heater
32RAD NO.27. 5 A
Navigation system, audio system, air
conditioning system, HUD, remote
touch
33PWR OUTLET15 APo w e r o u t l e t
34ECU-ACC10 ARear view mirror, air conditioning sys-
tem, audio system, navigation system
FuseAmpereCircuit

466
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (→P. 4 6 9 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in a circuit
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify the fuses or fuse boxes.
■Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring near
the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer as soon as possible.

467
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)
Headlight aim (LED headlights)
■Vertical movement adjustment bolts
Adjustment bolt A
Adjustment bolt B
■ Before checking the headlight aim
Make sure the vehicle has a full tank of gasoline and the area
around the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
■ Adjusting the headlight aim
Using a Phillips-head screw-
driver, turn bolt A in either
direction.
Remember the turning direction
and the number of turns.

468
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)

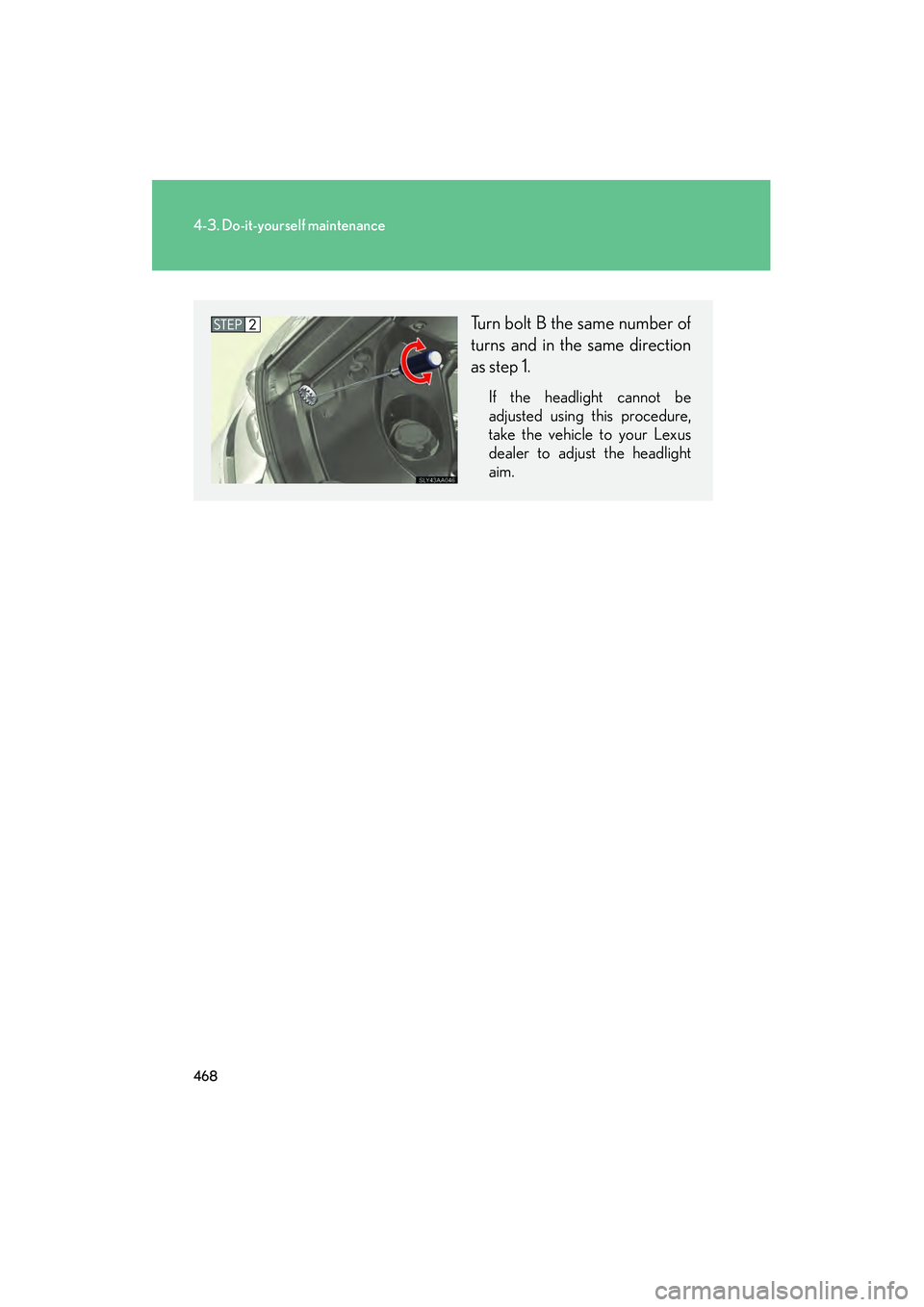

Turn bolt B the same number of
turns and in the same direction
as step 1.
If the headlight cannot be
adjusted using this procedure,
take the vehicle to your Lexus
dealer to adjust the headlight
aim.
