4-3. Do-it-yourself maintenance
4
Maintenance and care
21RR FOG7. 5 ANo circuit
22FUEL OPN7. 5 ATrunk opener switch, fuel filler door
opener switch
23OBD7. 5 AOn-board diagnosis
24PWR SEAT FL30 ADriver’s side power seat
25FR FOG15 AFront fog lights
26PWR SEAT FR30 APassenger’s side power seat
27PSB30 APre-collision seat belts system
28WELCAB30 ANo circuit
29DOOR NO.125 APower door lock system
30SEAT HTR FL10 ADriver’s side seat heater
31SEAT HTR FR10 APassenger’s side seat heater
32RAD NO.27. 5 A
Navigation system, audio system, air
conditioning system, HUD, remote
touch
33PWR OUTLET15 APo w e r o u t l e t
34ECU-ACC10 ARear view mirror, air conditioning sys-
tem, audio system, navigation system
FuseAmpereCircuit

5
When trouble arises
495
5-2. Steps to take in an emergency
Follow the correction procedures.
After taking the specified steps to correct the suspected problem, check
that the warning light goes off.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
Indicates that a door or the
trunk is not fully closed.
Check that all the doors and
the trunk are closed.
Low fuel level warning light
Indicates remaining fuel is
approximately 2.2 gal. (8.3
L, 1.8 Imp. gal.) or less
Refuel the vehicle.
Driver’s seat belt reminder
light (warning buzzer)
*2
Warns the driver to fasten
his/her seat belt.Fasten the seat belt.
(On the center panel)
Front passenger’s seat belt
reminder light 
(warning buzzer)
*2
Warns the front passenger to
fasten his/her seat belt.
Fasten the seat belt.
Master warning light A buzzer sounds and the
warning light comes on and
flashes to indicate that the
master warning system has
detected a malfunction.
 P. 5 0 1

5
When trouble arises
497
5-2. Steps to take in an emergency
■Electric power steering warning light (warning buzzer)
The electric power steering warning light comes on and the warning buzzer sounds
when the voltage is low or the voltage drops.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty? 
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose? 
If it is, tighten it securely.
The light will go off after several driving trips. 
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch will not turn off the tire pressure warning light.
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural
air leaks and tire inflation pressure chan ges caused by temperature. In this case,
adjusting the tire inflation pressure will turn off the warning light (after a few min-
utes).
■When a tire is replaced with a spare tire
The compact spare tire is not equipped with a tire pressure warning valve and trans-
mitter. If a tire goes flat, the tire pressure warning light will not turn off even though
the flat tire has been replaced with the spare tire. Replace the spare tire with the
repaired tire and adjust the tire inflatio n pressure. The tire pressure warning light
will go off after a few minutes.
■If the tire pressure warning system is not functioning
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters are used.
●If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer.
●If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or higher.

5
When trouble arises
499
5-2. Steps to take in an emergency
CAUTION
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold
and inflated to the inflation pressure re commended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label (tire and load information label).
(If your vehicle has tires of a different size than the size indicated on the vehicle
placard or tire inflation pressure label [tire and load information label], you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS-tire pressure warning system) that illuminates a low tire
pressure telltale (tire pressure warning light) when one or more of your tires is sig-
nificantly under-inflated. Accordingly, when the low tire pressure telltale (tire pres-
sure warning light) illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat an d can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle’s handling
and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for
proper tire maintenance, and it is the driver’s responsibility to maintain correct tire
pressure, even if under-inflation has not reached the level to trigger illumination of
the TPMS low tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system)
malfunction indicator to indicate when th e system is not operating properly. The
TPMS (tire pressure warning system) malf unction indicator is combined with the
low tire pressure telltale (tire pressure warning light). When the system detects a
malfunction, the telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists . When the malfunction indicator is illumi-
nated, the system may not be able to detect or signal low tire pressure as intended.

530
5-2. Steps to take in an emergency
If the hybrid system will not start
Reasons for the hybrid system not starting vary depending on the situation.
Check the following and perform the appropriate procedure:
■The hybrid system will not start even though the correct starting
procedure is being followed. ( P. 1 4 7 )
One of the following may be the cause of the problem:
● The electr
onic key may not be functioning properly.* (P. 5 3 3 )
● Ther
e may not be sufficient fuel in the vehicle’s tank. 
Refuel the vehicle.
● Ther
e may be a malfunction in the immobilizer system.* (P. 9 6 )
● Ther
e may be a malfunction in the P position control system.* 
( P. 1 5 0 , 502 )
● The hybrid s
ystem may be malfunc tioning due to an electrical
problem such as an open circuit or a blown fuse. However,
depending on the type of malfunc tion, an interim measure is avail-
able to start the hybrid system. ( P. 4 5 5)
*: It may not be possible to shift out of the P position.
■The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.
One of the following may be the cause of the problem:
● The 12-
volt battery may be discharged. (P. 5 3 6 )
● The 12-
volt battery terminal co nnections may be loose or cor-
roded.

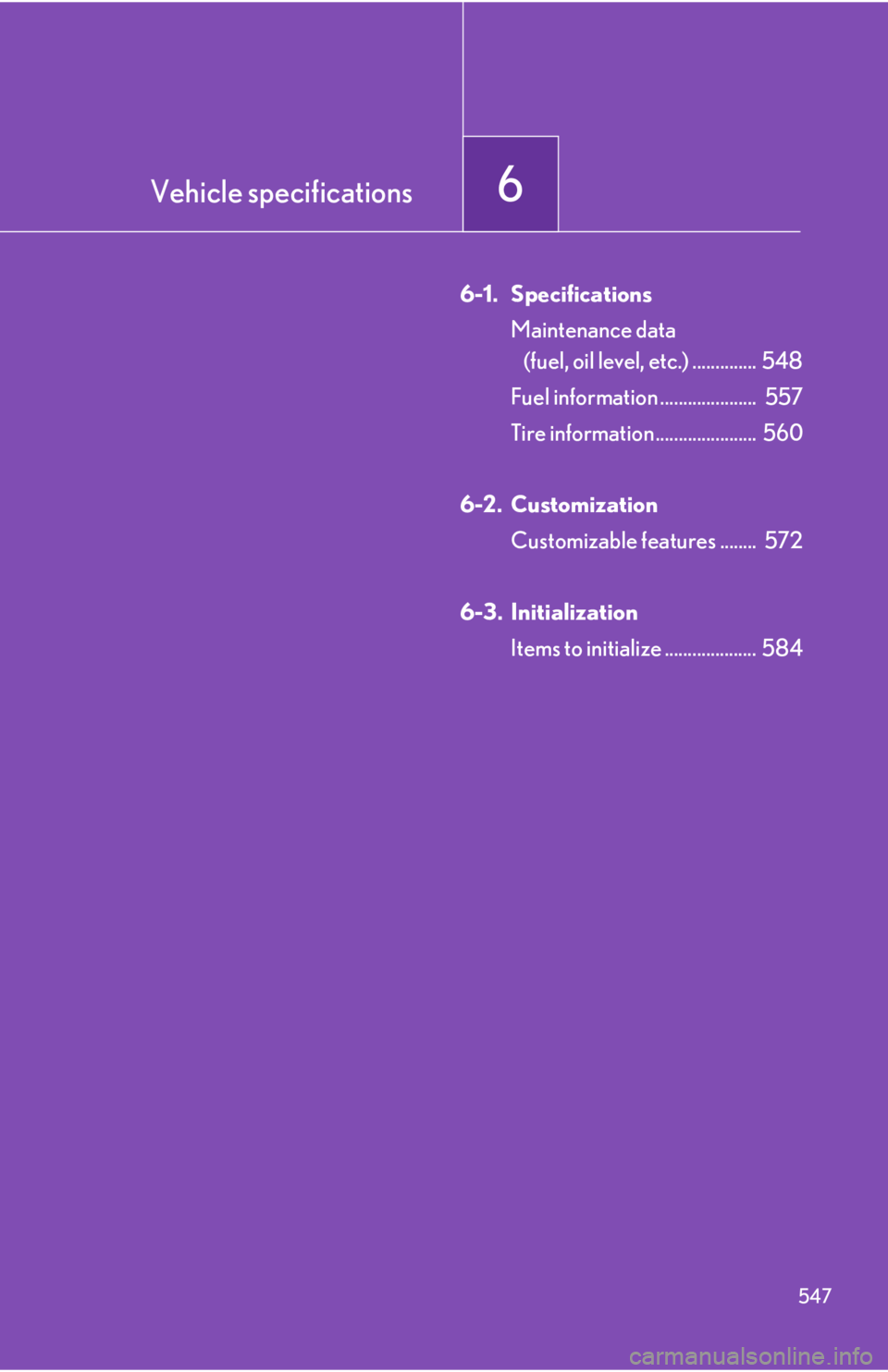

Vehicle specifications6
547
6-1. SpecificationsMaintenance data 
(fuel, oil level, etc.) .............. 548
Fuel information ..................... 557
Tire information...................... 560
6-2. Customization Customizable features ........ 572
6-3. Initialization Items to initialize .................... 584

548
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*: Unladen vehicles
Vehicle identification
■Vehicle identification number
The vehicle identification number (VIN ) is the legal identifier for y
our
vehicle. This is the primary identificat ion number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and under the
front passenger’s seat (on some models).
Overall length184.8 in. (4695 mm)
Overall width70.3 in. (1785 mm)
Overall height*59.3 in. (1505 mm)
Wheelbase106.3 in. (2700 mm)
Tr e a dFront60.4 in. (1535 mm)
Rear60.2 in. (1530 mm)
Vehicle capacity weight 
(Occupants + luggage)825 lb. (375 kg)

550
6-1. Specifications
Fuel
Electric motor (Traction motor)
Hybrid battery (Traction battery)
Lubrication system
Fuel typeUnleaded gasoline only
Octane rating87 (Research octane number 91) or higher
Fuel tank capacity14.5 gal. (55 L, 12.5 Imp. gal.)
Ty p ePermanent magnet synchronous motor
Maximum output105 kW
Maximum torque199 ft•lbf (270 N•m, 27.5 kgf•m)
Ty p eNickel-metal hydride battery
Vo l t a g e7.2 V/module
Capacity6.5 Ah (3HR)
Quantity34 modules
Overall voltage244.8 V
Oil capacity 
Drain and refill 
(Reference)
With filter
Without filter

4.5 qt. (4.3 L, 3.8 lmp.qt.)
4.3 qt. (4.1 L, 3.6 lmp.qt.)

551
6-1. Specifications
6
Vehicle specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used in y
our Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
star

ting in cold weather.
If SAE 0W-20 is not available,
S
AE 5W-20 oil may be used.
However, it must be replaced with
SAE 0W-20 at the next oil
change.
The 0W portion of the oil viscosity rating indicates the characteristic of the oil
which allows cold startability. Oils wi th a lower value before the W allow for
easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temper
ature. An oil with a higher viscosity may be better suited if the vehicle
is operated at high speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant St andar
dization and Approval Com-
mittee) Certification Mark is added to some oil containers to help y
ou
select the oil you should use.
Outside temperature

557
6-1. Specifications
6
Vehicle specifications
Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that only
a
ccommodates the special nozzle on unleaded fuel pumps.
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
ar
e using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
■Gasoline quality standards
●Automotive manufacturers in the U.S.A., Europe and Japan have developed a
specification for fuel quality called the World-Wide Fuel Charter (WWFC),
which is expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission
levels. In the U.S., category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
improves customer satisfaction through better performance.
■Recommendation of the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.
●All gasoline sold in the U.S.A. contains detergent additives to clean and/or keep
clean intake systems.
You must only use unleaded gasoline in your vehicle. 
Select octane rating 87 (Research Octane Number 91) or higher. Use of
unlead

ed gasoline with an octane rating lower than 87 may result in engine
knocking. Persistent knocking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A. an d CGSB3.5-M93 in Canada.
