Lexus HS250h 2011 Do-it-yourself maintenance / LEXUS 2011 HS250H OWNERS MANUAL (OM75037U)

461
4-3. Do-it-yourself maintenance
4
Maintenance and care

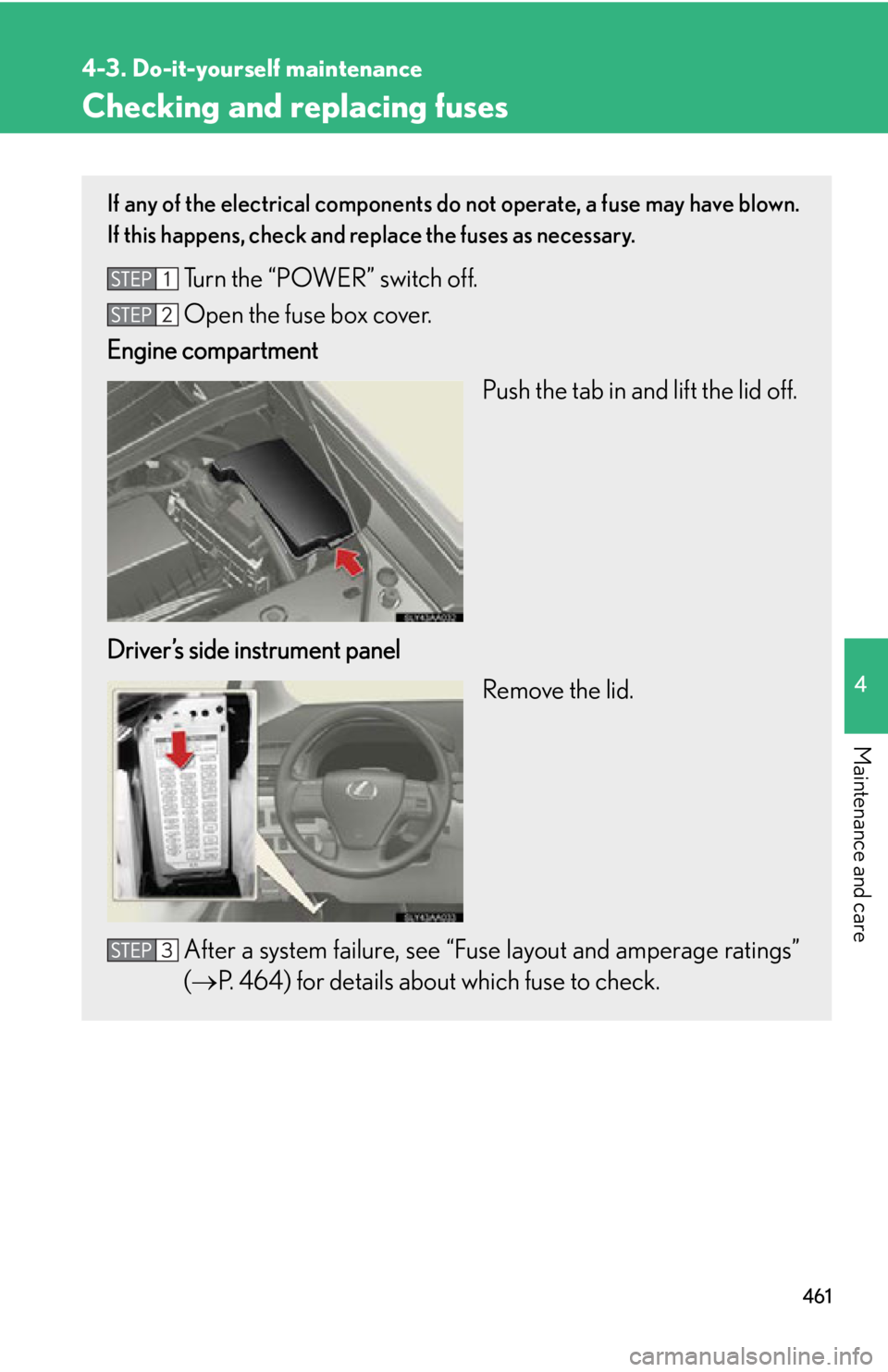

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “POWER” switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid off.
Driver’s side instrument panel Remove the lid.
After a system failure, see “Fuse layout and amperage ratings”
( P. 464) for details about which fuse to check.

462
4-3. Do-it-yourself maintenance

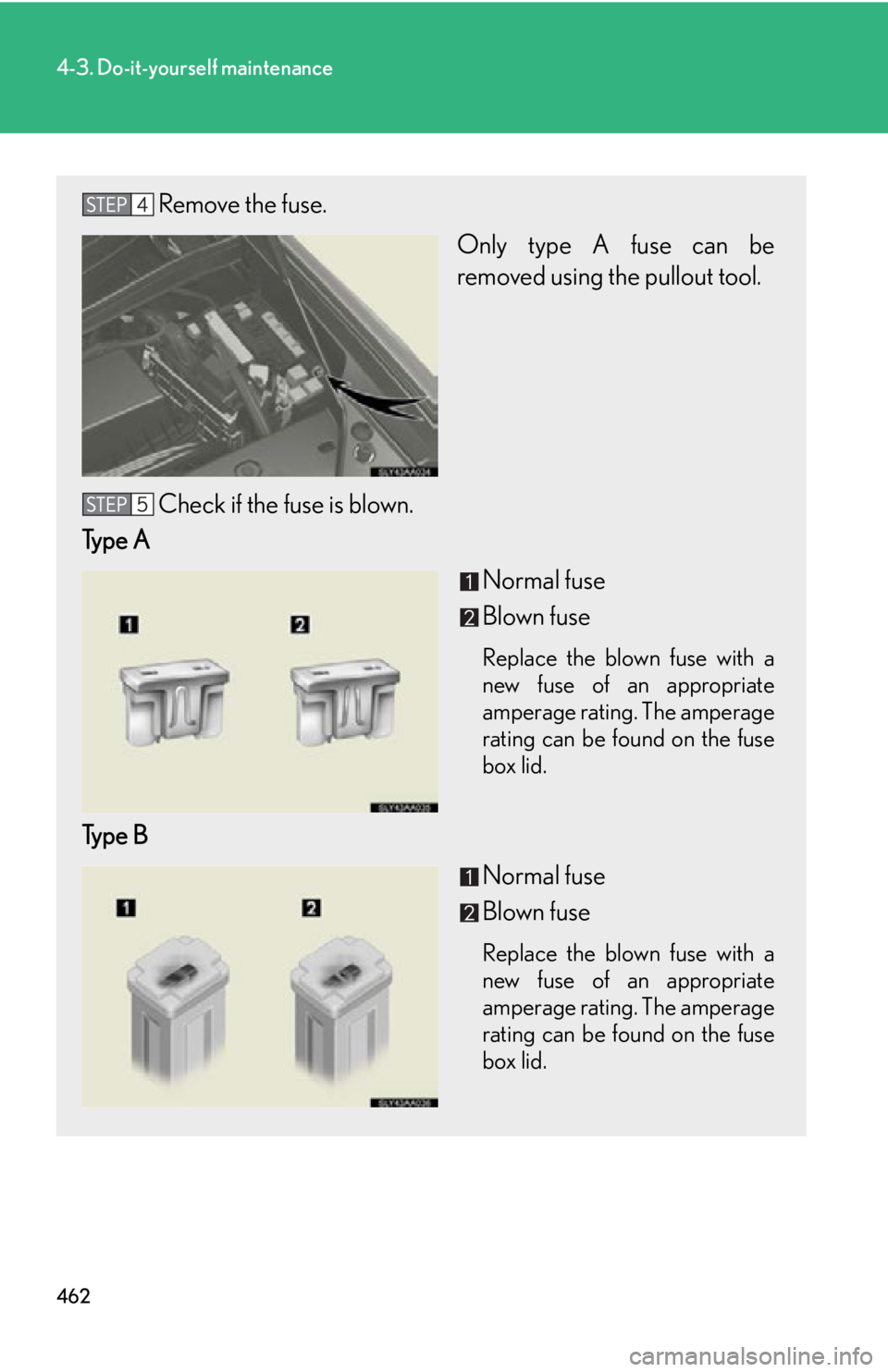

Remove the fuse.Only type A fuse can be
removed using the pullout tool.
Check if the fuse is blown.
Type A
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amperage
rating can be found on the fuse
box lid.
Type BNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amperage
rating can be found on the fuse
box lid.

463
4-3. Do-it-yourself maintenance
4
Maintenance and care

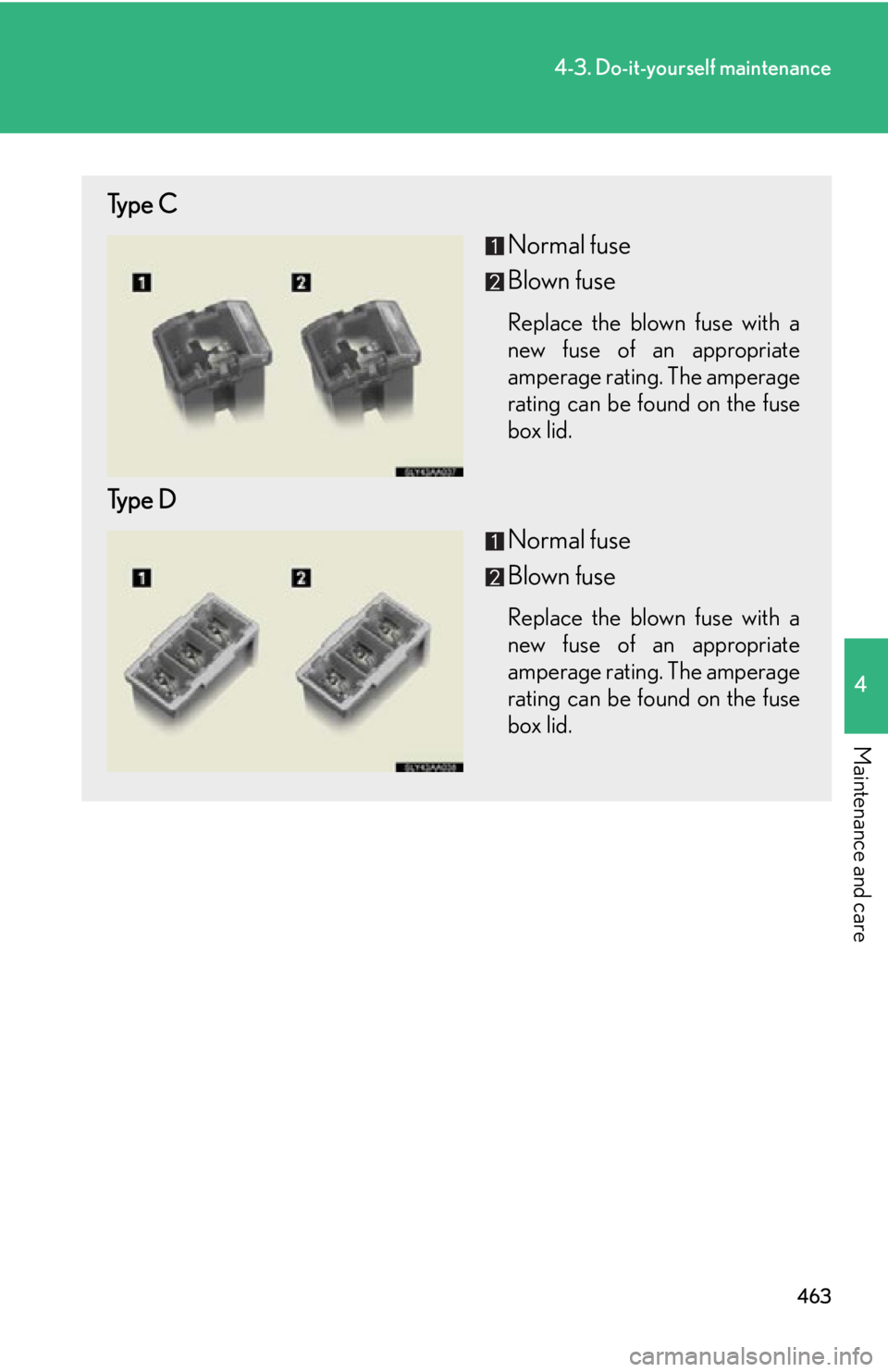

Type CNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amperage
rating can be found on the fuse
box lid.
Type DNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amperage
rating can be found on the fuse
box lid.

464
4-3. Do-it-yourself maintenance

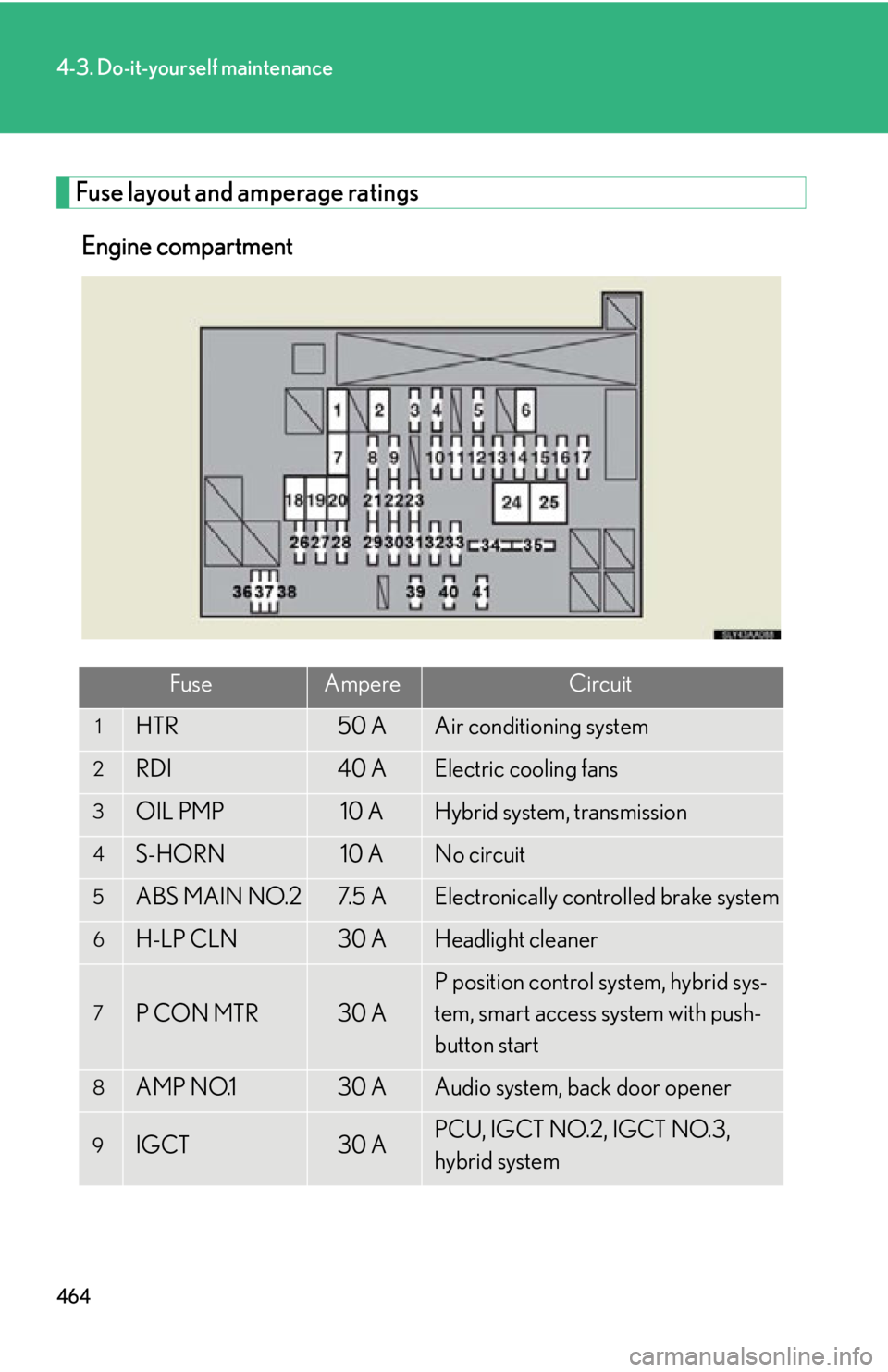

Fuse layout and amperage ratingsEngine compartment
FuseAmpereCircuit
1HTR50 AAir conditioning system
2RDI40 AElectric cooling fans
3OIL PMP10 AHybrid system, transmission
4S-HORN10 ANo circuit
5ABS MAIN NO.27. 5 AElectronically controlled brake system
6H-LP CLN30 AHeadlight cleaner
7P CON MTR30 A
P position control system, hybrid sys-
tem, smart access system with push-
button start
8AMP NO.130 AAudio system, back door opener
9IGCT30 APCU, IGCT NO.2, IGCT NO.3,
hybrid system

465
4-3. Do-it-yourself maintenance
4
Maintenance and care

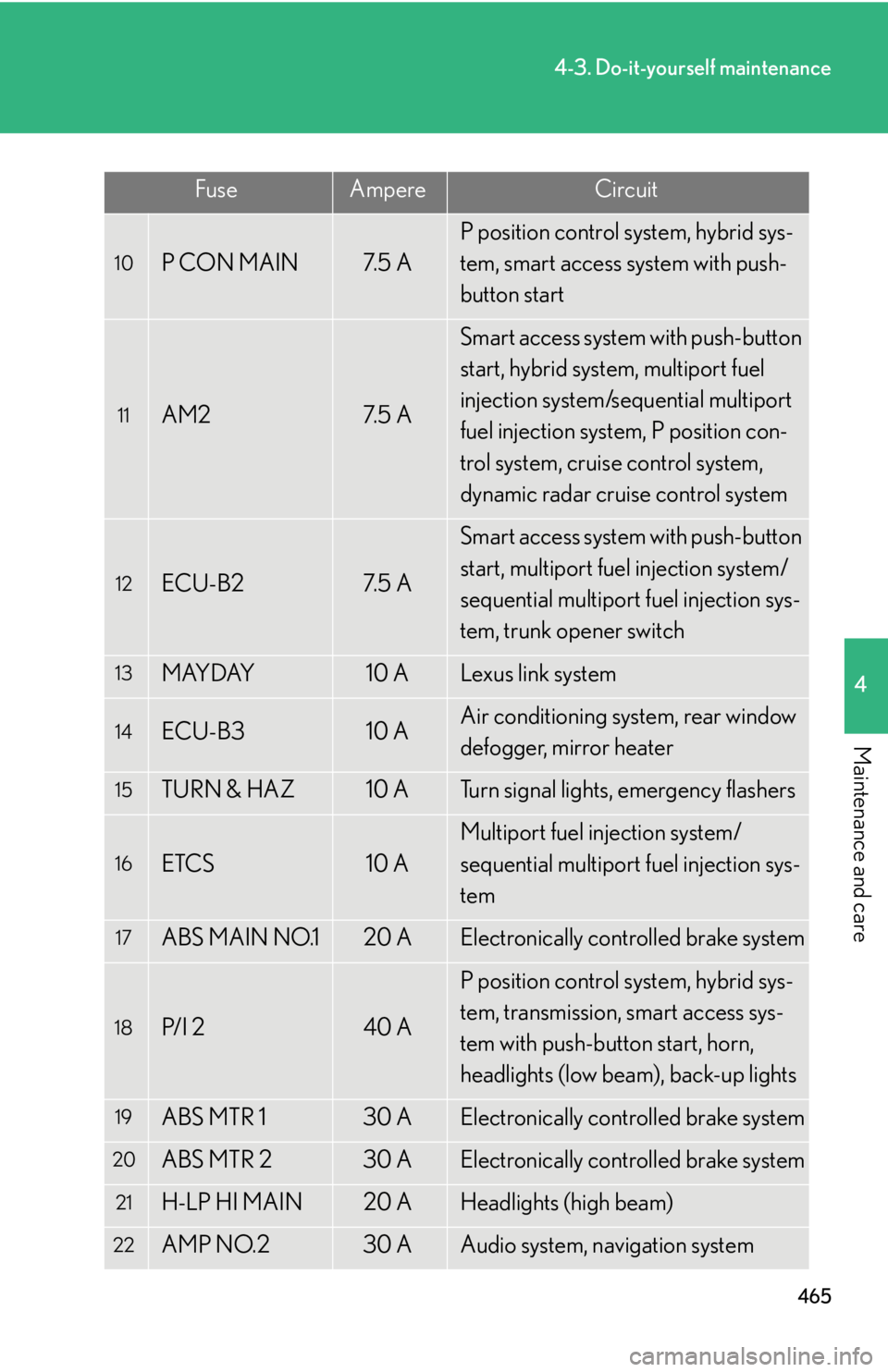

10P CON MAIN7. 5 A
P position control system, hybrid sys-
tem, smart access system with push-
button start
11AM27. 5 A
Smart access system with push-button
start, hybrid system, multiport fuel
injection system/sequential multiport
fuel injection system, P position con-
trol system, cruise control system,
dynamic radar cruise control system
12ECU-B27. 5 A
Smart access system with push-button
start, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, trunk opener switch
13MAYDAY10 ALexus link system
14ECU-B310 AAir conditioning system, rear window
defogger, mirror heater
15TURN & HAZ10 ATurn signal lights, emergency flashers
16ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
17ABS MAIN NO.120 AElectronically controlled brake system
18P/I 240 A
P position control system, hybrid sys-
tem, transmission, smart access sys-
tem with push-button start, horn,
headlights (low beam), back-up lights
19ABS MTR 130 AElectronically controlled brake system
20ABS MTR 230 AElectronically controlled brake system
21H-LP HI MAIN20 AHeadlights (high beam)
22AMP NO.230 AAudio system, navigation system
FuseAmpereCircuit

466
4-3. Do-it-yourself maintenance
23DOOR NO.225 ANo circuit
24P/I 160 AIG2, EFI MAIN, BATT FAN
25EPS60 AElectric power steering system
26PCU10 AHybrid system
27IGCT NO.210 A
Smart access system with push-button
start, hybrid system, P position control
system, multiport fuel injection sys-
tem/sequential multiport fuel injection
system
28MIR HTR10 ARear window defogger, mirror heater
29RAD NO.115 AAudio system, navigation system
30DOME10 A
Interior lights, antiglare inside rear
view mirror, audio system, navigation
system, garage door opener
31ECU-B7. 5 A
Smart access system with push-button
start, air conditioning system, gauges
and meters, outside rear view mirror,
clock, seats position memory, electric
tilt & telescopic steering wheel
32H-LP LH HI10 ALeft-hand headlight (high beam)
33H-LP RH HI10 ARight-hand headlight (high beam)
34EFI NO. 210 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
35IGCT NO.310 AHybrid system
FuseAmpereCircuit

467
4-3. Do-it-yourself maintenance
4
Maintenance and care

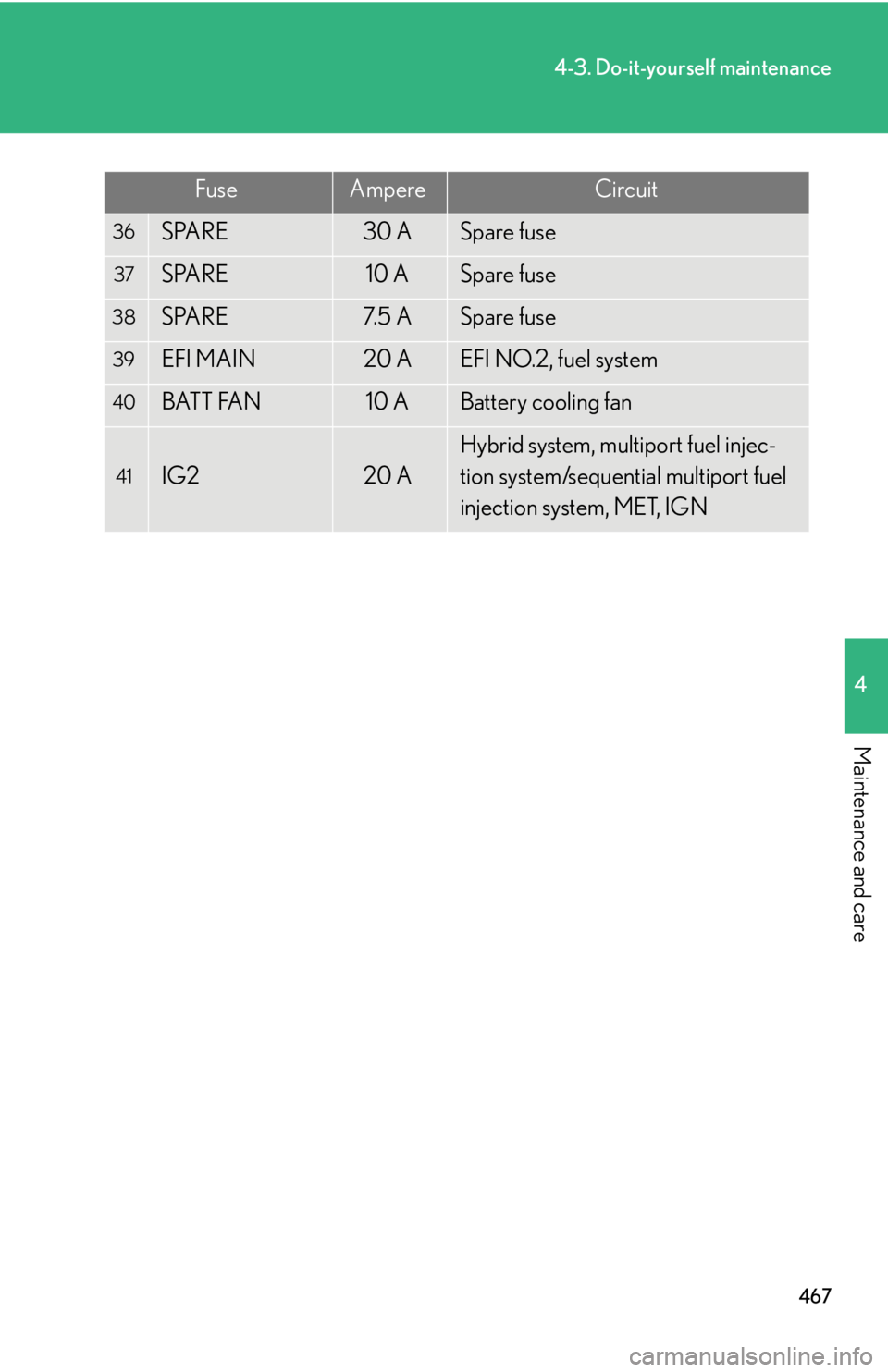

36SPARE30 ASpare fuse
37SPARE10 ASpare fuse
38SPARE7. 5 ASpare fuse
39EFI MAIN20 AEFI NO.2, fuel system
40BATT FAN10 ABattery cooling fan
41IG220 A
Hybrid system, multiport fuel injec-
tion system/sequential multiport fuel
injection system, MET, IGN
FuseAmpereCircuit

468
4-3. Do-it-yourself maintenance

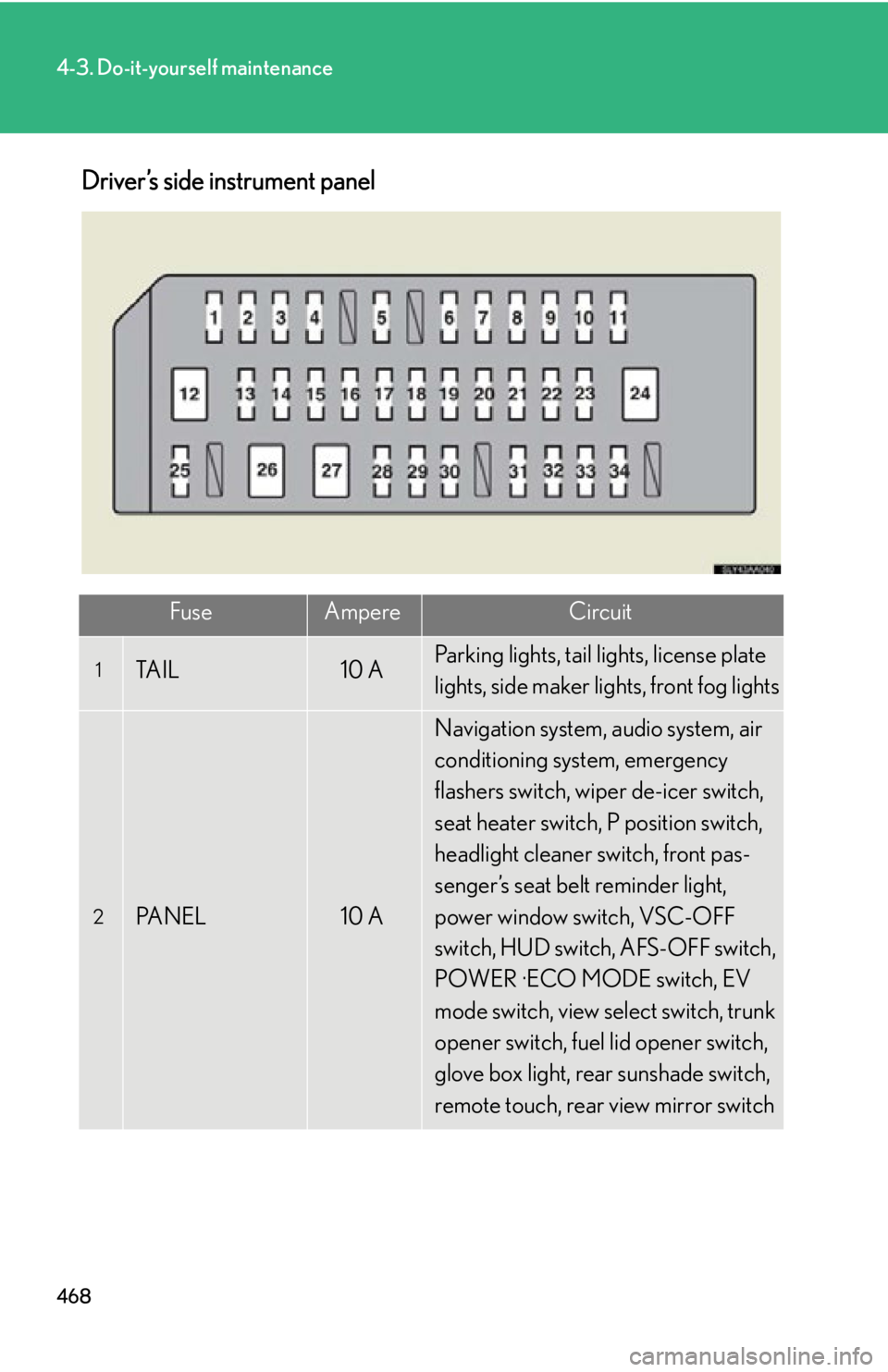

Driver’s side instrument panel
FuseAmpereCircuit
1TA I L10 AParking lights, tail lights, license plate
lights, side maker lights, front fog lights
2PA N E L10 A
Navigation system, audio system, air
conditioning system, emergency
flashers switch, wiper de-icer switch,
seat heater switch, P position switch,
headlight cleaner switch, front pas-
senger’s seat belt reminder light,
power window switch, VSC-OFF
switch, HUD switch, AFS-OFF switch,
POWER ·ECO MODE switch, EV
mode switch, view select switch, trunk
opener switch, fuel lid opener switch,
glove box light, rear sunshade switch,
remote touch, rear view mirror switch

469
4-3. Do-it-yourself maintenance
4
Maintenance and care

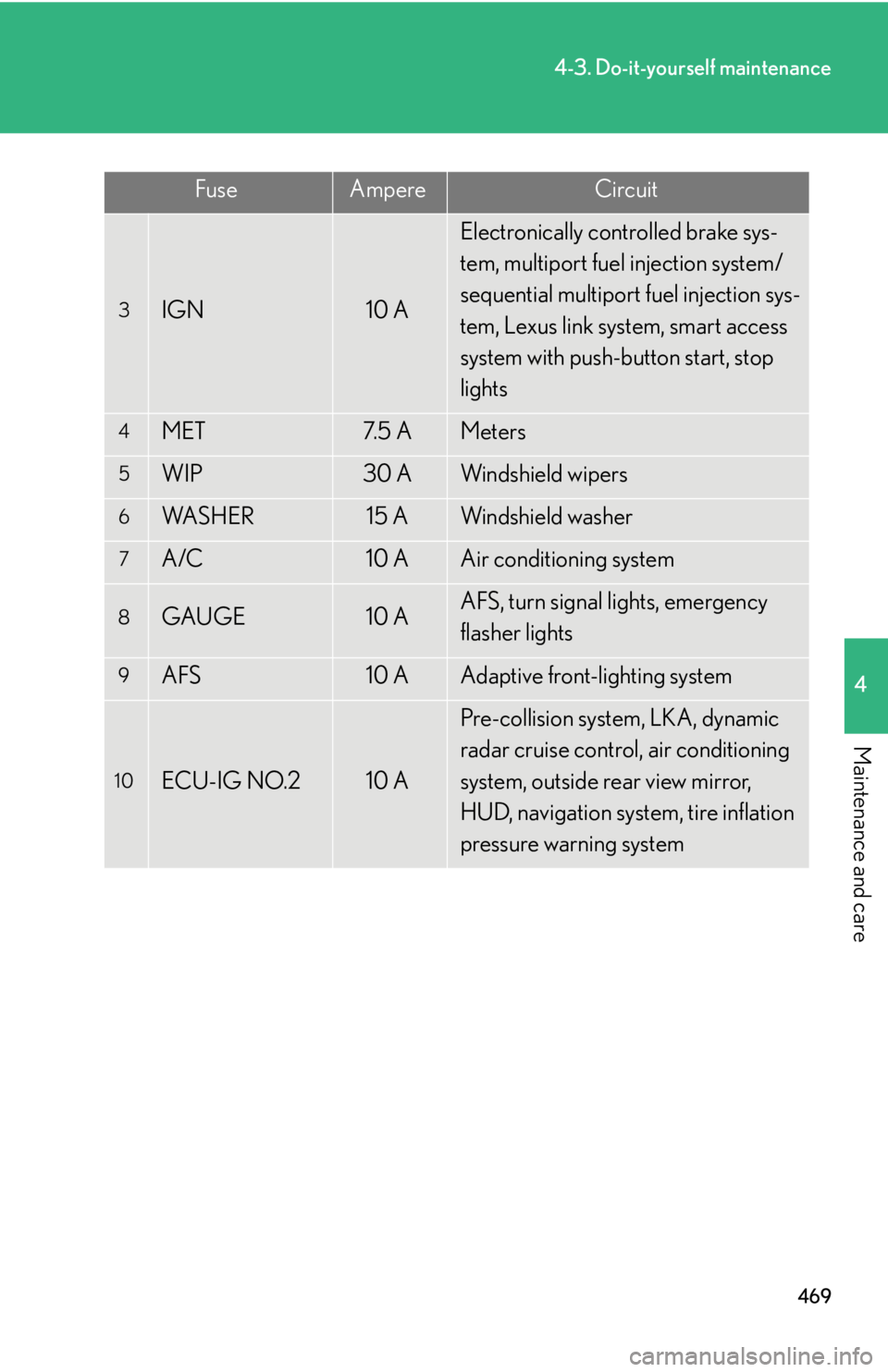

3IGN10 A
Electronically controlled brake sys-
tem, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, Lexus link system, smart access
system with push-button start, stop
lights
4MET7. 5 AMeters
5WIP30 AWindshield wipers
6WA S H E R15 AWindshield washer
7A/C10 AAir conditioning system
8GAUGE10 AAFS, turn signal lights, emergency
flasher lights
9AFS10 AAdaptive front-lighting system
10ECU-IG NO.210 A
Pre-collision system, LKA, dynamic
radar cruise control, air conditioning
system, outside rear view mirror,
HUD, navigation system, tire inflation
pressure warning system
FuseAmpereCircuit

470
4-3. Do-it-yourself maintenance

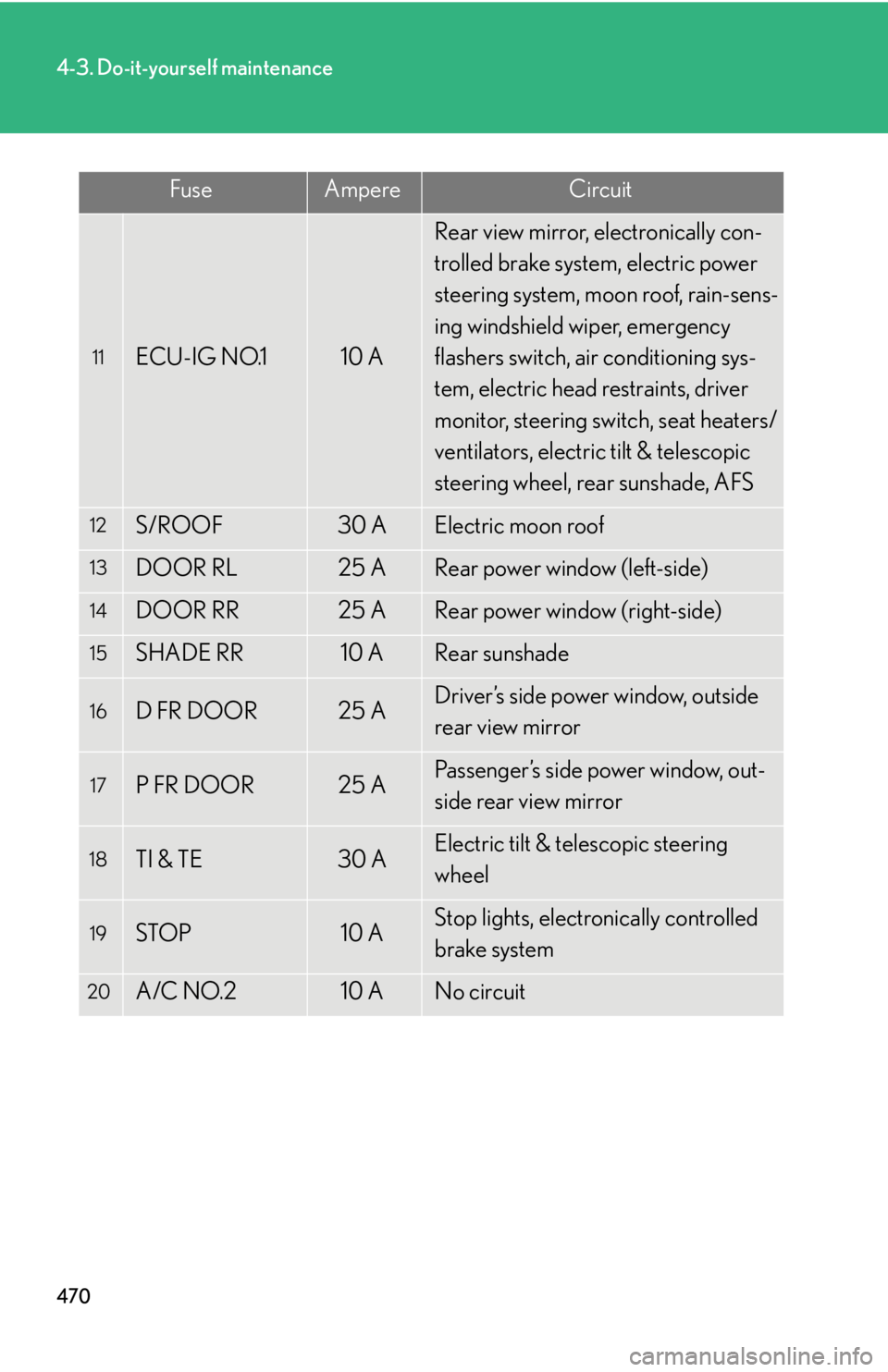

11ECU-IG NO.110 A
Rear view mirror, electronically con-
trolled brake system, electric power
steering system, moon roof, rain-sens-
ing windshield wiper, emergency
flashers switch, air conditioning sys-
tem, electric head restraints, driver
monitor, steering switch, seat heaters/
ventilators, electric tilt & telescopic
steering wheel, rear sunshade, AFS
12S/ROOF30 AElectric moon roof
13DOOR RL25 ARear power window (left-side)
14DOOR RR25 ARear power window (right-side)
15SHADE RR10 ARear sunshade
16D FR DOOR25 ADriver’s side power window, outside
rear view mirror
17P FR DOOR25 APassenger’s side power window, out-
side rear view mirror
18TI & TE30 AElectric tilt & telescopic steering
wheel
19STOP10 AStop lights, electronically controlled
brake system
20A/C NO.210 ANo circuit
FuseAmpereCircuit
