display Lexus HS250h 2012 Owners Manual

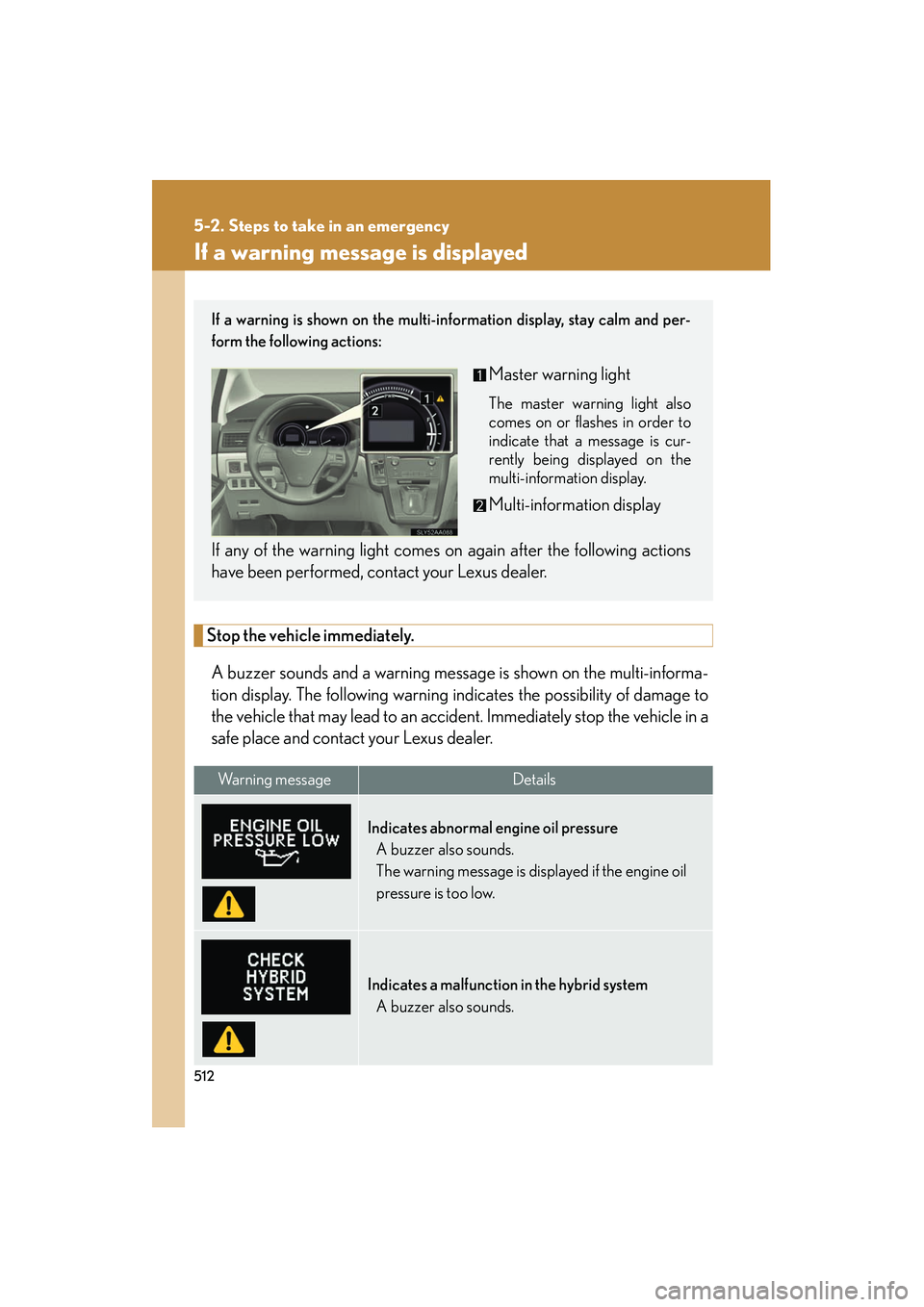

512
5-2. Steps to take in an emergency
HS250h_U_75050U
If a warning message is displayed
Stop the vehicle immediately.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warning indicates the possibility of damage to
the vehicle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
Indicates abnormal engine oil pressure A buzzer also sounds.
The warning message is displayed if the engine oil
pressure is too low.
Indicates a malfunction in the hybrid system
A buzzer also sounds.
If a warning is shown on the multi-information display, stay calm and per-
form the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning light comes on again after the following actions
have been performed, contact your Lexus dealer.

5
When trouble arises
513
5-2. Steps to take in an emergency
HS250h_U_75050U
Have the vehicle inspected by your Lexus dealer immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failure to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
Indicates a malfunction in the P position control A buzzer also sounds.
In this situation, there is a possibility that the parking
lock mechanism will not work.
When parking, park the vehicle on a flat surface and
apply the parking brake securely. Also, it may not be
possible to turn the “POWER” switch off. If this hap-
pens, applying the parking brake will enable the
switch to be turned off.
(Flashes)
(If equipped)
Indicates a malfunction in the LED headlight system A buzzer also sounds.
(Flashes)
(If equipped)
Indicates a malfunction in the pre-collision system A buzzer also sounds.

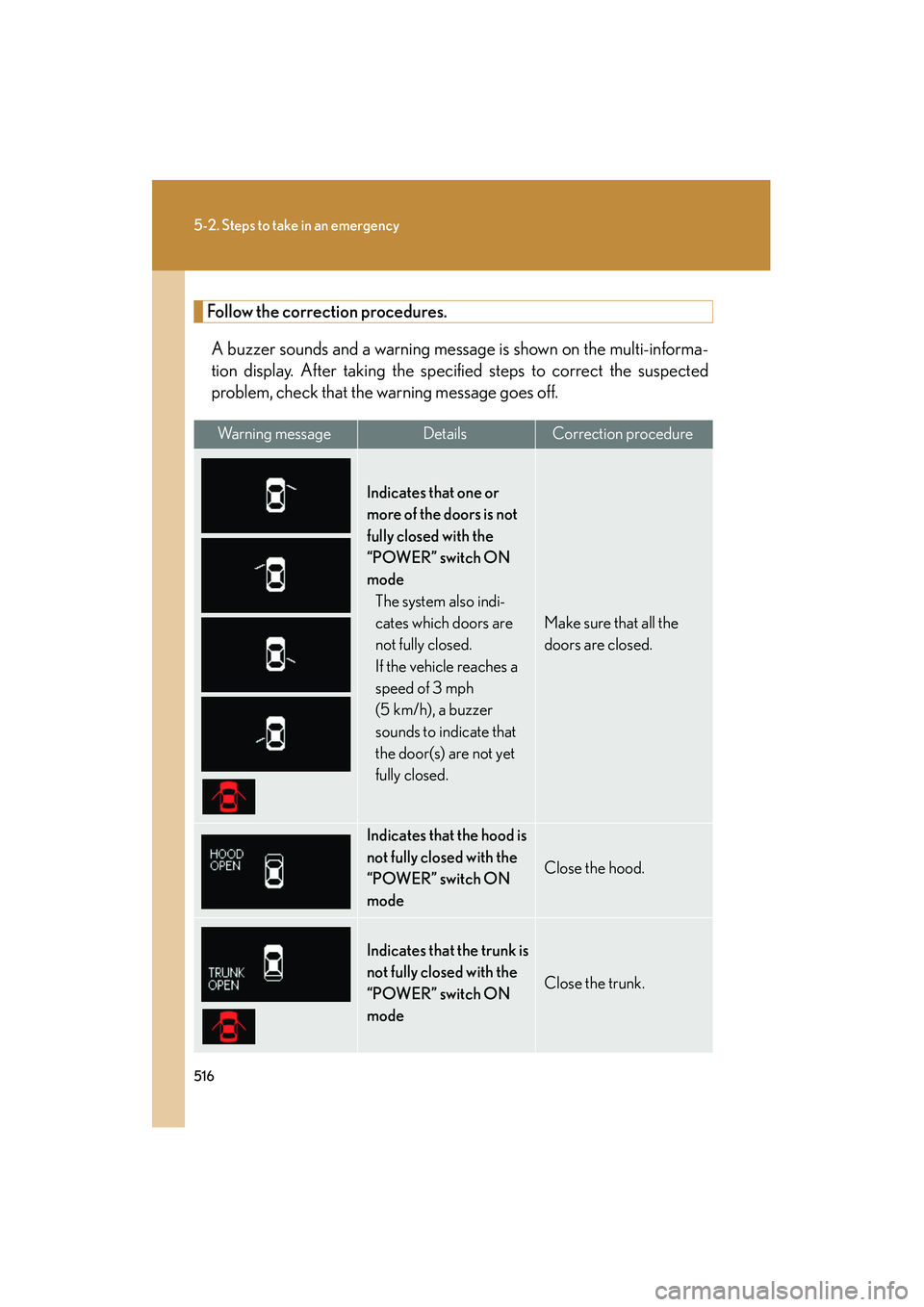

516
5-2. Steps to take in an emergency
HS250h_U_75050U
Follow the correction procedures.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message goes off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed with the
“POWER” switch ON
mode
The system also indi-
cates which doors are
not fully closed.
If the vehicle reaches a
speed of 3 mph
(5 km/h), a buzzer
sounds to in dicate that
the door(s) are not yet
fully closed.
Make sure that all the
doors are closed.
Indicates that the hood is
not fully closed with the
“POWER” switch ON
mode
Close the hood.
Indicates that the trunk is
not fully closed with the
“POWER” switch ON
mode
Close the trunk.

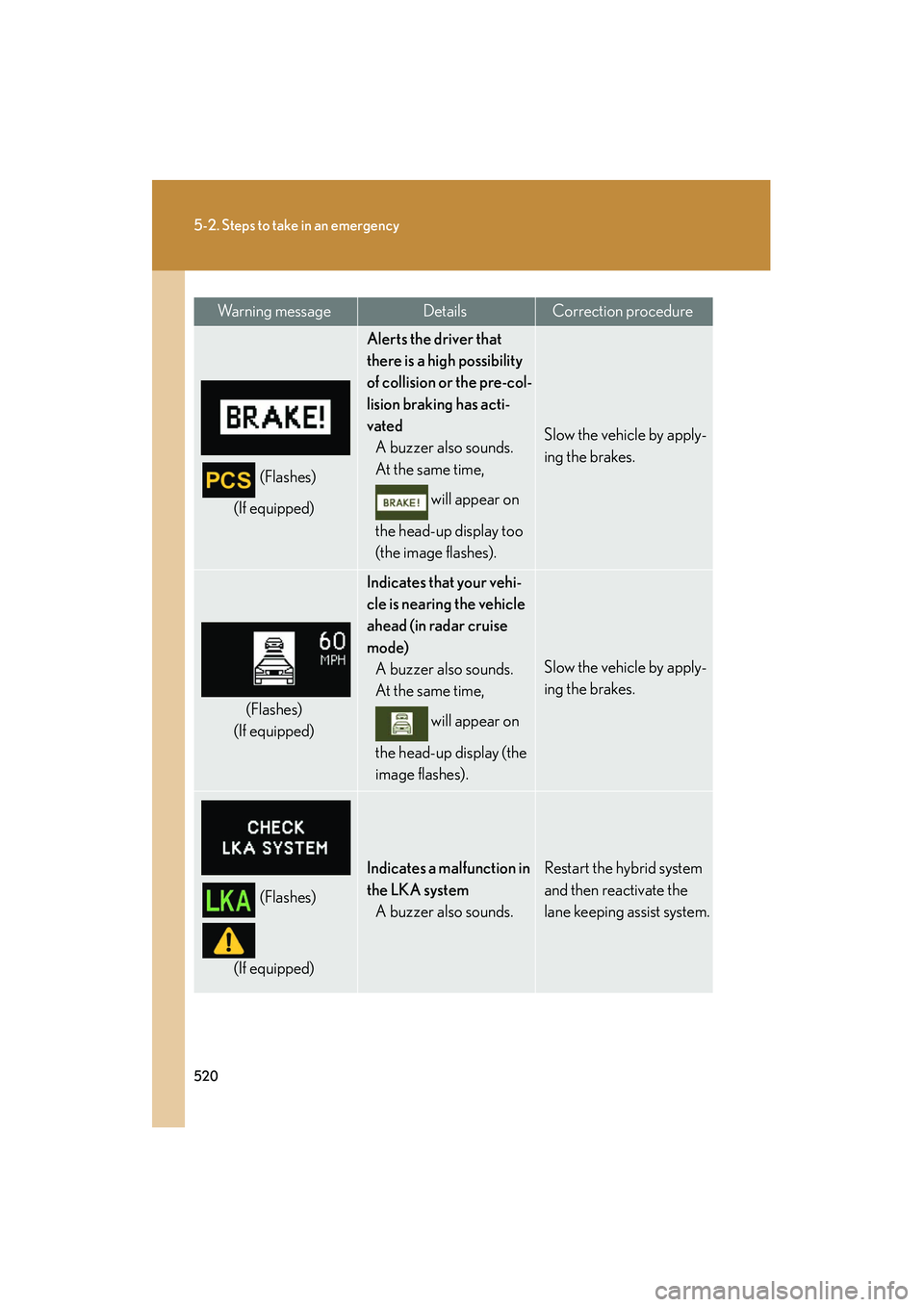

520
5-2. Steps to take in an emergency
HS250h_U_75050U
(Flashes)
(If equipped)
Alerts the driver that
there is a high possibility
of collision or the pre-col-
lision braking has acti-
vated A buzzer also sounds.
At the same time,
will appear on
the head-up display too
(the image flashes).
Slow the vehicle by apply-
ing the brakes.
(Flashes)
(If equipped)
Indicates that your vehi-
cle is nearing the vehicle
ahead (in radar cruise
mode) A buzzer also sounds.
At the same time,
will appear on
the head-up display (the
image flashes).
Slow the vehicle by apply-
ing the brakes.
(Flashes)
(If equipped)
Indicates a malfunction in
the LKA system A buzzer also sounds.Restart the hybrid system
and then reactivate the
lane keeping assist system.
Wa r n i n g m e s s a g eDetailsCorrection procedure

5
When trouble arises
521
5-2. Steps to take in an emergency
HS250h_U_75050U
Indicates that the LKA is
suspendedA buzzer also sounds.
•The camera sensor temperature is higher
than the operation tem-
perature range.
• The power steering system operation is
restricted.
Reactivate the lane keep-
ing assist system.
Alerts the driver that the
vehicle is out of the lanes
(while the LKA system is
operating).
A buzzer also sounds.
The lane markings and/
or the steering wheel
marking flash.
At the same time,
will appear on
the head-up display (the
image flashes).
Check the road condi-
tions and drive the vehicle
at a safe speed.
Indicates that the hybrid
system has overheated A buzzer also sounds.Stop and check.
(→ P. 552)
Wa r n i n g m e s s a g eDetailsCorrection procedure

5
When trouble arises

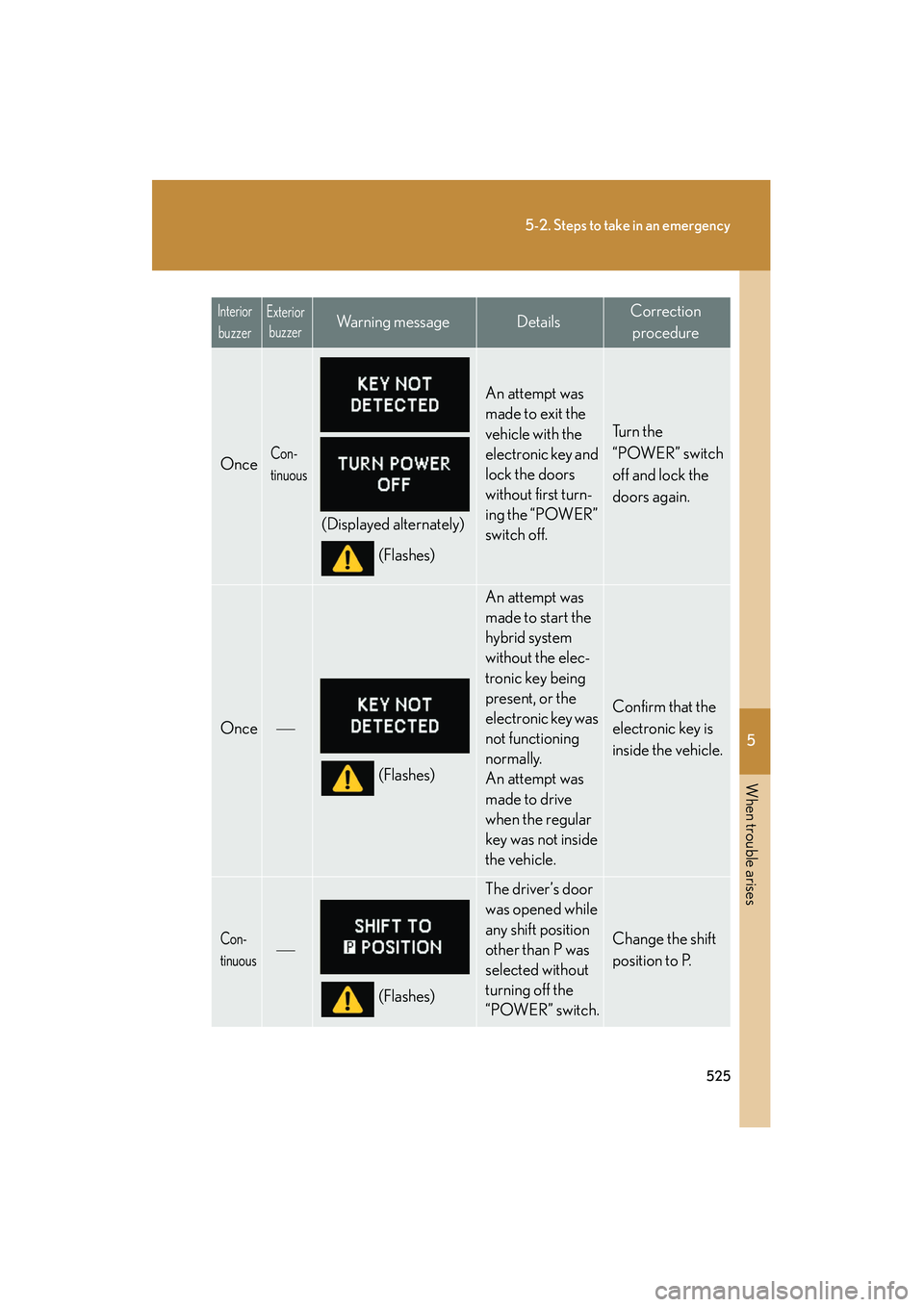

525
5-2. Steps to take in an emergency
HS250h_U_75050U
OnceCon-
tinuous
(Displayed alternately)(Flashes)
An attempt was
made to exit the
vehicle with the
electronic key and
lock the doors
without first turn-
ing the “POWER”
switch off.
Tu r n t h e
“POWER” switch
off and lock the
doors again.
Once
(Flashes)
An attempt was
made to start the
hybrid system
without the elec-
tronic key being
present, or the
electronic key was
not functioning
normally.
An attempt was
made to drive
when the regular
key was not inside
the vehicle.
Confirm that the
electronic key is
inside the vehicle.
Con-
tinuous
(Flashes)
The driver’s door
was opened while
any shift position
other than P was
selected without
turning off the
“POWER” switch.
Change the shift
position to P.
Interior buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure

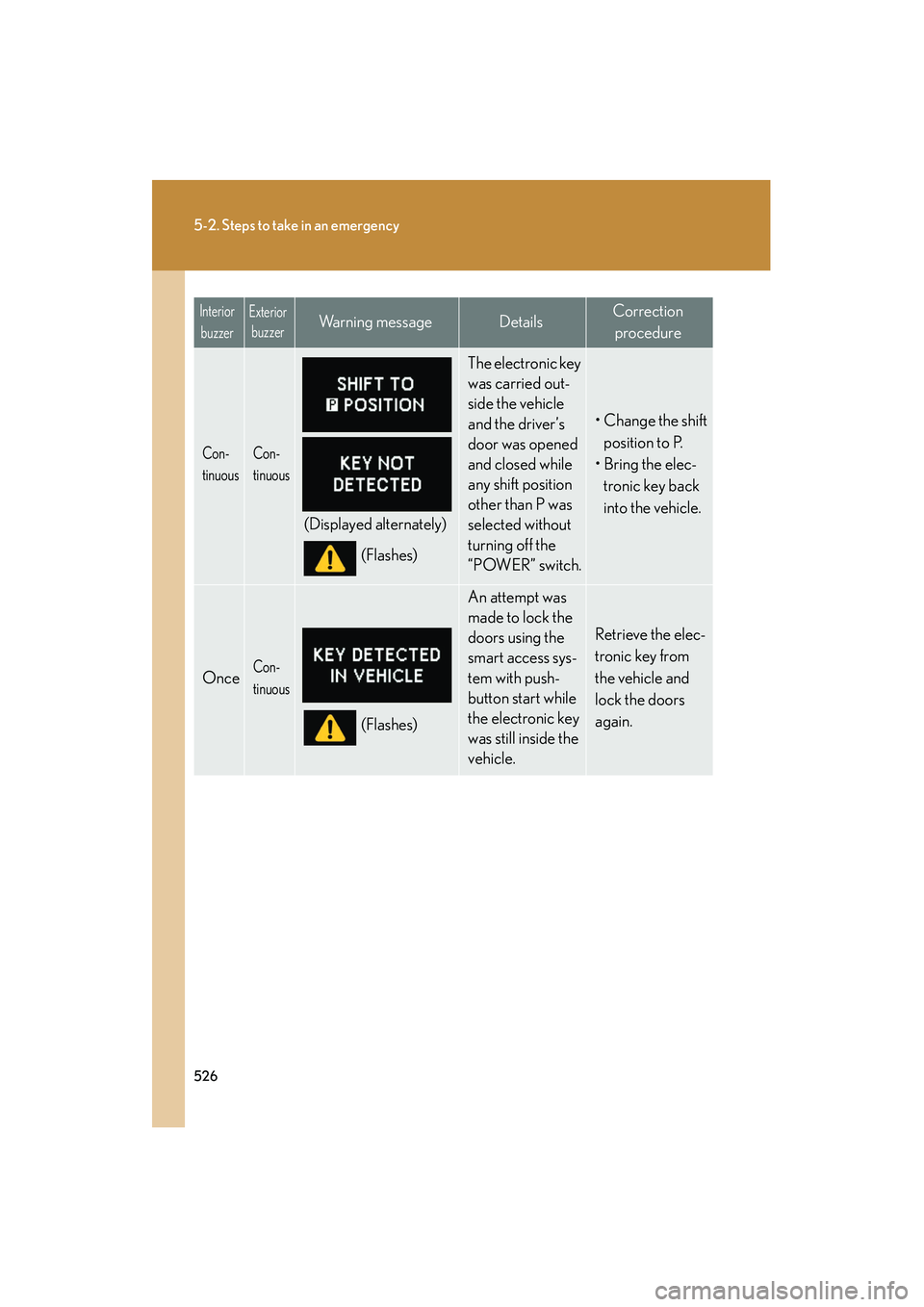

526
5-2. Steps to take in an emergency
HS250h_U_75050U
Con-
tinuousCon-
tinuous
(Displayed alternately)(Flashes)
The electronic key
was carried out-
side the vehicle
and the driver’s
door was opened
and closed while
any shift position
other than P was
selected without
turning off the
“POWER” switch.
• Change the shift position to P.
• Bring the elec-
tronic key back
into the vehicle.
OnceCon-
tinuous
(Flashes)
An attempt was
made to lock the
doors using the
smart access sys-
tem with push-
button start while
the electronic key
was still inside the
vehicle.
Retrieve the elec-
tronic key from
the vehicle and
lock the doors
again.
Interior buzzerExterior buzzerWarning messageDetailsCorrection
procedure

5
When trouble arises

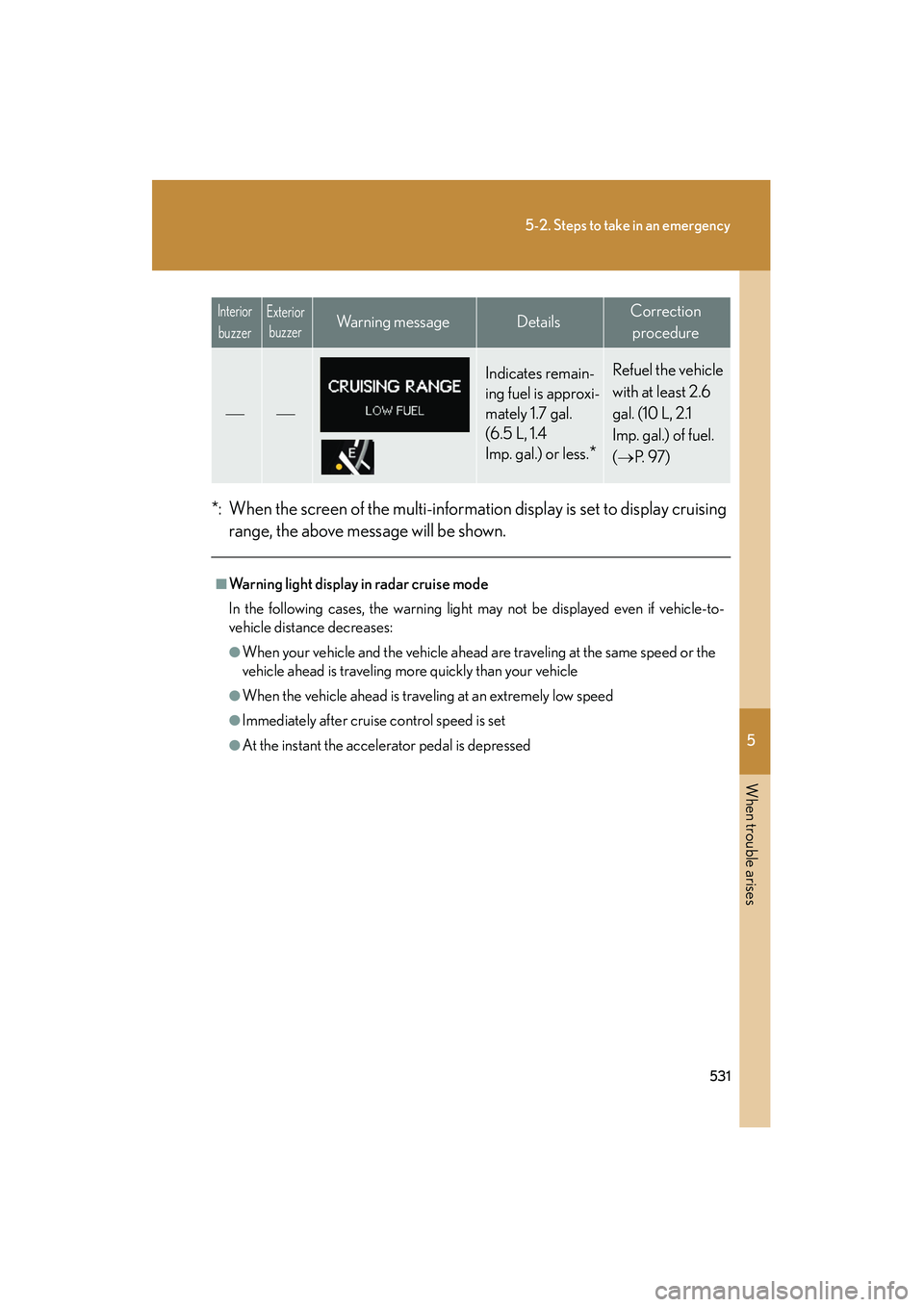

531
5-2. Steps to take in an emergency
HS250h_U_75050U*: When the screen of the multi-information display is set to display cruising
range, the above message will be shown.

Indicates remain-
ing fuel is approxi-
mately 1.7 gal.
(6.5 L, 1.4
Imp. gal.) or less.
*
Refuel the vehicle
with at least 2.6
gal. (10 L, 2.1
Imp. gal.) of fuel.
(→ P. 9 7 )
■Warning light display in radar cruise mode
In the following cases, the warning light may not be displayed even if vehicle-to-
vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at an extremely low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure

552
5-2. Steps to take in an emergency
HS250h_U_75050U
If your vehicle overheats
Correction procedures■ If the engine coolant temperature warning light comes on or flashes
Stop the vehicle in a safe place and turn off the air conditioning
system.
Check to see if steam is coming out from the engine area.
If you see steam:
Stop the hybrid system. Carefully lift the hood after the steam
subsides and then restart the hybrid system.
If you do not see steam:
Leave the hybrid system operating and carefully lift the hood.
Check to see if the cooling fans are operating.
If the fans are operating:
Wait until the high engine coolant temperature warning light goes
off and then stop the hybrid system.
If the fans are not operating:
Stop the hybrid system immediat ely and call your Lexus dealer.
The following may indicate that your vehicle is overheating:
●The high engine coolant temperature warning light comes on or
flashes:
The engine may be overheating.
● “HYBRID SYSTEM OVERHEAT” is shown on the multi-information
display:
The power control unit may be overheating.
Follow the correction procedure as described below.

5
When trouble arises
553
5-2. Steps to take in an emergency
HS250h_U_75050UAfter the hybrid system has cooled
down sufficiently, check the engine
coolant level and inspect the cool-
ing system for leaks.
If the engine compartment cover
needs to be removed. (
→P. 4 3 8 )
Add engine coolant if necessary.
Water can be used in an emer-
gency if engine coolant is unavail-
able. ( →P. 5 6 4 )
Have the vehicle inspected at the nearest Lexus dealer as soon as possi-
ble.
■If “HYBRID SYSTEM OVERHEAT” is shown on the multi-informa-
tion display
Stop the vehicle in a safe place.
Stop the hybrid system (press the “POWER” switch once), and
then carefully lift the hood.
Wait until the hybrid system has
fully cooled down. When the sys-
tem has fully cooled down, check if
coolant has leaked from the radia-
tor core.
If a large amount of coolant leak-
age is found, contact your Lexus
dealer immediately.
