Lexus HS250h 2012 Owner's Manual

270
3-1. Using the air conditioning system and defogger
HS250h_U_75050U

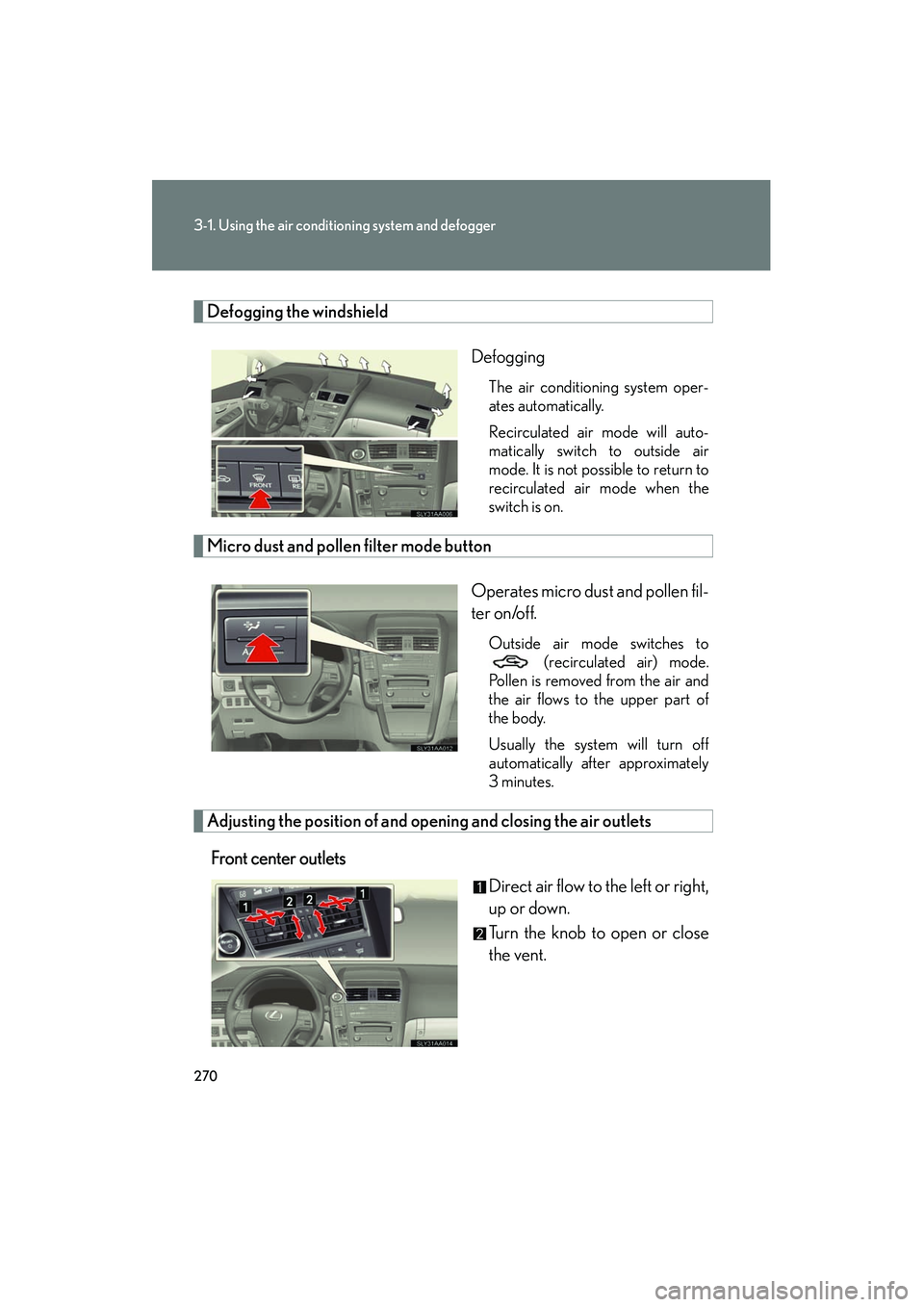

Defogging the windshieldDefogging
The air conditioning system oper-
ates automatically.
Recirculated air mode will auto-
matically switch to outside air
mode. It is not possible to return to
recirculated air mode when the
switch is on.
Micro dust and pollen filter mode button
Operates micro dust and pollen fil-
ter on/off.
Outside air mode switches to (recirculated air) mode.
Pollen is removed from the air and
the air flows to the upper part of
the body.
Usually the system will turn off
automatically after approximately
3 minutes.
Adjusting the position of and op ening and closing the air outlets
Front center outlets Direct air flow to the left or right,
up or down.
Turn the knob to open or close
the vent.

271
3-1. Using the air conditioning system and defogger
3
Interior features
HS250h_U_75050UFront side outlets
Direct air flow to the left or right,
up or down.
Turn the knob to open or close
the vent.
Rear outlets Direct air flow to the left or right,
up or down.
Turn the knob to open or close
the vent.
■Air conditioning system settings
When the “POWER” switch is turned on, the air conditioning system settings will be
set to those that were in use the last time the “POWER” switch was turned off.
●Air conditioning system settings are memorized individually on each electronic
key, so the settings reproduced will be specific to the key that is used.
●This feature is customizable at your Lexus dealer.
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and ambi-
ent conditions. As a result, the following may occur:
●The system may switch automatically to recirculated air mode when the coolest
temperature setting is selected when the ambient temperature is high.
●Immediately after the button is pressed, the fan may stop for a while until warm
or cool air is ready to flow.
●Cool air may flow to the area around the upper body when the heater is on.

272
3-1. Using the air conditioning system and defogger
HS250h_U_75050U

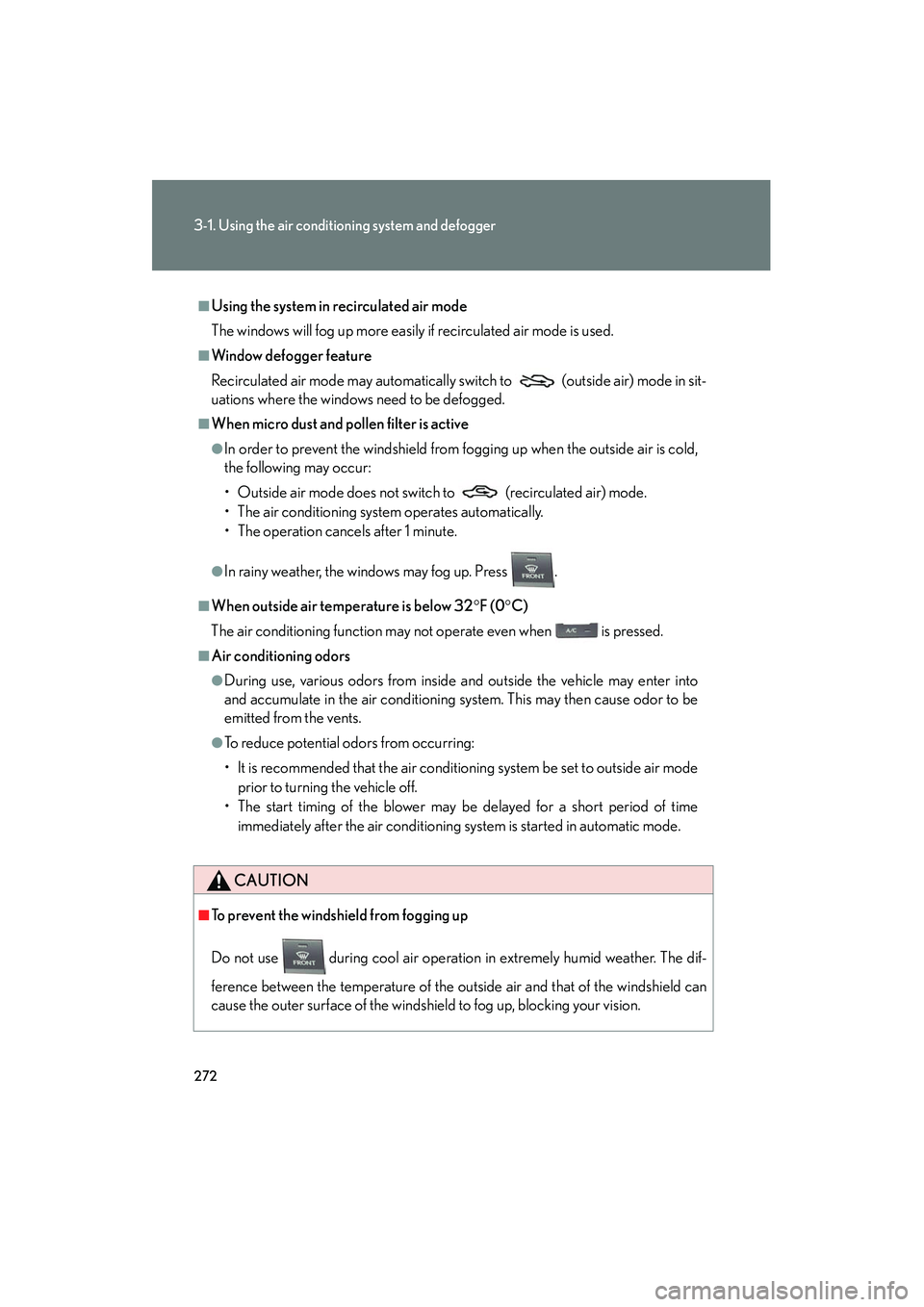

■Using the system in recirculated air mode
The windows will fog up more easily if recirculated air mode is used.
■Window defogger feature
Recirculated air mode may automatically switch to (outside air) mode in sit-
uations where the windows need to be defogged.
■When micro dust and pollen filter is active
●In order to prevent the windshield from fogging up when the outside air is cold,
the following may occur:
• Outside air mode does not switch to (recirculated air) mode.
• The air conditioning system operates automatically.
• The operation cancels after 1 minute.
●In rainy weather, the windows may fog up. Press .
■When outside air temperature is below 32°F (0 °C)
The air conditioning function may not operate even when
is pressed.
■Air conditioning odors
●During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to be
emitted from the vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditio ning system be set to outside air mode
prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning system is started in automatic mode.
CAUTION
■To prevent the windshield from fogging up
Do not use
during cool air operation in extremely humid weather. The dif-
ference between the temperature of the outside air and that of the windshield can
cause the outer surface of the windshield to fog up, blocking your vision.

273
3-1. Using the air conditioning system and defogger
3
Interior features
HS250h_U_75050U

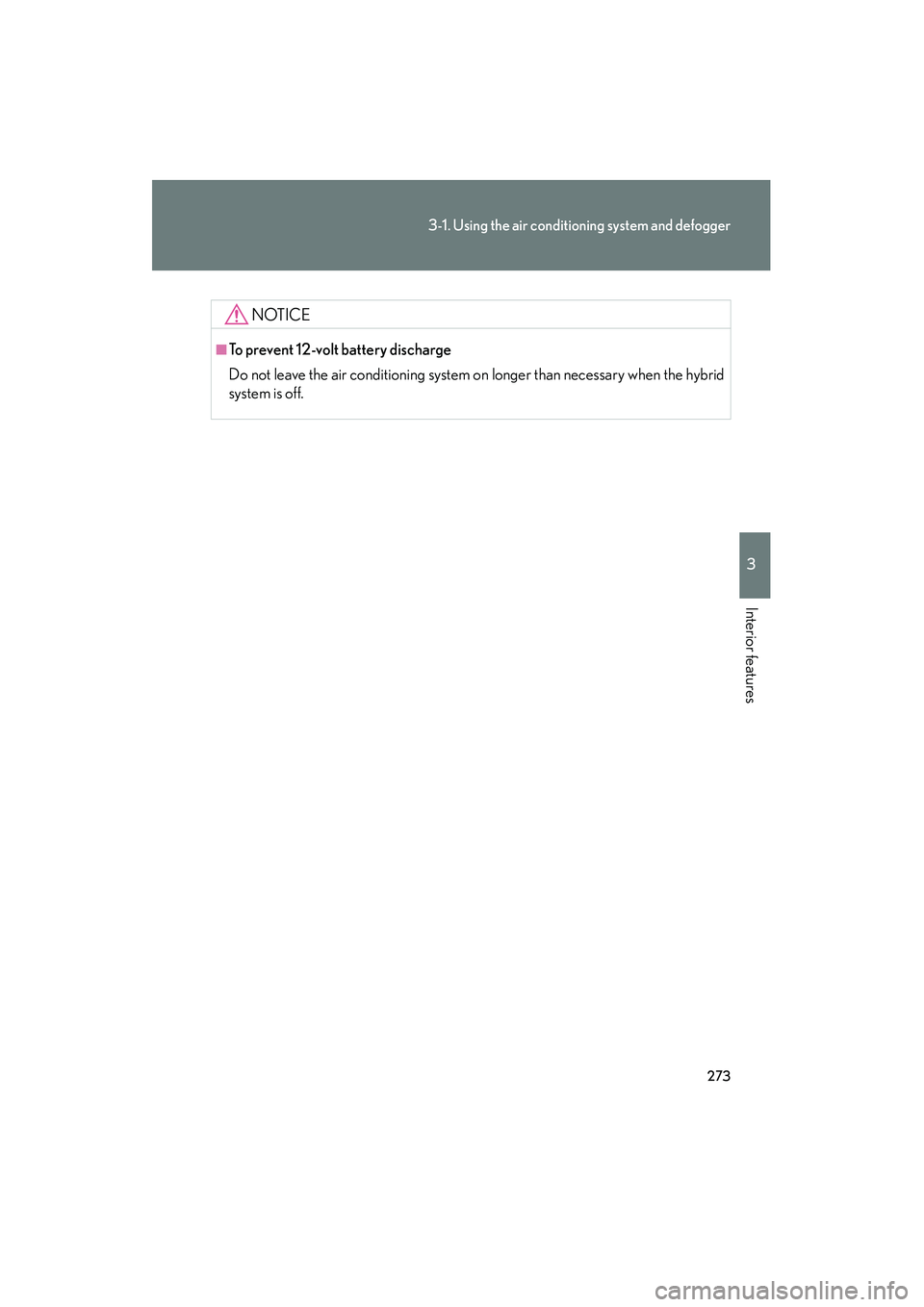

NOTICE
■To prevent 12-volt battery discharge
Do not leave the air conditioning system on longer than necessary when the hybrid
system is off.

274
3-1. Using the air conditioning system and defogger
HS250h_U_75050U

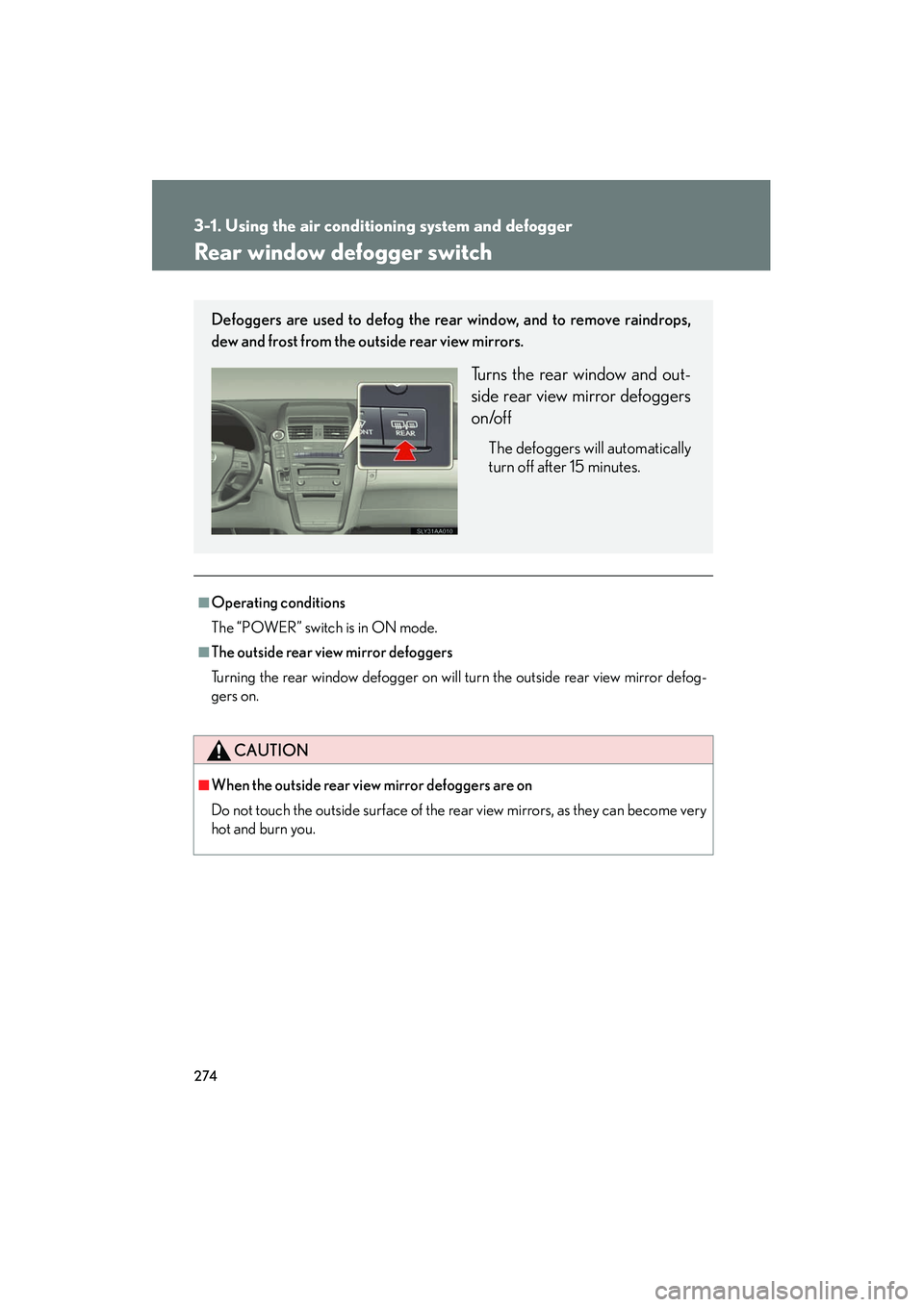

Rear window defogger switch
■Operating conditions
The “POWER” switch is in ON mode.
■The outside rear view mirror defoggers
Turning the rear window defogger on will turn the outside rear view mirror defog-
gers on.
CAUTION
■When the outside rear view mirror defoggers are on
Do not touch the outside surface of the rear view mirrors, as they can become very
hot and burn you.
Defoggers are used to defog the rear window, and to remove raindrops,
dew and frost from the outside rear view mirrors.
Turns the rear window and out-
side rear view mirror defoggers
on/off
The defoggers will automatically
turn off after 15 minutes.

275
3-1. Using the air conditioning system and defogger
3
Interior features
HS250h_U_75050U

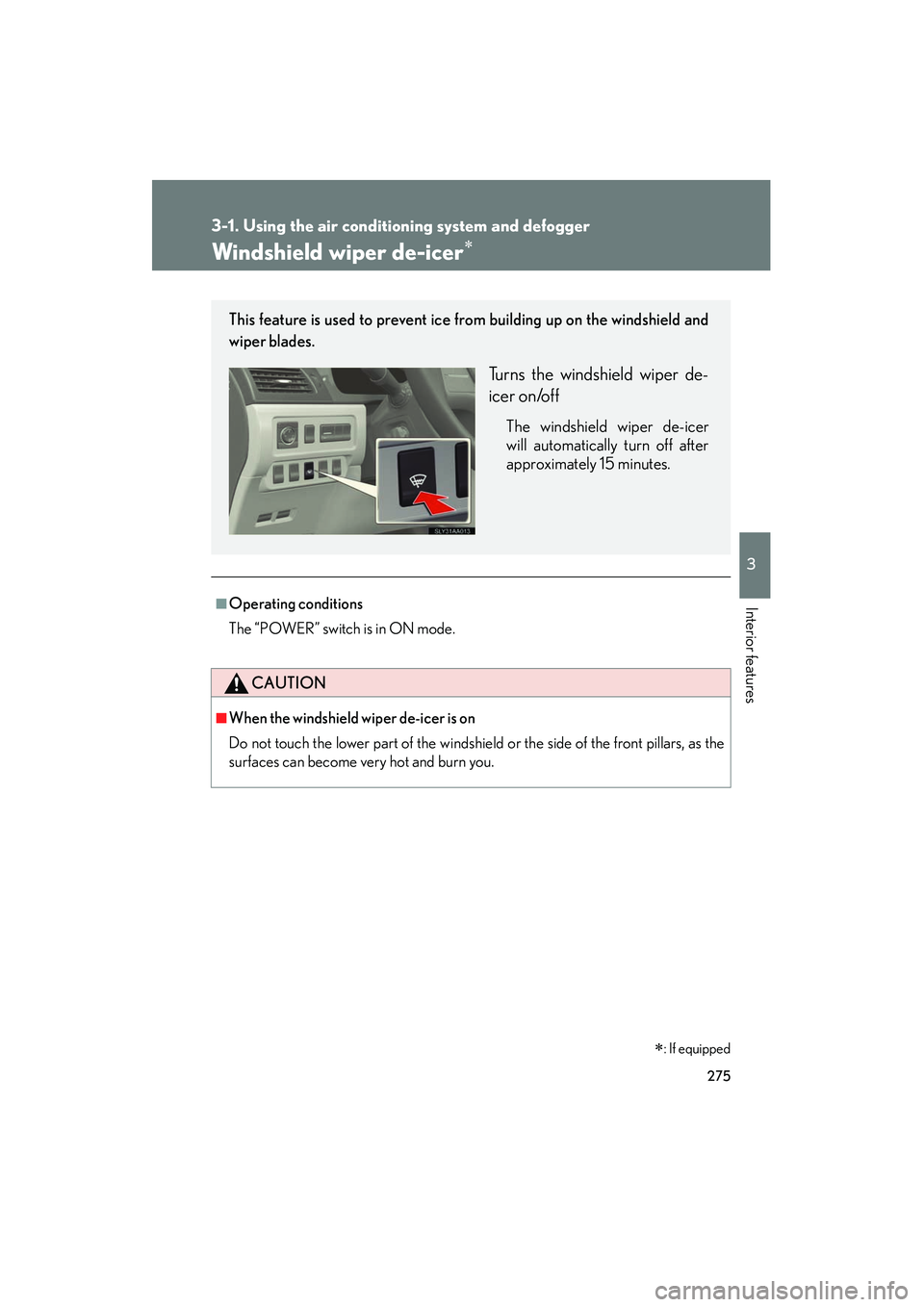

Windshield wiper de-icer∗
∗: If equipped
■Operating conditions
The “POWER” switch is in ON mode.
CAUTION
■When the windshield wiper de-icer is on
Do not touch the lower part of the windshield or the side of the front pillars, as the
surfaces can become very hot and burn you.
This feature is used to prevent ice from building up on the windshield and
wiper blades.
Turns the windshield wiper de-
icer on/off
The windshield wiper de-icer
will automatically turn off after
approximately 15 minutes.

276
HS250h_U_75050U
3-2. Using the audio system
Audio system
Vehicles with a navigation system:
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner’s Manual”.
Vehicles without a navigation system:
CD player with a changer and AM/FM radio

277
3-2. Using the audio system
3
Interior features
HS250h_U_75050U
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular phone
is being used inside or close to the vehicle while the audio system is operating.
Ti t l ePa g e
Using the radioP. 2 7 9
Using the CD playerP. 2 8 7
Playing MP3 and WMA discsP. 2 9 5
Operating an iPodP. 3 0 2
Operating a USB memoryP. 3 1 0
Optimal use of the audio systemP. 3 1 8
Using the AUX portP. 3 2 1
Using the steering wheel audio switchesP. 3 2 2

278
3-2. Using the audio system
HS250h_U_75050U
CAUTION
■Certification
●Pa r t 1 5 o f t h e F CC R u l e s
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the user’s
authority to operate this device.
●Laser products
• Do not take this unit apart or attempt to make any changes by yourself. This is an intricate unit that uses a laser pickup to retrieve information from the
surface of compact discs. The laser is carefully shielded so that its rays remain
inside the cabinet. Therefore, never try to disassemble the player or alter any
of its parts since you may be exposed to laser rays and dangerous voltages.
• This product utilizes a laser. Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
NOTICE
■To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine off.
■To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

279
3-2. Using the audio system
3
Interior features
HS250h_U_75050U

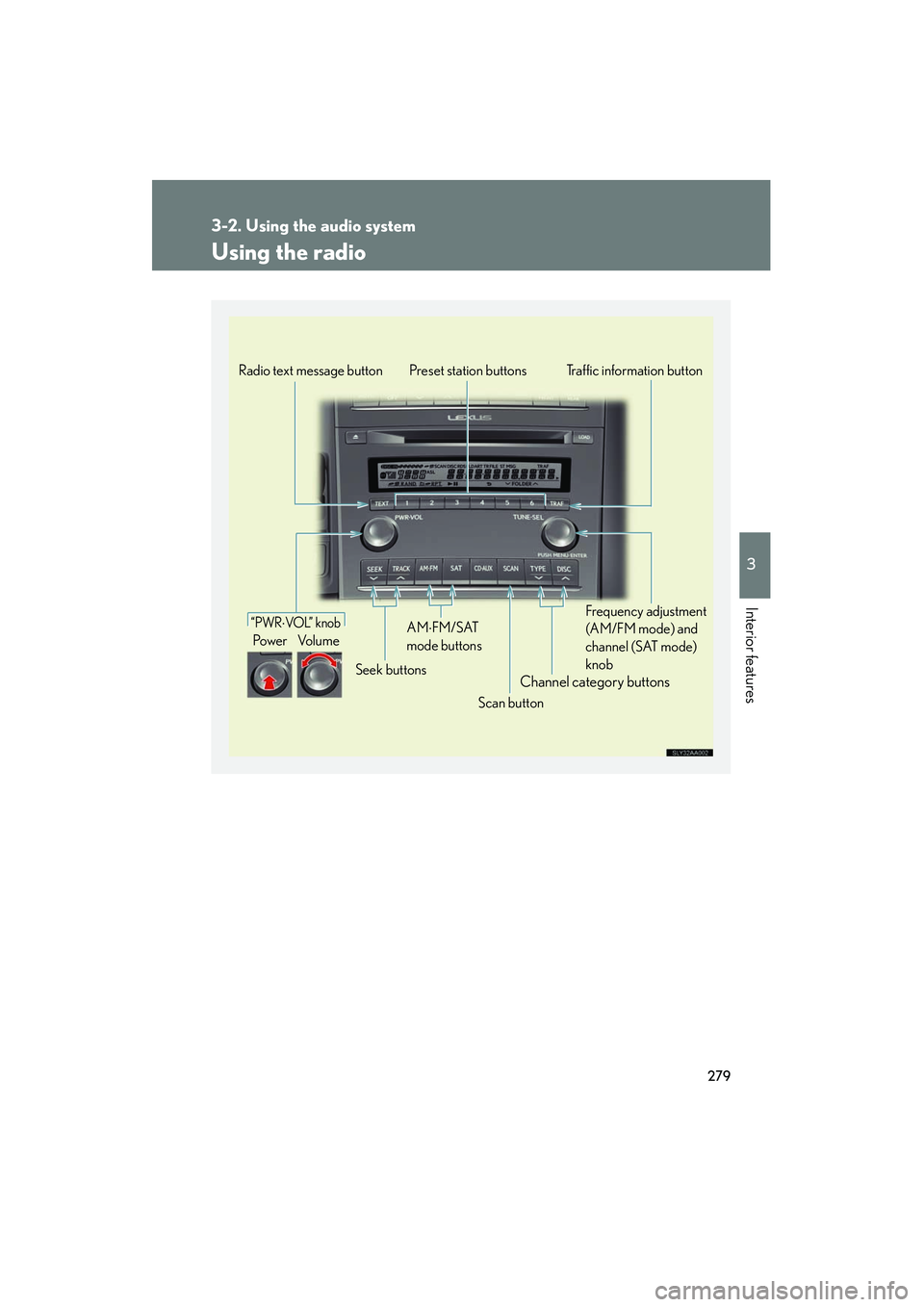

Using the radio
Channel category buttons
“PWR⋅VOL” knob
Po we r Vo l u m eTraffic information button
Preset station buttons
Scan button
Seek buttons
Radio text message button
Frequency adjustment
(AM/FM mode) and
channel (SAT mode)
knob
AM⋅FM/SAT
mode buttons
