engine Lexus HS250h 2012 Service Manual

443
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75050UPower control unit coolant reservoir
Reser voir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line. (→P. 5 6 4 )
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.
U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized water. (Minimum temperature: -31 °F [-35 °C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deionized water. (Minimum temperature: -44 °F [-42 °C])
For more details about coolant, contact your Lexus dealer.
■If the coolant level drops within a short time of replenishing
Visually check the radiators, hoses, engine/power control unit coolant reservoir
caps, drain cock and water pump.
If you cannot find a leak, have your Lexus dealer test the cap and check for leaks in
the cooling systems.

444
4-3. Do-it-yourself maintenance
HS250h_U_75050U
Radiator and condenserCheck the radiator and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of their
condition, have your vehicle inspected by your Lexus dealer.
CAUTION
■When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir caps.
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water
and antifreeze must be used to provide proper lubrication, corrosion protection
and cooling. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
CAUTION
■When the hybrid system is hot
Do not touch the radiators or condenser as they may be hot and cause serious inju-
ries, such as burns.

446
4-3. Do-it-yourself maintenance
HS250h_U_75050U
Washer fluidIf any washer does not work or the
warning message appears on the
multi-information display, the
washer tank may be empty. Add
washer fluid.
NOTICE
■If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear out or
when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, there may be a serious problem.
CAUTION
■When adding washer fluid
Do not add washer fluid when the hybrid system is hot or operating as washer fluid
contains alcohol and may catch fire if spilled on the engine etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bottle.

469
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75050U
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “POWER” switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid off.
Driver’s side instrument panel Remove the lid.
After a system failure, see “Fuse layout and amperage ratings”
(→ P. 472) for details about which fuse to check.

472
4-3. Do-it-yourself maintenance
HS250h_U_75050U

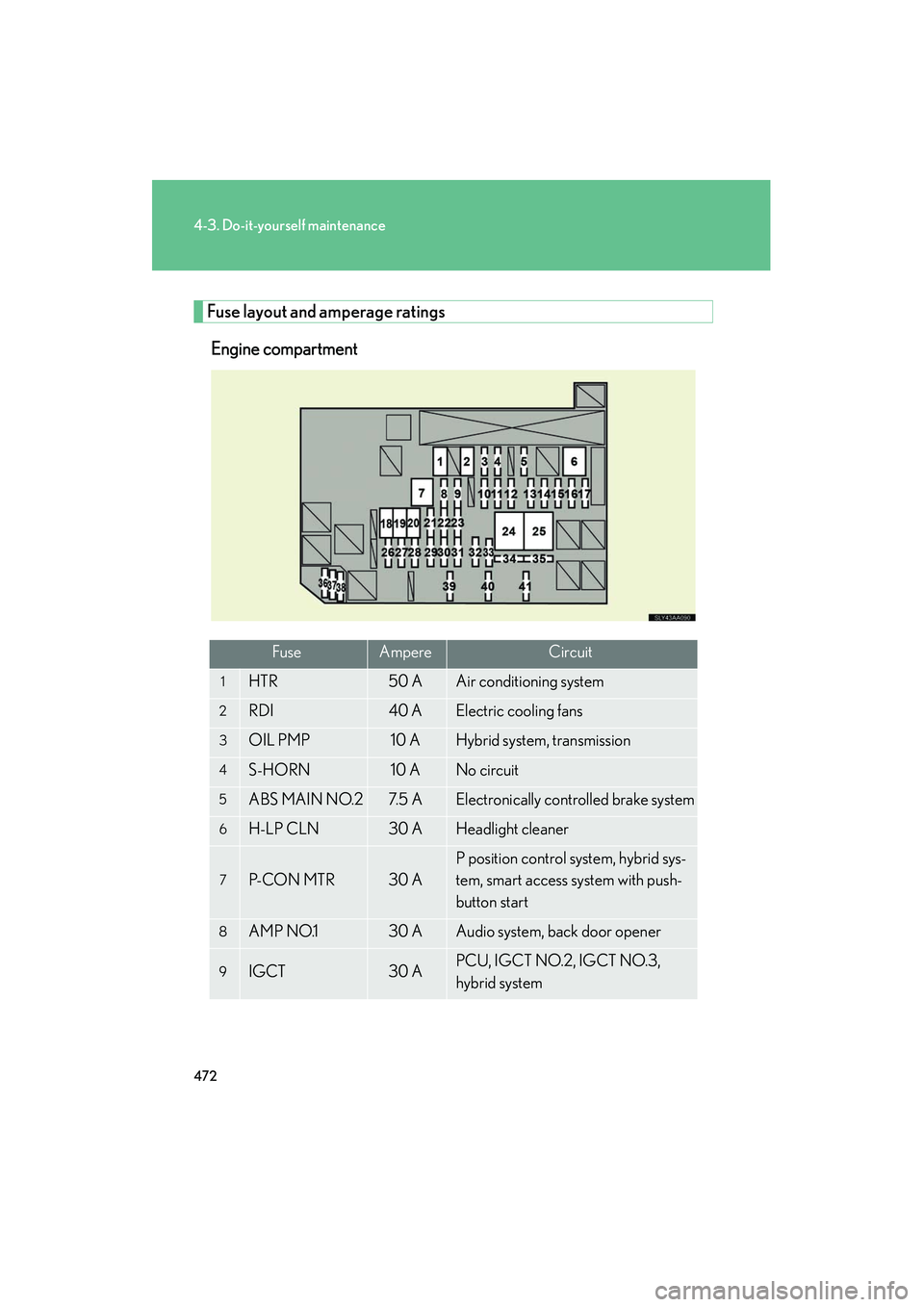

Fuse layout and amperage ratingsEngine compartment
FuseAmpereCircuit
1HTR50 AAir conditioning system
2RDI40 AElectric cooling fans
3OIL PMP10 AHybrid system, transmission
4S-HORN10 ANo circuit
5ABS MAIN NO.27. 5 AElectronically controlled brake system
6H-LP CLN30 AHeadlight cleaner
7P- CO N M T R30 A
P position control system, hybrid sys-
tem, smart access system with push-
button start
8AMP NO.130 AAudio system, back door opener
9IGCT30 APCU, IGCT NO.2, IGCT NO.3,
hybrid system

481
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75050U
Light bulbs
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replacement
seems difficult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.
■ Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( →P. 568)
■ Remove the engine compartment covers
→ P. 4 3 8
■ Front bulb locations
Halogen headlights
Front side marker light Headlight low beam
Parking light
Front turn signal light
Front fog lightHeadlight high beam
and daytime running light

5
When trouble arises
501
5-1. Essential information
HS250h_U_75050U
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■Visible symptoms
● Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● High engine coolant temperature warning light flashes or comes
on
■ Audible symptoms
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system
■ Operational symptoms
● Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road.
● Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor

5
When trouble arises

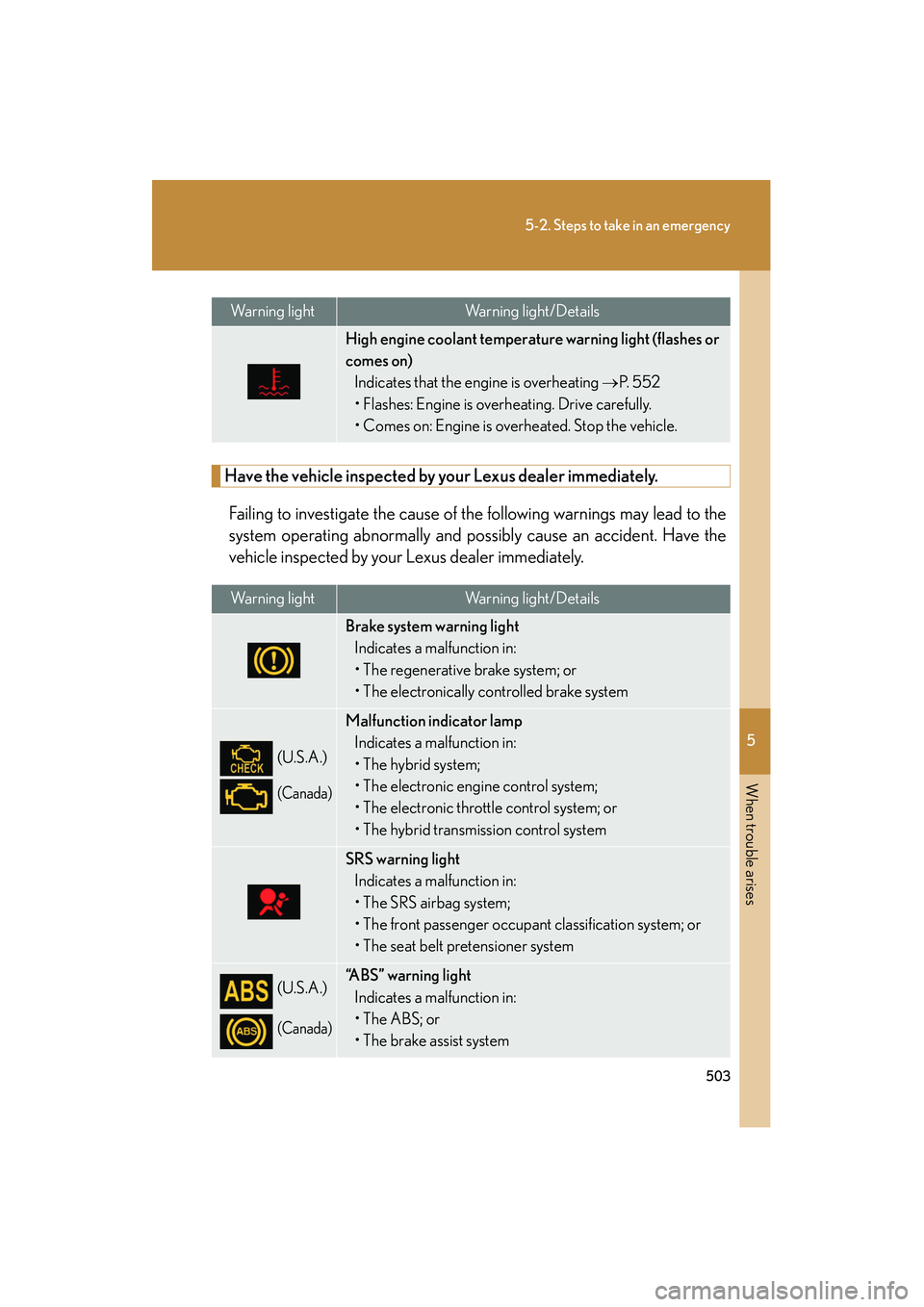

503
5-2. Steps to take in an emergency
HS250h_U_75050U
Have the vehicle inspected by your Lexus dealer immediately.Failing to investigate the cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
High engine coolant temperatur e warning light (flashes or
comes on)
Indicates that the engine is overheating →P. 552
• Flashes: Engine is overheating. Drive carefully.
• Comes on: Engine is overheated. Stop the vehicle.
Warning lightWarning light/Details
Brake system warning light Indicates a malfunction in:
• The regenerative brake system; or
• The electronically controlled brake system
(U.S.A.)

(Canada)
Malfunction indicator lampIndicates a malfunction in:
• The hybrid system;
• The electronic engine control system;
• The electronic throttle control system; or
• The hybrid transmission control system
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
(U.S.A.)

(Canada)
“ABS” warning lightIndicates a malfunction in:
•The ABS; or
• The brake assist system
Warning lightWarning light/Details

512
5-2. Steps to take in an emergency
HS250h_U_75050U
If a warning message is displayed
Stop the vehicle immediately.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warning indicates the possibility of damage to
the vehicle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
Indicates abnormal engine oil pressure A buzzer also sounds.
The warning message is displayed if the engine oil
pressure is too low.
Indicates a malfunction in the hybrid system
A buzzer also sounds.
If a warning is shown on the multi-information display, stay calm and per-
form the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning light comes on again after the following actions
have been performed, contact your Lexus dealer.

5
When trouble arises

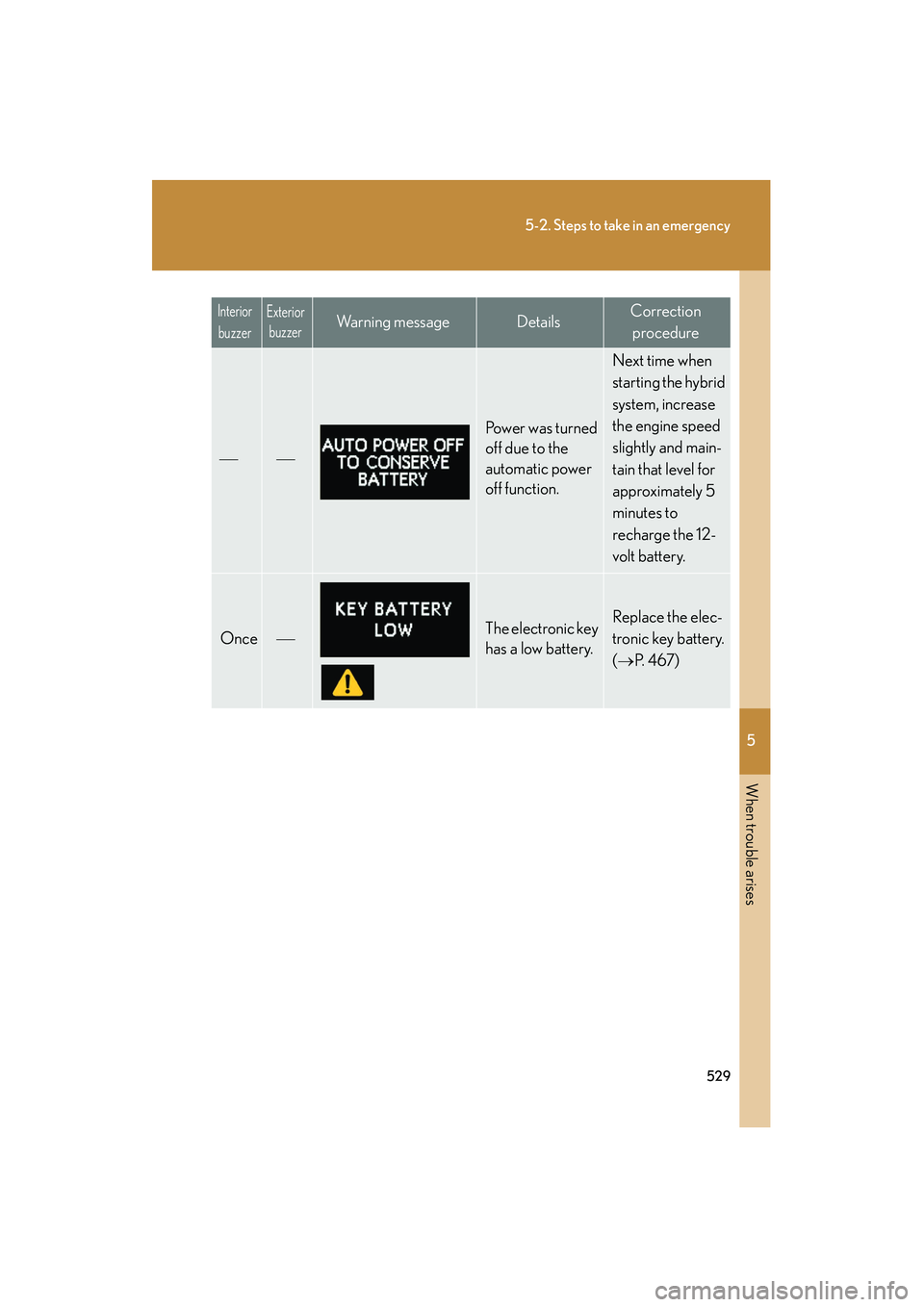

529
5-2. Steps to take in an emergency
HS250h_U_75050U

Po w e r w a s t u r n e d
off due to the
automatic power
off function.
Next time when
starting the hybrid
system, increase
the engine speed
slightly and main-
tain that level for
approximately 5
minutes to
recharge the 12-
volt battery.
OnceThe electronic key
has a low battery.Replace the elec-
tronic key battery.
(→ P. 4 6 7 )
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
